| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall Max (S) | Groove Width (W) |

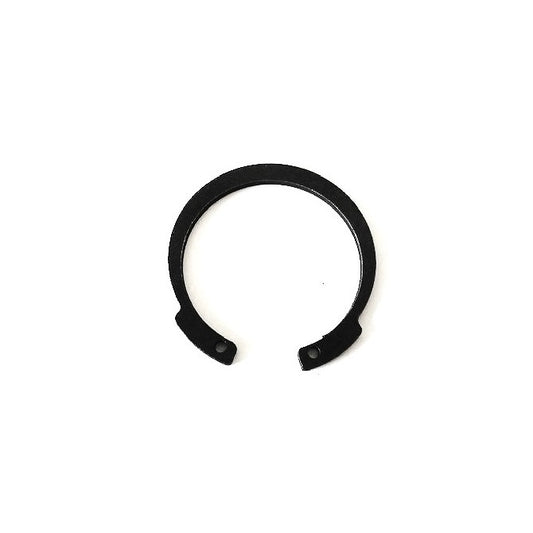

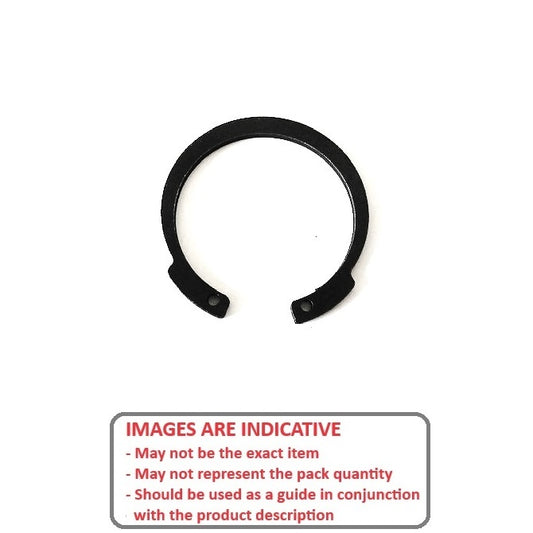

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
10.00
mm (0.394 in.) |
Clip Thickness (T)
0.60
mm + 0.11 / - 0.00 (0.024 in.) |
Groove Dia. (Dg)
10.50
mm + 0.00 / - 0.05 (0.413 in.) |
Approx. Loose Circlip OD (Dr)
10.90
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
1.4 - 1.5
|
Groove Width (W)
0.70
mm |
|
| Material: Spring Steel Tool: PRS-I009 | ||||||
|
Part Number: CCI-01000-C-V Internal Retaining Rings - 10x0.6x10.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
10.00
mm (0.394 in.) |
Clip Thickness (T)
0.60
mm + 0.11 / - 0.00 (0.024 in.) |
Groove Dia. (Dg)
10.50
mm + 0.00 / - 0.05 (0.413 in.) |
Approx. Loose Circlip OD (Dr)
10.90
mm + 0.42 / - 0.13 |
|
||
| Material: Spring Steel Radial Wall Max (S): 1.4 - 1.5 Groove Width (W): 0.70 mm Tool: PRS-I009 | ||||||
|
Part Number: CCI-01000-C-V Internal Retaining Rings - 10x0.6x10.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
12.00
mm (0.472 in.) |
Clip Thickness (T)
0.60
mm + 0.11 / - 0.00 (0.024 in.) |
Groove Dia. (Dg)
12.60
mm + 0.00 / - 0.05 (0.496 in.) |
Approx. Loose Circlip OD (Dr)
13.10
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
1.7 - 1.8
|
Groove Width (W)
0.70
mm |
|
| Material: Carbon Steel Tool: PRS-I009 | ||||||
|
Part Number: CCI-01200-C-V (250 Pcs) Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$101.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
12.00
mm (0.472 in.) |
Clip Thickness (T)
0.60
mm + 0.11 / - 0.00 (0.024 in.) |
Groove Dia. (Dg)
12.60
mm + 0.00 / - 0.05 (0.496 in.) |
Approx. Loose Circlip OD (Dr)
13.10
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.7 - 1.8 Groove Width (W): 0.70 mm Tool: PRS-I009 | ||||||
|
Part Number: CCI-01200-C-V (250 Pcs) Internal Retaining Rings - 12x0.6x12.6 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$101.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
15.00
mm (0.591 in.) |
Clip Thickness (T)
0.80
mm + 0.11 / - 0.00 (0.031 in.) |
Groove Dia. (Dg)
15.70
mm + 0.00 / - 0.05 (0.618 in.) |
Approx. Loose Circlip OD (Dr)
16.10
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
1.9 - 2.0
|
Groove Width (W)
0.90
mm |
|
| Material: Spring Steel Tool: PRS-I009 | ||||||
|
Part Number: CCI-01500-C-V Internal Retaining Rings - 15x0.8x15.7 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
15.00
mm (0.591 in.) |
Clip Thickness (T)
0.80
mm + 0.11 / - 0.00 (0.031 in.) |
Groove Dia. (Dg)
15.70
mm + 0.00 / - 0.05 (0.618 in.) |
Approx. Loose Circlip OD (Dr)
16.10
mm + 0.42 / - 0.13 |
|
||
| Material: Spring Steel Radial Wall Max (S): 1.9 - 2.0 Groove Width (W): 0.90 mm Tool: PRS-I009 | ||||||
|
Part Number: CCI-01500-C-V Internal Retaining Rings - 15x0.8x15.7 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
15.88
mm (0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.050 (0.025 in.) |
Groove Dia. (Dg)
16.89
mm +/- 0.052 (0.665 in.) |
Approx. Loose Circlip OD (Dr)
17.63
mm |
Radial Wall Max (S)
0.91 - 1.83
|
Groove Width (W)
0.74
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-01588-C-V (100 Pcs) Internal Retaining Rings - 15.88x0.64x16.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$81.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
15.88
mm (0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.050 (0.025 in.) |
Groove Dia. (Dg)
16.89
mm +/- 0.052 (0.665 in.) |
Approx. Loose Circlip OD (Dr)
17.63
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 0.91 - 1.83 Groove Width (W): 0.74 mm | ||||||
|
Part Number: CCI-01588-C-V (100 Pcs) Internal Retaining Rings - 15.88x0.64x16.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$81.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.11 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
16.80
mm + 0.00 / - 0.06 (0.661 in.) |
Approx. Loose Circlip OD (Dr)
17.30
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
2.0 - 2.1
|
Groove Width (W)
1.10
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-01600-C-V (100 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$58.14 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.11 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
16.80
mm + 0.00 / - 0.06 (0.661 in.) |
Approx. Loose Circlip OD (Dr)
17.30
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.0 - 2.1 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-01600-C-V (100 Pcs) Internal Retaining Rings - 16x1x16.8 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$58.14 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.11 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
17.80
mm + 0.00 / - 0.06 (0.701 in.) |
Approx. Loose Circlip OD (Dr)
18.30
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
2.0 - 2.1
|
Groove Width (W)
1.10
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-01700-C-V (100 Pcs) Internal Retaining Rings - 17x1x17.8 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$61.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.11 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
17.80
mm + 0.00 / - 0.06 (0.701 in.) |
Approx. Loose Circlip OD (Dr)
18.30
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.0 - 2.1 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-01700-C-V (100 Pcs) Internal Retaining Rings - 17x1x17.8 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$61.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
18.00
mm (0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
2.1 - 2.2
|
Groove Width (W)
1.10
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-01800-C-V (250 Pcs) Internal Retaining Rings - 18x1x19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$174.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
18.00
mm (0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.1 - 2.2 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-01800-C-V (250 Pcs) Internal Retaining Rings - 18x1x19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$174.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
19.00
mm (0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
2.1 - 2.2
|
Groove Width (W)
1.10
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-01900-C-V (5 Pcs) Internal Retaining Rings - 19x1x20 mm - Carbon Steel
80 units (400 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
19.00
mm (0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.1 - 2.2 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-01900-C-V (5 Pcs) Internal Retaining Rings - 19x1x20 mm - Carbon Steel
80 units (400 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (0.035 in.) |
Groove Dia. (Dg)
20.22
mm +/- 0.052 (0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm |
Radial Wall Max (S)
1.07 - 2.16
|
Groove Width (W)
0.99
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-01905-C-V (50 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$112.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
19.05
mm (0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (0.035 in.) |
Groove Dia. (Dg)
20.22
mm +/- 0.052 (0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.07 - 2.16 Groove Width (W): 0.99 mm | ||||||
|
Part Number: CCI-01905-C-V (50 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$112.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.63
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
2.3 - 2.4
|
Groove Width (W)
1.10
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-02000-C-V (100 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$90.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
20.00
mm (0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
21.00
mm + 0.00 / - 0.06 (0.827 in.) |
Approx. Loose Circlip OD (Dr)
21.63
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.3 - 2.4 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02000-C-V (100 Pcs) Internal Retaining Rings - 20x1x21 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$90.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm +/- 0.052 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm |
Radial Wall Max (S)
1.12 - 2.34
|
Groove Width (W)
1.17
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-02063-C-V (50 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$61.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
20.64
mm (0.813 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
21.89
mm +/- 0.052 (0.862 in.) |
Approx. Loose Circlip OD (Dr)
22.89
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.12 - 2.34 Groove Width (W): 1.17 mm | ||||||
|
Part Number: CCI-02063-C-V (50 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$61.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
2.3 - 2.4
|
Groove Width (W)
1.10
mm |
|
| Material: Spring Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-02100-C-V (250 Pcs) Internal Retaining Rings - 21x1x22 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$206.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
21.00
mm (0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
22.00
mm + 0.00 / - 0.06 (0.866 in.) |
Approx. Loose Circlip OD (Dr)
22.50
mm + 0.42 / - 0.13 |
|
||
| Material: Spring Steel Radial Wall Max (S): 2.3 - 2.4 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02100-C-V (250 Pcs) Internal Retaining Rings - 21x1x22 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$206.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
2.3 - 2.4
|
Groove Width (W)
1.10
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-02200-C-V (5 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel
37 units (185 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.42 / - 0.13 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.3 - 2.4 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02200-C-V (5 Pcs) Internal Retaining Rings - 22x1x23 mm - Carbon Steel
37 units (185 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.42 / - 0.13 |
Radial Wall Max (S)
2.3 - 2.4
|
Groove Width (W)
1.10
mm |
|
| Material: Stainless Steel Grade PH15-7 Mo Tool: PRS-I011 | ||||||
|
Part Number: CCI-02200-S15-V Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
22.00
mm (0.866 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
23.00
mm + 0.00 / - 0.06 (0.906 in.) |
Approx. Loose Circlip OD (Dr)
23.50
mm + 0.42 / - 0.13 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Radial Wall Max (S): 2.3 - 2.4 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02200-S15-V Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
23.65
mm +/- 0.052 (0.931 in.) |
Approx. Loose Circlip OD (Dr)
23.98
mm |
Radial Wall Max (S)
1.19 - 2.51
|
Groove Width (W)
1.17
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-02223-C-V (50 Pcs) Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$127.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
22.23
mm (0.875 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
23.65
mm +/- 0.052 (0.931 in.) |
Approx. Loose Circlip OD (Dr)
23.98
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.19 - 2.51 Groove Width (W): 1.17 mm | ||||||
|
Part Number: CCI-02223-C-V (50 Pcs) Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$127.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
23.81
mm (0.937 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
25.40
mm +/- 0.052 (1 in.) |
Approx. Loose Circlip OD (Dr)
26.44
mm |
Radial Wall Max (S)
1.30 - 2.69
|
Groove Width (W)
1.17
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-02381-C-V (250 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$331.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
23.81
mm (0.937 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
25.40
mm +/- 0.052 (1 in.) |
Approx. Loose Circlip OD (Dr)
26.44
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.30 - 2.69 Groove Width (W): 1.17 mm | ||||||
|
Part Number: CCI-02381-C-V (250 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$331.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
24.00
mm (0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
25.20
mm + 0.00 / - 0.06 (0.992 in.) |
Approx. Loose Circlip OD (Dr)
26.11
mm + 0.42 / - 0.21 |
Radial Wall Max (S)
2.7 - 2.9
|
Groove Width (W)
1.10
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-02400-C-V (5 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm - Carbon Steel
18 units (90 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
24.00
mm (0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
25.20
mm + 0.00 / - 0.06 (0.992 in.) |
Approx. Loose Circlip OD (Dr)
26.11
mm + 0.42 / - 0.21 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.7 - 2.9 Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02400-C-V (5 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm - Carbon Steel
18 units (90 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
25.00
mm (0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.00 / - 0.06 (1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
Radial Wall Max (S)
2.7 - 2.8
|
Groove Width (W)
1.30
mm |
|
| Material: Spring Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-02500-C-V (300 Pcs) Internal Retaining Rings - 25x1.2x26.2 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$296.50 AUD
Regular price
Unit price
per
Per 300
|
||||||
|
Housing Bore (B)
25.00
mm (0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.00 / - 0.06 (1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
|
||
| Material: Spring Steel Radial Wall Max (S): 2.7 - 2.8 Groove Width (W): 1.30 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02500-C-V (300 Pcs) Internal Retaining Rings - 25x1.2x26.2 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$296.50 AUD
Regular price
Unit price
per
Per 300
|
||||||
|
||||||
|
Housing Bore (B)
25.40
mm (1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.052 (1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm |
Radial Wall Max (S)
1.37 - 2.87
|
Groove Width (W)
1.17
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-02540-C-V (50 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$75.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
25.40
mm (1 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.052 (1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.37 - 2.87 Groove Width (W): 1.17 mm | ||||||
|
Part Number: CCI-02540-C-V (50 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$75.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
26.00
mm (1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
Radial Wall Max (S)
2.9 - 3.0
|
Groove Width (W)
1.30
mm |
|
| Material: Spring Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-02600-C-V (125 Pcs) Internal Retaining Rings - 26x1.2x27.2 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$178.14 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
26.00
mm (1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
27.20
mm + 0.00 / - 0.06 (1.071 in.) |
Approx. Loose Circlip OD (Dr)
27.90
mm + 0.42 / - 0.21 |
|
||
| Material: Spring Steel Radial Wall Max (S): 2.9 - 3.0 Groove Width (W): 1.30 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02600-C-V (125 Pcs) Internal Retaining Rings - 26x1.2x27.2 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$178.14 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
26.99
mm (1.063 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
28.70
mm +/- 0.052 (1.13 in.) |
Approx. Loose Circlip OD (Dr)
29.97
mm |
Radial Wall Max (S)
1.45 - 3.05
|
Groove Width (W)
1.42
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-02699-C-V (250 Pcs) Internal Retaining Rings - 26.99x1.27x28.7 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$308.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
26.99
mm (1.063 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
28.70
mm +/- 0.052 (1.13 in.) |
Approx. Loose Circlip OD (Dr)
29.97
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.45 - 3.05 Groove Width (W): 1.42 mm | ||||||
|
Part Number: CCI-02699-C-V (250 Pcs) Internal Retaining Rings - 26.99x1.27x28.7 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$308.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
27.00
mm (1.063 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
28.40
mm + 0.00 / - 0.06 (1.118 in.) |
Approx. Loose Circlip OD (Dr)
29.10
mm + 0.42 / - 0.21 |
Radial Wall Max (S)
2.9 - 3.1
|
Groove Width (W)
1.30
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-02700-C-V (2 Pcs) Internal Retaining Rings - 27x1.2x28.4 mm - Carbon Steel
18 units (36 pcs) Available Immediately | Further orders can be expected around Thu, Aug 07, 2025 Regular price
$2.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
27.00
mm (1.063 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
28.40
mm + 0.00 / - 0.06 (1.118 in.) |
Approx. Loose Circlip OD (Dr)
29.10
mm + 0.42 / - 0.21 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.9 - 3.1 Groove Width (W): 1.30 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02700-C-V (2 Pcs) Internal Retaining Rings - 27x1.2x28.4 mm - Carbon Steel
18 units (36 pcs) Available Immediately | Further orders can be expected around Thu, Aug 07, 2025 Regular price
$2.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
28.00
mm (1.102 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
29.40
mm + 0.00 / - 0.06 (1.157 in.) |
Approx. Loose Circlip OD (Dr)
29.65
mm + 0.50 / - 0.25 |
Radial Wall Max (S)
3.1 - 3.2
|
Groove Width (W)
1.30
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-02800-C-V (5 Pcs) Internal Retaining Rings - 28x1.2x29.4 mm - Carbon Steel
98 units (490 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
28.00
mm (1.102 in.) |
Clip Thickness (T)
1.20
mm + 0.21 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
29.40
mm + 0.00 / - 0.06 (1.157 in.) |
Approx. Loose Circlip OD (Dr)
29.65
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 3.1 - 3.2 Groove Width (W): 1.30 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-02800-C-V (5 Pcs) Internal Retaining Rings - 28x1.2x29.4 mm - Carbon Steel
98 units (490 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
28.58
mm (1.125 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
30.40
mm +/- 0.052 (1.197 in.) |
Approx. Loose Circlip OD (Dr)
31.72
mm |
Radial Wall Max (S)
1.50 - 3.12
|
Groove Width (W)
1.42
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-02858-C-V (50 Pcs) Internal Retaining Rings - 28.58x1.27x30.4 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$95.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
28.58
mm (1.125 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
30.40
mm +/- 0.052 (1.197 in.) |
Approx. Loose Circlip OD (Dr)
31.72
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.50 - 3.12 Groove Width (W): 1.42 mm | ||||||
|
Part Number: CCI-02858-C-V (50 Pcs) Internal Retaining Rings - 28.58x1.27x30.4 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$95.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
