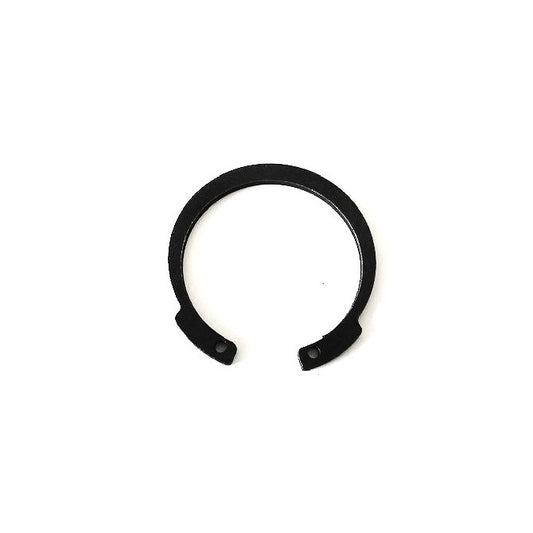

Retaining Rings - Internal - Circlips - Inverted

74 Products in this selection
  • M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
  • Inverted lugs seat into the groove for better clearance and cleaner appearance.
  • Good for shielded bearings that pass tightly through the bore or housing.
  • Use recommended installation pliers.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Inverted. Smallparts promote the most popular MBA products.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall Max (S) Groove Width (W) Indicative
Housing Bore (B)
100.00
mm

(3.937 in.)
Clip Thickness (T)
3.00
mm
+ 0.35 / - 0.00
(0.118 in.)
Groove Dia. (Dg)
103.50
mm
+ 0.00 / - 0.08
(4.075 in.)
Approx. Loose Circlip OD (Dr)
105.44
mm
+ 1.30 / - 0.54
Radial Wall Max (S)
7.1 - 7.4
Groove Width (W)
3.15
mm
Internal Retaining Rings - 100x3x103.5 mm - Spring Steel
Material: Spring Steel    Tool: PRS-I023
Part Number: CCI-10000-C-V Internal Retaining Rings - 100x3x103.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
100.00
mm

(3.937 in.)
Clip Thickness (T)
3.00
mm
+ 0.35 / - 0.00
(0.118 in.)
Groove Dia. (Dg)
103.50
mm
+ 0.00 / - 0.08
(4.075 in.)
Approx. Loose Circlip OD (Dr)
105.44
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 100x3x103.5 mm - Spring Steel
Material: Spring Steel    Radial Wall Max (S): 7.1 - 7.4    Groove Width (W): 3.15 mm    Tool: PRS-I023
Part Number: CCI-10000-C-V Internal Retaining Rings - 100x3x103.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
101.60
mm

(4 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
107.70
mm
+/- 0.076
(4.24 in.)
Approx. Loose Circlip OD (Dr)
112.37
mm
Radial Wall Max (S)
4.09 - 8.59
Groove Width (W)
3.05
mm
Internal Retaining Rings - 101.6x2.77x107.7 mm - Carbon Steel
Material: Carbon Steel
Part Number: CCI-10160-C-V Internal Retaining Rings - 101.6x2.77x107.7 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$36.05 AUD
$36.05 AUD
Each
Housing Bore (B)
101.60
mm

(4 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
107.70
mm
+/- 0.076
(4.24 in.)
Approx. Loose Circlip OD (Dr)
112.37
mm
Internal Retaining Rings - 101.6x2.77x107.7 mm - Carbon Steel
Material: Carbon Steel    Radial Wall Max (S): 4.09 - 8.59    Groove Width (W): 3.05 mm
Part Number: CCI-10160-C-V Internal Retaining Rings - 101.6x2.77x107.7 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$36.05 AUD
$36.05 AUD
Each
View the product page first if you are unsure.
