| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall Max (S) | Groove Width (W) |

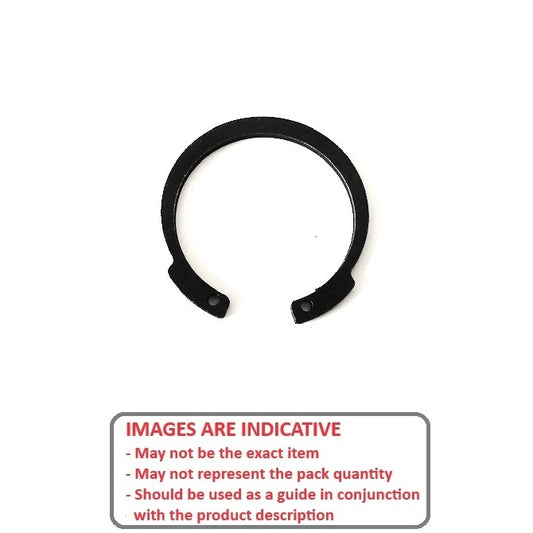

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
30.00
mm (1.181 in.) |
Clip Thickness (T)
1.20
mm + 0.25 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
31.40
mm + 0.00 / - 0.06 (1.236 in.) |
Approx. Loose Circlip OD (Dr)
31.83
mm + 0.50 / - 0.25 |
Radial Wall Max (S)
3.1 - 3.2
|
Groove Width (W)
1.30
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-03000-C-V (5 Pcs) Internal Retaining Rings - 30x1.2x31.4 mm - Carbon Steel
10 units (50 pcs) Available Immediately | Further orders can be expected around Wed, Sep 10, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

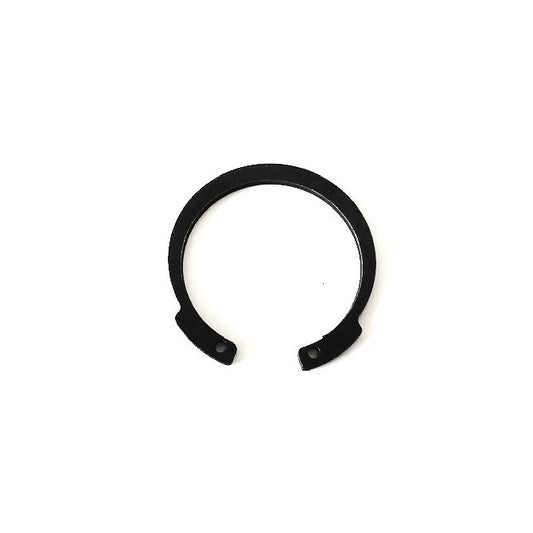

Indicative Image |
||
|
Housing Bore (B)
30.00
mm (1.181 in.) |
Clip Thickness (T)
1.20
mm + 0.25 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
31.40
mm + 0.00 / - 0.06 (1.236 in.) |
Approx. Loose Circlip OD (Dr)
31.83
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 3.1 - 3.2 Groove Width (W): 1.30 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-03000-C-V (5 Pcs) Internal Retaining Rings - 30x1.2x31.4 mm - Carbon Steel
10 units (50 pcs) Available Immediately | Further orders can be expected around Wed, Sep 10, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
30.16
mm (1.187 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
32.05
mm +/- 0.052 (1.262 in.) |
Approx. Loose Circlip OD (Dr)
33.50
mm |
Radial Wall Max (S)
1.52 - 3.20
|
Groove Width (W)
1.42
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-03016-C-V (50 Pcs) Internal Retaining Rings - 30.16x1.27x32.05 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$103.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
30.16
mm (1.187 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
32.05
mm +/- 0.052 (1.262 in.) |
Approx. Loose Circlip OD (Dr)
33.50
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.52 - 3.20 Groove Width (W): 1.42 mm | ||||||
|
Part Number: CCI-03016-C-V (50 Pcs) Internal Retaining Rings - 30.16x1.27x32.05 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$103.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
31.75
mm (1.25 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
33.78
mm +/- 0.052 (1.33 in.) |
Approx. Loose Circlip OD (Dr)
35.26
mm |
Radial Wall Max (S)
1.55 - 3.28
|
Groove Width (W)
1.42
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-03175-C-V (50 Pcs) Internal Retaining Rings - 31.75x1.27x33.78 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$112.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
31.75
mm (1.25 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
33.78
mm +/- 0.052 (1.33 in.) |
Approx. Loose Circlip OD (Dr)
35.26
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.55 - 3.28 Groove Width (W): 1.42 mm | ||||||
|
Part Number: CCI-03175-C-V (50 Pcs) Internal Retaining Rings - 31.75x1.27x33.78 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$112.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
32.00
mm (1.26 in.) |
Clip Thickness (T)
1.20
mm + 0.25 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
33.71
mm + 0.00 / - 0.06 (1.327 in.) |
Approx. Loose Circlip OD (Dr)
34.40
mm + 0.50 / - 0.25 |
Radial Wall Max (S)
3.2 - 3.3
|
Groove Width (W)
1.30
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-03200-C-V (10 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel
19 units (190 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$17.68 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
32.00
mm (1.26 in.) |
Clip Thickness (T)
1.20
mm + 0.25 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
33.71
mm + 0.00 / - 0.06 (1.327 in.) |
Approx. Loose Circlip OD (Dr)
34.40
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 3.2 - 3.3 Groove Width (W): 1.30 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-03200-C-V (10 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel
19 units (190 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$17.68 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
33.00
mm (1.299 in.) |
Clip Thickness (T)
1.20
mm + 0.25 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
34.78
mm + 0.00 / - 0.06 (1.369 in.) |
Approx. Loose Circlip OD (Dr)
35.50
mm + 0.50 / - 0.25 |
Radial Wall Max (S)
3.2 - 3.3
|
Groove Width (W)
1.30
mm |
|
| Material: Spring Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-03300-C-V (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$383.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
33.00
mm (1.299 in.) |
Clip Thickness (T)
1.20
mm + 0.25 / - 0.00 (0.047 in.) |
Groove Dia. (Dg)
34.78
mm + 0.00 / - 0.06 (1.369 in.) |
Approx. Loose Circlip OD (Dr)
35.50
mm + 0.50 / - 0.25 |
|
||
| Material: Spring Steel Radial Wall Max (S): 3.2 - 3.3 Groove Width (W): 1.30 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-03300-C-V (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$383.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
33.38
mm (1.314 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
35.46
mm +/- 0.052 (1.396 in.) |
Approx. Loose Circlip OD (Dr)
36.10
mm |
Radial Wall Max (S)
1.60 - 3.35
|
Groove Width (W)
1.42
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-03332-C-V (50 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$88.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
33.38
mm (1.314 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
35.46
mm +/- 0.052 (1.396 in.) |
Approx. Loose Circlip OD (Dr)
36.10
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.60 - 3.35 Groove Width (W): 1.42 mm | ||||||
|
Part Number: CCI-03332-C-V (50 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$88.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
34.93
mm (1.375 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
37.11
mm +/- 0.052 (1.461 in.) |
Approx. Loose Circlip OD (Dr)
38.76
mm |
Radial Wall Max (S)
1.65 - 3.43
|
Groove Width (W)
1.42
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-03493-C-V (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$96.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
34.93
mm (1.375 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
37.11
mm +/- 0.052 (1.461 in.) |
Approx. Loose Circlip OD (Dr)
38.76
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.65 - 3.43 Groove Width (W): 1.42 mm | ||||||
|
Part Number: CCI-03493-C-V (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$96.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
35.00
mm (1.378 in.) |
Clip Thickness (T)
1.50
mm + 0.25 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
37.00
mm + 0.00 / - 0.06 (1.457 in.) |
Approx. Loose Circlip OD (Dr)
37.80
mm + 0.50 / - 0.25 |
Radial Wall Max (S)
3.3 - 3.4
|
Groove Width (W)
1.60
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-03500-C-V (6 Pcs) Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.05 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
Housing Bore (B)
35.00
mm (1.378 in.) |
Clip Thickness (T)
1.50
mm + 0.25 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
37.00
mm + 0.00 / - 0.06 (1.457 in.) |
Approx. Loose Circlip OD (Dr)
37.80
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 3.3 - 3.4 Groove Width (W): 1.60 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-03500-C-V (6 Pcs) Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.05 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
||||||
|
Housing Bore (B)
36.00
mm (1.417 in.) |
Clip Thickness (T)
1.50
mm + 0.25 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
38.00
mm + 0.00 / - 0.06 (1.496 in.) |
Approx. Loose Circlip OD (Dr)
38.80
mm + 0.50 / - 0.25 |
Radial Wall Max (S)
3.5 - 3.6
|
Groove Width (W)
1.60
mm |
|
| Material: Spring Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-03600-C-V (250 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$643.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
36.00
mm (1.417 in.) |
Clip Thickness (T)
1.50
mm + 0.25 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
38.00
mm + 0.00 / - 0.06 (1.496 in.) |
Approx. Loose Circlip OD (Dr)
38.80
mm + 0.50 / - 0.25 |
|
||
| Material: Spring Steel Radial Wall Max (S): 3.5 - 3.6 Groove Width (W): 1.60 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-03600-C-V (250 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$643.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
36.53
mm (1.438 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
38.81
mm +/- 0.052 (1.528 in.) |
Approx. Loose Circlip OD (Dr)
40.54
mm |
Radial Wall Max (S)
1.75 - 3.66
|
Groove Width (W)
1.42
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-03653-C-V (2 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel
9 units (18 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
36.53
mm (1.438 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
38.81
mm +/- 0.052 (1.528 in.) |
Approx. Loose Circlip OD (Dr)
40.54
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.75 - 3.66 Groove Width (W): 1.42 mm | ||||||
|
Part Number: CCI-03653-C-V (2 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel
9 units (18 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
38.00
mm (1.496 in.) |
Clip Thickness (T)
1.50
mm + 0.25 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
40.00
mm + 0.00 / - 0.06 (1.575 in.) |
Approx. Loose Circlip OD (Dr)
40.80
mm + 0.50 / - 0.25 |
Radial Wall Max (S)
3.7 - 3.8
|
Groove Width (W)
1.60
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: CCI-03800-C-V (125 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$400.68 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
38.00
mm (1.496 in.) |
Clip Thickness (T)
1.50
mm + 0.25 / - 0.00 (0.059 in.) |
Groove Dia. (Dg)
40.00
mm + 0.00 / - 0.06 (1.575 in.) |
Approx. Loose Circlip OD (Dr)
40.80
mm + 0.50 / - 0.25 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 3.7 - 3.8 Groove Width (W): 1.60 mm Tool: PRS-I011 | ||||||
|
Part Number: CCI-03800-C-V (125 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$400.68 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
38.10
mm (1.5 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
40.49
mm +/- 0.052 (1.594 in.) |
Approx. Loose Circlip OD (Dr)
42.16
mm |
Radial Wall Max (S)
1.78 - 3.76
|
Groove Width (W)
1.42
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-03810-C-V (7 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel
6 units (42 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$21.59 AUD
Regular price
Unit price
per
Per 7
|
||||||
|
Housing Bore (B)
38.10
mm (1.5 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (0.05 in.) |
Groove Dia. (Dg)
40.49
mm +/- 0.052 (1.594 in.) |
Approx. Loose Circlip OD (Dr)
42.16
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.78 - 3.76 Groove Width (W): 1.42 mm | ||||||
|
Part Number: CCI-03810-C-V (7 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel
6 units (42 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$21.59 AUD
Regular price
Unit price
per
Per 7
|
||||||
|
||||||
|
Housing Bore (B)
39.67
mm (1.562 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
42.11
mm +/- 0.076 (1.658 in.) |
Approx. Loose Circlip OD (Dr)
44.04
mm |
Radial Wall Max (S)
1.88 - 4.01
|
Groove Width (W)
1.73
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-03967-C-V (5 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$14.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
39.67
mm (1.562 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
42.11
mm +/- 0.076 (1.658 in.) |
Approx. Loose Circlip OD (Dr)
44.04
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.88 - 4.01 Groove Width (W): 1.73 mm | ||||||
|
Part Number: CCI-03967-C-V (5 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$14.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
40.00
mm (1.575 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
42.50
mm + 0.00 / - 0.06 (1.673 in.) |
Approx. Loose Circlip OD (Dr)
43.50
mm + 0.90 / - 0.39 |
Radial Wall Max (S)
4.0 - 4.2
|
Groove Width (W)
1.85
mm |
|
| Material: Carbon Steel Tool: PRS-I018 | ||||||
|
Part Number: CCI-04000-C-V Internal Retaining Rings - 40x1.75x42.5 mm - Carbon Steel
38 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
40.00
mm (1.575 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
42.50
mm + 0.00 / - 0.06 (1.673 in.) |
Approx. Loose Circlip OD (Dr)
43.50
mm + 0.90 / - 0.39 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 4.0 - 4.2 Groove Width (W): 1.85 mm Tool: PRS-I018 | ||||||
|
Part Number: CCI-04000-C-V Internal Retaining Rings - 40x1.75x42.5 mm - Carbon Steel
38 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
41.28
mm (1.625 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
43.82
mm +/- 0.076 (1.725 in.) |
Approx. Loose Circlip OD (Dr)
45.82
mm |
Radial Wall Max (S)
1.96 - 4.11
|
Groove Width (W)
1.73
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-04128-C-V (5 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
41.28
mm (1.625 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
43.82
mm +/- 0.076 (1.725 in.) |
Approx. Loose Circlip OD (Dr)
45.82
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 1.96 - 4.11 Groove Width (W): 1.73 mm | ||||||
|
Part Number: CCI-04128-C-V (5 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
42.00
mm (1.654 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
44.45
mm + 0.00 / - 0.06 (1.75 in.) |
Approx. Loose Circlip OD (Dr)
45.50
mm + 0.90 / - 0.39 |
Radial Wall Max (S)
4.0 - 4.2
|
Groove Width (W)
1.85
mm |
|
| Material: Carbon Steel Tool: PRS-I018 | ||||||
|
Part Number: CCI-04200-C-V Internal Retaining Rings - 42x1.75x44.45 mm - Carbon Steel
400 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$4.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
42.00
mm (1.654 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
44.45
mm + 0.00 / - 0.06 (1.75 in.) |
Approx. Loose Circlip OD (Dr)
45.50
mm + 0.90 / - 0.39 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 4.0 - 4.2 Groove Width (W): 1.85 mm Tool: PRS-I018 | ||||||
|
Part Number: CCI-04200-C-V Internal Retaining Rings - 42x1.75x44.45 mm - Carbon Steel
400 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$4.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
42.86
mm (1.687 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
45.52
mm +/- 0.076 (1.792 in.) |
Approx. Loose Circlip OD (Dr)
47.60
mm |
Radial Wall Max (S)
2.01 - 4.22
|
Groove Width (W)
1.73
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-04288-C-V (5 Pcs) Internal Retaining Rings - 42.86x1.57x45.52 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
42.86
mm (1.687 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
45.52
mm +/- 0.076 (1.792 in.) |
Approx. Loose Circlip OD (Dr)
47.60
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.01 - 4.22 Groove Width (W): 1.73 mm | ||||||
|
Part Number: CCI-04288-C-V (5 Pcs) Internal Retaining Rings - 42.86x1.57x45.52 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
44.45
mm (1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
47.19
mm +/- 0.076 (1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm |
Radial Wall Max (S)
2.08 - 4.32
|
Groove Width (W)
1.73
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-04445-C-V (5 Pcs) Internal Retaining Rings - 44.45x1.57x47.19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$19.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
44.45
mm (1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
47.19
mm +/- 0.076 (1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.08 - 4.32 Groove Width (W): 1.73 mm | ||||||
|
Part Number: CCI-04445-C-V (5 Pcs) Internal Retaining Rings - 44.45x1.57x47.19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$19.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
45.00
mm (1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.06 (1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
Radial Wall Max (S)
4.0 - 4.2
|
Groove Width (W)
1.85
mm |
|
| Material: Carbon Steel Tool: PRS-I018 | ||||||
|
Part Number: CCI-04500-C-V (250 Pcs) Internal Retaining Rings - 45x1.75x47.5 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$950.23 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
45.00
mm (1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.06 (1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
|
||
| Material: Carbon Steel Radial Wall Max (S): 4.0 - 4.2 Groove Width (W): 1.85 mm Tool: PRS-I018 | ||||||
|
Part Number: CCI-04500-C-V (250 Pcs) Internal Retaining Rings - 45x1.75x47.5 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$950.23 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
47.00
mm (1.85 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
49.50
mm + 0.00 / - 0.06 (1.949 in.) |
Approx. Loose Circlip OD (Dr)
50.50
mm + 1.10 / - 0.46 |
Radial Wall Max (S)
4.5 - 4.7
|
Groove Width (W)
1.85
mm |
|
| Material: Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: CCI-04700-C-V (250 Pcs) Internal Retaining Rings - 47x1.75x49.5 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$828.23 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
47.00
mm (1.85 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
49.50
mm + 0.00 / - 0.06 (1.949 in.) |
Approx. Loose Circlip OD (Dr)
50.50
mm + 1.10 / - 0.46 |
|
||
| Material: Spring Steel Radial Wall Max (S): 4.5 - 4.7 Groove Width (W): 1.85 mm Tool: PRS-I018 | ||||||
|
Part Number: CCI-04700-C-V (250 Pcs) Internal Retaining Rings - 47x1.75x49.5 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$828.23 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
47.63
mm (1.875 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
50.52
mm +/- 0.076 (1.989 in.) |
Approx. Loose Circlip OD (Dr)
52.63
mm |
Radial Wall Max (S)
2.29 - 4.78
|
Groove Width (W)
1.73
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-04763-C-V (4 Pcs) Internal Retaining Rings - 47.63x1.57x50.52 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$19.68 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
47.63
mm (1.875 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
50.52
mm +/- 0.076 (1.989 in.) |
Approx. Loose Circlip OD (Dr)
52.63
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.29 - 4.78 Groove Width (W): 1.73 mm | ||||||
|
Part Number: CCI-04763-C-V (4 Pcs) Internal Retaining Rings - 47.63x1.57x50.52 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$19.68 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
48.00
mm (1.89 in.) |
Clip Thickness (T)
1.75
mm + 0.30 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
50.50
mm + 0.00 / - 0.06 (1.988 in.) |
Approx. Loose Circlip OD (Dr)
51.50
mm + 1.10 / - 0.46 |
Radial Wall Max (S)
4.5 - 4.7
|
Groove Width (W)
1.85
mm |
|
| Material: Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: CCI-04800-C-V (250 Pcs) Internal Retaining Rings - 48x1.75x50.5 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$1,257.23 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
48.00
mm (1.89 in.) |
Clip Thickness (T)
1.75
mm + 0.30 / - 0.00 (0.069 in.) |
Groove Dia. (Dg)
50.50
mm + 0.00 / - 0.06 (1.988 in.) |
Approx. Loose Circlip OD (Dr)
51.50
mm + 1.10 / - 0.46 |
|
||
| Material: Spring Steel Radial Wall Max (S): 4.5 - 4.7 Groove Width (W): 1.85 mm Tool: PRS-I018 | ||||||
|
Part Number: CCI-04800-C-V (250 Pcs) Internal Retaining Rings - 48x1.75x50.5 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$1,257.23 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
50.00
mm (1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
Radial Wall Max (S)
5.0 - 5.2
|
Groove Width (W)
2.15
mm |
|
| Material: Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: CCI-05000-C-V (250 Pcs) Internal Retaining Rings - 50x2x53 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$2,450.50 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
50.00
mm (1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
|
||
| Material: Spring Steel Radial Wall Max (S): 5.0 - 5.2 Groove Width (W): 2.15 mm Tool: PRS-I018 | ||||||
|
Part Number: CCI-05000-C-V (250 Pcs) Internal Retaining Rings - 50x2x53 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$2,450.50 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
53.90
mm +/- 0.076 (2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm |
Radial Wall Max (S)
2.54 - 5.28
|
Groove Width (W)
1.73
mm |
|
| Material: Carbon Steel | ||||||
|
Part Number: CCI-05080-C-V (2 Pcs) Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$68.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
50.80
mm (2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (0.062 in.) |
Groove Dia. (Dg)
53.90
mm +/- 0.076 (2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm |
|
||
| Material: Carbon Steel Radial Wall Max (S): 2.54 - 5.28 Groove Width (W): 1.73 mm | ||||||
|
Part Number: CCI-05080-C-V (2 Pcs) Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$68.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
