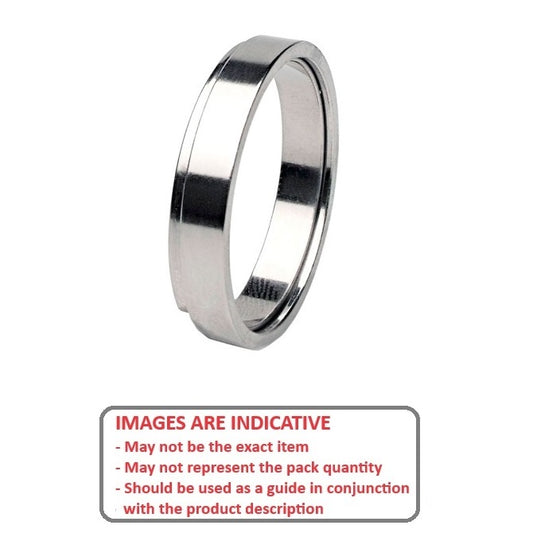

Locking Elements

There is only 1 product in the sub-categories of Locking Elements. Browse the Locking Elements products table.

Category Details

A selection of Locking Elements. 2.4 to 2200 Nm, 6-80mm Bores

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.
  • ETG 100 High Strength Steel for sizes up to 55mm bore
  • C60 Steel for sizes over 55mm bore
  • Recommended machining tolerances Shaft h8, Hub H8

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Locking Elements category on the Small Parts & Bearings online store.
Inside Diameter (B) Outside Diameter (D) Torque Nm L L1 Shaft Pw Indicative
Inside Diameter (B)
16
mm

(Equiv. 0.63 in.)
Outside Diameter (D)
20
mm

(Equiv. 0.787 in.)
Torque Nm
27.30
Nm
L
6.30
mm
L1
5
Shaft Pw
105.0

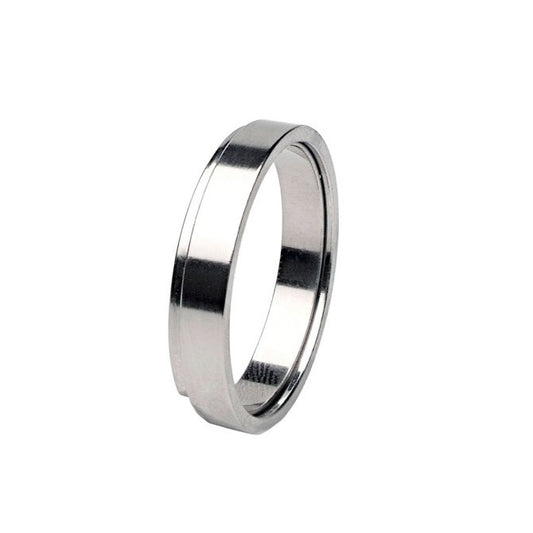

Locking Elements - 16x20 mm - 27.3 Nm
Hub N/mm: 85.00    Tension FA: 25400
Deleted Item. Available while stocks last.
Part Number: OKSD50-16X20-OUK (2 Pcs)
Locking Elements - 16x20 mm - 27.3 Nm
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$24.00 AUD
$45.60 AUD $24.00 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inside Diameter (B) Outside Diameter (D) Torque Nm L Indicative
Inside Diameter (B)
16
mm

(Equiv. 0.63 in.)
Outside Diameter (D)
20
mm

(Equiv. 0.787 in.)
Torque Nm
27.30
Nm
L
6.30
mm
Locking Elements - 16x20 mm - 27.3 Nm
L1: 5    Shaft Pw: 105.0    Hub N/mm: 85.00    Tension FA: 25400
Deleted Item. Available while stocks last.
Part Number: OKSD50-16X20-OUK (2 Pcs)
Locking Elements - 16x20 mm - 27.3 Nm
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$24.00 AUD
$45.60 AUD $24.00 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
