Collection: Retaining Rings - Internal - Circlips - Inverted

Retaining Rings (With Images)

Internal

Circlips

74 Products in this selection

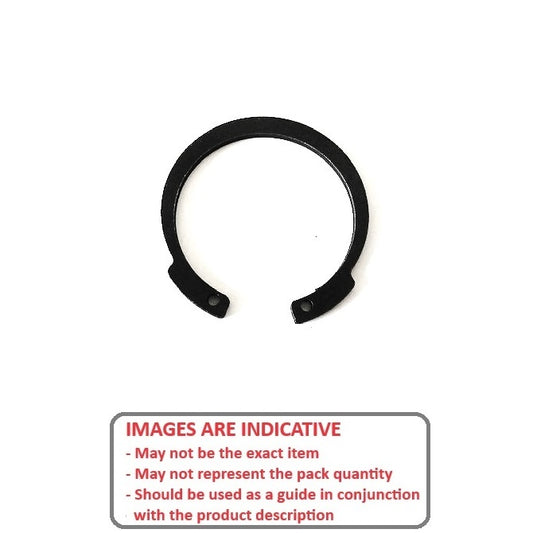

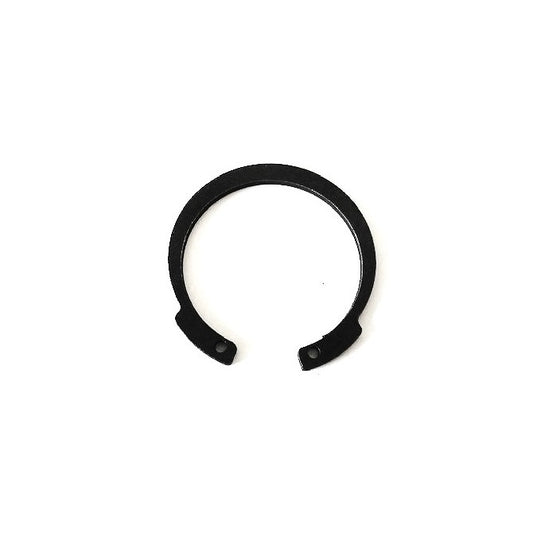

M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
Inverted lugs seat into the groove for better clearance and cleaner appearance.
Good for shielded bearings that pass tightly through the bore or housing.
Use recommended installation pliers.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Inverted. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall Max (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 52.00 mm _{(2.047 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 55.00 mm + 0.00 / - 0.07 _{(2.165 in.)}	Approx. Loose Circlip OD (Dr) 56.20 mm + 1.10 / - 0.46	Radial Wall Max (S) 5.0 - 5.2	Groove Width (W) 2.15 mm
Material: Spring Steel Tool: PRS-I018
Part Number: CCI-05200-C-V (62 Pcs) Internal Retaining Rings - 52x2x55 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $377.41 AUD Regular price Sale price $377.41 AUD Unit price per Per 62
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 52.00 mm _{(2.047 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 55.00 mm + 0.00 / - 0.07 _{(2.165 in.)}	Approx. Loose Circlip OD (Dr) 56.20 mm + 1.10 / - 0.46
Material: Spring Steel Radial Wall Max (S): 5.0 - 5.2 Groove Width (W): 2.15 mm Tool: PRS-I018
Part Number: CCI-05200-C-V (62 Pcs) Internal Retaining Rings - 52x2x55 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $377.41 AUD Regular price Sale price $377.41 AUD Unit price per Per 62 View the product page first if you are unsure.
CCI-05200-C-V (62 Pcs) --- Internal Retaining Rings - 52x2x55 mm - Spring Steel CCI-05200-C-V (62 Pcs) --- Internal Retaining Rings - 52x2x55 mm - Spring Steel Regular price $377.41 AUD Regular price Sale price $377.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.52 mm +/- 0.076 _{(2.186 in.)}	Approx. Loose Circlip OD (Dr) 57.91 mm	Radial Wall Max (S) 2.69 - 5.54	Groove Width (W) 2.18 mm
Material: Carbon Steel
Part Number: CCI-05239-C-V (3 Pcs) Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per Per 3
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.52 mm +/- 0.076 _{(2.186 in.)}	Approx. Loose Circlip OD (Dr) 57.91 mm
Material: Carbon Steel Radial Wall Max (S): 2.69 - 5.54 Groove Width (W): 2.18 mm
Part Number: CCI-05239-C-V (3 Pcs) Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-05239-C-V (3 Pcs) --- Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel CCI-05239-C-V (3 Pcs) --- Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 57.18 mm +/- 0.076 _{(2.251 in.)}	Approx. Loose Circlip OD (Dr) 59.69 mm	Radial Wall Max (S) 2.74 - 5.66	Groove Width (W) 2.18 mm
Material: Carbon Steel
Part Number: CCI-05398-C-V (3 Pcs) Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per Per 3
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 57.18 mm +/- 0.076 _{(2.251 in.)}	Approx. Loose Circlip OD (Dr) 59.69 mm
Material: Carbon Steel Radial Wall Max (S): 2.74 - 5.66 Groove Width (W): 2.18 mm
Part Number: CCI-05398-C-V (3 Pcs) Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-05398-C-V (3 Pcs) --- Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel CCI-05398-C-V (3 Pcs) --- Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 55.00 mm _{(2.165 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 58.00 mm + 0.00 / - 0.07 _{(2.283 in.)}	Approx. Loose Circlip OD (Dr) 59.20 mm + 1.10 / - 0.46	Radial Wall Max (S) 5.0 - 5.2	Groove Width (W) 2.15 mm
Material: Spring Steel Tool: PRS-I018
Part Number: CCI-05500-C-V Internal Retaining Rings - 55x2x58 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 55.00 mm _{(2.165 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 58.00 mm + 0.00 / - 0.07 _{(2.283 in.)}	Approx. Loose Circlip OD (Dr) 59.20 mm + 1.10 / - 0.46
Material: Spring Steel Radial Wall Max (S): 5.0 - 5.2 Groove Width (W): 2.15 mm Tool: PRS-I018
Part Number: CCI-05500-C-V Internal Retaining Rings - 55x2x58 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 57.00 mm _{(2.244 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 60.00 mm + 0.00 / - 0.07 _{(2.362 in.)}	Approx. Loose Circlip OD (Dr) 61.20 mm + 1.10 / - 0.46	Radial Wall Max (S) 5.0 - 5.2	Groove Width (W) 2.15 mm
Material: Spring Steel Tool: PRS-I018
Part Number: CCI-05700-C-V Internal Retaining Rings - 57x2x60 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 57.00 mm _{(2.244 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 60.00 mm + 0.00 / - 0.07 _{(2.362 in.)}	Approx. Loose Circlip OD (Dr) 61.20 mm + 1.10 / - 0.46
Material: Spring Steel Radial Wall Max (S): 5.0 - 5.2 Groove Width (W): 2.15 mm Tool: PRS-I018
Part Number: CCI-05700-C-V Internal Retaining Rings - 57x2x60 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 58.00 mm _{(2.283 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 61.00 mm + 0.00 / - 0.07 _{(2.402 in.)}	Approx. Loose Circlip OD (Dr) 62.20 mm + 1.10 / - 0.46	Radial Wall Max (S) 5.0 - 5.2	Groove Width (W) 2.15 mm
Material: Spring Steel Tool: PRS-I018
Part Number: CCI-05800-C-V (125 Pcs) Internal Retaining Rings - 58x2x61 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,873.77 AUD Regular price Sale price $1,873.77 AUD Unit price per Per 125
Housing Bore (B) 58.00 mm _{(2.283 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 61.00 mm + 0.00 / - 0.07 _{(2.402 in.)}	Approx. Loose Circlip OD (Dr) 62.20 mm + 1.10 / - 0.46
Material: Spring Steel Radial Wall Max (S): 5.0 - 5.2 Groove Width (W): 2.15 mm Tool: PRS-I018
Part Number: CCI-05800-C-V (125 Pcs) Internal Retaining Rings - 58x2x61 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,873.77 AUD Regular price Sale price $1,873.77 AUD Unit price per Per 125 View the product page first if you are unsure.
CCI-05800-C-V (125 Pcs) --- Internal Retaining Rings - 58x2x61 mm - Spring Steel CCI-05800-C-V (125 Pcs) --- Internal Retaining Rings - 58x2x61 mm - Spring Steel Regular price $1,873.77 AUD Regular price Sale price $1,873.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 60.00 mm _{(2.362 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 63.00 mm + 0.00 / - 0.07 _{(2.48 in.)}	Approx. Loose Circlip OD (Dr) 64.20 mm + 1.10 / - 0.46	Radial Wall Max (S) 5.0 - 5.2	Groove Width (W) 2.15 mm
Material: Spring Steel Tool: PRS-I018
Part Number: CCI-06000-C-V (50 Pcs) Internal Retaining Rings - 60x2x63 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $792.59 AUD Regular price Sale price $792.59 AUD Unit price per Per 50
Housing Bore (B) 60.00 mm _{(2.362 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 63.00 mm + 0.00 / - 0.07 _{(2.48 in.)}	Approx. Loose Circlip OD (Dr) 64.20 mm + 1.10 / - 0.46
Material: Spring Steel Radial Wall Max (S): 5.0 - 5.2 Groove Width (W): 2.15 mm Tool: PRS-I018
Part Number: CCI-06000-C-V (50 Pcs) Internal Retaining Rings - 60x2x63 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $792.59 AUD Regular price Sale price $792.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-06000-C-V (50 Pcs) --- Internal Retaining Rings - 60x2x63 mm - Spring Steel CCI-06000-C-V (50 Pcs) --- Internal Retaining Rings - 60x2x63 mm - Spring Steel Regular price $792.59 AUD Regular price Sale price $792.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 63.93 mm +/- 0.076 _{(2.517 in.)}	Approx. Loose Circlip OD (Dr) 66.80 mm	Radial Wall Max (S) 2.92 - 6.17	Groove Width (W) 2.18 mm
Material: Carbon Steel
Part Number: CCI-06033-C-V Internal Retaining Rings - 60.33x1.98x63.93 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per Each
Housing Bore (B) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 63.93 mm +/- 0.076 _{(2.517 in.)}	Approx. Loose Circlip OD (Dr) 66.80 mm
Material: Carbon Steel Radial Wall Max (S): 2.92 - 6.17 Groove Width (W): 2.18 mm
Part Number: CCI-06033-C-V Internal Retaining Rings - 60.33x1.98x63.93 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-06033-C-V --- Internal Retaining Rings - 60.33x1.98x63.93 mm - Carbon Steel CCI-06033-C-V --- Internal Retaining Rings - 60.33x1.98x63.93 mm - Carbon Steel Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 61.98 mm _{(2.44 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 65.63 mm +/- 0.076 _{(2.584 in.)}	Approx. Loose Circlip OD (Dr) 68.63 mm	Radial Wall Max (S) 2.97 - 6.30	Groove Width (W) 2.18 mm
Material: Carbon Steel
Part Number: CCI-06198-C-V (3 Pcs) Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $28.32 AUD Regular price Sale price $28.32 AUD Unit price per Per 3
Housing Bore (B) 61.98 mm _{(2.44 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 65.63 mm +/- 0.076 _{(2.584 in.)}	Approx. Loose Circlip OD (Dr) 68.63 mm
Material: Carbon Steel Radial Wall Max (S): 2.97 - 6.30 Groove Width (W): 2.18 mm
Part Number: CCI-06198-C-V (3 Pcs) Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $28.32 AUD Regular price Sale price $28.32 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-06198-C-V (3 Pcs) --- Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel CCI-06198-C-V (3 Pcs) --- Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Regular price $28.32 AUD Regular price Sale price $28.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 62.00 mm _{(2.441 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 65.00 mm + 0.00 / - 0.07 _{(2.559 in.)}	Approx. Loose Circlip OD (Dr) 66.20 mm + 1.10 / - 0.46	Radial Wall Max (S) 5.0 - 5.2	Groove Width (W) 2.15 mm
Material: Carbon Steel Tool: PRS-I023
Part Number: CCI-06200-C-V (62 Pcs) Internal Retaining Rings - 62x2x65 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $445.41 AUD Regular price Sale price $445.41 AUD Unit price per Per 62
Housing Bore (B) 62.00 mm _{(2.441 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 65.00 mm + 0.00 / - 0.07 _{(2.559 in.)}	Approx. Loose Circlip OD (Dr) 66.20 mm + 1.10 / - 0.46
Material: Carbon Steel Radial Wall Max (S): 5.0 - 5.2 Groove Width (W): 2.15 mm Tool: PRS-I023
Part Number: CCI-06200-C-V (62 Pcs) Internal Retaining Rings - 62x2x65 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $445.41 AUD Regular price Sale price $445.41 AUD Unit price per Per 62 View the product page first if you are unsure.
CCI-06200-C-V (62 Pcs) --- Internal Retaining Rings - 62x2x65 mm - Carbon Steel CCI-06200-C-V (62 Pcs) --- Internal Retaining Rings - 62x2x65 mm - Carbon Steel Regular price $445.41 AUD Regular price Sale price $445.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 67.26 mm +/- 0.076 _{(2.648 in.)}	Approx. Loose Circlip OD (Dr) 70.49 mm	Radial Wall Max (S) 3.05 - 6.45	Groove Width (W) 2.18 mm
Material: Carbon Steel
Part Number: CCI-06350-C-V (62 Pcs) Internal Retaining Rings - 63.5x1.98x67.26 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,197.59 AUD Regular price Sale price $1,197.59 AUD Unit price per Per 62
Housing Bore (B) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 67.26 mm +/- 0.076 _{(2.648 in.)}	Approx. Loose Circlip OD (Dr) 70.49 mm
Material: Carbon Steel Radial Wall Max (S): 3.05 - 6.45 Groove Width (W): 2.18 mm
Part Number: CCI-06350-C-V (62 Pcs) Internal Retaining Rings - 63.5x1.98x67.26 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,197.59 AUD Regular price Sale price $1,197.59 AUD Unit price per Per 62 View the product page first if you are unsure.
CCI-06350-C-V (62 Pcs) --- Internal Retaining Rings - 63.5x1.98x67.26 mm - Carbon Steel CCI-06350-C-V (62 Pcs) --- Internal Retaining Rings - 63.5x1.98x67.26 mm - Carbon Steel Regular price $1,197.59 AUD Regular price Sale price $1,197.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 65.00 mm _{(2.559 in.)}	Clip Thickness (T) 2.50 mm + 0.30 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 68.00 mm + 0.00 / - 0.07 _{(2.677 in.)}	Approx. Loose Circlip OD (Dr) 69.20 mm + 1.10 / - 0.46	Radial Wall Max (S) 5.5 - 5.7	Groove Width (W) 2.65 mm
Material: Spring Steel Tool: PRS-I023
Part Number: CCI-06500-C-V Internal Retaining Rings - 65x2.5x68 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 65.00 mm _{(2.559 in.)}	Clip Thickness (T) 2.50 mm + 0.30 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 68.00 mm + 0.00 / - 0.07 _{(2.677 in.)}	Approx. Loose Circlip OD (Dr) 69.20 mm + 1.10 / - 0.46
Material: Spring Steel Radial Wall Max (S): 5.5 - 5.7 Groove Width (W): 2.65 mm Tool: PRS-I023
Part Number: CCI-06500-C-V Internal Retaining Rings - 65x2.5x68 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.64 mm +/- 0.076 _{(2.781 in.)}	Approx. Loose Circlip OD (Dr) 73.91 mm	Radial Wall Max (S) 3.25 - 6.76	Groove Width (W) 2.62 mm
Material: Carbon Steel
Part Number: CCI-06668-C-V (50 Pcs) Internal Retaining Rings - 66.68x2.36x70.64 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,095.05 AUD Regular price Sale price $1,095.05 AUD Unit price per Per 50
Housing Bore (B) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 70.64 mm +/- 0.076 _{(2.781 in.)}	Approx. Loose Circlip OD (Dr) 73.91 mm
Material: Carbon Steel Radial Wall Max (S): 3.25 - 6.76 Groove Width (W): 2.62 mm
Part Number: CCI-06668-C-V (50 Pcs) Internal Retaining Rings - 66.68x2.36x70.64 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,095.05 AUD Regular price Sale price $1,095.05 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-06668-C-V (50 Pcs) --- Internal Retaining Rings - 66.68x2.36x70.64 mm - Carbon Steel CCI-06668-C-V (50 Pcs) --- Internal Retaining Rings - 66.68x2.36x70.64 mm - Carbon Steel Regular price $1,095.05 AUD Regular price Sale price $1,095.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 67.00 mm _{(2.638 in.)}	Clip Thickness (T) 2.50 mm + 0.30 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 70.00 mm + 0.00 / - 0.07 _{(2.756 in.)}	Approx. Loose Circlip OD (Dr) 71.50 mm + 1.10 / - 0.46	Radial Wall Max (S) 5.4 - 5.7	Groove Width (W) 2.65 mm
Material: Spring Steel Tool: PRS-I023
Part Number: CCI-06700-C-V Internal Retaining Rings - 67x2.5x70 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 67.00 mm _{(2.638 in.)}	Clip Thickness (T) 2.50 mm + 0.30 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 70.00 mm + 0.00 / - 0.07 _{(2.756 in.)}	Approx. Loose Circlip OD (Dr) 71.50 mm + 1.10 / - 0.46
Material: Spring Steel Radial Wall Max (S): 5.4 - 5.7 Groove Width (W): 2.65 mm Tool: PRS-I023
Part Number: CCI-06700-C-V Internal Retaining Rings - 67x2.5x70 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 74.02 mm +/- 0.076 _{(2.914 in.)}	Approx. Loose Circlip OD (Dr) 77.47 mm	Radial Wall Max (S) 3.40 - 7.06	Groove Width (W) 2.62 mm
Material: Carbon Steel
Part Number: CCI-06985-C-V Internal Retaining Rings - 69.85x2.36x74.02 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Each
Housing Bore (B) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 74.02 mm +/- 0.076 _{(2.914 in.)}	Approx. Loose Circlip OD (Dr) 77.47 mm
Material: Carbon Steel Radial Wall Max (S): 3.40 - 7.06 Groove Width (W): 2.62 mm
Part Number: CCI-06985-C-V Internal Retaining Rings - 69.85x2.36x74.02 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-06985-C-V --- Internal Retaining Rings - 69.85x2.36x74.02 mm - Carbon Steel CCI-06985-C-V --- Internal Retaining Rings - 69.85x2.36x74.02 mm - Carbon Steel Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 71.42 mm _{(2.812 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 76.35 mm +/- 0.076 _{(3.006 in.)}	Approx. Loose Circlip OD (Dr) 79.27 mm	Radial Wall Max (S) 3.53 - 7.26	Groove Width (W) 2.62 mm
Material: Carbon Steel
Part Number: CCI-07142-C-V Internal Retaining Rings - 71.42x2.36x76.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Each
Housing Bore (B) 71.42 mm _{(2.812 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 76.35 mm +/- 0.076 _{(3.006 in.)}	Approx. Loose Circlip OD (Dr) 79.27 mm
Material: Carbon Steel Radial Wall Max (S): 3.53 - 7.26 Groove Width (W): 2.62 mm
Part Number: CCI-07142-C-V Internal Retaining Rings - 71.42x2.36x76.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-07142-C-V --- Internal Retaining Rings - 71.42x2.36x76.35 mm - Carbon Steel CCI-07142-C-V --- Internal Retaining Rings - 71.42x2.36x76.35 mm - Carbon Steel Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 77.50 mm +/- 0.076 _{(3.051 in.)}	Approx. Loose Circlip OD (Dr) 81.05 mm	Radial Wall Max (S) 3.53 - 7.37	Groove Width (W) 2.62 mm
Material: Carbon Steel
Part Number: CCI-07303-C-V Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Each
Housing Bore (B) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 77.50 mm +/- 0.076 _{(3.051 in.)}	Approx. Loose Circlip OD (Dr) 81.05 mm
Material: Carbon Steel Radial Wall Max (S): 3.53 - 7.37 Groove Width (W): 2.62 mm
Part Number: CCI-07303-C-V Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-07303-C-V --- Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel CCI-07303-C-V --- Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 80.82 mm +/- 0.076 _{(3.182 in.)}	Approx. Loose Circlip OD (Dr) 84.46 mm	Radial Wall Max (S) 3.63 - 7.67	Groove Width (W) 2.62 mm
Material: Carbon Steel
Part Number: CCI-07620-C-V Internal Retaining Rings - 76.2x2.36x80.82 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each
Housing Bore (B) 76.20 mm _{(3 in.)}	Clip Thickness (T) 2.36 mm +/- 0.152 _{(0.093 in.)}	Groove Dia. (Dg) 80.82 mm +/- 0.076 _{(3.182 in.)}	Approx. Loose Circlip OD (Dr) 84.46 mm
Material: Carbon Steel Radial Wall Max (S): 3.63 - 7.67 Groove Width (W): 2.62 mm
Part Number: CCI-07620-C-V Internal Retaining Rings - 76.2x2.36x80.82 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-07620-C-V --- Internal Retaining Rings - 76.2x2.36x80.82 mm - Carbon Steel CCI-07620-C-V --- Internal Retaining Rings - 76.2x2.36x80.82 mm - Carbon Steel Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 80.00 mm _{(3.15 in.)}	Clip Thickness (T) 2.50 mm + 0.30 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 83.50 mm + 0.00 / - 0.07 _{(3.287 in.)}	Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54	Radial Wall Max (S) 5.7 - 6.0	Groove Width (W) 2.65 mm
Material: Spring Steel Tool: PRS-I023
Part Number: CCI-08000-C-V (62 Pcs) Internal Retaining Rings - 80x2.5x83.5 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,544.86 AUD Regular price Sale price $1,544.86 AUD Unit price per Per 62
Housing Bore (B) 80.00 mm _{(3.15 in.)}	Clip Thickness (T) 2.50 mm + 0.30 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 83.50 mm + 0.00 / - 0.07 _{(3.287 in.)}	Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54
Material: Spring Steel Radial Wall Max (S): 5.7 - 6.0 Groove Width (W): 2.65 mm Tool: PRS-I023
Part Number: CCI-08000-C-V (62 Pcs) Internal Retaining Rings - 80x2.5x83.5 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $1,544.86 AUD Regular price Sale price $1,544.86 AUD Unit price per Per 62 View the product page first if you are unsure.
CCI-08000-C-V (62 Pcs) --- Internal Retaining Rings - 80x2.5x83.5 mm - Spring Steel CCI-08000-C-V (62 Pcs) --- Internal Retaining Rings - 80x2.5x83.5 mm - Spring Steel Regular price $1,544.86 AUD Regular price Sale price $1,544.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 80.17 mm _{(3.156 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 85.04 mm +/- 0.076 _{(3.348 in.)}	Approx. Loose Circlip OD (Dr) 88.09 mm	Radial Wall Max (S) 3.78 - 7.98	Groove Width (W) 3.05 mm
Material: Carbon Steel
Part Number: CCI-08017-C-V Internal Retaining Rings - 80.17x2.77x85.04 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Each
Housing Bore (B) 80.17 mm _{(3.156 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 85.04 mm +/- 0.076 _{(3.348 in.)}	Approx. Loose Circlip OD (Dr) 88.09 mm
Material: Carbon Steel Radial Wall Max (S): 3.78 - 7.98 Groove Width (W): 3.05 mm
Part Number: CCI-08017-C-V Internal Retaining Rings - 80.17x2.77x85.04 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Each View the product page first if you are unsure.
CCI-08017-C-V --- Internal Retaining Rings - 80.17x2.77x85.04 mm - Carbon Steel CCI-08017-C-V --- Internal Retaining Rings - 80.17x2.77x85.04 mm - Carbon Steel Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 82.55 mm _{(3.25 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 87.53 mm +/- 0.076 _{(3.446 in.)}	Approx. Loose Circlip OD (Dr) 92.02 mm	Radial Wall Max (S) 3.84 - 8.08	Groove Width (W) 3.05 mm
Material: Carbon Steel
Part Number: CCI-08255-C-V Internal Retaining Rings - 82.55x2.77x87.53 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.86 AUD Regular price Sale price $27.86 AUD Unit price per Each
Housing Bore (B) 82.55 mm _{(3.25 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 87.53 mm +/- 0.076 _{(3.446 in.)}	Approx. Loose Circlip OD (Dr) 92.02 mm
Material: Carbon Steel Radial Wall Max (S): 3.84 - 8.08 Groove Width (W): 3.05 mm
Part Number: CCI-08255-C-V Internal Retaining Rings - 82.55x2.77x87.53 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.86 AUD Regular price Sale price $27.86 AUD Unit price per Each View the product page first if you are unsure.
CCI-08255-C-V --- Internal Retaining Rings - 82.55x2.77x87.53 mm - Carbon Steel CCI-08255-C-V --- Internal Retaining Rings - 82.55x2.77x87.53 mm - Carbon Steel Regular price $27.86 AUD Regular price Sale price $27.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 84.99 mm _{(3.346 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 90.07 mm +/- 0.076 _{(3.546 in.)}	Approx. Loose Circlip OD (Dr) 94.84 mm	Radial Wall Max (S) 3.94 - 8.15	Groove Width (W) 3.05 mm
Material: Carbon Steel
Part Number: CCI-08499-C-V Internal Retaining Rings - 84.99x2.77x90.07 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Each
Housing Bore (B) 84.99 mm _{(3.346 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 90.07 mm +/- 0.076 _{(3.546 in.)}	Approx. Loose Circlip OD (Dr) 94.84 mm
Material: Carbon Steel Radial Wall Max (S): 3.94 - 8.15 Groove Width (W): 3.05 mm
Part Number: CCI-08499-C-V Internal Retaining Rings - 84.99x2.77x90.07 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Each View the product page first if you are unsure.
CCI-08499-C-V --- Internal Retaining Rings - 84.99x2.77x90.07 mm - Carbon Steel CCI-08499-C-V --- Internal Retaining Rings - 84.99x2.77x90.07 mm - Carbon Steel Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 94.23 mm +/- 0.076 _{(3.71 in.)}	Approx. Loose Circlip OD (Dr) 98.81 mm	Radial Wall Max (S) 3.91 - 8.23	Groove Width (W) 3.05 mm
Material: Carbon Steel
Part Number: CCI-08890-C-V Internal Retaining Rings - 88.9x2.77x94.23 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $31.50 AUD Regular price Sale price $31.50 AUD Unit price per Each
Housing Bore (B) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 94.23 mm +/- 0.076 _{(3.71 in.)}	Approx. Loose Circlip OD (Dr) 98.81 mm
Material: Carbon Steel Radial Wall Max (S): 3.91 - 8.23 Groove Width (W): 3.05 mm
Part Number: CCI-08890-C-V Internal Retaining Rings - 88.9x2.77x94.23 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $31.50 AUD Regular price Sale price $31.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-08890-C-V --- Internal Retaining Rings - 88.9x2.77x94.23 mm - Carbon Steel CCI-08890-C-V --- Internal Retaining Rings - 88.9x2.77x94.23 mm - Carbon Steel Regular price $31.50 AUD Regular price Sale price $31.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 90.47 mm _{(3.562 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 95.91 mm +/- 0.076 _{(3.776 in.)}	Approx. Loose Circlip OD (Dr) 98.58 mm	Radial Wall Max (S) 3.94 - 8.28	Groove Width (W) 3.05 mm
Material: Carbon Steel
Part Number: CCI-09047-C-V (20 Pcs) Internal Retaining Rings - 90.47x2.77x95.91 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 02, 2025 Regular price $1,003.14 AUD Regular price Sale price $1,003.14 AUD Unit price per Per 20
Housing Bore (B) 90.47 mm _{(3.562 in.)}	Clip Thickness (T) 2.77 mm +/- 0.152 _{(0.109 in.)}	Groove Dia. (Dg) 95.91 mm +/- 0.076 _{(3.776 in.)}	Approx. Loose Circlip OD (Dr) 98.58 mm
Material: Carbon Steel Radial Wall Max (S): 3.94 - 8.28 Groove Width (W): 3.05 mm
Part Number: CCI-09047-C-V (20 Pcs) Internal Retaining Rings - 90.47x2.77x95.91 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 02, 2025 Regular price $1,003.14 AUD Regular price Sale price $1,003.14 AUD Unit price per Per 20 View the product page first if you are unsure.
CCI-09047-C-V (20 Pcs) --- Internal Retaining Rings - 90.47x2.77x95.91 mm - Carbon Steel CCI-09047-C-V (20 Pcs) --- Internal Retaining Rings - 90.47x2.77x95.91 mm - Carbon Steel Regular price $1,003.14 AUD Regular price Sale price $1,003.14 AUD Unit price per Out of stock! Backorder Now
