CCI-02600-C-V (Pack of 250)

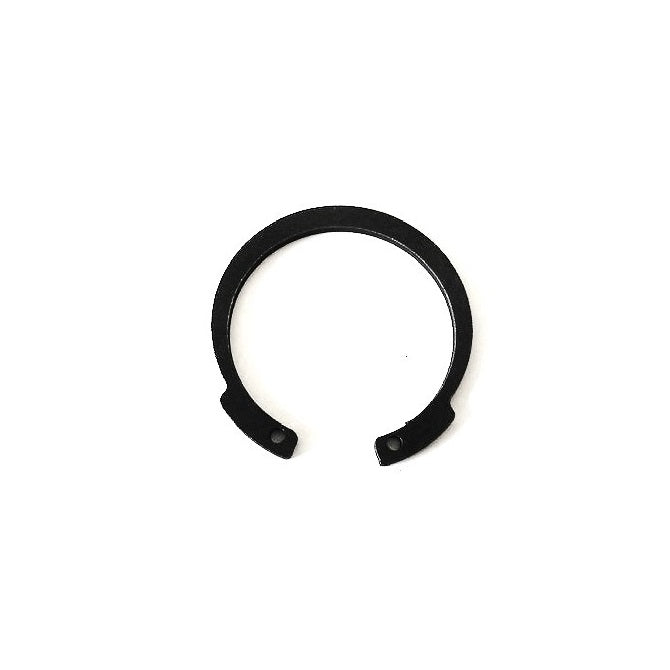

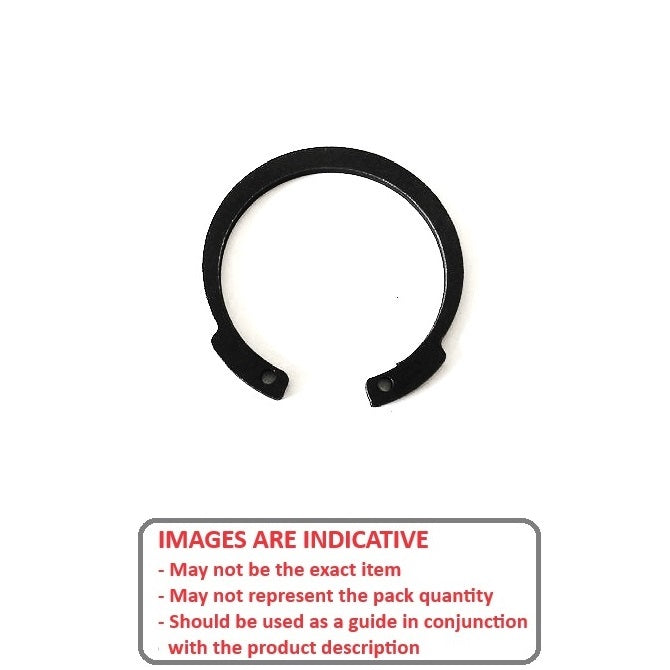

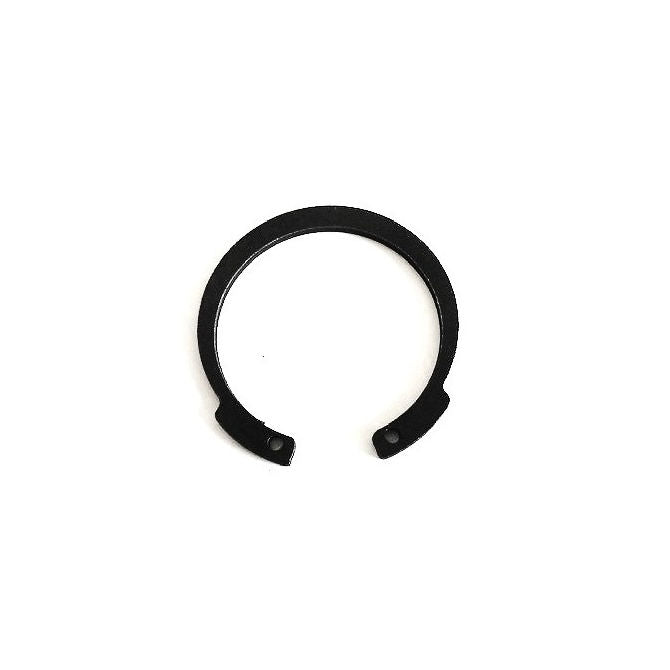

Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Carbon Spring Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 250 (12500 pcs)
for $0.00 AUD per 250 pack
26x1.2x27.2 mm Internal Retaining Rings - Carbon Spring Steel - Sold Per 250:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Inverted
Product Details

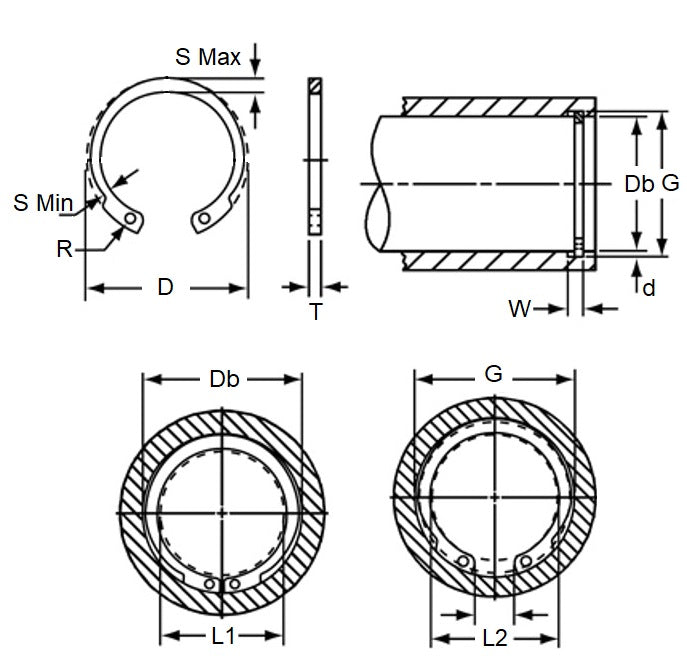

Housing Bore (B): 26.00mm(26.00mm is 1.024 in.)
Carbon Spring Steel
- Housing Bore (B): 26.00mm
(26.00mm is 1.024 in.)
- Clip Thickness (T): 1.20mm
+ 0.00 / - 0.06
(1.20mm is 0.047 in.)
- Groove Dia. (Dg): 27.20mm
+ 0.21 / - 0.00
(27.20mm is 1.071 in.)
- Approx. Loose Circlip OD (Dr): 27.90mm
+ 0.42 / - 0.21
- Radial Wall (S) Approx.: 2.9 - 3.0
- Groove Width (W): 1.30mm
- Tool: PRS-I011
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 90442A213
- Bossard® BN830-026
- Huyett® DHOI-026
- Ellison® INTV-026
- Seeger® JV-026
- NoCor® MDHOI-026
- BN830026
- INTV026
- M1308-026
- MDHOI026
- M1308026
- M1308-0260APP
- M13080260APP
- JV026
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCI02600CV, CCI02600
