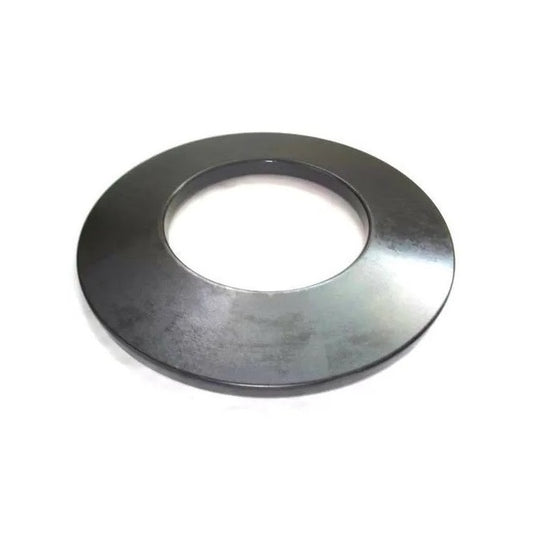

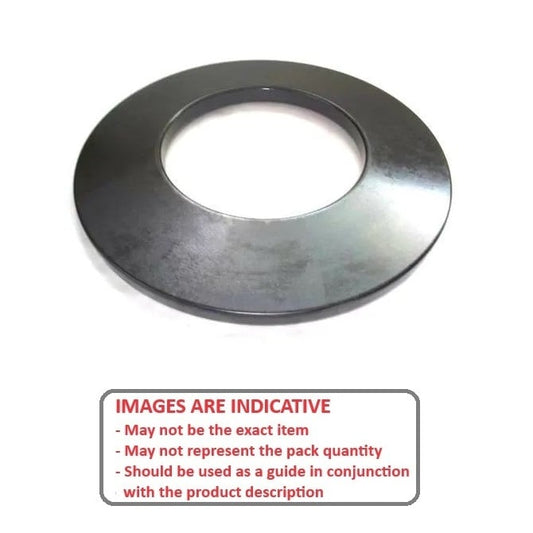

Collection: Washers - Disc Spring - Standard - Carbon Steel

Washers (With Images)

Disc Spring

Standard

Carbon Steel
Plastic
Stainless Steel

259 Products in this selection

Includes disc springs to DIN 2093.
Manufactured under strict quality control to conform to DIN 2093

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard - Carbon Steel. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.94 mm	Load at L1 75.0 kg
Material: Carbon Steel Free Height (E): 1.35 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-008-C (5 Pcs) Disc Spring Washers - 20x10x0.8 mm - Carbon Steel 14 units (70 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 5
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.94 mm Load at L1: 75.0 kg Free Height (E): 1.35 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-008-C (5 Pcs) Disc Spring Washers - 20x10x0.8 mm - Carbon Steel 14 units (70 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-020-008-C (5 Pcs) --- Disc Spring Washers - 20x10x0.8 mm - Carbon Steel W0100-D-020-008-C (5 Pcs) --- Disc Spring Washers - 20x10x0.8 mm - Carbon Steel Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per 14 Available Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 1.04 mm	Load at L1 105.0 kg
Material: Carbon Steel Free Height (E): 1.45 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-009-C (50 Pcs) Disc Spring Washers - 20x10x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Carbon Steel Loaded Height (L1): 1.04 mm Load at L1: 105.0 kg Free Height (E): 1.45 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-009-C (50 Pcs) Disc Spring Washers - 20x10x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-009-C (50 Pcs) --- Disc Spring Washers - 20x10x0.9 mm - Carbon Steel W0100-D-020-009-C (50 Pcs) --- Disc Spring Washers - 20x10x0.9 mm - Carbon Steel Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.14 mm	Load at L1 142.0 kg
Material: Carbon Steel Load at 0.75 Height: 160.3 Kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-010-C (2 Pcs) Disc Spring Washers - 20x10x1 mm - Carbon Steel 45 units (90 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.14 mm Load at L1: 142.0 kg Load at 0.75 Height: 160.3 Kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-010-C (2 Pcs) Disc Spring Washers - 20x10x1 mm - Carbon Steel 45 units (90 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2 View the product page first if you are unsure.
W0100-D-020-010-C (2 Pcs) --- Disc Spring Washers - 20x10x1 mm - Carbon Steel W0100-D-020-010-C (2 Pcs) --- Disc Spring Washers - 20x10x1 mm - Carbon Steel Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 45 Available Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.10 mm _{(0.043 in.)}		Loaded Height (L1) 0.34 mm
Material: Carbon Steel Load at 0.75 Height: 170.1 Kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.46 mm
Part Number: W0100-D-020-011-C-L03 (5 Pcs) Disc Spring Washers - 20x10x1.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Each
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.10 mm _{(0.043 in.)}
Material: Carbon Steel Loaded Height (L1): 0.34 mm Load at 0.75 Height: 170.1 Kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.46 mm
Part Number: W0100-D-020-011-C-L03 (5 Pcs) Disc Spring Washers - 20x10x1.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Each View the product page first if you are unsure.
W0100-D-020-011-C-L03 (5 Pcs) --- Disc Spring Washers - 20x10x1.1 mm - Carbon Steel W0100-D-020-011-C-L03 (5 Pcs) --- Disc Spring Washers - 20x10x1.1 mm - Carbon Steel Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.10 mm _{(0.043 in.)}		Loaded Height (L1) 1.21 mm	Load at L1 152.0 kg
Material: Carbon Steel Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.45 mm
Part Number: W0100-D-020-011-C-L12 (50 Pcs) Disc Spring Washers - 20x10x1.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.10 mm _{(0.043 in.)}
Material: Carbon Steel Loaded Height (L1): 1.21 mm Load at L1: 152.0 kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.45 mm
Part Number: W0100-D-020-011-C-L12 (50 Pcs) Disc Spring Washers - 20x10x1.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-011-C-L12 (50 Pcs) --- Disc Spring Washers - 20x10x1.1 mm - Carbon Steel W0100-D-020-011-C-L12 (50 Pcs) --- Disc Spring Washers - 20x10x1.1 mm - Carbon Steel Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.20 mm _{(0.047 in.)}		Loaded Height (L1) 1.38 mm	Load at L1 248.0 kg
Material: Carbon Steel Free Height (E): 1.75 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.50 mm
Part Number: W0100-D-020-012-C (50 Pcs) Disc Spring Washers - 20x10x1.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.20 mm _{(0.047 in.)}
Material: Carbon Steel Loaded Height (L1): 1.38 mm Load at L1: 248.0 kg Free Height (E): 1.75 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.50 mm
Part Number: W0100-D-020-012-C (50 Pcs) Disc Spring Washers - 20x10x1.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-012-C (50 Pcs) --- Disc Spring Washers - 20x10x1.2 mm - Carbon Steel W0100-D-020-012-C (50 Pcs) --- Disc Spring Washers - 20x10x1.2 mm - Carbon Steel Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.58 mm	Load at L1 252.0 kg
Material: Carbon Steel Free Height (E): 1.80 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.30 mm
Part Number: W0100-D-020-015-C (50 Pcs) Disc Spring Washers - 20x10x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Carbon Steel Loaded Height (L1): 1.58 mm Load at L1: 252.0 kg Free Height (E): 1.80 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.30 mm
Part Number: W0100-D-020-015-C (50 Pcs) Disc Spring Washers - 20x10x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-015-C (50 Pcs) --- Disc Spring Washers - 20x10x1.5 mm - Carbon Steel W0100-D-020-015-C (50 Pcs) --- Disc Spring Washers - 20x10x1.5 mm - Carbon Steel Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm + 0.00 / - 0.18 _{(0.787 in.)}	Nominal ID (B) 10.20 mm + 0.18 / - 0.00 _{(0.402 in.)}	Stock Thickness (C) 0.800 mm _{(0.031 in.)}			Load at L1 745.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.35 mm Inside Height (D): 0.55 mm
Part Number: W-0102-D-020-008-C (50 Pcs) Disc Spring Washers - 20x10.2x0.8 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $91.68 AUD Regular price Sale price $91.68 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm + 0.00 / - 0.18 _{(0.787 in.)}	Nominal ID (B) 10.20 mm + 0.18 / - 0.00 _{(0.402 in.)}	Stock Thickness (C) 0.800 mm _{(0.031 in.)}
Material: Spring Steel 50CrVA Load at L1: 745.00 kg Free Height (E): 1.35 mm Inside Height (D): 0.55 mm
Part Number: W-0102-D-020-008-C (50 Pcs) Disc Spring Washers - 20x10.2x0.8 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $91.68 AUD Regular price Sale price $91.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0102-D-020-008-C (50 Pcs) --- Disc Spring Washers - 20x10.2x0.8 mm - Spring Steel 50CrVA W-0102-D-020-008-C (50 Pcs) --- Disc Spring Washers - 20x10.2x0.8 mm - Spring Steel 50CrVA Regular price $91.68 AUD Regular price Sale price $91.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm + 0.00 / - 0.18 _{(0.787 in.)}	Nominal ID (B) 10.20 mm + 0.18 / - 0.00 _{(0.402 in.)}	Stock Thickness (C) 1.100 mm _{(0.043 in.)}			Load at L1 1520.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.55 mm Inside Height (D): 0.45 mm
Part Number: W-0102-D-020-011-C (50 Pcs) Disc Spring Washers - 20x10.2x1.1 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $92.59 AUD Regular price Sale price $92.59 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm + 0.00 / - 0.18 _{(0.787 in.)}	Nominal ID (B) 10.20 mm + 0.18 / - 0.00 _{(0.402 in.)}	Stock Thickness (C) 1.100 mm _{(0.043 in.)}
Material: Spring Steel 50CrVA Load at L1: 1520.00 kg Free Height (E): 1.55 mm Inside Height (D): 0.45 mm
Part Number: W-0102-D-020-011-C (50 Pcs) Disc Spring Washers - 20x10.2x1.1 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $92.59 AUD Regular price Sale price $92.59 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0102-D-020-011-C (50 Pcs) --- Disc Spring Washers - 20x10.2x1.1 mm - Spring Steel 50CrVA W-0102-D-020-011-C (50 Pcs) --- Disc Spring Washers - 20x10.2x1.1 mm - Spring Steel 50CrVA Regular price $92.59 AUD Regular price Sale price $92.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.80 mm	Load at L1 43.0 kg
Material: Carbon Steel Free Height (E): 1.40 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.80 mm
Part Number: W0110-D-023-006-C (5 Pcs) Disc Spring Washers - 22.5x11x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.80 mm Load at L1: 43.0 kg Free Height (E): 1.40 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.80 mm
Part Number: W0110-D-023-006-C (5 Pcs) Disc Spring Washers - 22.5x11x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5 View the product page first if you are unsure.
W0110-D-023-006-C (5 Pcs) --- Disc Spring Washers - 22.5x11x0.6 mm - Carbon Steel W0110-D-023-006-C (5 Pcs) --- Disc Spring Washers - 22.5x11x0.6 mm - Carbon Steel Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.96 mm	Load at L1 71.0 kg
Material: Carbon Steel Free Height (E): 1.45 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.65 mm
Part Number: W0110-D-023-008-C (5 Pcs) Disc Spring Washers - 22.5x11x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 5
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.96 mm Load at L1: 71.0 kg Free Height (E): 1.45 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.65 mm
Part Number: W0110-D-023-008-C (5 Pcs) Disc Spring Washers - 22.5x11x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0110-D-023-008-C (5 Pcs) --- Disc Spring Washers - 22.5x11x0.8 mm - Carbon Steel W0110-D-023-008-C (5 Pcs) --- Disc Spring Washers - 22.5x11x0.8 mm - Carbon Steel Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.38 mm	Load at L1 193.0 kg
Material: Carbon Steel Free Height (E): 1.75 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.50 mm
Part Number: W0110-D-023-013-C (5 Pcs) Disc Spring Washers - 22.5x11x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 5
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Carbon Steel Loaded Height (L1): 1.38 mm Load at L1: 193.0 kg Free Height (E): 1.75 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.50 mm
Part Number: W0110-D-023-013-C (5 Pcs) Disc Spring Washers - 22.5x11x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 5 View the product page first if you are unsure.
W0110-D-023-013-C (5 Pcs) --- Disc Spring Washers - 22.5x11x1.25 mm - Carbon Steel W0110-D-023-013-C (5 Pcs) --- Disc Spring Washers - 22.5x11x1.25 mm - Carbon Steel Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 22.50 mm + 0.00 / - 0.18 _{(0.886 in.)}	Nominal ID (B) 11.20 mm + 0.18 / - 0.00 _{(0.441 in.)}	Stock Thickness (C) 0.800 mm _{(0.031 in.)}			Load at L1 710.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.45 mm Inside Height (D): 0.65 mm
Part Number: W-0112-D-023-008-C (50 Pcs) Disc Spring Washers - 22.5x11.2x0.8 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $93.59 AUD Regular price Sale price $93.59 AUD Unit price per Per 50
Nominal OD (A) 22.50 mm + 0.00 / - 0.18 _{(0.886 in.)}	Nominal ID (B) 11.20 mm + 0.18 / - 0.00 _{(0.441 in.)}	Stock Thickness (C) 0.800 mm _{(0.031 in.)}
Material: Spring Steel 50CrVA Load at L1: 710.00 kg Free Height (E): 1.45 mm Inside Height (D): 0.65 mm
Part Number: W-0112-D-023-008-C (50 Pcs) Disc Spring Washers - 22.5x11.2x0.8 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $93.59 AUD Regular price Sale price $93.59 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0112-D-023-008-C (50 Pcs) --- Disc Spring Washers - 22.5x11.2x0.8 mm - Spring Steel 50CrVA W-0112-D-023-008-C (50 Pcs) --- Disc Spring Washers - 22.5x11.2x0.8 mm - Spring Steel 50CrVA Regular price $93.59 AUD Regular price Sale price $93.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 22.50 mm + 0.00 / - 0.18 _{(0.886 in.)}	Nominal ID (B) 11.20 mm + 0.18 / - 0.00 _{(0.441 in.)}	Stock Thickness (C) 1.250 mm _{(0.049 in.)}			Load at L1 1950.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.75 mm Inside Height (D): 0.50 mm
Part Number: W-0112-D-023-013-C (50 Pcs) Disc Spring Washers - 22.5x11.2x1.25 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $94.50 AUD Regular price Sale price $94.50 AUD Unit price per Per 50
Nominal OD (A) 22.50 mm + 0.00 / - 0.18 _{(0.886 in.)}	Nominal ID (B) 11.20 mm + 0.18 / - 0.00 _{(0.441 in.)}	Stock Thickness (C) 1.250 mm _{(0.049 in.)}
Material: Spring Steel 50CrVA Load at L1: 1950.00 kg Free Height (E): 1.75 mm Inside Height (D): 0.50 mm
Part Number: W-0112-D-023-013-C (50 Pcs) Disc Spring Washers - 22.5x11.2x1.25 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $94.50 AUD Regular price Sale price $94.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0112-D-023-013-C (50 Pcs) --- Disc Spring Washers - 22.5x11.2x1.25 mm - Spring Steel 50CrVA W-0112-D-023-013-C (50 Pcs) --- Disc Spring Washers - 22.5x11.2x1.25 mm - Spring Steel 50CrVA Regular price $94.50 AUD Regular price Sale price $94.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.90 mm	Load at L1 54.0 kg
Material: Carbon Steel Free Height (E): 1.50 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.80 mm
Part Number: W0080-D-023-007-C (5 Pcs) Disc Spring Washers - 23x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.90 mm Load at L1: 54.0 kg Free Height (E): 1.50 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.80 mm
Part Number: W0080-D-023-007-C (5 Pcs) Disc Spring Washers - 23x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0080-D-023-007-C (5 Pcs) --- Disc Spring Washers - 23x8x0.7 mm - Carbon Steel W0080-D-023-007-C (5 Pcs) --- Disc Spring Washers - 23x8x0.7 mm - Carbon Steel Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.99 mm	Load at L1 72.0 kg
Material: Carbon Steel Free Height (E): 1.55 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.75 mm
Part Number: W0080-D-023-008-C (5 Pcs) Disc Spring Washers - 23x8x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.99 mm Load at L1: 72.0 kg Free Height (E): 1.55 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.75 mm
Part Number: W0080-D-023-008-C (5 Pcs) Disc Spring Washers - 23x8x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 5 View the product page first if you are unsure.
W0080-D-023-008-C (5 Pcs) --- Disc Spring Washers - 23x8x0.8 mm - Carbon Steel W0080-D-023-008-C (5 Pcs) --- Disc Spring Washers - 23x8x0.8 mm - Carbon Steel Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 1.07 mm	Load at L1 92.0 kg
Material: Carbon Steel Free Height (E): 1.60 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm
Part Number: W0080-D-023-009-C (5 Pcs) Disc Spring Washers - 23x8x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Carbon Steel Loaded Height (L1): 1.07 mm Load at L1: 92.0 kg Free Height (E): 1.60 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm
Part Number: W0080-D-023-009-C (5 Pcs) Disc Spring Washers - 23x8x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 5 View the product page first if you are unsure.
W0080-D-023-009-C (5 Pcs) --- Disc Spring Washers - 23x8x0.9 mm - Carbon Steel W0080-D-023-009-C (5 Pcs) --- Disc Spring Washers - 23x8x0.9 mm - Carbon Steel Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.17 mm	Load at L1 124.0 kg
Material: Carbon Steel Free Height (E): 1.70 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm
Part Number: W0080-D-023-010-C (5 Pcs) Disc Spring Washers - 23x8x1 mm - Carbon Steel 16 units (80 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.59 AUD Regular price ~~$5.95 AUD~~ Sale price $2.59 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.17 mm Load at L1: 124.0 kg Free Height (E): 1.70 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm
Part Number: W0080-D-023-010-C (5 Pcs) Disc Spring Washers - 23x8x1 mm - Carbon Steel 16 units (80 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.59 AUD Regular price ~~$5.95 AUD~~ Sale price $2.59 AUD Unit price per Per 5
W0080-D-023-010-C (5 Pcs) --- Disc Spring Washers - 23x8x1 mm - Carbon Steel Sale W0080-D-023-010-C (5 Pcs) --- Disc Spring Washers - 23x8x1 mm - Carbon Steel Regular price $2.59 AUD Regular price ~~$5.95 AUD~~ Sale price $2.59 AUD Unit price per 16 Available Now Sale
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 1.09 mm	Load at L1 106.0 kg
Material: Carbon Steel Free Height (E): 1.65 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.75 mm
Part Number: W0100-D-023-009-C (5 Pcs) Disc Spring Washers - 23x10x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Carbon Steel Loaded Height (L1): 1.09 mm Load at L1: 106.0 kg Free Height (E): 1.65 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.75 mm
Part Number: W0100-D-023-009-C (5 Pcs) Disc Spring Washers - 23x10x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-023-009-C (5 Pcs) --- Disc Spring Washers - 23x10x0.9 mm - Carbon Steel W0100-D-023-009-C (5 Pcs) --- Disc Spring Washers - 23x10x0.9 mm - Carbon Steel Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.17 mm	Load at L1 132.0 kg
Material: Carbon Steel Free Height (E): 1.70 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.70 mm
Part Number: W0100-D-023-010-C (5 Pcs) Disc Spring Washers - 23x10x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.17 mm Load at L1: 132.0 kg Free Height (E): 1.70 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.70 mm
Part Number: W0100-D-023-010-C (5 Pcs) Disc Spring Washers - 23x10x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-023-010-C (5 Pcs) --- Disc Spring Washers - 23x10x1 mm - Carbon Steel W0100-D-023-010-C (5 Pcs) --- Disc Spring Washers - 23x10x1 mm - Carbon Steel Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.41 mm	Load at L1 204.0 kg
Material: Carbon Steel Free Height (E): 1.90 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.65 mm
Part Number: W0100-D-023-013-C (5 Pcs) Disc Spring Washers - 23x10x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Carbon Steel Loaded Height (L1): 1.41 mm Load at L1: 204.0 kg Free Height (E): 1.90 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.65 mm
Part Number: W0100-D-023-013-C (5 Pcs) Disc Spring Washers - 23x10x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-023-013-C (5 Pcs) --- Disc Spring Washers - 23x10x1.25 mm - Carbon Steel W0100-D-023-013-C (5 Pcs) --- Disc Spring Washers - 23x10x1.25 mm - Carbon Steel Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.40 mm	Load at L1 233.0 kg
Material: Carbon Steel Free Height (E): 1.85 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.60 mm
Part Number: W0120-D-023-013-C (5 Pcs) Disc Spring Washers - 23x12x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Carbon Steel Loaded Height (L1): 1.40 mm Load at L1: 233.0 kg Free Height (E): 1.85 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.60 mm
Part Number: W0120-D-023-013-C (5 Pcs) Disc Spring Washers - 23x12x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 5 View the product page first if you are unsure.
W0120-D-023-013-C (5 Pcs) --- Disc Spring Washers - 23x12x1.25 mm - Carbon Steel W0120-D-023-013-C (5 Pcs) --- Disc Spring Washers - 23x12x1.25 mm - Carbon Steel Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.63 mm	Load at L1 330.0 kg
Material: Carbon Steel Free Height (E): 2.00 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.50 mm
Part Number: W0120-D-023-015-C (5 Pcs) Disc Spring Washers - 23x12x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 5
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Carbon Steel Loaded Height (L1): 1.63 mm Load at L1: 330.0 kg Free Height (E): 2.00 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.50 mm
Part Number: W0120-D-023-015-C (5 Pcs) Disc Spring Washers - 23x12x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 5 View the product page first if you are unsure.
W0120-D-023-015-C (5 Pcs) --- Disc Spring Washers - 23x12x1.5 mm - Carbon Steel W0120-D-023-015-C (5 Pcs) --- Disc Spring Washers - 23x12x1.5 mm - Carbon Steel Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.19 mm	Load at L1 117.0 kg
Material: Carbon Steel Free Height (E): 1.75 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.75 mm
Part Number: W0100-D-025-010-C (5 Pcs) Disc Spring Washers - 25x10x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.19 mm Load at L1: 117.0 kg Free Height (E): 1.75 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.75 mm
Part Number: W0100-D-025-010-C (5 Pcs) Disc Spring Washers - 25x10x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-025-010-C (5 Pcs) --- Disc Spring Washers - 25x10x1 mm - Carbon Steel W0100-D-025-010-C (5 Pcs) --- Disc Spring Washers - 25x10x1 mm - Carbon Steel Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Out of stock! Backorder Now
