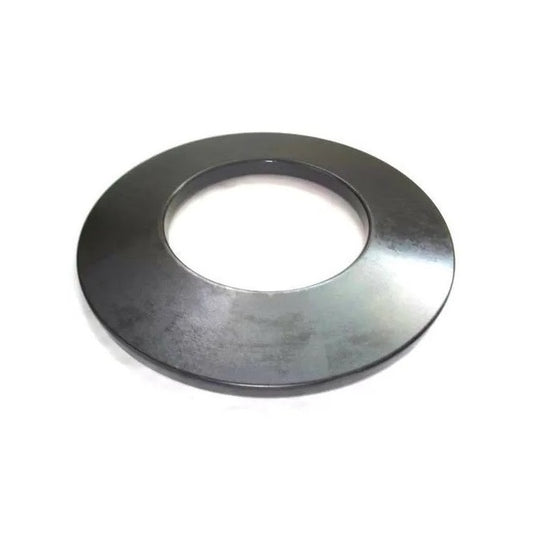

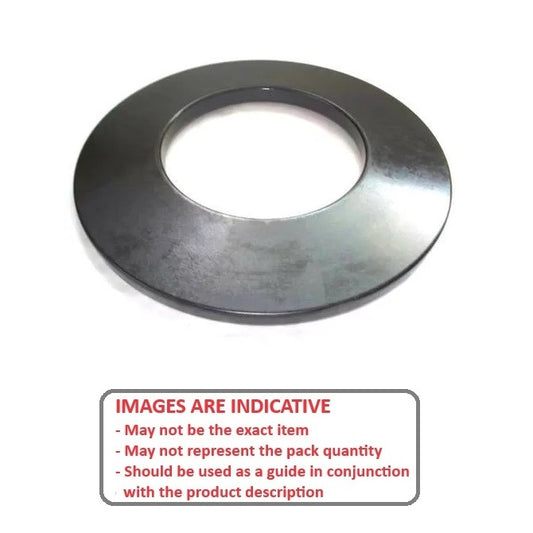

Collection: Washers - Disc Spring - Standard - Carbon Steel

Washers (With Images)

Disc Spring

Standard

Carbon Steel
Plastic
Stainless Steel

259 Products in this selection

Includes disc springs to DIN 2093.
Manufactured under strict quality control to conform to DIN 2093

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard - Carbon Steel. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.81 mm	Load at L1 64.0 kg
Material: Carbon Steel Free Height (E): 1.15 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.45 mm
Part Number: W0080-D-016-007-C (50 Pcs) Disc Spring Washers - 16x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.81 mm Load at L1: 64.0 kg Free Height (E): 1.15 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.45 mm
Part Number: W0080-D-016-007-C (50 Pcs) Disc Spring Washers - 16x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-016-007-C (50 Pcs) --- Disc Spring Washers - 16x8x0.7 mm - Carbon Steel W0080-D-016-007-C (50 Pcs) --- Disc Spring Washers - 16x8x0.7 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.90 mm	Load at L1 83.0 kg
Material: Carbon Steel Load at 0.75 Height: 92.1 Kg Free Height (E): 1.20 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-016-008-C Disc Spring Washers - 16x8x0.8 mm - Carbon Steel 49 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.90 mm Load at L1: 83.0 kg Load at 0.75 Height: 92.1 Kg Free Height (E): 1.20 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-016-008-C Disc Spring Washers - 16x8x0.8 mm - Carbon Steel 49 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Each View the product page first if you are unsure.
W0080-D-016-008-C --- Disc Spring Washers - 16x8x0.8 mm - Carbon Steel W0080-D-016-008-C --- Disc Spring Washers - 16x8x0.8 mm - Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 49 Available Now
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 0.99 mm	Load at L1 101.0 kg
Material: Carbon Steel Free Height (E): 1.25 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.35 mm
Part Number: W0080-D-016-009-C (50 Pcs) Disc Spring Washers - 16x8x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Carbon Steel Loaded Height (L1): 0.99 mm Load at L1: 101.0 kg Free Height (E): 1.25 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.35 mm
Part Number: W0080-D-016-009-C (50 Pcs) Disc Spring Washers - 16x8x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-016-009-C (50 Pcs) --- Disc Spring Washers - 16x8x0.9 mm - Carbon Steel W0080-D-016-009-C (50 Pcs) --- Disc Spring Washers - 16x8x0.9 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.55 mm	Load at L1 14.0 kg
Material: Carbon Steel Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.60 mm
Part Number: W0060-D-018-004-C (50 Pcs) Disc Spring Washers - 18x6x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.55 mm Load at L1: 14.0 kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.60 mm
Part Number: W0060-D-018-004-C (50 Pcs) Disc Spring Washers - 18x6x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-018-004-C (50 Pcs) --- Disc Spring Washers - 18x6x0.4 mm - Carbon Steel W0060-D-018-004-C (50 Pcs) --- Disc Spring Washers - 18x6x0.4 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.65 mm	Load at L1 25.0 kg
Material: Carbon Steel Free Height (E): 1.10 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.60 mm
Part Number: W0060-D-018-005-C (50 Pcs) Disc Spring Washers - 18x6x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.65 mm Load at L1: 25.0 kg Free Height (E): 1.10 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.60 mm
Part Number: W0060-D-018-005-C (50 Pcs) Disc Spring Washers - 18x6x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-018-005-C (50 Pcs) --- Disc Spring Washers - 18x6x0.5 mm - Carbon Steel W0060-D-018-005-C (50 Pcs) --- Disc Spring Washers - 18x6x0.5 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.75 mm	Load at L1 40.0 kg
Material: Carbon Steel Free Height (E): 1.20 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.60 mm
Part Number: W0060-D-018-006-C (10 Pcs) Disc Spring Washers - 18x6x0.6 mm - Carbon Steel 1 pack (10 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.86 AUD Regular price ~~$9.06 AUD~~ Sale price $3.86 AUD Unit price per Per 10
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.75 mm Load at L1: 40.0 kg Free Height (E): 1.20 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.60 mm
Part Number: W0060-D-018-006-C (10 Pcs) Disc Spring Washers - 18x6x0.6 mm - Carbon Steel 1 pack (10 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.86 AUD Regular price ~~$9.06 AUD~~ Sale price $3.86 AUD Unit price per Per 10
W0060-D-018-006-C (10 Pcs) --- Disc Spring Washers - 18x6x0.6 mm - Carbon Steel Sale W0060-D-018-006-C (10 Pcs) --- Disc Spring Washers - 18x6x0.6 mm - Carbon Steel Regular price $3.86 AUD Regular price ~~$9.06 AUD~~ Sale price $3.86 AUD Unit price per 1 Available Now Sale
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.84 mm	Load at L1 55.0 kg
Material: Carbon Steel Free Height (E): 1.25 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.55 mm
Part Number: W0060-D-018-007-C (50 Pcs) Disc Spring Washers - 18x6x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.84 mm Load at L1: 55.0 kg Free Height (E): 1.25 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.55 mm
Part Number: W0060-D-018-007-C (50 Pcs) Disc Spring Washers - 18x6x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-018-007-C (50 Pcs) --- Disc Spring Washers - 18x6x0.7 mm - Carbon Steel W0060-D-018-007-C (50 Pcs) --- Disc Spring Washers - 18x6x0.7 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.92 mm	Load at L1 73.0 kg
Material: Carbon Steel Free Height (E): 1.30 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.50 mm
Part Number: W0060-D-018-008-C (50 Pcs) Disc Spring Washers - 18x6x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.92 mm Load at L1: 73.0 kg Free Height (E): 1.30 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.50 mm
Part Number: W0060-D-018-008-C (50 Pcs) Disc Spring Washers - 18x6x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-018-008-C (50 Pcs) --- Disc Spring Washers - 18x6x0.8 mm - Carbon Steel W0060-D-018-008-C (50 Pcs) --- Disc Spring Washers - 18x6x0.8 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.65 mm	Load at L1 27.0 kg
Material: Carbon Steel Free Height (E): 1.10 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.60 mm
Part Number: W0080-D-018-005-C (50 Pcs) Disc Spring Washers - 18x8x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.65 mm Load at L1: 27.0 kg Free Height (E): 1.10 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.60 mm
Part Number: W0080-D-018-005-C (50 Pcs) Disc Spring Washers - 18x8x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-018-005-C (50 Pcs) --- Disc Spring Washers - 18x8x0.5 mm - Carbon Steel W0080-D-018-005-C (50 Pcs) --- Disc Spring Washers - 18x8x0.5 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.84 mm	Load at L1 60.0 kg
Material: Carbon Steel Free Height (E): 1.25 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm
Part Number: W0080-D-018-007-C (50 Pcs) Disc Spring Washers - 18x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.84 mm Load at L1: 60.0 kg Free Height (E): 1.25 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm
Part Number: W0080-D-018-007-C (50 Pcs) Disc Spring Washers - 18x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-018-007-C (50 Pcs) --- Disc Spring Washers - 18x8x0.7 mm - Carbon Steel W0080-D-018-007-C (50 Pcs) --- Disc Spring Washers - 18x8x0.7 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.92 mm	Load at L1 58.0 kg
Material: Carbon Steel Free Height (E): 1.30 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.50 mm
Part Number: W0080-D-018-008-C (50 Pcs) Disc Spring Washers - 18x8x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.92 mm Load at L1: 58.0 kg Free Height (E): 1.30 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.50 mm
Part Number: W0080-D-018-008-C (50 Pcs) Disc Spring Washers - 18x8x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-018-008-C (50 Pcs) --- Disc Spring Washers - 18x8x0.8 mm - Carbon Steel W0080-D-018-008-C (50 Pcs) --- Disc Spring Washers - 18x8x0.8 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.10 mm	Load at L1 118.0 kg
Material: Carbon Steel Free Height (E): 1.40 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-018-010-C (50 Pcs) Disc Spring Washers - 18x8x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.10 mm Load at L1: 118.0 kg Free Height (E): 1.40 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-018-010-C (50 Pcs) Disc Spring Washers - 18x8x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-018-010-C (50 Pcs) --- Disc Spring Washers - 18x8x1 mm - Carbon Steel W0080-D-018-010-C (50 Pcs) --- Disc Spring Washers - 18x8x1 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 0.45 mm _{(0.018 in.)}		Loaded Height (L1) 0.60 mm	Load at L1 21.0 kg
Material: Carbon Steel Free Height (E): 1.05 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.60 mm
Part Number: W0090-D-018-005-C (50 Pcs) Disc Spring Washers - 18x9x0.45 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $113.86 AUD Regular price Sale price $113.86 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 0.45 mm _{(0.018 in.)}
Material: Carbon Steel Loaded Height (L1): 0.60 mm Load at L1: 21.0 kg Free Height (E): 1.05 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.60 mm
Part Number: W0090-D-018-005-C (50 Pcs) Disc Spring Washers - 18x9x0.45 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $113.86 AUD Regular price Sale price $113.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0090-D-018-005-C (50 Pcs) --- Disc Spring Washers - 18x9x0.45 mm - Carbon Steel W0090-D-018-005-C (50 Pcs) --- Disc Spring Washers - 18x9x0.45 mm - Carbon Steel Regular price $113.86 AUD Regular price Sale price $113.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.83 mm	Load at L1 57.0 kg
Material: Carbon Steel Free Height (E): 1.20 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.50 mm
Part Number: W0090-D-018-007-C (50 Pcs) Disc Spring Washers - 18x9x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.83 mm Load at L1: 57.0 kg Free Height (E): 1.20 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.50 mm
Part Number: W0090-D-018-007-C (50 Pcs) Disc Spring Washers - 18x9x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0090-D-018-007-C (50 Pcs) --- Disc Spring Washers - 18x9x0.7 mm - Carbon Steel W0090-D-018-007-C (50 Pcs) --- Disc Spring Washers - 18x9x0.7 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.10 mm	Load at L1 125.0 kg
Material: Carbon Steel Free Height (E): 1.40 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.40 mm
Part Number: W0090-D-018-010-C (50 Pcs) Disc Spring Washers - 18x9x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.10 mm Load at L1: 125.0 kg Free Height (E): 1.40 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.40 mm
Part Number: W0090-D-018-010-C (50 Pcs) Disc Spring Washers - 18x9x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0090-D-018-010-C (50 Pcs) --- Disc Spring Washers - 18x9x1 mm - Carbon Steel W0090-D-018-010-C (50 Pcs) --- Disc Spring Washers - 18x9x1 mm - Carbon Steel Regular price $55.68 AUD Regular price Sale price $55.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm + 0.00 / - 0.15 _{(0.709 in.)}	Nominal ID (B) 9.20 mm + 0.15 / - 0.00 _{(0.362 in.)}	Stock Thickness (C) 0.700 mm _{(0.028 in.)}			Load at L1 568.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.20 mm Inside Height (D): 0.50 mm
Part Number: W-0092-D-018-007-C (50 Pcs) Disc Spring Washers - 18x9.2x0.7 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm + 0.00 / - 0.15 _{(0.709 in.)}	Nominal ID (B) 9.20 mm + 0.15 / - 0.00 _{(0.362 in.)}	Stock Thickness (C) 0.700 mm _{(0.028 in.)}
Material: Spring Steel 50CrVA Load at L1: 568.00 kg Free Height (E): 1.20 mm Inside Height (D): 0.50 mm
Part Number: W-0092-D-018-007-C (50 Pcs) Disc Spring Washers - 18x9.2x0.7 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0092-D-018-007-C (50 Pcs) --- Disc Spring Washers - 18x9.2x0.7 mm - Spring Steel 50CrVA W-0092-D-018-007-C (50 Pcs) --- Disc Spring Washers - 18x9.2x0.7 mm - Spring Steel 50CrVA Regular price $90.50 AUD Regular price Sale price $90.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm + 0.00 / - 0.15 _{(0.709 in.)}	Nominal ID (B) 9.20 mm + 0.15 / - 0.00 _{(0.362 in.)}	Stock Thickness (C) 1.000 mm _{(0.039 in.)}			Load at L1 1274.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.40 mm Inside Height (D): 0.40 mm
Part Number: W-0092-D-018-010-C (50 Pcs) Disc Spring Washers - 18x9.2x1 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $90.68 AUD Regular price Sale price $90.68 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm + 0.00 / - 0.15 _{(0.709 in.)}	Nominal ID (B) 9.20 mm + 0.15 / - 0.00 _{(0.362 in.)}	Stock Thickness (C) 1.000 mm _{(0.039 in.)}
Material: Spring Steel 50CrVA Load at L1: 1274.00 kg Free Height (E): 1.40 mm Inside Height (D): 0.40 mm
Part Number: W-0092-D-018-010-C (50 Pcs) Disc Spring Washers - 18x9.2x1 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $90.68 AUD Regular price Sale price $90.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0092-D-018-010-C (50 Pcs) --- Disc Spring Washers - 18x9.2x1 mm - Spring Steel 50CrVA W-0092-D-018-010-C (50 Pcs) --- Disc Spring Washers - 18x9.2x1 mm - Spring Steel 50CrVA Regular price $90.68 AUD Regular price Sale price $90.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 19.05 mm _{(0.75 in.)}	Nominal ID (B) 9.53 mm + 0.20 / - 0.00 _{(0.375 in.)}	Stock Thickness (C) 1.02 mm _{(0.04 in.)}	Load to flatten 185.27 kg	Loaded Height (L1) 1.24 mm	Load at L1 104.9 kg
Material: Spring Steel AISI C1095 Free Height (E): 1.50 mm Inside Height (D): 0.48 mm
Part Number: W0095-D-019-010-C Disc Spring Washers - 19.05x9.53x1.02 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Each
Nominal OD (A) 19.05 mm _{(0.75 in.)}	Nominal ID (B) 9.53 mm + 0.20 / - 0.00 _{(0.375 in.)}	Stock Thickness (C) 1.02 mm _{(0.04 in.)}	Load to flatten 185.27 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 1.24 mm Load at L1: 104.9 kg Free Height (E): 1.50 mm Inside Height (D): 0.48 mm
Part Number: W0095-D-019-010-C Disc Spring Washers - 19.05x9.53x1.02 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Each View the product page first if you are unsure.
W0095-D-019-010-C --- Disc Spring Washers - 19.05x9.53x1.02 mm - Spring Steel AISI C1095 W0095-D-019-010-C --- Disc Spring Washers - 19.05x9.53x1.02 mm - Spring Steel AISI C1095 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.77 mm	Load at L1 41.0 kg
Material: Carbon Steel Free Height (E): 1.30 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm
Part Number: W0080-D-020-006-C (5 Pcs) Disc Spring Washers - 20x8x0.6 mm - Carbon Steel 1 pack (5 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.77 mm Load at L1: 41.0 kg Free Height (E): 1.30 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.70 mm
Part Number: W0080-D-020-006-C (5 Pcs) Disc Spring Washers - 20x8x0.6 mm - Carbon Steel 1 pack (5 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5 View the product page first if you are unsure.
W0080-D-020-006-C (5 Pcs) --- Disc Spring Washers - 20x8x0.6 mm - Carbon Steel W0080-D-020-006-C (5 Pcs) --- Disc Spring Washers - 20x8x0.6 mm - Carbon Steel Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 1 Available Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.86 mm	Load at L1 57.0 kg
Material: Carbon Steel Free Height (E): 1.35 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.65 mm
Part Number: W0080-D-020-007-C (50 Pcs) Disc Spring Washers - 20x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.86 mm Load at L1: 57.0 kg Free Height (E): 1.35 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.65 mm
Part Number: W0080-D-020-007-C (50 Pcs) Disc Spring Washers - 20x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-020-007-C (50 Pcs) --- Disc Spring Washers - 20x8x0.7 mm - Carbon Steel W0080-D-020-007-C (50 Pcs) --- Disc Spring Washers - 20x8x0.7 mm - Carbon Steel Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.95 mm	Load at L1 75.0 kg
Material: Carbon Steel Free Height (E): 1.40 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.60 mm
Part Number: W0080-D-020-008-C (50 Pcs) Disc Spring Washers - 20x8x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.95 mm Load at L1: 75.0 kg Free Height (E): 1.40 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.60 mm
Part Number: W0080-D-020-008-C (50 Pcs) Disc Spring Washers - 20x8x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-020-008-C (50 Pcs) --- Disc Spring Washers - 20x8x0.8 mm - Carbon Steel W0080-D-020-008-C (50 Pcs) --- Disc Spring Washers - 20x8x0.8 mm - Carbon Steel Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 1.04 mm	Load at L1 95.0 kg
Material: Carbon Steel Free Height (E): 1.45 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm
Part Number: W0080-D-020-009-C (5 Pcs) Disc Spring Washers - 20x8x0.9 mm - Carbon Steel 18 units (90 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.51 AUD Regular price ~~$5.86 AUD~~ Sale price $2.51 AUD Unit price per Per 5
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Carbon Steel Loaded Height (L1): 1.04 mm Load at L1: 95.0 kg Free Height (E): 1.45 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm
Part Number: W0080-D-020-009-C (5 Pcs) Disc Spring Washers - 20x8x0.9 mm - Carbon Steel 18 units (90 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.51 AUD Regular price ~~$5.86 AUD~~ Sale price $2.51 AUD Unit price per Per 5
W0080-D-020-009-C (5 Pcs) --- Disc Spring Washers - 20x8x0.9 mm - Carbon Steel Sale W0080-D-020-009-C (5 Pcs) --- Disc Spring Washers - 20x8x0.9 mm - Carbon Steel Regular price $2.51 AUD Regular price ~~$5.86 AUD~~ Sale price $2.51 AUD Unit price per 18 Available Now Sale
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.14 mm	Load at L1 129.0 kg
Material: Carbon Steel Free Height (E): 1.55 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm
Part Number: W0080-D-020-010-C (50 Pcs) Disc Spring Washers - 20x8x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.14 mm Load at L1: 129.0 kg Free Height (E): 1.55 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm
Part Number: W0080-D-020-010-C (50 Pcs) Disc Spring Washers - 20x8x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-020-010-C (50 Pcs) --- Disc Spring Washers - 20x8x1 mm - Carbon Steel W0080-D-020-010-C (50 Pcs) --- Disc Spring Washers - 20x8x1 mm - Carbon Steel Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.66 mm	Load at L1 25.0 kg
Material: Carbon Steel Free Height (E): 1.15 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.65 mm
Part Number: W0100-D-020-005-C (50 Pcs) Disc Spring Washers - 20x10x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.66 mm Load at L1: 25.0 kg Free Height (E): 1.15 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.65 mm
Part Number: W0100-D-020-005-C (50 Pcs) Disc Spring Washers - 20x10x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-005-C (50 Pcs) --- Disc Spring Washers - 20x10x0.5 mm - Carbon Steel W0100-D-020-005-C (50 Pcs) --- Disc Spring Washers - 20x10x0.5 mm - Carbon Steel Regular price $89.86 AUD Regular price Sale price $89.86 AUD Unit price per Out of stock! Backorder Now
