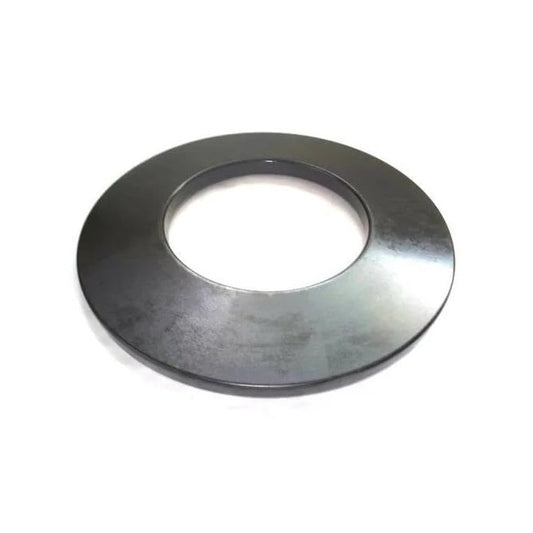

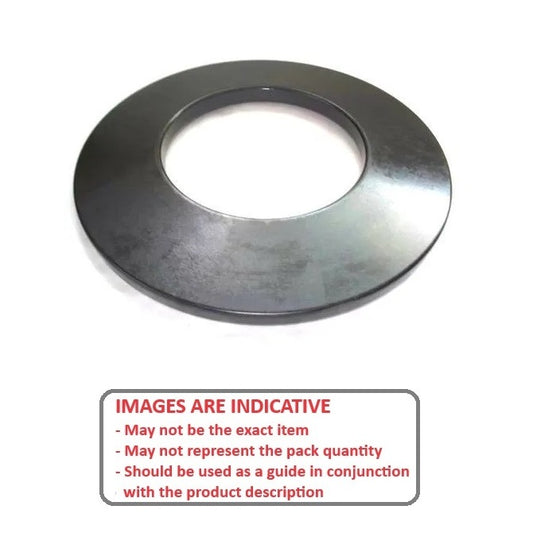

Collection: Washers - Disc Spring - Standard - Carbon Steel

Washers (With Images)

Disc Spring

Standard

Carbon Steel
Plastic
Stainless Steel

259 Products in this selection

Includes disc springs to DIN 2093.
Manufactured under strict quality control to conform to DIN 2093

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard - Carbon Steel. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.70 mm	Load at L1 56.0 kg
Material: Carbon Steel Free Height (E): 1.00 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.40 mm
Part Number: W0040-D-012-006-C (10 Pcs) Disc Spring Washers - 12x4x0.6 mm - Carbon Steel 9 units (90 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.70 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.70 mm Load at L1: 56.0 kg Free Height (E): 1.00 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.40 mm
Part Number: W0040-D-012-006-C (10 Pcs) Disc Spring Washers - 12x4x0.6 mm - Carbon Steel 9 units (90 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.70 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0040-D-012-006-C (10 Pcs) --- Disc Spring Washers - 12x4x0.6 mm - Carbon Steel Sale W0040-D-012-006-C (10 Pcs) --- Disc Spring Washers - 12x4x0.6 mm - Carbon Steel Regular price $3.26 AUD Regular price ~~$7.70 AUD~~ Sale price $3.26 AUD Unit price per 9 Available Now Sale
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.60 mm	Load at L1 35.0 kg
Material: Carbon Steel Free Height (E): 0.90 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.40 mm
Part Number: W0050-D-012-005-C (50 Pcs) Disc Spring Washers - 12x5x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.60 mm Load at L1: 35.0 kg Free Height (E): 0.90 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.40 mm
Part Number: W0050-D-012-005-C (50 Pcs) Disc Spring Washers - 12x5x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-012-005-C (50 Pcs) --- Disc Spring Washers - 12x5x0.5 mm - Carbon Steel W0050-D-012-005-C (50 Pcs) --- Disc Spring Washers - 12x5x0.5 mm - Carbon Steel Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.69 mm	Load at L1 51.0 kg
Material: Carbon Steel Free Height (E): 0.95 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.35 mm
Part Number: W0050-D-012-006-C (50 Pcs) Disc Spring Washers - 12x5x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Per 50
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.69 mm Load at L1: 51.0 kg Free Height (E): 0.95 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.35 mm
Part Number: W0050-D-012-006-C (50 Pcs) Disc Spring Washers - 12x5x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-012-006-C (50 Pcs) --- Disc Spring Washers - 12x5x0.6 mm - Carbon Steel W0050-D-012-006-C (50 Pcs) --- Disc Spring Washers - 12x5x0.6 mm - Carbon Steel Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.59 mm	Load at L1 33.0 kg
Material: Carbon Steel Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-012-005-C (10 Pcs) Disc Spring Washers - 12x6x0.5 mm - Carbon Steel 6 units (60 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.64 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.59 mm Load at L1: 33.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-012-005-C (10 Pcs) Disc Spring Washers - 12x6x0.5 mm - Carbon Steel 6 units (60 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.64 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0060-D-012-005-C (10 Pcs) --- Disc Spring Washers - 12x6x0.5 mm - Carbon Steel Sale W0060-D-012-005-C (10 Pcs) --- Disc Spring Washers - 12x6x0.5 mm - Carbon Steel Regular price $3.26 AUD Regular price ~~$7.64 AUD~~ Sale price $3.26 AUD Unit price per 6 Available Now Sale
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.69 mm	Load at L1 55.0 kg
Material: Carbon Steel Free Height (E): 0.95 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-012-006-C (50 Pcs) Disc Spring Washers - 12x6x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.69 mm Load at L1: 55.0 kg Free Height (E): 0.95 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-012-006-C (50 Pcs) Disc Spring Washers - 12x6x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-012-006-C (50 Pcs) --- Disc Spring Washers - 12x6x0.6 mm - Carbon Steel W0060-D-012-006-C (50 Pcs) --- Disc Spring Washers - 12x6x0.6 mm - Carbon Steel Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.50 mm _{(0.492 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.35 mm _{(0.014 in.)}		Loaded Height (L1) 0.46 mm	Load at L1 15.0 kg
Material: Carbon Steel Free Height (E): 0.80 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.45 mm
Part Number: W0060-D-013-004-C (10 Pcs) Disc Spring Washers - 12.5x6x0.35 mm - Carbon Steel 10 units (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal OD (A) 12.50 mm _{(0.492 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.35 mm _{(0.014 in.)}
Material: Carbon Steel Loaded Height (L1): 0.46 mm Load at L1: 15.0 kg Free Height (E): 0.80 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.45 mm
Part Number: W0060-D-013-004-C (10 Pcs) Disc Spring Washers - 12.5x6x0.35 mm - Carbon Steel 10 units (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0060-D-013-004-C (10 Pcs) --- Disc Spring Washers - 12.5x6x0.35 mm - Carbon Steel Sale W0060-D-013-004-C (10 Pcs) --- Disc Spring Washers - 12.5x6x0.35 mm - Carbon Steel Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per 10 Available Now Sale
Nominal OD (A) 12.50 mm _{(0.492 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.59 mm	Load at L1 29.0 kg
Material: Carbon Steel Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-013-005-C (50 Pcs) Disc Spring Washers - 12.5x6x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.59 AUD Regular price Sale price $48.59 AUD Unit price per Per 50
Nominal OD (A) 12.50 mm _{(0.492 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.59 mm Load at L1: 29.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-013-005-C (50 Pcs) Disc Spring Washers - 12.5x6x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.59 AUD Regular price Sale price $48.59 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-013-005-C (50 Pcs) --- Disc Spring Washers - 12.5x6x0.5 mm - Carbon Steel W0060-D-013-005-C (50 Pcs) --- Disc Spring Washers - 12.5x6x0.5 mm - Carbon Steel Regular price $48.59 AUD Regular price Sale price $48.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.50 mm _{(0.492 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.78 mm	Load at L1 66.0 kg
Material: Carbon Steel Load at 0.75 Height: 74.3 Kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.30 mm
Part Number: W0060-D-013-007-C Disc Spring Washers - 12.5x6x0.7 mm - Carbon Steel 90 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
Nominal OD (A) 12.50 mm _{(0.492 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.78 mm Load at L1: 66.0 kg Load at 0.75 Height: 74.3 Kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.30 mm
Part Number: W0060-D-013-007-C Disc Spring Washers - 12.5x6x0.7 mm - Carbon Steel 90 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
W0060-D-013-007-C --- Disc Spring Washers - 12.5x6x0.7 mm - Carbon Steel Sale W0060-D-013-007-C --- Disc Spring Washers - 12.5x6x0.7 mm - Carbon Steel Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per 90 Available Now Sale
Nominal OD (A) 12.50 mm + 0.00 / - 0.15 _{(0.492 in.)}	Nominal ID (B) 6.20 mm + 0.15 / - 0.00 _{(0.244 in.)}	Stock Thickness (C) 0.500 mm _{(0.02 in.)}			Load at L1 294.00 kg
Material: Spring Steel 50CrVA Free Height (E): 0.85 mm Inside Height (D): 0.35 mm
Part Number: W-0062-D-013-005-C (50 Pcs) Disc Spring Washers - 12.5x6.2x0.5 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $83.95 AUD Regular price Sale price $83.95 AUD Unit price per Per 50
Nominal OD (A) 12.50 mm + 0.00 / - 0.15 _{(0.492 in.)}	Nominal ID (B) 6.20 mm + 0.15 / - 0.00 _{(0.244 in.)}	Stock Thickness (C) 0.500 mm _{(0.02 in.)}
Material: Spring Steel 50CrVA Load at L1: 294.00 kg Free Height (E): 0.85 mm Inside Height (D): 0.35 mm
Part Number: W-0062-D-013-005-C (50 Pcs) Disc Spring Washers - 12.5x6.2x0.5 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $83.95 AUD Regular price Sale price $83.95 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0062-D-013-005-C (50 Pcs) --- Disc Spring Washers - 12.5x6.2x0.5 mm - Spring Steel 50CrVA W-0062-D-013-005-C (50 Pcs) --- Disc Spring Washers - 12.5x6.2x0.5 mm - Spring Steel 50CrVA Regular price $83.95 AUD Regular price Sale price $83.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.50 mm + 0.00 / - 0.15 _{(0.492 in.)}	Nominal ID (B) 6.20 mm + 0.15 / - 0.00 _{(0.244 in.)}	Stock Thickness (C) 0.700 mm _{(0.028 in.)}			Load at L1 657.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.00 mm Inside Height (D): 0.30 mm
Part Number: W-0062-D-013-007-C (50 Pcs) Disc Spring Washers - 12.5x6.2x0.7 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $83.95 AUD Regular price Sale price $83.95 AUD Unit price per Per 50
Nominal OD (A) 12.50 mm + 0.00 / - 0.15 _{(0.492 in.)}	Nominal ID (B) 6.20 mm + 0.15 / - 0.00 _{(0.244 in.)}	Stock Thickness (C) 0.700 mm _{(0.028 in.)}
Material: Spring Steel 50CrVA Load at L1: 657.00 kg Free Height (E): 1.00 mm Inside Height (D): 0.30 mm
Part Number: W-0062-D-013-007-C (50 Pcs) Disc Spring Washers - 12.5x6.2x0.7 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $83.95 AUD Regular price Sale price $83.95 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0062-D-013-007-C (50 Pcs) --- Disc Spring Washers - 12.5x6.2x0.7 mm - Spring Steel 50CrVA W-0062-D-013-007-C (50 Pcs) --- Disc Spring Washers - 12.5x6.2x0.7 mm - Spring Steel 50CrVA Regular price $83.95 AUD Regular price Sale price $83.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 14.00 mm _{(0.551 in.)}	Nominal ID (B) 7.00 mm + 0.20 / - 0.00 _{(0.276 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.60 mm	Load at L1 28.0 kg
Material: Carbon Steel Free Height (E): 0.90 mm Actual ID (Ref): 7.2 mm Inside Height (D): 0.40 mm
Part Number: W0070-D-014-005-C (50 Pcs) Disc Spring Washers - 14x7x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50
Nominal OD (A) 14.00 mm _{(0.551 in.)}	Nominal ID (B) 7.00 mm + 0.20 / - 0.00 _{(0.276 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.60 mm Load at L1: 28.0 kg Free Height (E): 0.90 mm Actual ID (Ref): 7.2 mm Inside Height (D): 0.40 mm
Part Number: W0070-D-014-005-C (50 Pcs) Disc Spring Washers - 14x7x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0070-D-014-005-C (50 Pcs) --- Disc Spring Washers - 14x7x0.5 mm - Carbon Steel W0070-D-014-005-C (50 Pcs) --- Disc Spring Washers - 14x7x0.5 mm - Carbon Steel Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 14.00 mm _{(0.551 in.)}	Nominal ID (B) 7.00 mm + 0.20 / - 0.00 _{(0.276 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.87 mm	Load at L1 80.0 kg
Material: Carbon Steel Free Height (E): 1.10 mm Actual ID (Ref): 7.2 mm Inside Height (D): 0.30 mm
Part Number: W0070-D-014-008-C (50 Pcs) Disc Spring Washers - 14x7x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 50
Nominal OD (A) 14.00 mm _{(0.551 in.)}	Nominal ID (B) 7.00 mm + 0.20 / - 0.00 _{(0.276 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.87 mm Load at L1: 80.0 kg Free Height (E): 1.10 mm Actual ID (Ref): 7.2 mm Inside Height (D): 0.30 mm
Part Number: W0070-D-014-008-C (50 Pcs) Disc Spring Washers - 14x7x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0070-D-014-008-C (50 Pcs) --- Disc Spring Washers - 14x7x0.8 mm - Carbon Steel W0070-D-014-008-C (50 Pcs) --- Disc Spring Washers - 14x7x0.8 mm - Carbon Steel Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.54 mm	Load at L1 18.0 kg
Material: Carbon Steel Free Height (E): 0.95 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.55 mm
Part Number: W0050-D-015-004-C (50 Pcs) Disc Spring Washers - 15x5x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.54 mm Load at L1: 18.0 kg Free Height (E): 0.95 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.55 mm
Part Number: W0050-D-015-004-C (50 Pcs) Disc Spring Washers - 15x5x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-015-004-C (50 Pcs) --- Disc Spring Washers - 15x5x0.4 mm - Carbon Steel W0050-D-015-004-C (50 Pcs) --- Disc Spring Washers - 15x5x0.4 mm - Carbon Steel Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.63 mm	Load at L1 28.0 kg
Material: Carbon Steel Free Height (E): 1.00 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.50 mm
Part Number: W0050-D-015-005-C (50 Pcs) Disc Spring Washers - 15x5x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.05 AUD Regular price Sale price $49.05 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.63 mm Load at L1: 28.0 kg Free Height (E): 1.00 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.50 mm
Part Number: W0050-D-015-005-C (50 Pcs) Disc Spring Washers - 15x5x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.05 AUD Regular price Sale price $49.05 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-015-005-C (50 Pcs) --- Disc Spring Washers - 15x5x0.5 mm - Carbon Steel W0050-D-015-005-C (50 Pcs) --- Disc Spring Washers - 15x5x0.5 mm - Carbon Steel Regular price $49.05 AUD Regular price Sale price $49.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.71 mm	Load at L1 41.0 kg
Material: Carbon Steel Free Height (E): 1.05 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.45 mm
Part Number: W0050-D-015-006-C (50 Pcs) Disc Spring Washers - 15x5x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.32 AUD Regular price Sale price $49.32 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.71 mm Load at L1: 41.0 kg Free Height (E): 1.05 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.45 mm
Part Number: W0050-D-015-006-C (50 Pcs) Disc Spring Washers - 15x5x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.32 AUD Regular price Sale price $49.32 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-015-006-C (50 Pcs) --- Disc Spring Washers - 15x5x0.6 mm - Carbon Steel W0050-D-015-006-C (50 Pcs) --- Disc Spring Washers - 15x5x0.6 mm - Carbon Steel Regular price $49.32 AUD Regular price Sale price $49.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.80 mm	Load at L1 56.0 kg
Material: Carbon Steel Free Height (E): 1.10 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.40 mm
Part Number: W0050-D-015-007-C (50 Pcs) Disc Spring Washers - 15x5x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $94.50 AUD Regular price Sale price $94.50 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.80 mm Load at L1: 56.0 kg Free Height (E): 1.10 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.40 mm
Part Number: W0050-D-015-007-C (50 Pcs) Disc Spring Washers - 15x5x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $94.50 AUD Regular price Sale price $94.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-015-007-C (50 Pcs) --- Disc Spring Washers - 15x5x0.7 mm - Carbon Steel W0050-D-015-007-C (50 Pcs) --- Disc Spring Washers - 15x5x0.7 mm - Carbon Steel Regular price $94.50 AUD Regular price Sale price $94.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.63 mm	Load at L1 29.0 kg
Material: Carbon Steel Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.50 mm
Part Number: W0060-D-015-005-C (50 Pcs) Disc Spring Washers - 15x6x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.63 mm Load at L1: 29.0 kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.50 mm
Part Number: W0060-D-015-005-C (50 Pcs) Disc Spring Washers - 15x6x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-015-005-C (50 Pcs) --- Disc Spring Washers - 15x6x0.5 mm - Carbon Steel W0060-D-015-005-C (50 Pcs) --- Disc Spring Washers - 15x6x0.5 mm - Carbon Steel Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.71 mm	Load at L1 42.0 kg
Material: Carbon Steel Free Height (E): 1.05 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.45 mm
Part Number: W0060-D-015-006-C (50 Pcs) Disc Spring Washers - 15x6x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.71 mm Load at L1: 42.0 kg Free Height (E): 1.05 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.45 mm
Part Number: W0060-D-015-006-C (50 Pcs) Disc Spring Washers - 15x6x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-015-006-C (50 Pcs) --- Disc Spring Washers - 15x6x0.6 mm - Carbon Steel W0060-D-015-006-C (50 Pcs) --- Disc Spring Washers - 15x6x0.6 mm - Carbon Steel Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.80 mm	Load at L1 58.0 kg
Material: Carbon Steel Free Height (E): 1.10 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.40 mm
Part Number: W0060-D-015-007-C (50 Pcs) Disc Spring Washers - 15x6x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.41 AUD Regular price Sale price $49.41 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.80 mm Load at L1: 58.0 kg Free Height (E): 1.10 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.40 mm
Part Number: W0060-D-015-007-C (50 Pcs) Disc Spring Washers - 15x6x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.41 AUD Regular price Sale price $49.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-015-007-C (50 Pcs) --- Disc Spring Washers - 15x6x0.7 mm - Carbon Steel W0060-D-015-007-C (50 Pcs) --- Disc Spring Washers - 15x6x0.7 mm - Carbon Steel Regular price $49.41 AUD Regular price Sale price $49.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.80 mm	Load at L1 67.0 kg
Material: Carbon Steel Free Height (E): 1.10 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-015-007-C (50 Pcs) Disc Spring Washers - 15x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.05 AUD Regular price Sale price $49.05 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Carbon Steel Loaded Height (L1): 0.80 mm Load at L1: 67.0 kg Free Height (E): 1.10 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-015-007-C (50 Pcs) Disc Spring Washers - 15x8x0.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.05 AUD Regular price Sale price $49.05 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-015-007-C (50 Pcs) --- Disc Spring Washers - 15x8x0.7 mm - Carbon Steel W0080-D-015-007-C (50 Pcs) --- Disc Spring Washers - 15x8x0.7 mm - Carbon Steel Regular price $49.05 AUD Regular price Sale price $49.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.90 mm	Load at L1 98.0 kg
Material: Carbon Steel Free Height (E): 1.20 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-015-008-C (50 Pcs) Disc Spring Washers - 15x8x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm _{(0.591 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 0.90 mm Load at L1: 98.0 kg Free Height (E): 1.20 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-015-008-C (50 Pcs) Disc Spring Washers - 15x8x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-015-008-C (50 Pcs) --- Disc Spring Washers - 15x8x0.8 mm - Carbon Steel W0080-D-015-008-C (50 Pcs) --- Disc Spring Washers - 15x8x0.8 mm - Carbon Steel Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.88 mm _{(0.625 in.)}	Nominal ID (B) 7.94 mm + 0.20 / - 0.00 _{(0.313 in.)}	Stock Thickness (C) 0.81 mm _{(0.032 in.)}	Load to flatten 116.07 kg	Loaded Height (L1) 1.02 mm	Load at L1 64.7 kg
Material: Spring Steel AISI C1095 Free Height (E): 1.22 mm Actual ID (Ref): 8.1 mm Inside Height (D): 0.41 mm
Part Number: W0079-D-016-008-C Disc Spring Washers - 15.88x7.94x0.81 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Each
Nominal OD (A) 15.88 mm _{(0.625 in.)}	Nominal ID (B) 7.94 mm + 0.20 / - 0.00 _{(0.313 in.)}	Stock Thickness (C) 0.81 mm _{(0.032 in.)}	Load to flatten 116.07 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 1.02 mm Load at L1: 64.7 kg Free Height (E): 1.22 mm Actual ID (Ref): 8.1 mm Inside Height (D): 0.41 mm
Part Number: W0079-D-016-008-C Disc Spring Washers - 15.88x7.94x0.81 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Each View the product page first if you are unsure.
W0079-D-016-008-C --- Disc Spring Washers - 15.88x7.94x0.81 mm - Spring Steel AISI C1095 W0079-D-016-008-C --- Disc Spring Washers - 15.88x7.94x0.81 mm - Spring Steel AISI C1095 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.53 mm	Load at L1 15.0 kg
Material: Carbon Steel Free Height (E): 0.90 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.50 mm
Part Number: W0080-D-016-004-C (5 Pcs) Disc Spring Washers - 16x8x0.4 mm - Carbon Steel 4 units (20 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $5.41 AUD Regular price ~~$6.49 AUD~~ Sale price $5.41 AUD Unit price per Per 5
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.53 mm Load at L1: 15.0 kg Free Height (E): 0.90 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.50 mm
Part Number: W0080-D-016-004-C (5 Pcs) Disc Spring Washers - 16x8x0.4 mm - Carbon Steel 4 units (20 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $5.41 AUD Regular price ~~$6.49 AUD~~ Sale price $5.41 AUD Unit price per Per 5 View the product page first if you are unsure.
W0080-D-016-004-C (5 Pcs) --- Disc Spring Washers - 16x8x0.4 mm - Carbon Steel Sale W0080-D-016-004-C (5 Pcs) --- Disc Spring Washers - 16x8x0.4 mm - Carbon Steel Regular price $5.41 AUD Regular price ~~$6.49 AUD~~ Sale price $5.41 AUD Unit price per 4 Available Now Sale
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.71 mm	Load at L1 41.0 kg
Material: Carbon Steel Load at 0.75 Height: 45.3 Kg Free Height (E): 1.05 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.45 mm
Part Number: W0080-D-016-006-C (2 Pcs) Disc Spring Washers - 16x8x0.6 mm - Carbon Steel 27 units (54 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 2
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.71 mm Load at L1: 41.0 kg Load at 0.75 Height: 45.3 Kg Free Height (E): 1.05 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.45 mm
Part Number: W0080-D-016-006-C (2 Pcs) Disc Spring Washers - 16x8x0.6 mm - Carbon Steel 27 units (54 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 2 View the product page first if you are unsure.
W0080-D-016-006-C (2 Pcs) --- Disc Spring Washers - 16x8x0.6 mm - Carbon Steel W0080-D-016-006-C (2 Pcs) --- Disc Spring Washers - 16x8x0.6 mm - Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 27 Available Now
