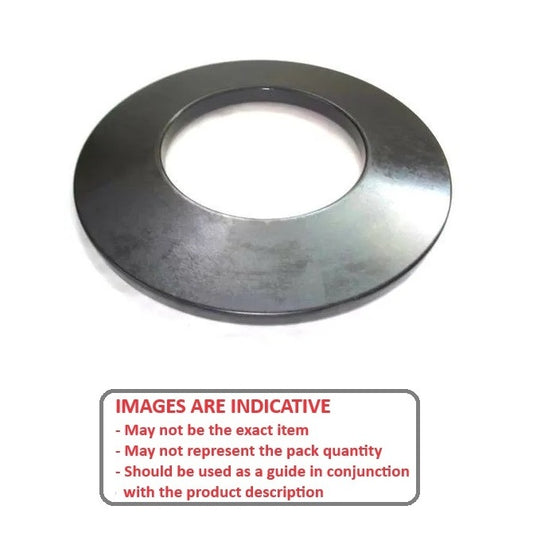

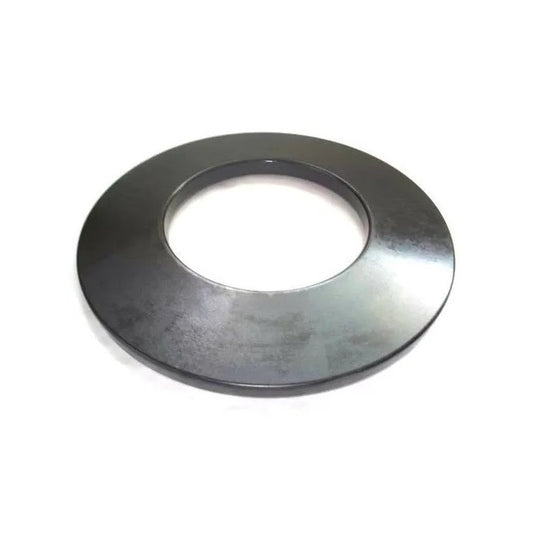

Collection: Washers - Disc Spring - Standard - Carbon Steel

Washers (With Images)

Disc Spring

Standard

Carbon Steel
Plastic
Stainless Steel

259 Products in this selection

Includes disc springs to DIN 2093.
Manufactured under strict quality control to conform to DIN 2093

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard - Carbon Steel. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 4.76 mm + 0.01 / + 0.07 _{(0.187 in.)}	Nominal ID (B) 2.38 mm + 0.10 / - 0.00 _{(0.094 in.)}	Stock Thickness (C) 0.25 mm _{(0.01 in.)}	Load to flatten 12.41 kg	Loaded Height (L1) 0.30 mm	Load at L1 6.8 kg
Material: Spring Steel AISI C1095 Free Height (E): 0.38 mm Actual ID (Ref): 2.4 mm Inside Height (D): 0.13 mm
Part Number: W0024-D-005-003-C Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 4.76 mm + 0.01 / + 0.07 _{(0.187 in.)}	Nominal ID (B) 2.38 mm + 0.10 / - 0.00 _{(0.094 in.)}	Stock Thickness (C) 0.25 mm _{(0.01 in.)}	Load to flatten 12.41 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 0.30 mm Load at L1: 6.8 kg Free Height (E): 0.38 mm Actual ID (Ref): 2.4 mm Inside Height (D): 0.13 mm
Part Number: W0024-D-005-003-C Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
W0024-D-005-003-C --- Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095 W0024-D-005-003-C --- Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 6.35 mm + 0.01 / + 0.07 _{(0.25 in.)}	Nominal ID (B) 3.20 mm + 0.10 / - 0.00 _{(0.126 in.)}	Stock Thickness (C) 0.34 mm _{(0.013 in.)}	Load to flatten 21.43 kg	Loaded Height (L1) 0.43 mm	Load at L1 11.7 kg
Material: Spring Steel AISI C1095 Free Height (E): 0.51 mm Actual ID (Ref): 3.4 mm Inside Height (D): 0.17 mm
Part Number: W0032-D-006-003-C Disc Spring Washers - 6.35x3.2x0.34 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Each
Nominal OD (A) 6.35 mm + 0.01 / + 0.07 _{(0.25 in.)}	Nominal ID (B) 3.20 mm + 0.10 / - 0.00 _{(0.126 in.)}	Stock Thickness (C) 0.34 mm _{(0.013 in.)}	Load to flatten 21.43 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 0.43 mm Load at L1: 11.7 kg Free Height (E): 0.51 mm Actual ID (Ref): 3.4 mm Inside Height (D): 0.17 mm
Part Number: W0032-D-006-003-C Disc Spring Washers - 6.35x3.2x0.34 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Each View the product page first if you are unsure.
W0032-D-006-003-C --- Disc Spring Washers - 6.35x3.2x0.34 mm - Spring Steel AISI C1095 W0032-D-006-003-C --- Disc Spring Washers - 6.35x3.2x0.34 mm - Spring Steel AISI C1095 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.36 mm	Load at L1 10.0 kg
Material: Carbon Steel Free Height (E): 0.55 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-008-003-C (50 Pcs) Disc Spring Washers - 8x3x0.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.05 AUD Regular price Sale price $48.05 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 10.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-008-003-C (50 Pcs) Disc Spring Washers - 8x3x0.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.05 AUD Regular price Sale price $48.05 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm - Carbon Steel W0030-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm - Carbon Steel Regular price $48.05 AUD Regular price Sale price $48.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.45 mm	Load at L1 19.0 kg
Material: Carbon Steel Free Height (E): 0.60 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-004-C (50 Pcs) Disc Spring Washers - 8x3x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.45 mm Load at L1: 19.0 kg Free Height (E): 0.60 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-004-C (50 Pcs) Disc Spring Washers - 8x3x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm - Carbon Steel W0030-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm - Carbon Steel Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.55 mm	Load at L1 36.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-005-C (50 Pcs) Disc Spring Washers - 8x3x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.55 mm Load at L1: 36.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-005-C (50 Pcs) Disc Spring Washers - 8x3x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-005-C (50 Pcs) --- Disc Spring Washers - 8x3x0.5 mm - Carbon Steel W0030-D-008-005-C (50 Pcs) --- Disc Spring Washers - 8x3x0.5 mm - Carbon Steel Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.20 mm _{(0.008 in.)}		Loaded Height (L1) 0.26 mm	Load at L1 4.0 kg
Material: Carbon Steel Free Height (E): 0.45 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-008-002-C (50 Pcs) Disc Spring Washers - 8x4x0.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.20 mm _{(0.008 in.)}
Material: Carbon Steel Loaded Height (L1): 0.26 mm Load at L1: 4.0 kg Free Height (E): 0.45 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-008-002-C (50 Pcs) Disc Spring Washers - 8x4x0.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-008-002-C (50 Pcs) --- Disc Spring Washers - 8x4x0.2 mm - Carbon Steel W0040-D-008-002-C (50 Pcs) --- Disc Spring Washers - 8x4x0.2 mm - Carbon Steel Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Carbon Steel Free Height (E): 0.55 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-008-003-C (10 Pcs) Disc Spring Washers - 8x4x0.3 mm - Carbon Steel 4 units (40 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$7.56 AUD~~ Sale price $3.19 AUD Unit price per Per 10
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-008-003-C (10 Pcs) Disc Spring Washers - 8x4x0.3 mm - Carbon Steel 4 units (40 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$7.56 AUD~~ Sale price $3.19 AUD Unit price per Per 10
W0040-D-008-003-C (10 Pcs) --- Disc Spring Washers - 8x4x0.3 mm - Carbon Steel Sale W0040-D-008-003-C (10 Pcs) --- Disc Spring Washers - 8x4x0.3 mm - Carbon Steel Regular price $3.19 AUD Regular price ~~$7.56 AUD~~ Sale price $3.19 AUD Unit price per 4 Available Now Sale
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.45 mm	Load at L1 21.0 kg
Material: Carbon Steel Free Height (E): 0.60 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.20 mm
Part Number: W0040-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.45 mm Load at L1: 21.0 kg Free Height (E): 0.60 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.20 mm
Part Number: W0040-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4x0.4 mm - Carbon Steel W0040-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4x0.4 mm - Carbon Steel Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm + 0.00 / - 0.15 _{(0.315 in.)}	Nominal ID (B) 4.20 mm + 0.15 / - 0.00 _{(0.165 in.)}	Stock Thickness (C) 0.300 mm _{(0.012 in.)}			Load at L1 119.00 kg
Material: Spring Steel 50CrVA Free Height (E): 0.55 mm Inside Height (D): 0.25 mm
Part Number: W-0042-D-008-003-C (50 Pcs) Disc Spring Washers - 8x4.2x0.3 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm + 0.00 / - 0.15 _{(0.315 in.)}	Nominal ID (B) 4.20 mm + 0.15 / - 0.00 _{(0.165 in.)}	Stock Thickness (C) 0.300 mm _{(0.012 in.)}
Material: Spring Steel 50CrVA Load at L1: 119.00 kg Free Height (E): 0.55 mm Inside Height (D): 0.25 mm
Part Number: W-0042-D-008-003-C (50 Pcs) Disc Spring Washers - 8x4.2x0.3 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0042-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.3 mm - Spring Steel 50CrVA W-0042-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.3 mm - Spring Steel 50CrVA Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm + 0.00 / - 0.15 _{(0.315 in.)}	Nominal ID (B) 4.20 mm + 0.15 / - 0.00 _{(0.165 in.)}	Stock Thickness (C) 0.400 mm _{(0.016 in.)}			Load at L1 210.00 kg
Material: Spring Steel 50CrVA Free Height (E): 0.60 mm Inside Height (D): 0.20 mm
Part Number: W-0042-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4.2x0.4 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm + 0.00 / - 0.15 _{(0.315 in.)}	Nominal ID (B) 4.20 mm + 0.15 / - 0.00 _{(0.165 in.)}	Stock Thickness (C) 0.400 mm _{(0.016 in.)}
Material: Spring Steel 50CrVA Load at L1: 210.00 kg Free Height (E): 0.60 mm Inside Height (D): 0.20 mm
Part Number: W-0042-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4.2x0.4 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0042-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.4 mm - Spring Steel 50CrVA W-0042-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.4 mm - Spring Steel 50CrVA Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 9.53 mm + 0.01 / + 0.07 _{(0.375 in.)}	Nominal ID (B) 4.76 mm + 0.20 / - 0.00 _{(0.187 in.)}	Stock Thickness (C) 0.51 mm _{(0.02 in.)}	Load to flatten 49.11 kg	Loaded Height (L1) 0.64 mm	Load at L1 26.8 kg
Material: Spring Steel AISI C1095 Free Height (E): 0.76 mm Actual ID (Ref): 5.0 mm Inside Height (D): 0.25 mm
Part Number: W0048-D-010-005-C Disc Spring Washers - 9.53x4.76x0.51 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Each
Nominal OD (A) 9.53 mm + 0.01 / + 0.07 _{(0.375 in.)}	Nominal ID (B) 4.76 mm + 0.20 / - 0.00 _{(0.187 in.)}	Stock Thickness (C) 0.51 mm _{(0.02 in.)}	Load to flatten 49.11 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 0.64 mm Load at L1: 26.8 kg Free Height (E): 0.76 mm Actual ID (Ref): 5.0 mm Inside Height (D): 0.25 mm
Part Number: W0048-D-010-005-C Disc Spring Washers - 9.53x4.76x0.51 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Each View the product page first if you are unsure.
W0048-D-010-005-C --- Disc Spring Washers - 9.53x4.76x0.51 mm - Spring Steel AISI C1095 W0048-D-010-005-C --- Disc Spring Washers - 9.53x4.76x0.51 mm - Spring Steel AISI C1095 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.39 mm	Load at L1 10.0 kg
Material: Carbon Steel Free Height (E): 0.65 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.35 mm
Part Number: W0030-D-010-003-C (10 Pcs) Disc Spring Washers - 10x3x0.3 mm - Carbon Steel 10 units (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Carbon Steel Loaded Height (L1): 0.39 mm Load at L1: 10.0 kg Free Height (E): 0.65 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.35 mm
Part Number: W0030-D-010-003-C (10 Pcs) Disc Spring Washers - 10x3x0.3 mm - Carbon Steel 10 units (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0030-D-010-003-C (10 Pcs) --- Disc Spring Washers - 10x3x0.3 mm - Carbon Steel Sale W0030-D-010-003-C (10 Pcs) --- Disc Spring Washers - 10x3x0.3 mm - Carbon Steel Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per 10 Available Now Sale
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.48 mm	Load at L1 18.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.30 mm
Part Number: W0030-D-010-004-C (50 Pcs) Disc Spring Washers - 10x3x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 18.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.30 mm
Part Number: W0030-D-010-004-C (50 Pcs) Disc Spring Washers - 10x3x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x3x0.4 mm - Carbon Steel W0030-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x3x0.4 mm - Carbon Steel Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.56 mm	Load at L1 28.0 kg
Material: Carbon Steel Free Height (E): 0.75 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-010-005-C (50 Pcs) Disc Spring Washers - 10x3x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 28.0 kg Free Height (E): 0.75 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-010-005-C (50 Pcs) Disc Spring Washers - 10x3x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-010-005-C (50 Pcs) --- Disc Spring Washers - 10x3x0.5 mm - Carbon Steel W0030-D-010-005-C (50 Pcs) --- Disc Spring Washers - 10x3x0.5 mm - Carbon Steel Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.48 mm	Load at L1 19.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.30 mm
Part Number: W0040-D-010-004-C (10 Pcs) Disc Spring Washers - 10x4x0.4 mm - Carbon Steel 2 units (20 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 19.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.30 mm
Part Number: W0040-D-010-004-C (10 Pcs) Disc Spring Washers - 10x4x0.4 mm - Carbon Steel 2 units (20 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0040-D-010-004-C (10 Pcs) --- Disc Spring Washers - 10x4x0.4 mm - Carbon Steel Sale W0040-D-010-004-C (10 Pcs) --- Disc Spring Washers - 10x4x0.4 mm - Carbon Steel Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per 2 Available Now Sale
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.56 mm	Load at L1 29.0 kg
Material: Carbon Steel Free Height (E): 0.75 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-010-005-C (10 Pcs) Disc Spring Washers - 10x4x0.5 mm - Carbon Steel 29 units (290 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.64 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 29.0 kg Free Height (E): 0.75 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-010-005-C (10 Pcs) Disc Spring Washers - 10x4x0.5 mm - Carbon Steel 29 units (290 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.64 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0040-D-010-005-C (10 Pcs) --- Disc Spring Washers - 10x4x0.5 mm - Carbon Steel Sale W0040-D-010-005-C (10 Pcs) --- Disc Spring Washers - 10x4x0.5 mm - Carbon Steel Regular price $3.26 AUD Regular price ~~$7.64 AUD~~ Sale price $3.26 AUD Unit price per 29 Available Now Sale
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.66 mm	Load at L1 50.0 kg
Material: Carbon Steel Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-010-006-C (50 Pcs) Disc Spring Washers - 10x4x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Carbon Steel Loaded Height (L1): 0.66 mm Load at L1: 50.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-010-006-C (50 Pcs) Disc Spring Washers - 10x4x0.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-010-006-C (50 Pcs) --- Disc Spring Washers - 10x4x0.6 mm - Carbon Steel W0040-D-010-006-C (50 Pcs) --- Disc Spring Washers - 10x4x0.6 mm - Carbon Steel Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.25 mm _{(0.01 in.)}		Loaded Height (L1) 0.33 mm	Load at L1 6.0 kg
Material: Carbon Steel Free Height (E): 0.55 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-003-C (50 Pcs) Disc Spring Washers - 10x5x0.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $43.41 AUD Regular price Sale price $43.41 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.25 mm _{(0.01 in.)}
Material: Carbon Steel Loaded Height (L1): 0.33 mm Load at L1: 6.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-003-C (50 Pcs) Disc Spring Washers - 10x5x0.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $43.41 AUD Regular price Sale price $43.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-010-003-C (50 Pcs) --- Disc Spring Washers - 10x5x0.25 mm - Carbon Steel W0050-D-010-003-C (50 Pcs) --- Disc Spring Washers - 10x5x0.25 mm - Carbon Steel Regular price $43.41 AUD Regular price Sale price $43.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.48 mm	Load at L1 21.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-004-C (50 Pcs) Disc Spring Washers - 10x5x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 21.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-004-C (50 Pcs) Disc Spring Washers - 10x5x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x5x0.4 mm - Carbon Steel W0050-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x5x0.4 mm - Carbon Steel Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.56 mm	Load at L1 33.0 kg
Material: Carbon Steel Load at 0.75 Height: 36.4 Kg Free Height (E): 0.75 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.25 mm
Part Number: W0050-D-010-005-C (5 Pcs) Disc Spring Washers - 10x5x0.5 mm - Carbon Steel 7 units (35 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $4.59 AUD Regular price ~~$5.51 AUD~~ Sale price $4.59 AUD Unit price per Per 5
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 5.00 mm + 0.20 / - 0.00 _{(0.197 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 33.0 kg Load at 0.75 Height: 36.4 Kg Free Height (E): 0.75 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.25 mm
Part Number: W0050-D-010-005-C (5 Pcs) Disc Spring Washers - 10x5x0.5 mm - Carbon Steel 7 units (35 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $4.59 AUD Regular price ~~$5.51 AUD~~ Sale price $4.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0050-D-010-005-C (5 Pcs) --- Disc Spring Washers - 10x5x0.5 mm - Carbon Steel Sale W0050-D-010-005-C (5 Pcs) --- Disc Spring Washers - 10x5x0.5 mm - Carbon Steel Regular price $4.59 AUD Regular price ~~$5.51 AUD~~ Sale price $4.59 AUD Unit price per 7 Available Now Sale
Nominal OD (A) 10.00 mm + 0.00 / - 0.15 _{(0.394 in.)}	Nominal ID (B) 5.20 mm + 0.15 / - 0.00 _{(0.205 in.)}	Stock Thickness (C) 0.400 mm _{(0.016 in.)}			Load at L1 213.00 kg
Material: Spring Steel 50CrVA Free Height (E): 0.70 mm Inside Height (D): 0.30 mm
Part Number: W-0052-D-010-004-C (50 Pcs) Disc Spring Washers - 10x5.2x0.4 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $82.05 AUD Regular price Sale price $82.05 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm + 0.00 / - 0.15 _{(0.394 in.)}	Nominal ID (B) 5.20 mm + 0.15 / - 0.00 _{(0.205 in.)}	Stock Thickness (C) 0.400 mm _{(0.016 in.)}
Material: Spring Steel 50CrVA Load at L1: 213.00 kg Free Height (E): 0.70 mm Inside Height (D): 0.30 mm
Part Number: W-0052-D-010-004-C (50 Pcs) Disc Spring Washers - 10x5.2x0.4 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $82.05 AUD Regular price Sale price $82.05 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0052-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x5.2x0.4 mm - Spring Steel 50CrVA W-0052-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x5.2x0.4 mm - Spring Steel 50CrVA Regular price $82.05 AUD Regular price Sale price $82.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm + 0.00 / - 0.15 _{(0.394 in.)}	Nominal ID (B) 5.20 mm + 0.15 / - 0.00 _{(0.205 in.)}	Stock Thickness (C) 0.500 mm _{(0.02 in.)}			Load at L1 323.00 kg
Material: Spring Steel 50CrVA Free Height (E): 0.75 mm Inside Height (D): 0.25 mm
Part Number: W-0052-D-010-005-C (50 Pcs) Disc Spring Washers - 10x5.2x0.5 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $83.05 AUD Regular price Sale price $83.05 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm + 0.00 / - 0.15 _{(0.394 in.)}	Nominal ID (B) 5.20 mm + 0.15 / - 0.00 _{(0.205 in.)}	Stock Thickness (C) 0.500 mm _{(0.02 in.)}
Material: Spring Steel 50CrVA Load at L1: 323.00 kg Free Height (E): 0.75 mm Inside Height (D): 0.25 mm
Part Number: W-0052-D-010-005-C (50 Pcs) Disc Spring Washers - 10x5.2x0.5 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $83.05 AUD Regular price Sale price $83.05 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0052-D-010-005-C (50 Pcs) --- Disc Spring Washers - 10x5.2x0.5 mm - Spring Steel 50CrVA W-0052-D-010-005-C (50 Pcs) --- Disc Spring Washers - 10x5.2x0.5 mm - Spring Steel 50CrVA Regular price $83.05 AUD Regular price Sale price $83.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.50 mm	Load at L1 18.0 kg
Material: Carbon Steel Free Height (E): 0.80 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.40 mm
Part Number: W0040-D-012-004-C (50 Pcs) Disc Spring Washers - 12x4x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.59 AUD Regular price Sale price $48.59 AUD Unit price per Per 50
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.50 mm Load at L1: 18.0 kg Free Height (E): 0.80 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.40 mm
Part Number: W0040-D-012-004-C (50 Pcs) Disc Spring Washers - 12x4x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.59 AUD Regular price Sale price $48.59 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-012-004-C (50 Pcs) --- Disc Spring Washers - 12x4x0.4 mm - Carbon Steel W0040-D-012-004-C (50 Pcs) --- Disc Spring Washers - 12x4x0.4 mm - Carbon Steel Regular price $48.59 AUD Regular price Sale price $48.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.59 mm	Load at L1 28.0 kg
Material: Carbon Steel Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.35 mm
Part Number: W0040-D-012-005-C (50 Pcs) Disc Spring Washers - 12x4x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Per 50
Nominal OD (A) 12.00 mm _{(0.472 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.59 mm Load at L1: 28.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.35 mm
Part Number: W0040-D-012-005-C (50 Pcs) Disc Spring Washers - 12x4x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-012-005-C (50 Pcs) --- Disc Spring Washers - 12x4x0.5 mm - Carbon Steel W0040-D-012-005-C (50 Pcs) --- Disc Spring Washers - 12x4x0.5 mm - Carbon Steel Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Out of stock! Backorder Now
