Collection: Washers - Disc Spring - Standard - Carbon Steel

Washers (With Images)

Disc Spring

Standard

Carbon Steel
Plastic
Stainless Steel

259 Products in this selection

Includes disc springs to DIN 2093.
Manufactured under strict quality control to conform to DIN 2093

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard - Carbon Steel. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 1.07 mm	Load at L1 86.0 kg
Material: Carbon Steel Free Height (E): 1.60 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.70 mm

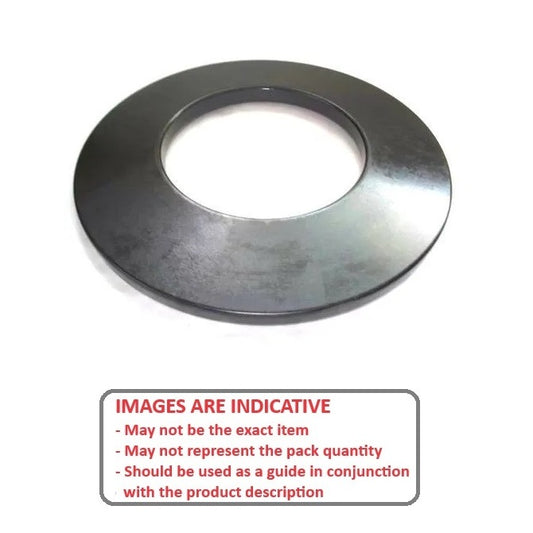

Part Number: W0120-D-025-009-C (5 Pcs) Disc Spring Washers - 25x12x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Per 5
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Carbon Steel Loaded Height (L1): 1.07 mm Load at L1: 86.0 kg Free Height (E): 1.60 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.70 mm
Part Number: W0120-D-025-009-C (5 Pcs) Disc Spring Washers - 25x12x0.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Per 5 View the product page first if you are unsure.
W0120-D-025-009-C (5 Pcs) --- Disc Spring Washers - 25x12x0.9 mm - Carbon Steel W0120-D-025-009-C (5 Pcs) --- Disc Spring Washers - 25x12x0.9 mm - Carbon Steel Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.20 mm	Load at L1 136.0 kg
Material: Carbon Steel Free Height (E): 1.80 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.80 mm

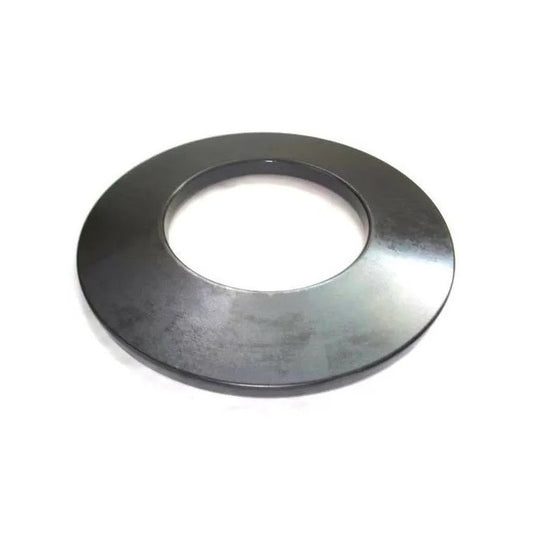

Part Number: W0120-D-025-010-C (5 Pcs) Disc Spring Washers - 25x12x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Per 5
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.20 mm Load at L1: 136.0 kg Free Height (E): 1.80 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.80 mm
Part Number: W0120-D-025-010-C (5 Pcs) Disc Spring Washers - 25x12x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Per 5 View the product page first if you are unsure.
W0120-D-025-010-C (5 Pcs) --- Disc Spring Washers - 25x12x1 mm - Carbon Steel W0120-D-025-010-C (5 Pcs) --- Disc Spring Washers - 25x12x1 mm - Carbon Steel Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.42 mm	Load at L1 221.0 kg
Material: Carbon Steel Free Height (E): 1.95 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.70 mm
Part Number: W0120-D-025-013-C (5 Pcs) Disc Spring Washers - 25x12x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Carbon Steel Loaded Height (L1): 1.42 mm Load at L1: 221.0 kg Free Height (E): 1.95 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.70 mm
Part Number: W0120-D-025-013-C (5 Pcs) Disc Spring Washers - 25x12x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5 View the product page first if you are unsure.
W0120-D-025-013-C (5 Pcs) --- Disc Spring Washers - 25x12x1.25 mm - Carbon Steel W0120-D-025-013-C (5 Pcs) --- Disc Spring Washers - 25x12x1.25 mm - Carbon Steel Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.64 mm	Load at L1 292.0 kg
Material: Carbon Steel Free Height (E): 2.05 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.55 mm
Part Number: W0120-D-025-015-C (5 Pcs) Disc Spring Washers - 25x12x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Per 5
Nominal OD (A) 25.00 mm _{(0.984 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Carbon Steel Loaded Height (L1): 1.64 mm Load at L1: 292.0 kg Free Height (E): 2.05 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.55 mm
Part Number: W0120-D-025-015-C (5 Pcs) Disc Spring Washers - 25x12x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Per 5 View the product page first if you are unsure.
W0120-D-025-015-C (5 Pcs) --- Disc Spring Washers - 25x12x1.5 mm - Carbon Steel W0120-D-025-015-C (5 Pcs) --- Disc Spring Washers - 25x12x1.5 mm - Carbon Steel Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 25.00 mm + 0.00 / - 0.18 _{(0.984 in.)}	Nominal ID (B) 12.20 mm + 0.18 / - 0.00 _{(0.48 in.)}	Stock Thickness (C) 0.900 mm _{(0.035 in.)}			Load at L1 868.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.60 mm Inside Height (D): 0.70 mm
Part Number: W-0122-D-025-009-C (50 Pcs) Disc Spring Washers - 25x12.2x0.9 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $95.50 AUD Regular price Sale price $95.50 AUD Unit price per Per 50
Nominal OD (A) 25.00 mm + 0.00 / - 0.18 _{(0.984 in.)}	Nominal ID (B) 12.20 mm + 0.18 / - 0.00 _{(0.48 in.)}	Stock Thickness (C) 0.900 mm _{(0.035 in.)}
Material: Spring Steel 50CrVA Load at L1: 868.00 kg Free Height (E): 1.60 mm Inside Height (D): 0.70 mm
Part Number: W-0122-D-025-009-C (50 Pcs) Disc Spring Washers - 25x12.2x0.9 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $95.50 AUD Regular price Sale price $95.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0122-D-025-009-C (50 Pcs) --- Disc Spring Washers - 25x12.2x0.9 mm - Spring Steel 50CrVA W-0122-D-025-009-C (50 Pcs) --- Disc Spring Washers - 25x12.2x0.9 mm - Spring Steel 50CrVA Regular price $95.50 AUD Regular price Sale price $95.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 25.00 mm + 0.00 / - 0.18 _{(0.984 in.)}	Nominal ID (B) 12.20 mm + 0.18 / - 0.00 _{(0.48 in.)}	Stock Thickness (C) 1.500 mm _{(0.059 in.)}			Load at L1 2910.00 kg
Material: Spring Steel 50CrVA Free Height (E): 2.05 mm Inside Height (D): 0.55 mm
Part Number: W-0122-D-025-015-C (50 Pcs) Disc Spring Washers - 25x12.2x1.5 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $98.50 AUD Regular price Sale price $98.50 AUD Unit price per Per 50
Nominal OD (A) 25.00 mm + 0.00 / - 0.18 _{(0.984 in.)}	Nominal ID (B) 12.20 mm + 0.18 / - 0.00 _{(0.48 in.)}	Stock Thickness (C) 1.500 mm _{(0.059 in.)}
Material: Spring Steel 50CrVA Load at L1: 2910.00 kg Free Height (E): 2.05 mm Inside Height (D): 0.55 mm
Part Number: W-0122-D-025-015-C (50 Pcs) Disc Spring Washers - 25x12.2x1.5 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $98.50 AUD Regular price Sale price $98.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0122-D-025-015-C (50 Pcs) --- Disc Spring Washers - 25x12.2x1.5 mm - Spring Steel 50CrVA W-0122-D-025-015-C (50 Pcs) --- Disc Spring Washers - 25x12.2x1.5 mm - Spring Steel 50CrVA Regular price $98.50 AUD Regular price Sale price $98.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 25.40 mm _{(1 in.)}	Nominal ID (B) 12.70 mm + 0.20 / - 0.00 _{(0.5 in.)}	Stock Thickness (C) 1.27 mm _{(0.05 in.)}	Load to flatten 267.86 kg	Loaded Height (L1) 1.57 mm	Load at L1 151.8 kg
Material: Spring Steel AISI C1095 Free Height (E): 1.91 mm Actual ID (Ref): 12.9 mm Inside Height (D): 0.64 mm
Part Number: W0127-D-025-013-C (5 Pcs) Disc Spring Washers - 25.4x12.7x1.27 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Each
Nominal OD (A) 25.40 mm _{(1 in.)}	Nominal ID (B) 12.70 mm + 0.20 / - 0.00 _{(0.5 in.)}	Stock Thickness (C) 1.27 mm _{(0.05 in.)}	Load to flatten 267.86 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 1.57 mm Load at L1: 151.8 kg Free Height (E): 1.91 mm Actual ID (Ref): 12.9 mm Inside Height (D): 0.64 mm
Part Number: W0127-D-025-013-C (5 Pcs) Disc Spring Washers - 25.4x12.7x1.27 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Each View the product page first if you are unsure.
W0127-D-025-013-C (5 Pcs) --- Disc Spring Washers - 25.4x12.7x1.27 mm - Spring Steel AISI C1095 W0127-D-025-013-C (5 Pcs) --- Disc Spring Washers - 25.4x12.7x1.27 mm - Spring Steel AISI C1095 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 1.04 mm	Load at L1 66.0 kg
Material: Carbon Steel Free Height (E): 1.75 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.95 mm
Part Number: W0100-D-028-008-C (5 Pcs) Disc Spring Washers - 28x10x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 1.04 mm Load at L1: 66.0 kg Free Height (E): 1.75 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.95 mm
Part Number: W0100-D-028-008-C (5 Pcs) Disc Spring Washers - 28x10x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-028-008-C (5 Pcs) --- Disc Spring Washers - 28x10x0.8 mm - Carbon Steel W0100-D-028-008-C (5 Pcs) --- Disc Spring Washers - 28x10x0.8 mm - Carbon Steel Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.23 mm	Load at L1 113.0 kg
Material: Carbon Steel Free Height (E): 1.90 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.90 mm
Part Number: W0100-D-028-010-C (50 Pcs) Disc Spring Washers - 28x10x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $92.68 AUD Regular price Sale price $92.68 AUD Unit price per Per 50
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.23 mm Load at L1: 113.0 kg Free Height (E): 1.90 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.90 mm
Part Number: W0100-D-028-010-C (50 Pcs) Disc Spring Washers - 28x10x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $92.68 AUD Regular price Sale price $92.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-028-010-C (50 Pcs) --- Disc Spring Washers - 28x10x1 mm - Carbon Steel W0100-D-028-010-C (50 Pcs) --- Disc Spring Washers - 28x10x1 mm - Carbon Steel Regular price $92.68 AUD Regular price Sale price $92.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.45 mm	Load at L1 185.0 kg
Material: Carbon Steel Free Height (E): 2.05 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.80 mm
Part Number: W0100-D-028-013-C (5 Pcs) Disc Spring Washers - 28x10x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Per 5
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Carbon Steel Loaded Height (L1): 1.45 mm Load at L1: 185.0 kg Free Height (E): 2.05 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.80 mm
Part Number: W0100-D-028-013-C (5 Pcs) Disc Spring Washers - 28x10x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-028-013-C (5 Pcs) --- Disc Spring Washers - 28x10x1.25 mm - Carbon Steel W0100-D-028-013-C (5 Pcs) --- Disc Spring Washers - 28x10x1.25 mm - Carbon Steel Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.67 mm	Load at L1 272.0 kg
Material: Carbon Steel Free Height (E): 2.20 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.70 mm
Part Number: W0100-D-028-015-C (5 Pcs) Disc Spring Washers - 28x10x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Per 5
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Carbon Steel Loaded Height (L1): 1.67 mm Load at L1: 272.0 kg Free Height (E): 2.20 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.70 mm
Part Number: W0100-D-028-015-C (5 Pcs) Disc Spring Washers - 28x10x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-D-028-015-C (5 Pcs) --- Disc Spring Washers - 28x10x1.5 mm - Carbon Steel W0100-D-028-015-C (5 Pcs) --- Disc Spring Washers - 28x10x1.5 mm - Carbon Steel Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.24 mm	Load at L1 127.0 kg
Material: Carbon Steel Free Height (E): 1.95 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.95 mm
Part Number: W0120-D-028-010-C (50 Pcs) Disc Spring Washers - 28x12x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $92.05 AUD Regular price Sale price $92.05 AUD Unit price per Per 50
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.24 mm Load at L1: 127.0 kg Free Height (E): 1.95 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.95 mm
Part Number: W0120-D-028-010-C (50 Pcs) Disc Spring Washers - 28x12x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $92.05 AUD Regular price Sale price $92.05 AUD Unit price per Per 50 View the product page first if you are unsure.
W0120-D-028-010-C (50 Pcs) --- Disc Spring Washers - 28x12x1 mm - Carbon Steel W0120-D-028-010-C (50 Pcs) --- Disc Spring Washers - 28x12x1 mm - Carbon Steel Regular price $92.05 AUD Regular price Sale price $92.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.46 mm	Load at L1 208.0 kg
Material: Carbon Steel Free Height (E): 2.10 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.85 mm
Part Number: W0120-D-028-013-C (2 Pcs) Disc Spring Washers - 28x12x1.25 mm - Carbon Steel 14 units (28 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 2
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Carbon Steel Loaded Height (L1): 1.46 mm Load at L1: 208.0 kg Free Height (E): 2.10 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.85 mm
Part Number: W0120-D-028-013-C (2 Pcs) Disc Spring Washers - 28x12x1.25 mm - Carbon Steel 14 units (28 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 24, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 2 View the product page first if you are unsure.
W0120-D-028-013-C (2 Pcs) --- Disc Spring Washers - 28x12x1.25 mm - Carbon Steel W0120-D-028-013-C (2 Pcs) --- Disc Spring Washers - 28x12x1.25 mm - Carbon Steel Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per 14 Available Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.69 mm	Load at L1 308.0 kg
Material: Carbon Steel Free Height (E): 2.25 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.75 mm
Part Number: W0120-D-028-015-C (5 Pcs) Disc Spring Washers - 28x12x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Per 5
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Carbon Steel Loaded Height (L1): 1.69 mm Load at L1: 308.0 kg Free Height (E): 2.25 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.75 mm
Part Number: W0120-D-028-015-C (5 Pcs) Disc Spring Washers - 28x12x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Per 5 View the product page first if you are unsure.
W0120-D-028-015-C (5 Pcs) --- Disc Spring Washers - 28x12x1.5 mm - Carbon Steel W0120-D-028-015-C (5 Pcs) --- Disc Spring Washers - 28x12x1.5 mm - Carbon Steel Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 1.05 mm	Load at L1 80.0 kg
Material: Carbon Steel Free Height (E): 1.80 mm Actual ID (Ref): 14.2 mm Inside Height (D): 1.00 mm
Part Number: W0140-D-028-008-C (5 Pcs) Disc Spring Washers - 28x14x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Per 5
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 1.05 mm Load at L1: 80.0 kg Free Height (E): 1.80 mm Actual ID (Ref): 14.2 mm Inside Height (D): 1.00 mm
Part Number: W0140-D-028-008-C (5 Pcs) Disc Spring Washers - 28x14x0.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Per 5 View the product page first if you are unsure.
W0140-D-028-008-C (5 Pcs) --- Disc Spring Washers - 28x14x0.8 mm - Carbon Steel W0140-D-028-008-C (5 Pcs) --- Disc Spring Washers - 28x14x0.8 mm - Carbon Steel Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.20 mm	Load at L1 111.0 kg
Material: Carbon Steel Free Height (E): 1.80 mm Actual ID (Ref): 14.2 mm Inside Height (D): 0.80 mm
Part Number: W0140-D-028-010-C (5 Pcs) Disc Spring Washers - 28x14x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Carbon Steel Loaded Height (L1): 1.20 mm Load at L1: 111.0 kg Free Height (E): 1.80 mm Actual ID (Ref): 14.2 mm Inside Height (D): 0.80 mm
Part Number: W0140-D-028-010-C (5 Pcs) Disc Spring Washers - 28x14x1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5 View the product page first if you are unsure.
W0140-D-028-010-C (5 Pcs) --- Disc Spring Washers - 28x14x1 mm - Carbon Steel W0140-D-028-010-C (5 Pcs) --- Disc Spring Washers - 28x14x1 mm - Carbon Steel Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.46 mm	Load at L1 224.0 kg
Material: Carbon Steel Free Height (E): 2.10 mm Actual ID (Ref): 14.2 mm Inside Height (D): 0.85 mm
Part Number: W0140-D-028-013-C (5 Pcs) Disc Spring Washers - 28x14x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 5
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Carbon Steel Loaded Height (L1): 1.46 mm Load at L1: 224.0 kg Free Height (E): 2.10 mm Actual ID (Ref): 14.2 mm Inside Height (D): 0.85 mm
Part Number: W0140-D-028-013-C (5 Pcs) Disc Spring Washers - 28x14x1.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 5 View the product page first if you are unsure.
W0140-D-028-013-C (5 Pcs) --- Disc Spring Washers - 28x14x1.25 mm - Carbon Steel W0140-D-028-013-C (5 Pcs) --- Disc Spring Washers - 28x14x1.25 mm - Carbon Steel Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.66 mm	Load at L1 284.0 kg
Material: Carbon Steel Free Height (E): 2.15 mm Actual ID (Ref): 14.2 mm Inside Height (D): 0.65 mm
Part Number: W0140-D-028-015-C (5 Pcs) Disc Spring Washers - 28x14x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Per 5
Nominal OD (A) 28.00 mm _{(1.102 in.)}	Nominal ID (B) 14.00 mm + 0.30 / - 0.00 _{(0.551 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Carbon Steel Loaded Height (L1): 1.66 mm Load at L1: 284.0 kg Free Height (E): 2.15 mm Actual ID (Ref): 14.2 mm Inside Height (D): 0.65 mm
Part Number: W0140-D-028-015-C (5 Pcs) Disc Spring Washers - 28x14x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Per 5 View the product page first if you are unsure.
W0140-D-028-015-C (5 Pcs) --- Disc Spring Washers - 28x14x1.5 mm - Carbon Steel W0140-D-028-015-C (5 Pcs) --- Disc Spring Washers - 28x14x1.5 mm - Carbon Steel Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm + 0.00 / - 0.18 _{(1.102 in.)}	Nominal ID (B) 14.20 mm + 0.18 / - 0.00 _{(0.559 in.)}	Stock Thickness (C) 1.000 mm _{(0.039 in.)}			Load at L1 1110.00 kg
Material: Spring Steel 50CrVA Free Height (E): 1.80 mm Inside Height (D): 0.80 mm
Part Number: W-0142-D-028-010-C (50 Pcs) Disc Spring Washers - 28x14.2x1 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $101.23 AUD Regular price Sale price $101.23 AUD Unit price per Per 50
Nominal OD (A) 28.00 mm + 0.00 / - 0.18 _{(1.102 in.)}	Nominal ID (B) 14.20 mm + 0.18 / - 0.00 _{(0.559 in.)}	Stock Thickness (C) 1.000 mm _{(0.039 in.)}
Material: Spring Steel 50CrVA Load at L1: 1110.00 kg Free Height (E): 1.80 mm Inside Height (D): 0.80 mm
Part Number: W-0142-D-028-010-C (50 Pcs) Disc Spring Washers - 28x14.2x1 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $101.23 AUD Regular price Sale price $101.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0142-D-028-010-C (50 Pcs) --- Disc Spring Washers - 28x14.2x1 mm - Spring Steel 50CrVA W-0142-D-028-010-C (50 Pcs) --- Disc Spring Washers - 28x14.2x1 mm - Spring Steel 50CrVA Regular price $101.23 AUD Regular price Sale price $101.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 28.00 mm + 0.00 / - 0.18 _{(1.102 in.)}	Nominal ID (B) 14.20 mm + 0.18 / - 0.00 _{(0.559 in.)}	Stock Thickness (C) 1.500 mm _{(0.059 in.)}			Load at L1 2850.00 kg
Material: Spring Steel 50CrVA Free Height (E): 2.15 mm Inside Height (D): 0.65 mm
Part Number: W-0142-D-028-015-C (50 Pcs) Disc Spring Washers - 28x14.2x1.5 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $111.77 AUD Regular price Sale price $111.77 AUD Unit price per Per 50
Nominal OD (A) 28.00 mm + 0.00 / - 0.18 _{(1.102 in.)}	Nominal ID (B) 14.20 mm + 0.18 / - 0.00 _{(0.559 in.)}	Stock Thickness (C) 1.500 mm _{(0.059 in.)}
Material: Spring Steel 50CrVA Load at L1: 2850.00 kg Free Height (E): 2.15 mm Inside Height (D): 0.65 mm
Part Number: W-0142-D-028-015-C (50 Pcs) Disc Spring Washers - 28x14.2x1.5 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $111.77 AUD Regular price Sale price $111.77 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0142-D-028-015-C (50 Pcs) --- Disc Spring Washers - 28x14.2x1.5 mm - Spring Steel 50CrVA W-0142-D-028-015-C (50 Pcs) --- Disc Spring Washers - 28x14.2x1.5 mm - Spring Steel 50CrVA Regular price $111.77 AUD Regular price Sale price $111.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 31.50 mm _{(1.24 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.71 mm	Load at L1 269.0 kg
Material: Carbon Steel Free Height (E): 2.35 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.85 mm
Part Number: W0120-D-032-015-C (5 Pcs) Disc Spring Washers - 31.5x12x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Per 5
Nominal OD (A) 31.50 mm _{(1.24 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Carbon Steel Loaded Height (L1): 1.71 mm Load at L1: 269.0 kg Free Height (E): 2.35 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.85 mm
Part Number: W0120-D-032-015-C (5 Pcs) Disc Spring Washers - 31.5x12x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Per 5 View the product page first if you are unsure.
W0120-D-032-015-C (5 Pcs) --- Disc Spring Washers - 31.5x12x1.5 mm - Carbon Steel W0120-D-032-015-C (5 Pcs) --- Disc Spring Washers - 31.5x12x1.5 mm - Carbon Steel Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 31.50 mm _{(1.24 in.)}	Nominal ID (B) 16.00 mm + 0.30 / - 0.00 _{(0.63 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 1.06 mm	Load at L1 69.0 kg
Material: Carbon Steel Free Height (E): 1.85 mm Actual ID (Ref): 16.3 mm Inside Height (D): 1.05 mm
Part Number: W0160-D-032-008-C (5 Pcs) Disc Spring Washers - 31.5x16x0.8 mm - Carbon Steel 10 units (50 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.64 AUD Regular price ~~$8.33 AUD~~ Sale price $3.64 AUD Unit price per Per 5
Nominal OD (A) 31.50 mm _{(1.24 in.)}	Nominal ID (B) 16.00 mm + 0.30 / - 0.00 _{(0.63 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Carbon Steel Loaded Height (L1): 1.06 mm Load at L1: 69.0 kg Free Height (E): 1.85 mm Actual ID (Ref): 16.3 mm Inside Height (D): 1.05 mm
Part Number: W0160-D-032-008-C (5 Pcs) Disc Spring Washers - 31.5x16x0.8 mm - Carbon Steel 10 units (50 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.64 AUD Regular price ~~$8.33 AUD~~ Sale price $3.64 AUD Unit price per Per 5
W0160-D-032-008-C (5 Pcs) --- Disc Spring Washers - 31.5x16x0.8 mm - Carbon Steel Sale W0160-D-032-008-C (5 Pcs) --- Disc Spring Washers - 31.5x16x0.8 mm - Carbon Steel Regular price $3.64 AUD Regular price ~~$8.33 AUD~~ Sale price $3.64 AUD Unit price per 10 Available Now Sale
Nominal OD (A) 31.50 mm _{(1.24 in.)}	Nominal ID (B) 16.00 mm + 0.30 / - 0.00 _{(0.63 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.48 mm	Load at L1 191.0 kg
Material: Carbon Steel Load at 0.75 Height: 212.1 Kg Free Height (E): 2.15 mm Actual ID (Ref): 16.3 mm Inside Height (D): 0.90 mm
Part Number: W0160-D-032-013-C Disc Spring Washers - 31.5x16x1.25 mm - Carbon Steel 40 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Each
Nominal OD (A) 31.50 mm _{(1.24 in.)}	Nominal ID (B) 16.00 mm + 0.30 / - 0.00 _{(0.63 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Carbon Steel Loaded Height (L1): 1.48 mm Load at L1: 191.0 kg Load at 0.75 Height: 212.1 Kg Free Height (E): 2.15 mm Actual ID (Ref): 16.3 mm Inside Height (D): 0.90 mm
Part Number: W0160-D-032-013-C Disc Spring Washers - 31.5x16x1.25 mm - Carbon Steel 40 Available Immediately \| Further orders can be expected around Tue, Jun 03, 2025 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Each View the product page first if you are unsure.
W0160-D-032-013-C --- Disc Spring Washers - 31.5x16x1.25 mm - Carbon Steel W0160-D-032-013-C --- Disc Spring Washers - 31.5x16x1.25 mm - Carbon Steel Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per 40 Available Now
Nominal OD (A) 31.50 mm _{(1.24 in.)}	Nominal ID (B) 16.00 mm + 0.30 / - 0.00 _{(0.63 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.73 mm	Load at L1 323.0 kg
Material: Carbon Steel Free Height (E): 2.40 mm Actual ID (Ref): 16.3 mm Inside Height (D): 0.90 mm
Part Number: W0160-D-032-015-C (5 Pcs) Disc Spring Washers - 31.5x16x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Per 5
Nominal OD (A) 31.50 mm _{(1.24 in.)}	Nominal ID (B) 16.00 mm + 0.30 / - 0.00 _{(0.63 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Carbon Steel Loaded Height (L1): 1.73 mm Load at L1: 323.0 kg Free Height (E): 2.40 mm Actual ID (Ref): 16.3 mm Inside Height (D): 0.90 mm
Part Number: W0160-D-032-015-C (5 Pcs) Disc Spring Washers - 31.5x16x1.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Per 5 View the product page first if you are unsure.
W0160-D-032-015-C (5 Pcs) --- Disc Spring Washers - 31.5x16x1.5 mm - Carbon Steel W0160-D-032-015-C (5 Pcs) --- Disc Spring Washers - 31.5x16x1.5 mm - Carbon Steel Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
