Collection: Retaining Rings - External - Circlips - Standard

Retaining Rings (With Images)

External

Circlips

Tabbed

677 Products in this selection

This is a combined category of Standard Circlips External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Standard. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 3.00 mm _{(0.118 in.)}	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04 _{(0.016 in.)}	Groove Dia. (Dg) 2.80 mm + 0.00 / - 0.05 _{(0.11 in.)}	Approx. Loose Circlip ID (A) 2.70 mm		Groove Width (W) 0.50 mm

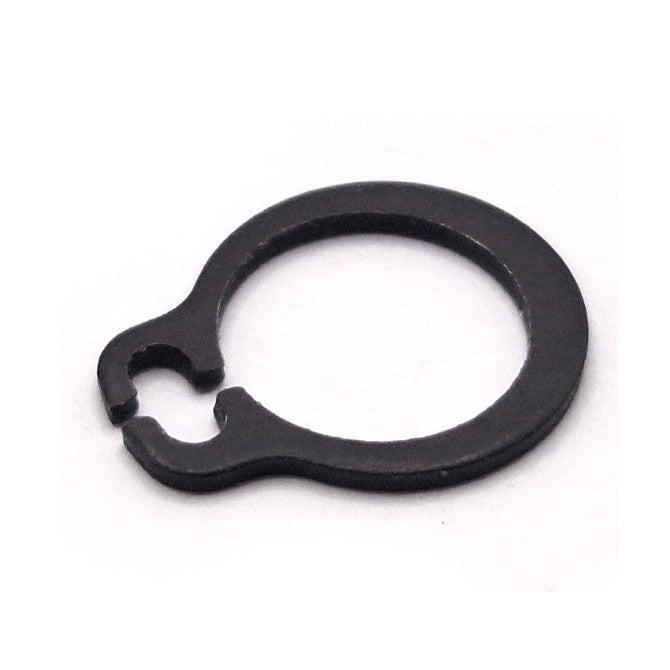

Material: Carbon Steel Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 3.00 mm _{(0.118 in.)}	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04 _{(0.016 in.)}	Groove Dia. (Dg) 2.80 mm + 0.00 / - 0.05 _{(0.11 in.)}	Approx. Loose Circlip ID (A) 2.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00300-C (100 Pcs) --- External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel CCE-00300-C (100 Pcs) --- External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.25 mm +/- 0.038 _{(0.01 in.)}	Groove Dia. (Dg) 2.97 mm +/- 0.025 _{(0.117 in.)}	Approx. Loose Circlip ID (A) 2.80 mm		Groove Width (W) 0.30 mm
Material: Carbon Steel Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel 1 pack (140 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140
Shaft Diameter (Ds) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.25 mm +/- 0.038 _{(0.01 in.)}	Groove Dia. (Dg) 2.97 mm +/- 0.025 _{(0.117 in.)}	Approx. Loose Circlip ID (A) 2.80 mm
Material: Carbon Steel Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel 1 pack (140 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140
CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel Sale CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.25 mm +/- 0.038 _{(0.01 in.)}	Groove Dia. (Dg) 2.97 mm +/- 0.025 _{(0.117 in.)}	Approx. Loose Circlip ID (A) 2.80 mm		Groove Width (W) 0.30 mm
Material: Zinc Plated Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm - Zinc Plated Beryllium Copper Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.25 mm +/- 0.038 _{(0.01 in.)}	Groove Dia. (Dg) 2.97 mm +/- 0.025 _{(0.117 in.)}	Approx. Loose Circlip ID (A) 2.80 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm - Zinc Plated Beryllium Copper Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.25 mm +/- 0.038 _{(0.01 in.)}	Groove Dia. (Dg) 2.97 mm +/- 0.025 _{(0.117 in.)}	Approx. Loose Circlip ID (A) 2.84 mm		Groove Width (W) 0.30 mm

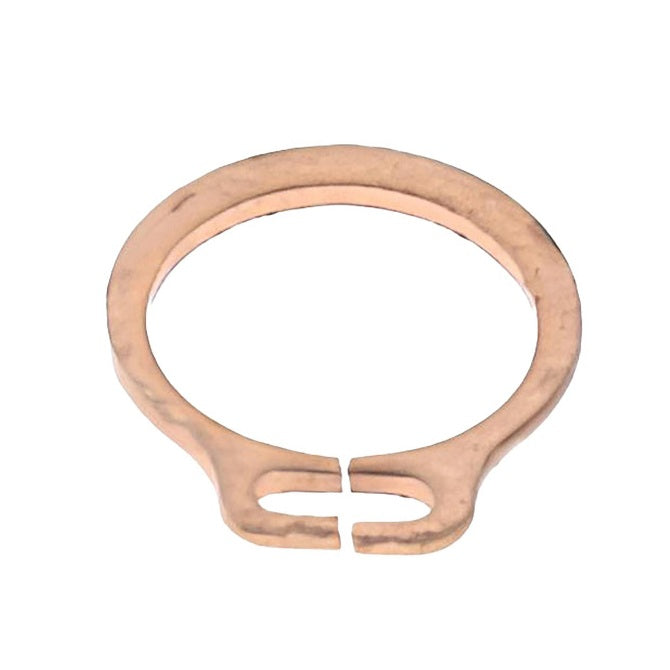

Material: Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper 12 units (240 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Per 20
Shaft Diameter (Ds) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.25 mm +/- 0.038 _{(0.01 in.)}	Groove Dia. (Dg) 2.97 mm +/- 0.025 _{(0.117 in.)}	Approx. Loose Circlip ID (A) 2.84 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.36 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper 12 units (240 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00318-B (20 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper CCE-00318-B (20 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per 12 Available Now
Shaft Diameter (Ds) 3.97 mm _{(0.156 in.)}	Clip Thickness (T) 0.30 mm +/- 0.038 _{(0.012 in.)}	Groove Dia. (Dg) 3.71 mm +/- 0.025 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00397-C External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm _{(0.156 in.)}	Clip Thickness (T) 0.30 mm +/- 0.038 _{(0.012 in.)}	Groove Dia. (Dg) 3.71 mm +/- 0.025 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00397-C External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm _{(0.156 in.)}	Clip Thickness (T) 0.30 mm +/- 0.038 _{(0.012 in.)}	Groove Dia. (Dg) 3.71 mm +/- 0.025 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Zinc Plated Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-BZ External Retaining Rings - 3.97x0.3x3.71 mm - Zinc Plated Beryllium Copper Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm _{(0.156 in.)}	Clip Thickness (T) 0.30 mm +/- 0.038 _{(0.012 in.)}	Groove Dia. (Dg) 3.71 mm +/- 0.025 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-BZ External Retaining Rings - 3.97x0.3x3.71 mm - Zinc Plated Beryllium Copper Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm _{(0.156 in.)}	Clip Thickness (T) 0.30 mm +/- 0.038 _{(0.012 in.)}	Groove Dia. (Dg) 3.71 mm +/- 0.025 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00397-B (10 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper 81 units (810 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10
Shaft Diameter (Ds) 3.97 mm _{(0.156 in.)}	Clip Thickness (T) 0.30 mm +/- 0.038 _{(0.012 in.)}	Groove Dia. (Dg) 3.71 mm +/- 0.025 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00397-B (10 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper 81 units (810 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00397-B (10 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper CCE-00397-B (10 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 81 Available Now
Shaft Diameter (Ds) 3.97 mm _{(0.156 in.)}	Clip Thickness (T) 0.30 mm +/- 0.038 _{(0.012 in.)}	Groove Dia. (Dg) 3.71 mm +/- 0.025 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-CZY (70 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Steel Zinc Plated 1 pack (70 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per Per 70
Shaft Diameter (Ds) 3.97 mm _{(0.156 in.)}	Clip Thickness (T) 0.30 mm +/- 0.038 _{(0.012 in.)}	Groove Dia. (Dg) 3.71 mm +/- 0.025 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00397-CZY (70 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Steel Zinc Plated 1 pack (70 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per Per 70
CCE-00397-CZY (70 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Steel Zinc Plated Sale CCE-00397-CZY (70 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Steel Zinc Plated Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 4.00 mm _{(0.157 in.)}	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04 _{(0.016 in.)}	Groove Dia. (Dg) 3.80 mm + 0.00 / - 0.05 _{(0.15 in.)}	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4x0.4x3.8 mm - Carbon Steel 42 units (4200 pcs) Available Immediately \| Further orders can be expected around Wed, Sep 10, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 4.00 mm _{(0.157 in.)}	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04 _{(0.016 in.)}	Groove Dia. (Dg) 3.80 mm + 0.00 / - 0.05 _{(0.15 in.)}	Approx. Loose Circlip ID (A) 3.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4x0.4x3.8 mm - Carbon Steel 42 units (4200 pcs) Available Immediately \| Further orders can be expected around Wed, Sep 10, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00400-C (100 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm - Carbon Steel CCE-00400-C (100 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 42 Available Now
Shaft Diameter (Ds) 4.00 mm _{(0.157 in.)}	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04 _{(0.016 in.)}	Groove Dia. (Dg) 3.80 mm + 0.00 / - 0.05 _{(0.15 in.)}	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm

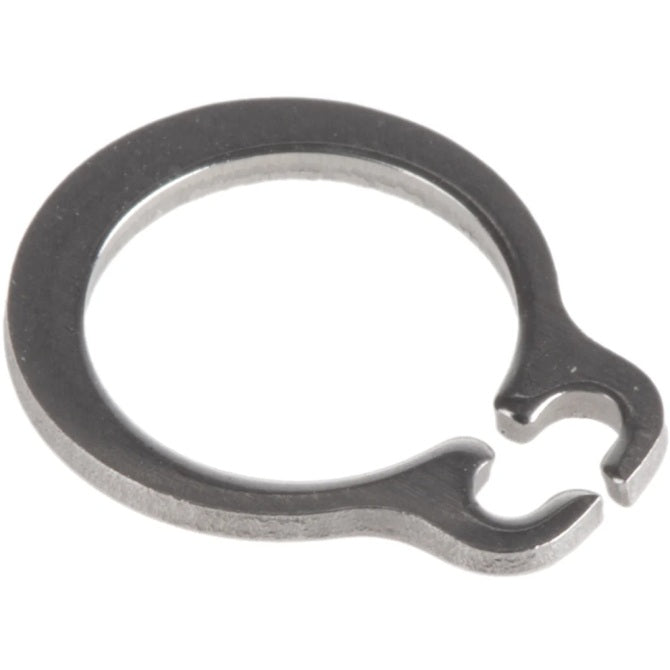

Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00400-S15 (5 Pcs) External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo 30 units (150 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5
Shaft Diameter (Ds) 4.00 mm _{(0.157 in.)}	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04 _{(0.016 in.)}	Groove Dia. (Dg) 3.80 mm + 0.00 / - 0.05 _{(0.15 in.)}	Approx. Loose Circlip ID (A) 3.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00400-S15 (5 Pcs) External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo 30 units (150 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00400-S15 (5 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo CCE-00400-S15 (5 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 30 Available Now
Shaft Diameter (Ds) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.45 mm +/- 0.051 _{(0.175 in.)}	Approx. Loose Circlip ID (A) 4.27 mm		Groove Width (W) 0.46 mm
Material: Beryllium Copper Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00478-B (20 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper 20 units (400 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 20
Shaft Diameter (Ds) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.45 mm +/- 0.051 _{(0.175 in.)}	Approx. Loose Circlip ID (A) 4.27 mm
Material: Beryllium Copper Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00478-B (20 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper 20 units (400 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00478-B (20 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper CCE-00478-B (20 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per 20 Available Now
Shaft Diameter (Ds) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.45 mm +/- 0.051 _{(0.175 in.)}	Approx. Loose Circlip ID (A) 4.27 mm		Groove Width (W) 0.46 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $63.05 AUD Regular price Sale price $63.05 AUD Unit price per Per 100
Shaft Diameter (Ds) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.45 mm +/- 0.051 _{(0.175 in.)}	Approx. Loose Circlip ID (A) 4.27 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $63.05 AUD Regular price Sale price $63.05 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm - Carbon Steel CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm - Carbon Steel Regular price $63.05 AUD Regular price Sale price $63.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.45 mm +/- 0.051 _{(0.175 in.)}	Approx. Loose Circlip ID (A) 4.30 mm		Groove Width (W) 0.50 mm

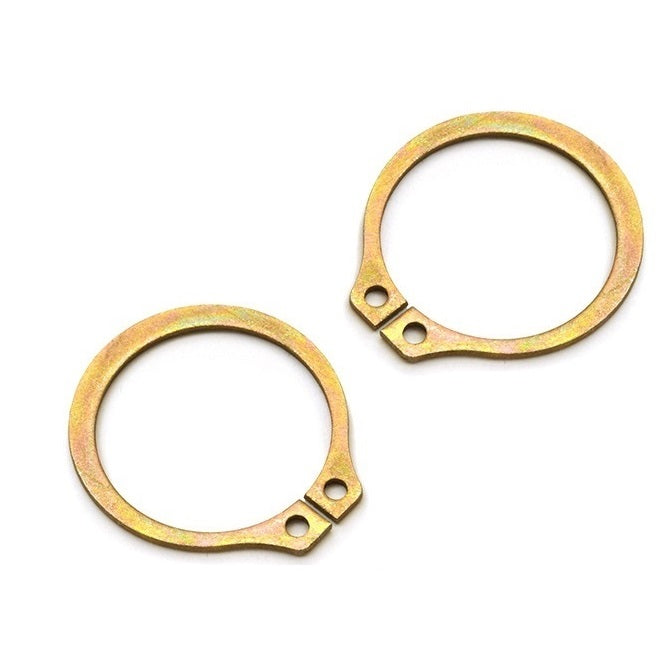

Material: Zinc Plated Yellow Clearance in Groove (C1): 7.26 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00478-CZY External Retaining Rings - 4.78x0.38x4.45 mm - Zinc Plated Yellow Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.45 mm +/- 0.051 _{(0.175 in.)}	Approx. Loose Circlip ID (A) 4.30 mm
Material: Zinc Plated Yellow Groove Width (W): 0.50 mm Clearance in Groove (C1): 7.26 mm Min. Extension (n): 0.56 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00478-CZY External Retaining Rings - 4.78x0.38x4.45 mm - Zinc Plated Yellow Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04 _{(0.024 in.)}	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Carbon Steel Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04 _{(0.024 in.)}	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.70 mm
Material: Carbon Steel Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04 _{(0.024 in.)}	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo 43 units (430 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 10
Shaft Diameter (Ds) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04 _{(0.024 in.)}	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo 43 units (430 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per 43 Available Now
Shaft Diameter (Ds) 5.01 mm _{(0.197 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.78 mm +/- 0.051 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.60 mm		Groove Width (W) 0.46 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00501-B (5 Pcs) External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5
Shaft Diameter (Ds) 5.01 mm _{(0.197 in.)}	Clip Thickness (T) 0.38 mm +/- 0.038 _{(0.015 in.)}	Groove Dia. (Dg) 4.78 mm +/- 0.051 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.60 mm
Material: Beryllium Copper Groove Width (W): 0.46 mm Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00501-B (5 Pcs) External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00501-B (5 Pcs) --- External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper CCE-00501-B (5 Pcs) --- External Retaining Rings - 5.01x0.38x4.78 mm - Beryllium Copper Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.01 mm _{(0.197 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 4.78 mm +/- 0.051 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.60 mm		Groove Width (W) 0.50 mm
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00501-C External Retaining Rings - 5.01x0.4x4.78 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 5.01 mm _{(0.197 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 4.78 mm +/- 0.051 _{(0.188 in.)}	Approx. Loose Circlip ID (A) 4.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00501-C External Retaining Rings - 5.01x0.4x4.78 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.21 mm +/- 0.051 _{(0.205 in.)}	Approx. Loose Circlip ID (A) 5.00 mm		Groove Width (W) 0.50 mm
Material: Beryllium Copper Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00556-B (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Per 50
Shaft Diameter (Ds) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.21 mm +/- 0.051 _{(0.205 in.)}	Approx. Loose Circlip ID (A) 5.00 mm
Material: Beryllium Copper Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00556-B (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00556-B (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm - Beryllium Copper CCE-00556-B (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm - Beryllium Copper Regular price $55.95 AUD Regular price Sale price $55.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.21 mm +/- 0.051 _{(0.205 in.)}	Approx. Loose Circlip ID (A) 5.00 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50
Shaft Diameter (Ds) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.21 mm +/- 0.051 _{(0.205 in.)}	Approx. Loose Circlip ID (A) 5.00 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm - Carbon Steel 1 pack (50 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50
CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm - Carbon Steel Sale CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm - Carbon Steel Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm +/- 0.051 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.50 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm - Carbon Steel 3 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm +/- 0.051 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.50 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm - Carbon Steel 3 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100
CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm - Carbon Steel Sale CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm - Carbon Steel Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm +/- 0.051 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.50 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 0.50 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00595-B (50 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 50
Shaft Diameter (Ds) 5.95 mm _{(0.234 in.)}	Clip Thickness (T) 0.40 mm +/- 0.038 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm +/- 0.051 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.50 mm
Material: Beryllium Copper Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 0.50 mm Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00595-B (50 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00595-B (50 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm - Beryllium Copper CCE-00595-B (50 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm - Beryllium Copper Regular price $53.14 AUD Regular price Sale price $53.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0.00 / - 0.04 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0.00 / - 0.05 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Carbon Steel 18 units (1800 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 100
Shaft Diameter (Ds) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0.00 / - 0.04 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0.00 / - 0.05 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm
Material: Carbon Steel Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Carbon Steel 18 units (1800 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00600-C (100 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Carbon Steel CCE-00600-C (100 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Carbon Steel Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0.00 / - 0.04 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0.00 / - 0.05 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00600-S15 (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Stainless Steel Grade PH15-7 Mo 39 units (390 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10
Shaft Diameter (Ds) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0.00 / - 0.04 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0.00 / - 0.05 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00600-S15 (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Stainless Steel Grade PH15-7 Mo 39 units (390 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00600-S15 (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Stainless Steel Grade PH15-7 Mo CCE-00600-S15 (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per 39 Available Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Beryllium Copper Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00635-B (50 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $65.68 AUD Regular price Sale price $65.68 AUD Unit price per Per 50
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Beryllium Copper Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00635-B (50 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $65.68 AUD Regular price Sale price $65.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00635-B (50 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Beryllium Copper CCE-00635-B (50 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Beryllium Copper Regular price $65.68 AUD Regular price Sale price $65.68 AUD Unit price per Out of stock! Backorder Now
