CCE-00595-C (Pack of 100)

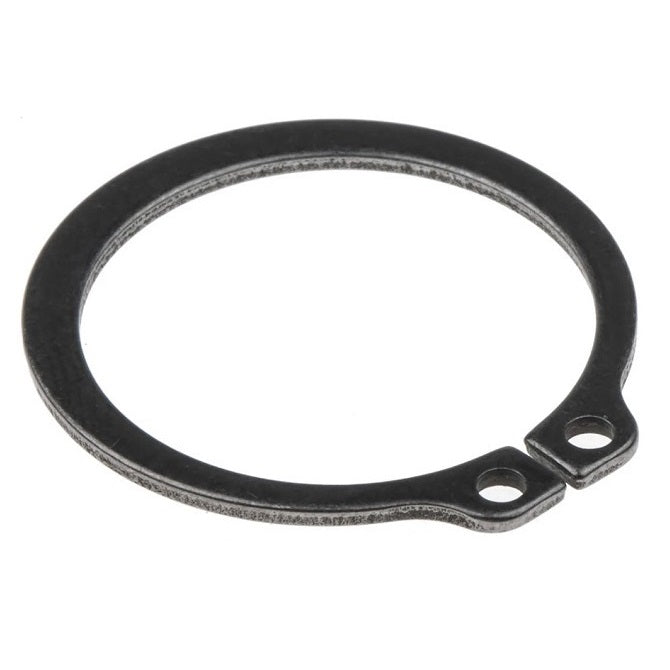

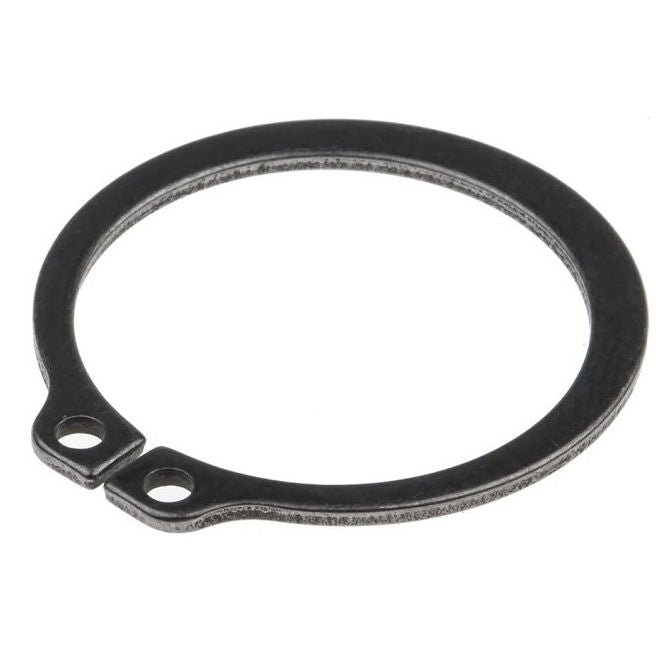

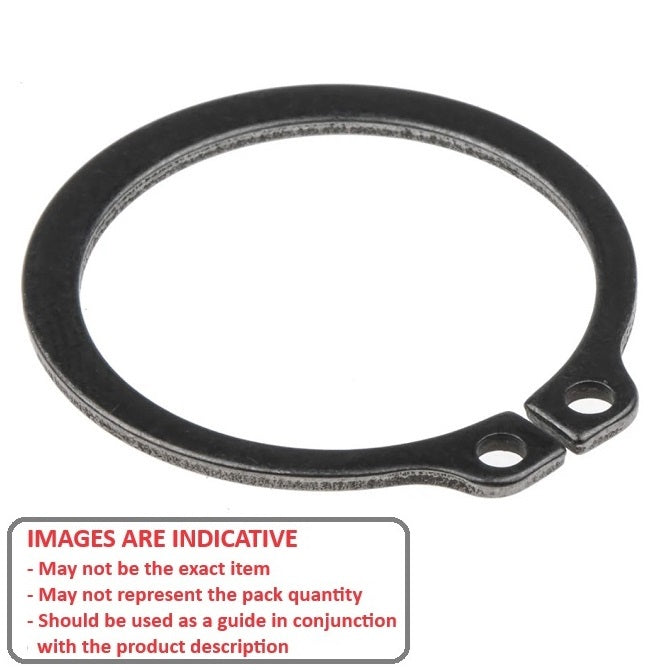

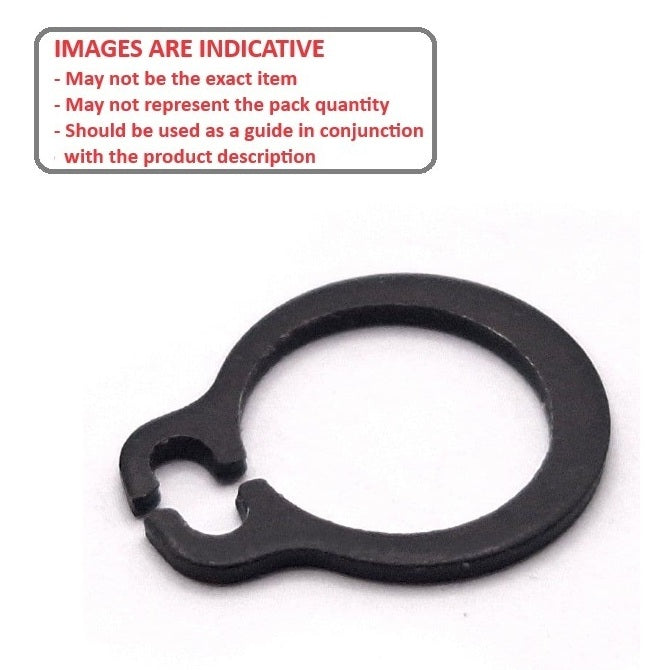

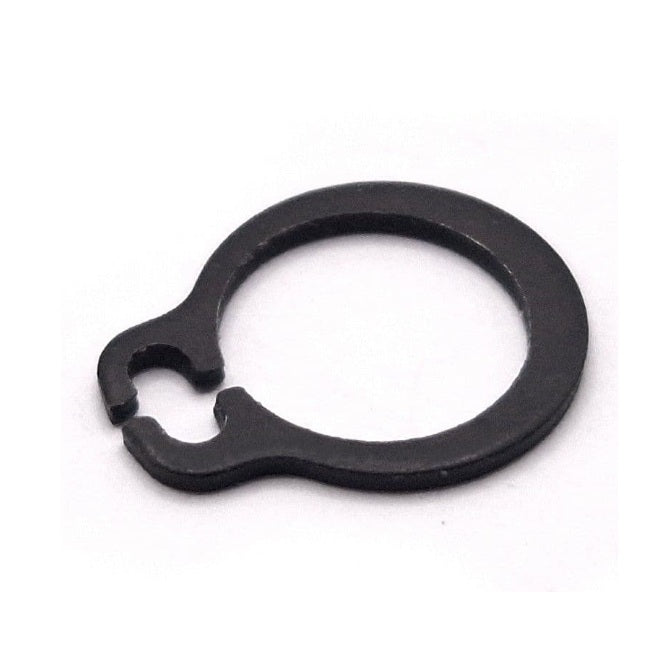

External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Couldn't load pickup availability
5.95x0.4x5.6 mm External Retaining Rings - Carbon Steel - Sold Per 100:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details
Deleted Item. Available while stocks last.

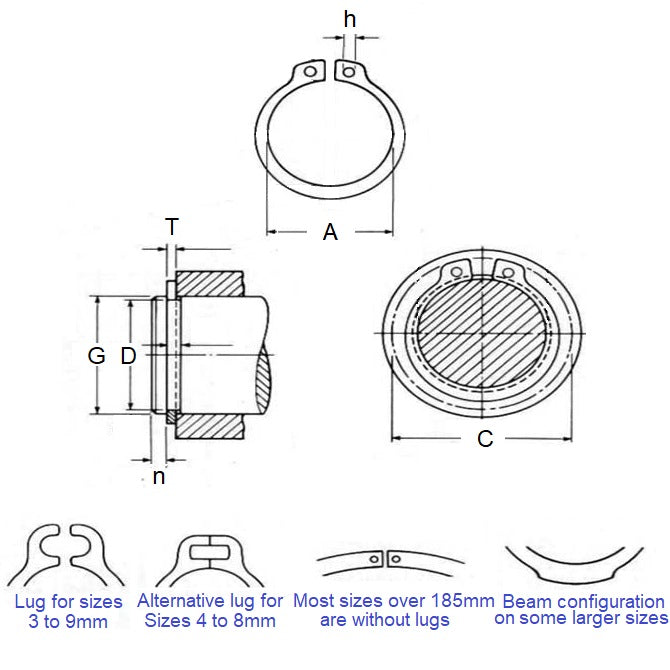

Shaft Diameter (Ds): 5.95mm
(5.95mm is 0.234 in.)
Carbon Steel
- Shaft Diameter (Ds): 5.95mm
(5.95mm is 0.234 in.)
- Clip Thickness (T): 0.40mm
+/- 0.051
(0.40mm is 0.016 in.)
- Groove Dia. (Dg): 5.60mm
+/- 0.038
(5.60mm is 0.22 in.)
- Approx. Loose Circlip ID (A): 5.50mm
- Groove Width (W): 0.50mm
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 97633A127
- NoCor® SH-023
- SH023
- N14000023
- N1400-0023
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE00595C, CCE00595
