Collection: Retaining Rings - External - Circlips - Standard - Zinc Plated

Retaining Rings -> External -> Circlips -> Standard -> Zinc Plated

There are 127 products in the sub-categories of Retaining Rings - External - Circlips - Standard - Zinc Plated. Scroll down or follow the link to Retaining Rings - External - Circlips - Standard - Zinc Plated in the products table to see all these items combined into a handy table with filters.

Category Details

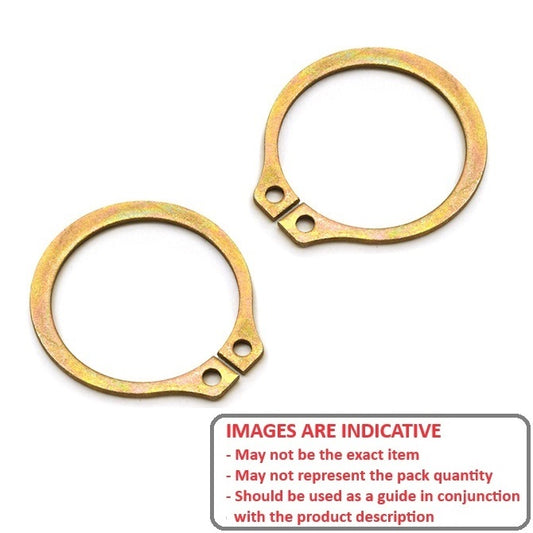

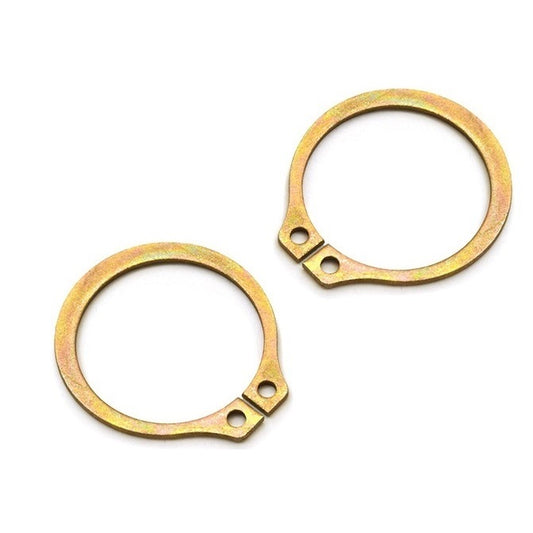

A selection of Zinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - External - Circlips - Standard - Zinc Plated category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) Approx.	Groove Width (W)
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.80 mm		Groove Width (W) 0.30 mm
Material: Zinc Plated Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Standard: MIL-16624
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Zinc Plated Beryllium Copper Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.80 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Standard: MIL-16624
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Zinc Plated Beryllium Copper Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Thu, Jul 20, 2028
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624 Deleted Item. Available while stocks last.
Part Number: CCE-00397-CZY (70 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Steel Zinc Plated Circlip 1 pack (70 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per 70 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.30 mm Standard: MIL-16624 Deleted Item. Available while stocks last.
Part Number: CCE-00397-CZY (70 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Steel Zinc Plated Circlip 1 pack (70 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per 70 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 1 pack (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CCE-00397-CZY (70 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00397-CZY (70 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per 70 Per Sell Unit Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Zinc Plated Beryllium Copper Standard: MIL-16624
Part Number: CCE-00397-BZ External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Zinc Plated Beryllium Copper Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Standard: MIL-16624
Part Number: CCE-00397-BZ External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Zinc Plated Beryllium Copper Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Thu, Jul 20, 2028
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.30 mm		Groove Width (W) 0.50 mm
Material: Steel Zinc Plated Yellow Clearance in Groove (C1): 7.26 mm Min. Extension (n): 0.56 Standard: MIL-16624
Part Number: CCE-00478-CZY External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Steel Zinc Plated Yellow Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.30 mm
Material: Steel Zinc Plated Yellow Groove Width (W): 0.50 mm Clearance in Groove (C1): 7.26 mm Min. Extension (n): 0.56 Standard: MIL-16624
Part Number: CCE-00478-CZY External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Steel Zinc Plated Yellow Circlip Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Thu, Jul 20, 2028
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Standard: MIL-16624
Part Number: CCE-00635-CZ (1250 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jan 22, 2026 Regular price $382.05 AUD Regular price Sale price $382.05 AUD Unit price per 1250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Standard: MIL-16624
Part Number: CCE-00635-CZ (1250 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jan 22, 2026 Regular price $382.05 AUD Regular price Sale price $382.05 AUD Unit price per 1250 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-00635-CZ (1250 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip CCE-00635-CZ (1250 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $382.05 AUD Regular price Sale price $382.05 AUD Unit price per 1250 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 10559
Part Number: CCE-00635-CZY (10 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip 50 units (500 pcs) Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $1.50 AUD Regular price ~~$2.80 AUD~~ Sale price $1.50 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 50 units (500 pcs) Available Now. Backorder if more than 50.
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 10559
Part Number: CCE-00635-CZY (10 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip 50 units (500 pcs) Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $1.50 AUD Regular price ~~$2.80 AUD~~ Sale price $1.50 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 50 units (500 pcs) Available Now. Backorder if more than 50.
CCE-00635-CZY (10 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00635-CZY (10 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.50 AUD Regular price ~~$2.80 AUD~~ Sale price $1.50 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties 50 Available Now Sale
Shaft Diameter (Ds) 7.01 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.48 mm _{+/- 0.051} (Equiv. 0.255 in.)	Approx. Loose Circlip ID (A) 6.35 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Extension (n): 0.89 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 694
Part Number: CCE-00701-CZY (5 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Carbon Steel Zinc Plated Circlip 19 units (95 pcs) Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 19 units (95 pcs) Available Now. Backorder if more than 19.
Shaft Diameter (Ds) 7.01 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.48 mm _{+/- 0.051} (Equiv. 0.255 in.)	Approx. Loose Circlip ID (A) 6.35 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Extension (n): 0.89 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 694
Part Number: CCE-00701-CZY (5 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Carbon Steel Zinc Plated Circlip 19 units (95 pcs) Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 19 units (95 pcs) Available Now. Backorder if more than 19.
CCE-00701-CZY (5 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Carbon Steel Zinc Plated Circlip CCE-00701-CZY (5 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 19 Available Now
Shaft Diameter (Ds) 7.14 mm (Equiv. 0.281 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.63 mm _{+/- 0.051} (Equiv. 0.261 in.)	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Extension (n): 0.84 Standard: MIL-16624
Part Number: CCE-00714-CZY (1000 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jan 22, 2026 Regular price $165.05 AUD Regular price ~~$198.05 AUD~~ Sale price $165.05 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 7.14 mm (Equiv. 0.281 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.63 mm _{+/- 0.051} (Equiv. 0.261 in.)	Approx. Loose Circlip ID (A) 6.50 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Extension (n): 0.84 Standard: MIL-16624
Part Number: CCE-00714-CZY (1000 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jan 22, 2026 Regular price $165.05 AUD Regular price ~~$198.05 AUD~~ Sale price $165.05 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-00714-CZY (1000 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00714-CZY (1000 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $165.05 AUD Regular price ~~$198.05 AUD~~ Sale price $165.05 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 13610
Part Number: CCE-00794-CZY (100 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 13610
Part Number: CCE-00794-CZY (100 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-00794-CZY (100 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00794-CZY (100 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 4060
Part Number: CCE-00794-CZ (100 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 4060
Part Number: CCE-00794-CZ (100 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-00794-CZ (100 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00794-CZ (100 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $20.68 AUD Regular price ~~$24.82 AUD~~ Sale price $20.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 8.74 mm (Equiv. 0.344 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.20 mm _{+/- 0.051} (Equiv. 0.323 in.)	Approx. Loose Circlip ID (A) 7.85 mm		Groove Width (W) 0.70 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00874-CZY (1000 Pcs) External Retaining Rings - 8.74x0.64x8.2 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Dec 26, 2025 Regular price $192.23 AUD Regular price ~~$230.67 AUD~~ Sale price $192.23 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 8.74 mm (Equiv. 0.344 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.20 mm _{+/- 0.051} (Equiv. 0.323 in.)	Approx. Loose Circlip ID (A) 7.85 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.70 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00874-CZY (1000 Pcs) External Retaining Rings - 8.74x0.64x8.2 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Dec 26, 2025 Regular price $192.23 AUD Regular price ~~$230.67 AUD~~ Sale price $192.23 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-00874-CZY (1000 Pcs) --- External Retaining Rings - 8.74x0.64x8.2 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00874-CZY (1000 Pcs) --- External Retaining Rings - 8.74x0.64x8.2 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $192.23 AUD Regular price ~~$230.67 AUD~~ Sale price $192.23 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 8.99 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.40 mm _{+/- 0.051} (Equiv. 0.331 in.)	Approx. Loose Circlip ID (A) 8.13 mm		Groove Width (W) 0.70 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1800
Part Number: CCE-00899-CZY (100 Pcs) External Retaining Rings - 8.99x0.64x8.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 8.99 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.40 mm _{+/- 0.051} (Equiv. 0.331 in.)	Approx. Loose Circlip ID (A) 8.13 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.70 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1800
Part Number: CCE-00899-CZY (100 Pcs) External Retaining Rings - 8.99x0.64x8.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-00899-CZY (100 Pcs) --- External Retaining Rings - 8.99x0.64x8.4 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00899-CZY (100 Pcs) --- External Retaining Rings - 8.99x0.64x8.4 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.90 mm _{+/- 0.051} (Equiv. 0.35 in.)	Approx. Loose Circlip ID (A) 8.59 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 11297
Part Number: CCE-00953-CZY (100 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.90 mm _{+/- 0.051} (Equiv. 0.35 in.)	Approx. Loose Circlip ID (A) 8.59 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 11297
Part Number: CCE-00953-CZY (100 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-00953-CZY (100 Pcs) --- External Retaining Rings - 9.53x0.64x8.9 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-00953-CZY (100 Pcs) --- External Retaining Rings - 9.53x0.64x8.9 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 9.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.378 in.)	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 2648
Part Number: CCE-01000-CZ (10 Pcs) External Retaining Rings - 10x1x9.6 mm Circlips - Carbon Steel Zinc Plated Circlip 28 units (280 pcs) Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $1.23 AUD Regular price ~~$2.22 AUD~~ Sale price $1.23 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 28 units (280 pcs) Available Now. Backorder if more than 28.
Shaft Diameter (Ds) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 9.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.378 in.)	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471 Additional stock available from USA subject to Prior Sale = 2648
Part Number: CCE-01000-CZ (10 Pcs) External Retaining Rings - 10x1x9.6 mm Circlips - Carbon Steel Zinc Plated Circlip 28 units (280 pcs) Available Now \| Further orders can be expected around Sat, Nov 22, 2025 Regular price $1.23 AUD Regular price ~~$2.22 AUD~~ Sale price $1.23 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 28 units (280 pcs) Available Now. Backorder if more than 28.
CCE-01000-CZ (10 Pcs) --- External Retaining Rings - 10x1x9.6 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01000-CZ (10 Pcs) --- External Retaining Rings - 10x1x9.6 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.23 AUD Regular price ~~$2.22 AUD~~ Sale price $1.23 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties 28 Available Now Sale
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.40 mm _{+/- 0.051} (Equiv. 0.37 in.)	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 561
Part Number: CCE-01001-CZY (100 Pcs) External Retaining Rings - 10.01x0.64x9.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.40 mm _{+/- 0.051} (Equiv. 0.37 in.)	Approx. Loose Circlip ID (A) 8.99 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 561
Part Number: CCE-01001-CZY (100 Pcs) External Retaining Rings - 10.01x0.64x9.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01001-CZY (100 Pcs) --- External Retaining Rings - 10.01x0.64x9.4 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01001-CZY (100 Pcs) --- External Retaining Rings - 10.01x0.64x9.4 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 10.32 mm (Equiv. 0.406 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.70 mm _{+/- 0.051} (Equiv. 0.382 in.)	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Min. Extension (n): 0.99 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 2165
Part Number: CCE-01032-CZY (1000 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $229.59 AUD Regular price ~~$275.51 AUD~~ Sale price $229.59 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 10.32 mm (Equiv. 0.406 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.70 mm _{+/- 0.051} (Equiv. 0.382 in.)	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Min. Extension (n): 0.99 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 2165
Part Number: CCE-01032-CZY (1000 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $229.59 AUD Regular price ~~$275.51 AUD~~ Sale price $229.59 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01032-CZY (1000 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01032-CZY (1000 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $229.59 AUD Regular price ~~$275.51 AUD~~ Sale price $229.59 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.46 mm _{+/- 0.051} (Equiv. 0.412 in.)	Approx. Loose Circlip ID (A) 10.03 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 7063
Part Number: CCE-01111-CZY (100 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.46 mm _{+/- 0.051} (Equiv. 0.412 in.)	Approx. Loose Circlip ID (A) 10.03 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 7063
Part Number: CCE-01111-CZY (100 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01111-CZY (100 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01111-CZY (100 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.46 mm _{+/- 0.051} (Equiv. 0.412 in.)	Approx. Loose Circlip ID (A) 10.03 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624
Part Number: CCE-01111-CZ (1000 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jan 22, 2026 Regular price $200.68 AUD Regular price ~~$240.82 AUD~~ Sale price $200.68 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.46 mm _{+/- 0.051} (Equiv. 0.412 in.)	Approx. Loose Circlip ID (A) 10.03 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624
Part Number: CCE-01111-CZ (1000 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jan 22, 2026 Regular price $200.68 AUD Regular price ~~$240.82 AUD~~ Sale price $200.68 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01111-CZ (1000 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01111-CZ (1000 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $200.68 AUD Regular price ~~$240.82 AUD~~ Sale price $200.68 AUD Unit price per 1000 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.30 mm _{+/- 0.051} (Equiv. 0.445 in.)	Approx. Loose Circlip ID (A) 10.87 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 17.27 mm Clearance in Groove (C1): 16.76 mm Min. Extension (n): 1.07 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1000
Part Number: CCE-01191-CZY (500 Pcs) External Retaining Rings - 11.91x0.64x11.3 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $123.41 AUD Regular price ~~$148.09 AUD~~ Sale price $123.41 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.30 mm _{+/- 0.051} (Equiv. 0.445 in.)	Approx. Loose Circlip ID (A) 10.87 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 17.27 mm Clearance in Groove (C1): 16.76 mm Min. Extension (n): 1.07 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1000
Part Number: CCE-01191-CZY (500 Pcs) External Retaining Rings - 11.91x0.64x11.3 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $123.41 AUD Regular price ~~$148.09 AUD~~ Sale price $123.41 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01191-CZY (500 Pcs) --- External Retaining Rings - 11.91x0.64x11.3 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01191-CZY (500 Pcs) --- External Retaining Rings - 11.91x0.64x11.3 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $123.41 AUD Regular price ~~$148.09 AUD~~ Sale price $123.41 AUD Unit price per 500 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm		Groove Width (W) 0.99 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 19.56 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 26
Part Number: CCE-01270-CZ (100 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm Clearance on Shaft (C1): 19.56 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 26
Part Number: CCE-01270-CZ (100 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01270-CZ (100 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01270-CZ (100 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm		Groove Width (W) 0.99 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 19.56 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16624
Part Number: CCE-01270-CZY (100 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Nov 30, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm Clearance on Shaft (C1): 19.56 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16624
Part Number: CCE-01270-CZY (100 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Nov 30, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01270-CZY (100 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01270-CZY (100 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 13.99 mm (Equiv. 0.551 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.18 mm _{+/- 0.051} (Equiv. 0.519 in.)	Approx. Loose Circlip ID (A) 12.93 mm		Groove Width (W) 1.00 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 3
Part Number: CCE-01399-CZY (50 Pcs) External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 13.99 mm (Equiv. 0.551 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.18 mm _{+/- 0.051} (Equiv. 0.519 in.)	Approx. Loose Circlip ID (A) 12.93 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 1.00 mm Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 3
Part Number: CCE-01399-CZY (50 Pcs) External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01399-CZY (50 Pcs) --- External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01399-CZY (50 Pcs) --- External Retaining Rings - 13.99x0.89x13.18 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $17.41 AUD Regular price ~~$20.89 AUD~~ Sale price $17.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+/- 0.051} (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.20 mm		Groove Width (W) 0.99 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 3163
Part Number: CCE-01429-CZY (100 Pcs) External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+/- 0.051} (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.20 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 3163
Part Number: CCE-01429-CZY (100 Pcs) External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01429-CZY (100 Pcs) --- External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01429-CZY (100 Pcs) --- External Retaining Rings - 14.29x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $35.95 AUD Regular price ~~$43.15 AUD~~ Sale price $35.95 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.076} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm _{+/- 0.051} (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.00 mm		Groove Width (W) 1.00 mm
Material: Carbon Steel Zinc Plated Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1290
Part Number: CCE-01509-CZY (100 Pcs) External Retaining Rings - 15.09x0.89x14.2 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $37.05 AUD Regular price ~~$44.45 AUD~~ Sale price $37.05 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.076} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm _{+/- 0.051} (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.00 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 1.00 mm Standard: MIL-16624 Additional stock available from USA subject to Prior Sale = 1290
Part Number: CCE-01509-CZY (100 Pcs) External Retaining Rings - 15.09x0.89x14.2 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $37.05 AUD Regular price ~~$44.45 AUD~~ Sale price $37.05 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCE-01509-CZY (100 Pcs) --- External Retaining Rings - 15.09x0.89x14.2 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCE-01509-CZY (100 Pcs) --- External Retaining Rings - 15.09x0.89x14.2 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $37.05 AUD Regular price ~~$44.45 AUD~~ Sale price $37.05 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Retaining Rings - External - Circlips - Standard - Zinc Plated

Category Details

Filter

Filter

Subscribe to our emails
