Collection: Retaining Rings - External - Circlips - Standard

Retaining Rings (With Images)

External

Circlips

Tabbed

677 Products in this selection

This is a combined category of Standard Circlips External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Standard. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00635-S15 (5 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Stainless Steel Grade PH15-7 Mo 31 units (155 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 5
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00635-S15 (5 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Stainless Steel Grade PH15-7 Mo 31 units (155 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00635-S15 (5 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Stainless Steel Grade PH15-7 Mo CCE-00635-S15 (5 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Stainless Steel Grade PH15-7 Mo Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per 31 Available Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00635-CZY (10 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated 50 units (500 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Per 10
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00635-CZY (10 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated 50 units (500 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00635-CZY (10 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated CCE-00635-CZY (10 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per 50 Available Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00635-CZ (500 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Per 500
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00635-CZ (500 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Per 500 View the product page first if you are unsure.
CCE-00635-CZ (500 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated CCE-00635-CZ (500 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Zinc Plated Regular price $143.59 AUD Regular price Sale price $143.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00635-C (20 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel 18 units (360 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 20
Shaft Diameter (Ds) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.038 _{(0.025 in.)}	Groove Dia. (Dg) 5.84 mm +/- 0.051 _{(0.23 in.)}	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00635-C (20 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel 18 units (360 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00635-C (20 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel CCE-00635-C (20 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm - Carbon Steel Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 6.70 mm + 0.00 / - 0.05 _{(0.264 in.)}	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.90 mm
Material: Carbon Steel Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00700-C (50 Pcs) External Retaining Rings - 7x0.8x6.7 mm - Carbon Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Per 50
Shaft Diameter (Ds) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 6.70 mm + 0.00 / - 0.05 _{(0.264 in.)}	Approx. Loose Circlip ID (A) 6.50 mm
Material: Carbon Steel Groove Width (W): 0.90 mm Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00700-C (50 Pcs) External Retaining Rings - 7x0.8x6.7 mm - Carbon Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00700-C (50 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm - Carbon Steel CCE-00700-C (50 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm - Carbon Steel Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per 9 Available Now
Shaft Diameter (Ds) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 6.70 mm + 0.00 / - 0.05 _{(0.264 in.)}	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.90 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00700-S15 (2 Pcs) External Retaining Rings - 7x0.8x6.7 mm - Stainless Steel Grade PH15-7 Mo 55 units (110 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 2
Shaft Diameter (Ds) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 6.70 mm + 0.00 / - 0.05 _{(0.264 in.)}	Approx. Loose Circlip ID (A) 6.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00700-S15 (2 Pcs) External Retaining Rings - 7x0.8x6.7 mm - Stainless Steel Grade PH15-7 Mo 55 units (110 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-00700-S15 (2 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm - Stainless Steel Grade PH15-7 Mo CCE-00700-S15 (2 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per 55 Available Now
Shaft Diameter (Ds) 7.01 mm _{(0.276 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.48 mm +/- 0.051 _{(0.255 in.)}	Approx. Loose Circlip ID (A) 6.35 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00701-S15 (2 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm - Stainless Steel Grade PH15-7 Mo 15 units (30 pcs) Available Immediately \| Further orders can be expected around Sun, Aug 31, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2
Shaft Diameter (Ds) 7.01 mm _{(0.276 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.48 mm +/- 0.051 _{(0.255 in.)}	Approx. Loose Circlip ID (A) 6.35 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00701-S15 (2 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm - Stainless Steel Grade PH15-7 Mo 15 units (30 pcs) Available Immediately \| Further orders can be expected around Sun, Aug 31, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-00701-S15 (2 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm - Stainless Steel Grade PH15-7 Mo CCE-00701-S15 (2 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per 15 Available Now
Shaft Diameter (Ds) 7.01 mm _{(0.276 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.48 mm +/- 0.051 _{(0.255 in.)}	Approx. Loose Circlip ID (A) 6.35 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00701-C (250 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Per 250
Shaft Diameter (Ds) 7.01 mm _{(0.276 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.48 mm +/- 0.051 _{(0.255 in.)}	Approx. Loose Circlip ID (A) 6.35 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00701-C (250 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Per 250 View the product page first if you are unsure.
CCE-00701-C (250 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm - Carbon Steel CCE-00701-C (250 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm - Carbon Steel Regular price $118.77 AUD Regular price Sale price $118.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.01 mm _{(0.276 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.48 mm +/- 0.051 _{(0.255 in.)}	Approx. Loose Circlip ID (A) 6.35 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Extension (n): 0.89 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00701-CZY (5 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm - Carbon Steel Zinc Plated 19 units (95 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 5
Shaft Diameter (Ds) 7.01 mm _{(0.276 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.48 mm +/- 0.051 _{(0.255 in.)}	Approx. Loose Circlip ID (A) 6.35 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Extension (n): 0.89 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00701-CZY (5 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm - Carbon Steel Zinc Plated 19 units (95 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00701-CZY (5 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm - Carbon Steel Zinc Plated CCE-00701-CZY (5 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm - Carbon Steel Zinc Plated Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per 19 Available Now
Shaft Diameter (Ds) 7.01 mm _{(0.276 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.48 mm +/- 0.051 _{(0.255 in.)}	Approx. Loose Circlip ID (A) 6.35 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 0.74 mm
Material: Beryllium Copper Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Extension (n): 0.89 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00701-B (125 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $364.68 AUD Regular price Sale price $364.68 AUD Unit price per Per 125
Shaft Diameter (Ds) 7.01 mm _{(0.276 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.48 mm +/- 0.051 _{(0.255 in.)}	Approx. Loose Circlip ID (A) 6.35 mm
Material: Beryllium Copper Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Extension (n): 0.89 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00701-B (125 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $364.68 AUD Regular price Sale price $364.68 AUD Unit price per Per 125 View the product page first if you are unsure.
CCE-00701-B (125 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm - Beryllium Copper CCE-00701-B (125 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm - Beryllium Copper Regular price $364.68 AUD Regular price Sale price $364.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.14 mm _{(0.281 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.63 mm +/- 0.051 _{(0.261 in.)}	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Extension (n): 0.84 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00714-CZY (500 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $121.50 AUD Regular price Sale price $121.50 AUD Unit price per Per 500
Shaft Diameter (Ds) 7.14 mm _{(0.281 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.63 mm +/- 0.051 _{(0.261 in.)}	Approx. Loose Circlip ID (A) 6.50 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Extension (n): 0.84 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00714-CZY (500 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $121.50 AUD Regular price Sale price $121.50 AUD Unit price per Per 500 View the product page first if you are unsure.
CCE-00714-CZY (500 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm - Carbon Steel Zinc Plated CCE-00714-CZY (500 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm - Carbon Steel Zinc Plated Regular price $121.50 AUD Regular price Sale price $121.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.14 mm _{(0.281 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.63 mm +/- 0.051 _{(0.261 in.)}	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00714-C (20 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm - Carbon Steel 29 units (580 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20
Shaft Diameter (Ds) 7.14 mm _{(0.281 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.63 mm +/- 0.051 _{(0.261 in.)}	Approx. Loose Circlip ID (A) 6.50 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00714-C (20 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm - Carbon Steel 29 units (580 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00714-C (20 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm - Carbon Steel CCE-00714-C (20 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm - Carbon Steel Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 29 Available Now
Shaft Diameter (Ds) 7.14 mm _{(0.281 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.63 mm +/- 0.051 _{(0.261 in.)}	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00714-S15 (5 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm - Stainless Steel Grade PH15-7 Mo 15 units (75 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Per 5
Shaft Diameter (Ds) 7.14 mm _{(0.281 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 6.63 mm +/- 0.051 _{(0.261 in.)}	Approx. Loose Circlip ID (A) 6.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00714-S15 (5 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm - Stainless Steel Grade PH15-7 Mo 15 units (75 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00714-S15 (5 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm - Stainless Steel Grade PH15-7 Mo CCE-00714-S15 (5 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm - Stainless Steel Grade PH15-7 Mo Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per 15 Available Now
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Beryllium Copper Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00794-B External Retaining Rings - 7.94x0.64x7.37 mm - Beryllium Copper 100 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Each
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm
Material: Beryllium Copper Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00794-B External Retaining Rings - 7.94x0.64x7.37 mm - Beryllium Copper 100 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Each View the product page first if you are unsure.
CCE-00794-B --- External Retaining Rings - 7.94x0.64x7.37 mm - Beryllium Copper CCE-00794-B --- External Retaining Rings - 7.94x0.64x7.37 mm - Beryllium Copper Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per 100 Available Now
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00794-CZ (100 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Per 100
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00794-CZ (100 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00794-CZ (100 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Zinc Plated CCE-00794-CZ (100 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Zinc Plated Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00794-CZY (100 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Per 100
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00794-CZY (100 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00794-CZY (100 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Zinc Plated CCE-00794-CZY (100 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Zinc Plated Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00794-S15 (5 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm - Stainless Steel Grade PH15-7 Mo 48 units (240 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per Per 5
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00794-S15 (5 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm - Stainless Steel Grade PH15-7 Mo 48 units (240 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00794-S15 (5 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm - Stainless Steel Grade PH15-7 Mo CCE-00794-S15 (5 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm - Stainless Steel Grade PH15-7 Mo Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per 48 Available Now
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00794-C (20 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel 31 units (620 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20
Shaft Diameter (Ds) 7.94 mm _{(0.313 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 7.37 mm +/- 0.051 _{(0.29 in.)}	Approx. Loose Circlip ID (A) 7.14 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00794-C (20 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel 31 units (620 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00794-C (20 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel CCE-00794-C (20 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm - Carbon Steel Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 31 Available Now
Shaft Diameter (Ds) 8.00 mm _{(0.315 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 7.60 mm + 0.00 / - 0.05 _{(0.299 in.)}	Approx. Loose Circlip ID (A) 7.40 mm		Groove Width (W) 0.90 mm
Material: Carbon Steel Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00800-C (50 Pcs) External Retaining Rings - 8x0.8x7.6 mm - Carbon Steel 37 units (1850 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 50
Shaft Diameter (Ds) 8.00 mm _{(0.315 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 7.60 mm + 0.00 / - 0.05 _{(0.299 in.)}	Approx. Loose Circlip ID (A) 7.40 mm
Material: Carbon Steel Groove Width (W): 0.90 mm Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00800-C (50 Pcs) External Retaining Rings - 8x0.8x7.6 mm - Carbon Steel 37 units (1850 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00800-C (50 Pcs) --- External Retaining Rings - 8x0.8x7.6 mm - Carbon Steel CCE-00800-C (50 Pcs) --- External Retaining Rings - 8x0.8x7.6 mm - Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 37 Available Now
Shaft Diameter (Ds) 8.00 mm _{(0.315 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 7.60 mm + 0.00 / - 0.05 _{(0.299 in.)}	Approx. Loose Circlip ID (A) 7.40 mm		Groove Width (W) 0.90 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00800-S15 (10 Pcs) External Retaining Rings - 8x0.8x7.6 mm - Stainless Steel Grade PH15-7 Mo 18 units (180 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Per 10
Shaft Diameter (Ds) 8.00 mm _{(0.315 in.)}	Clip Thickness (T) 0.80 mm + 0.00 / - 0.06 _{(0.031 in.)}	Groove Dia. (Dg) 7.60 mm + 0.00 / - 0.05 _{(0.299 in.)}	Approx. Loose Circlip ID (A) 7.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00800-S15 (10 Pcs) External Retaining Rings - 8x0.8x7.6 mm - Stainless Steel Grade PH15-7 Mo 18 units (180 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00800-S15 (10 Pcs) --- External Retaining Rings - 8x0.8x7.6 mm - Stainless Steel Grade PH15-7 Mo CCE-00800-S15 (10 Pcs) --- External Retaining Rings - 8x0.8x7.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 8.74 mm _{(0.344 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.15 mm +/- 0.051 _{(0.321 in.)}	Approx. Loose Circlip ID (A) 7.85 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00874-C (20 Pcs) External Retaining Rings - 8.74x0.64x8.15 mm - Carbon Steel 22 units (440 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 20
Shaft Diameter (Ds) 8.74 mm _{(0.344 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.15 mm +/- 0.051 _{(0.321 in.)}	Approx. Loose Circlip ID (A) 7.85 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00874-C (20 Pcs) External Retaining Rings - 8.74x0.64x8.15 mm - Carbon Steel 22 units (440 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00874-C (20 Pcs) --- External Retaining Rings - 8.74x0.64x8.15 mm - Carbon Steel CCE-00874-C (20 Pcs) --- External Retaining Rings - 8.74x0.64x8.15 mm - Carbon Steel Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per 22 Available Now
Shaft Diameter (Ds) 8.74 mm _{(0.344 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.15 mm +/- 0.051 _{(0.321 in.)}	Approx. Loose Circlip ID (A) 7.85 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00874-S15 (5 Pcs) External Retaining Rings - 8.74x0.64x8.15 mm - Stainless Steel Grade PH15-7 Mo 13 units (65 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Per 5
Shaft Diameter (Ds) 8.74 mm _{(0.344 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.15 mm +/- 0.051 _{(0.321 in.)}	Approx. Loose Circlip ID (A) 7.85 mm

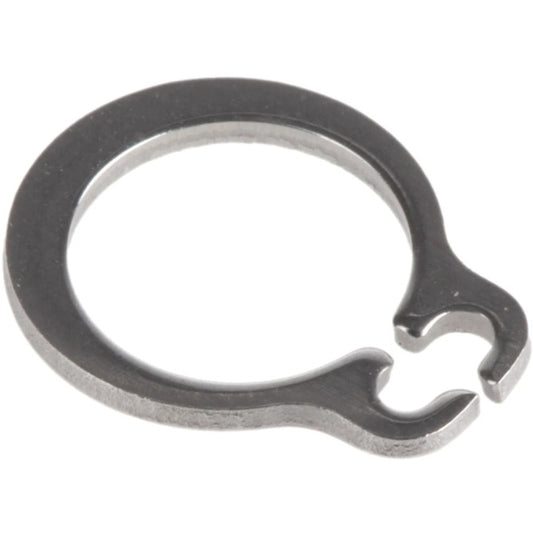

Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel

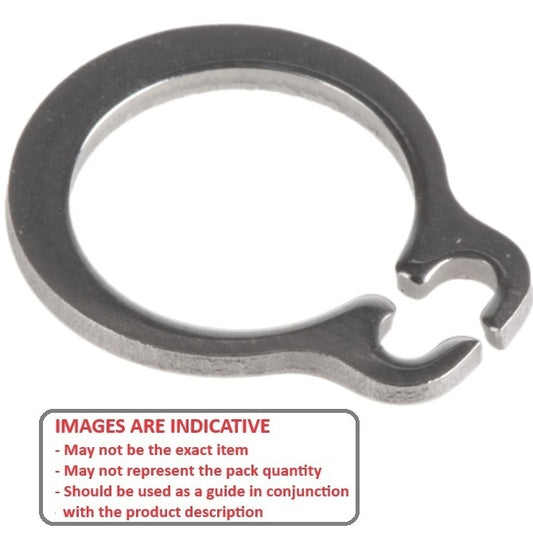

Part Number: CCE-00874-S15 (5 Pcs) External Retaining Rings - 8.74x0.64x8.15 mm - Stainless Steel Grade PH15-7 Mo 13 units (65 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00874-S15 (5 Pcs) --- External Retaining Rings - 8.74x0.64x8.15 mm - Stainless Steel Grade PH15-7 Mo CCE-00874-S15 (5 Pcs) --- External Retaining Rings - 8.74x0.64x8.15 mm - Stainless Steel Grade PH15-7 Mo Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per 13 Available Now
Shaft Diameter (Ds) 8.74 mm _{(0.344 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.20 mm +/- 0.051 _{(0.323 in.)}	Approx. Loose Circlip ID (A) 7.85 mm		Groove Width (W) 0.70 mm

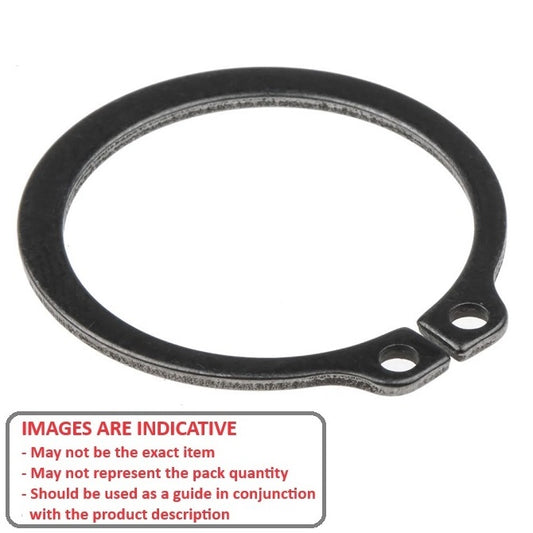

Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00874-CZY (500 Pcs) External Retaining Rings - 8.74x0.64x8.2 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $153.86 AUD Regular price Sale price $153.86 AUD Unit price per Per 500
Shaft Diameter (Ds) 8.74 mm _{(0.344 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.20 mm +/- 0.051 _{(0.323 in.)}	Approx. Loose Circlip ID (A) 7.85 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.70 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00874-CZY (500 Pcs) External Retaining Rings - 8.74x0.64x8.2 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $153.86 AUD Regular price Sale price $153.86 AUD Unit price per Per 500 View the product page first if you are unsure.
CCE-00874-CZY (500 Pcs) --- External Retaining Rings - 8.74x0.64x8.2 mm - Carbon Steel Zinc Plated CCE-00874-CZY (500 Pcs) --- External Retaining Rings - 8.74x0.64x8.2 mm - Carbon Steel Zinc Plated Regular price $153.86 AUD Regular price Sale price $153.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 8.74 mm _{(0.344 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.20 mm +/- 0.051 _{(0.323 in.)}	Approx. Loose Circlip ID (A) 7.85 mm		Groove Width (W) 0.70 mm

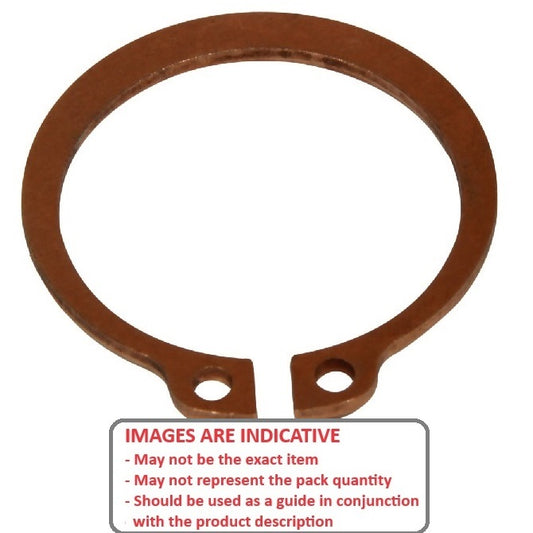

Material: Beryllium Copper Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00874-B (1250 Pcs) External Retaining Rings - 8.74x0.64x8.2 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $3,670.14 AUD Regular price Sale price $3,670.14 AUD Unit price per Per 1250
Shaft Diameter (Ds) 8.74 mm _{(0.344 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.20 mm +/- 0.051 _{(0.323 in.)}	Approx. Loose Circlip ID (A) 7.85 mm
Material: Beryllium Copper Groove Width (W): 0.70 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00874-B (1250 Pcs) External Retaining Rings - 8.74x0.64x8.2 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $3,670.14 AUD Regular price Sale price $3,670.14 AUD Unit price per Per 1250 View the product page first if you are unsure.
CCE-00874-B (1250 Pcs) --- External Retaining Rings - 8.74x0.64x8.2 mm - Beryllium Copper CCE-00874-B (1250 Pcs) --- External Retaining Rings - 8.74x0.64x8.2 mm - Beryllium Copper Regular price $3,670.14 AUD Regular price Sale price $3,670.14 AUD Unit price per Out of stock! Backorder Now
