Collection: Retaining Rings - External - Circlips - Standard

Retaining Rings (With Images)

External

Circlips

Tabbed

677 Products in this selection

This is a combined category of Standard Circlips External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Standard. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 8.99 mm _{(0.354 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.38 mm +/- 0.051 _{(0.33 in.)}	Approx. Loose Circlip ID (A) 8.13 mm		Groove Width (W) 0.74 mm

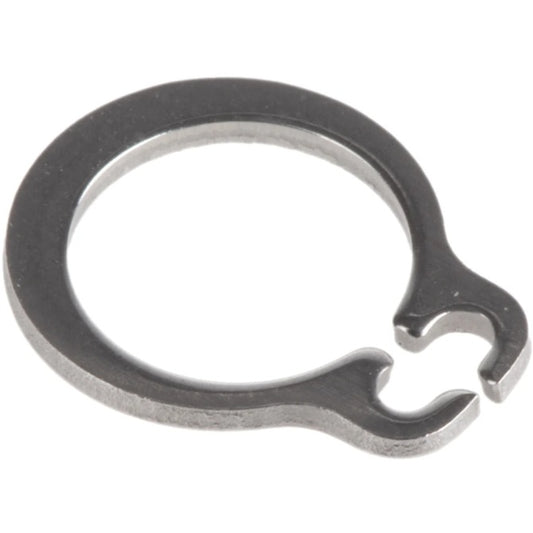

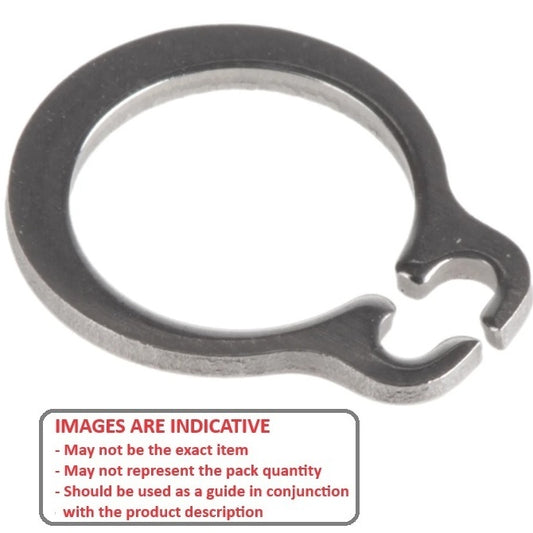

Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00899-S15 (2 Pcs) External Retaining Rings - 8.99x0.64x8.38 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 8.99 mm _{(0.354 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.38 mm +/- 0.051 _{(0.33 in.)}	Approx. Loose Circlip ID (A) 8.13 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00899-S15 (2 Pcs) External Retaining Rings - 8.99x0.64x8.38 mm - Stainless Steel Grade PH15-7 Mo 12 units (24 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-00899-S15 (2 Pcs) --- External Retaining Rings - 8.99x0.64x8.38 mm - Stainless Steel Grade PH15-7 Mo CCE-00899-S15 (2 Pcs) --- External Retaining Rings - 8.99x0.64x8.38 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per 12 Available Now
Shaft Diameter (Ds) 8.99 mm _{(0.354 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.38 mm +/- 0.051 _{(0.33 in.)}	Approx. Loose Circlip ID (A) 8.13 mm		Groove Width (W) 0.74 mm

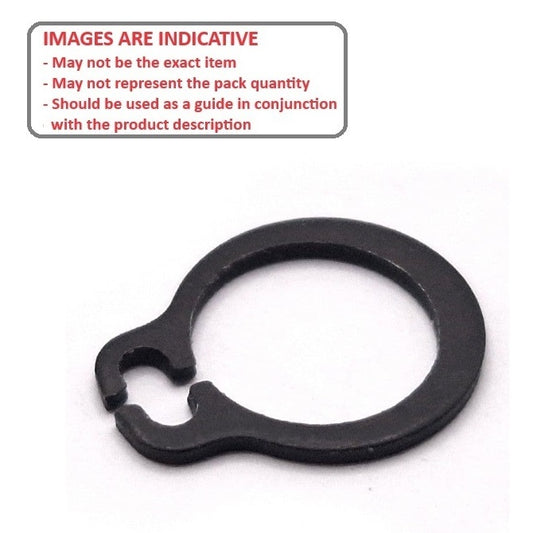

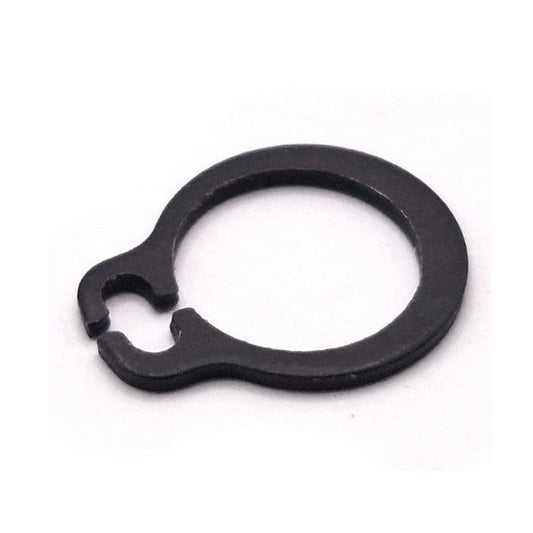

Material: Carbon Steel Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00899-C (20 Pcs) External Retaining Rings - 8.99x0.64x8.38 mm - Carbon Steel 47 units (940 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20
Shaft Diameter (Ds) 8.99 mm _{(0.354 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.38 mm +/- 0.051 _{(0.33 in.)}	Approx. Loose Circlip ID (A) 8.13 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00899-C (20 Pcs) External Retaining Rings - 8.99x0.64x8.38 mm - Carbon Steel 47 units (940 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00899-C (20 Pcs) --- External Retaining Rings - 8.99x0.64x8.38 mm - Carbon Steel CCE-00899-C (20 Pcs) --- External Retaining Rings - 8.99x0.64x8.38 mm - Carbon Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 47 Available Now
Shaft Diameter (Ds) 8.99 mm _{(0.354 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.40 mm +/- 0.051 _{(0.331 in.)}	Approx. Loose Circlip ID (A) 8.13 mm		Groove Width (W) 0.70 mm
Material: Beryllium Copper Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00899-B (50 Pcs) External Retaining Rings - 8.99x0.64x8.4 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Aug 31, 2025 Regular price $178.23 AUD Regular price Sale price $178.23 AUD Unit price per Per 50
Shaft Diameter (Ds) 8.99 mm _{(0.354 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.40 mm +/- 0.051 _{(0.331 in.)}	Approx. Loose Circlip ID (A) 8.13 mm
Material: Beryllium Copper Groove Width (W): 0.70 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00899-B (50 Pcs) External Retaining Rings - 8.99x0.64x8.4 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sun, Aug 31, 2025 Regular price $178.23 AUD Regular price Sale price $178.23 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00899-B (50 Pcs) --- External Retaining Rings - 8.99x0.64x8.4 mm - Beryllium Copper CCE-00899-B (50 Pcs) --- External Retaining Rings - 8.99x0.64x8.4 mm - Beryllium Copper Regular price $178.23 AUD Regular price Sale price $178.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 8.99 mm _{(0.354 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.40 mm +/- 0.051 _{(0.331 in.)}	Approx. Loose Circlip ID (A) 8.13 mm		Groove Width (W) 0.70 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00899-CZY (100 Pcs) External Retaining Rings - 8.99x0.64x8.4 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Per 100
Shaft Diameter (Ds) 8.99 mm _{(0.354 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.40 mm +/- 0.051 _{(0.331 in.)}	Approx. Loose Circlip ID (A) 8.13 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.70 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00899-CZY (100 Pcs) External Retaining Rings - 8.99x0.64x8.4 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00899-CZY (100 Pcs) --- External Retaining Rings - 8.99x0.64x8.4 mm - Carbon Steel Zinc Plated CCE-00899-CZY (100 Pcs) --- External Retaining Rings - 8.99x0.64x8.4 mm - Carbon Steel Zinc Plated Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 9.00 mm _{(0.354 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.06 _{(0.039 in.)}	Groove Dia. (Dg) 8.60 mm + 0.00 / - 0.06 _{(0.339 in.)}	Approx. Loose Circlip ID (A) 8.40 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00900-C (50 Pcs) External Retaining Rings - 9x1x8.6 mm - Carbon Steel 2 units (100 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 50
Shaft Diameter (Ds) 9.00 mm _{(0.354 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.06 _{(0.039 in.)}	Groove Dia. (Dg) 8.60 mm + 0.00 / - 0.06 _{(0.339 in.)}	Approx. Loose Circlip ID (A) 8.40 mm
Material: Carbon Steel Groove Width (W): 1.10 mm Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00900-C (50 Pcs) External Retaining Rings - 9x1x8.6 mm - Carbon Steel 2 units (100 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-00900-C (50 Pcs) --- External Retaining Rings - 9x1x8.6 mm - Carbon Steel CCE-00900-C (50 Pcs) --- External Retaining Rings - 9x1x8.6 mm - Carbon Steel Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 2 Available Now
Shaft Diameter (Ds) 9.00 mm _{(0.354 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.06 _{(0.039 in.)}	Groove Dia. (Dg) 8.60 mm + 0.00 / - 0.06 _{(0.339 in.)}	Approx. Loose Circlip ID (A) 8.40 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00900-S15 (5 Pcs) External Retaining Rings - 9x1x8.6 mm - Stainless Steel Grade PH15-7 Mo 10 units (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Per 5
Shaft Diameter (Ds) 9.00 mm _{(0.354 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.06 _{(0.039 in.)}	Groove Dia. (Dg) 8.60 mm + 0.00 / - 0.06 _{(0.339 in.)}	Approx. Loose Circlip ID (A) 8.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00900-S15 (5 Pcs) External Retaining Rings - 9x1x8.6 mm - Stainless Steel Grade PH15-7 Mo 10 units (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00900-S15 (5 Pcs) --- External Retaining Rings - 9x1x8.6 mm - Stainless Steel Grade PH15-7 Mo CCE-00900-S15 (5 Pcs) --- External Retaining Rings - 9x1x8.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per 10 Available Now
Shaft Diameter (Ds) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.90 mm +/- 0.051 _{(0.35 in.)}	Approx. Loose Circlip ID (A) 8.59 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00953-CZY (100 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.90 mm +/- 0.051 _{(0.35 in.)}	Approx. Loose Circlip ID (A) 8.59 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-00953-CZY (100 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00953-CZY (100 Pcs) --- External Retaining Rings - 9.53x0.64x8.9 mm - Carbon Steel Zinc Plated CCE-00953-CZY (100 Pcs) --- External Retaining Rings - 9.53x0.64x8.9 mm - Carbon Steel Zinc Plated Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.90 mm +/- 0.051 _{(0.35 in.)}	Approx. Loose Circlip ID (A) 8.59 mm		Groove Width (W) 0.74 mm
Material: Beryllium Copper Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00953-B (250 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $655.14 AUD Regular price Sale price $655.14 AUD Unit price per Per 250
Shaft Diameter (Ds) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.90 mm +/- 0.051 _{(0.35 in.)}	Approx. Loose Circlip ID (A) 8.59 mm
Material: Beryllium Copper Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper
Part Number: CCE-00953-B (250 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm - Beryllium Copper Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $655.14 AUD Regular price Sale price $655.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCE-00953-B (250 Pcs) --- External Retaining Rings - 9.53x0.64x8.9 mm - Beryllium Copper CCE-00953-B (250 Pcs) --- External Retaining Rings - 9.53x0.64x8.9 mm - Beryllium Copper Regular price $655.14 AUD Regular price Sale price $655.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.94 mm +/- 0.051 _{(0.352 in.)}	Approx. Loose Circlip ID (A) 8.59 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00953-S15 (2 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm - Stainless Steel Grade PH15-7 Mo 18 units (36 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2
Shaft Diameter (Ds) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.94 mm +/- 0.051 _{(0.352 in.)}	Approx. Loose Circlip ID (A) 8.59 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-00953-S15 (2 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm - Stainless Steel Grade PH15-7 Mo 18 units (36 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-00953-S15 (2 Pcs) --- External Retaining Rings - 9.53x0.64x8.94 mm - Stainless Steel Grade PH15-7 Mo CCE-00953-S15 (2 Pcs) --- External Retaining Rings - 9.53x0.64x8.94 mm - Stainless Steel Grade PH15-7 Mo Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.94 mm +/- 0.051 _{(0.352 in.)}	Approx. Loose Circlip ID (A) 8.59 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00953-C (20 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm - Carbon Steel 22 units (440 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20
Shaft Diameter (Ds) 9.53 mm _{(0.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 8.94 mm +/- 0.051 _{(0.352 in.)}	Approx. Loose Circlip ID (A) 8.59 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-00953-C (20 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm - Carbon Steel 22 units (440 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00953-C (20 Pcs) --- External Retaining Rings - 9.53x0.64x8.94 mm - Carbon Steel CCE-00953-C (20 Pcs) --- External Retaining Rings - 9.53x0.64x8.94 mm - Carbon Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 22 Available Now
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01000-S15 (5 Pcs) External Retaining Rings - 10x1x9.6 mm - Stainless Steel Grade PH15-7 Mo 92 units (460 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Per 5
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01000-S15 (5 Pcs) External Retaining Rings - 10x1x9.6 mm - Stainless Steel Grade PH15-7 Mo 92 units (460 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-01000-S15 (5 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Stainless Steel Grade PH15-7 Mo CCE-01000-S15 (5 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per 92 Available Now
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01000-C (50 Pcs) External Retaining Rings - 10x1x9.6 mm - Carbon Steel 78 units (3900 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 50
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01000-C (50 Pcs) External Retaining Rings - 10x1x9.6 mm - Carbon Steel 78 units (3900 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-01000-C (50 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Carbon Steel CCE-01000-C (50 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Carbon Steel Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 78 Available Now
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-01000-CZ (10 Pcs) External Retaining Rings - 10x1x9.6 mm - Carbon Steel Zinc Plated 28 units (280 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Per 10
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-01000-CZ (10 Pcs) External Retaining Rings - 10x1x9.6 mm - Carbon Steel Zinc Plated 28 units (280 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-01000-CZ (10 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Carbon Steel Zinc Plated CCE-01000-CZ (10 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Carbon Steel Zinc Plated Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per 28 Available Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.37 mm +/- 0.051 _{(0.369 in.)}	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01001-C (20 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm - Carbon Steel 3 units (60 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.37 mm +/- 0.051 _{(0.369 in.)}	Approx. Loose Circlip ID (A) 8.99 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01001-C (20 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm - Carbon Steel 3 units (60 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-01001-C (20 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm - Carbon Steel CCE-01001-C (20 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm - Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 3 Available Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.37 mm +/- 0.051 _{(0.369 in.)}	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01001-S15 (2 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm - Stainless Steel Grade PH15-7 Mo 48 units (96 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.37 mm +/- 0.051 _{(0.369 in.)}	Approx. Loose Circlip ID (A) 8.99 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01001-S15 (2 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm - Stainless Steel Grade PH15-7 Mo 48 units (96 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01001-S15 (2 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm - Stainless Steel Grade PH15-7 Mo CCE-01001-S15 (2 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 48 Available Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.40 mm +/- 0.051 _{(0.37 in.)}	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-01001-CZY (100 Pcs) External Retaining Rings - 10.01x0.64x9.4 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.32 AUD Regular price Sale price $33.32 AUD Unit price per Per 100
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.40 mm +/- 0.051 _{(0.37 in.)}	Approx. Loose Circlip ID (A) 8.99 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-01001-CZY (100 Pcs) External Retaining Rings - 10.01x0.64x9.4 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.32 AUD Regular price Sale price $33.32 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-01001-CZY (100 Pcs) --- External Retaining Rings - 10.01x0.64x9.4 mm - Carbon Steel Zinc Plated CCE-01001-CZY (100 Pcs) --- External Retaining Rings - 10.01x0.64x9.4 mm - Carbon Steel Zinc Plated Regular price $33.32 AUD Regular price Sale price $33.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 9.35 mm +/- 0.051 _{(0.368 in.)}	Approx. Loose Circlip ID (A) 9.20 mm		Groove Width (W) 1.00 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01001H-S15 External Retaining Rings - 10.01x0.89x9.35 mm - Stainless Steel Grade PH15-7 Mo 15 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 9.35 mm +/- 0.051 _{(0.368 in.)}	Approx. Loose Circlip ID (A) 9.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.00 mm Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01001H-S15 External Retaining Rings - 10.01x0.89x9.35 mm - Stainless Steel Grade PH15-7 Mo 15 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-01001H-S15 --- External Retaining Rings - 10.01x0.89x9.35 mm - Stainless Steel Grade PH15-7 Mo CCE-01001H-S15 --- External Retaining Rings - 10.01x0.89x9.35 mm - Stainless Steel Grade PH15-7 Mo Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per 15 Available Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 9.35 mm +/- 0.051 _{(0.368 in.)}	Approx. Loose Circlip ID (A) 9.20 mm		Groove Width (W) 1.00 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01001H-C (10 Pcs) External Retaining Rings - 10.01x0.89x9.35 mm - Carbon Steel 39 units (390 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 10
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 9.35 mm +/- 0.051 _{(0.368 in.)}	Approx. Loose Circlip ID (A) 9.20 mm
Material: Carbon Steel Groove Width (W): 1.00 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01001H-C (10 Pcs) External Retaining Rings - 10.01x0.89x9.35 mm - Carbon Steel 39 units (390 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-01001H-C (10 Pcs) --- External Retaining Rings - 10.01x0.89x9.35 mm - Carbon Steel CCE-01001H-C (10 Pcs) --- External Retaining Rings - 10.01x0.89x9.35 mm - Carbon Steel Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 39 Available Now
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Min. Extension (n): 0.99 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01032-C (20 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel 4 units (80 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Min. Extension (n): 0.99 Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01032-C (20 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel 4 units (80 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-01032-C (20 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel CCE-01032-C (20 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 4 Available Now
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Min. Extension (n): 0.99 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-01032-CZY (500 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $147.14 AUD Regular price Sale price $147.14 AUD Unit price per Per 500
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Min. Extension (n): 0.99 Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Part Number: CCE-01032-CZY (500 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $147.14 AUD Regular price Sale price $147.14 AUD Unit price per Per 500 View the product page first if you are unsure.
CCE-01032-CZY (500 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Zinc Plated CCE-01032-CZY (500 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Zinc Plated Regular price $147.14 AUD Regular price Sale price $147.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Min. Extension (n): 0.99 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01032-S15 (2 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo 75 units (150 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 2
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 0.74 mm Min. Extension (n): 0.99 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01032-S15 (2 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo 75 units (150 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01032-S15 (2 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo CCE-01032-S15 (2 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per 75 Available Now
Shaft Diameter (Ds) 10.87 mm _{(0.428 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 10.21 mm +/- 0.051 _{(0.402 in.)}	Approx. Loose Circlip ID (A) 10.10 mm		Groove Width (W) 1.00 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01087H-S15 External Retaining Rings - 10.87x0.89x10.21 mm - Stainless Steel Grade PH15-7 Mo 5 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Each
Shaft Diameter (Ds) 10.87 mm _{(0.428 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 10.21 mm +/- 0.051 _{(0.402 in.)}	Approx. Loose Circlip ID (A) 10.10 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.00 mm Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01087H-S15 External Retaining Rings - 10.87x0.89x10.21 mm - Stainless Steel Grade PH15-7 Mo 5 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Each View the product page first if you are unsure.
CCE-01087H-S15 --- External Retaining Rings - 10.87x0.89x10.21 mm - Stainless Steel Grade PH15-7 Mo CCE-01087H-S15 --- External Retaining Rings - 10.87x0.89x10.21 mm - Stainless Steel Grade PH15-7 Mo Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per 5 Available Now
Shaft Diameter (Ds) 10.87 mm _{(0.428 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 10.21 mm +/- 0.051 _{(0.402 in.)}	Approx. Loose Circlip ID (A) 10.10 mm		Groove Width (W) 1.00 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01087H-C (100 Pcs) External Retaining Rings - 10.87x0.89x10.21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $49.50 AUD Regular price Sale price $49.50 AUD Unit price per Per 100
Shaft Diameter (Ds) 10.87 mm _{(0.428 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 10.21 mm +/- 0.051 _{(0.402 in.)}	Approx. Loose Circlip ID (A) 10.10 mm
Material: Carbon Steel Groove Width (W): 1.00 mm Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Part Number: CCE-01087H-C (100 Pcs) External Retaining Rings - 10.87x0.89x10.21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $49.50 AUD Regular price Sale price $49.50 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-01087H-C (100 Pcs) --- External Retaining Rings - 10.87x0.89x10.21 mm - Carbon Steel CCE-01087H-C (100 Pcs) --- External Retaining Rings - 10.87x0.89x10.21 mm - Carbon Steel Regular price $49.50 AUD Regular price Sale price $49.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 10.39 mm + 0.00 / - 0.06 _{(0.409 in.)}	Approx. Loose Circlip ID (A) 10.20 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.10 mm Clearance in Groove (C1): 18.00 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01100-S15 (5 Pcs) External Retaining Rings - 11x1x10.39 mm - Stainless Steel Grade PH15-7 Mo 66 units (330 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 10.39 mm + 0.00 / - 0.06 _{(0.409 in.)}	Approx. Loose Circlip ID (A) 10.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.10 mm Clearance in Groove (C1): 18.00 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - External - Circlips - Standard - Stainless Steel
Part Number: CCE-01100-S15 (5 Pcs) External Retaining Rings - 11x1x10.39 mm - Stainless Steel Grade PH15-7 Mo 66 units (330 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-01100-S15 (5 Pcs) --- External Retaining Rings - 11x1x10.39 mm - Stainless Steel Grade PH15-7 Mo CCE-01100-S15 (5 Pcs) --- External Retaining Rings - 11x1x10.39 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 66 Available Now
