CCI-02600-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

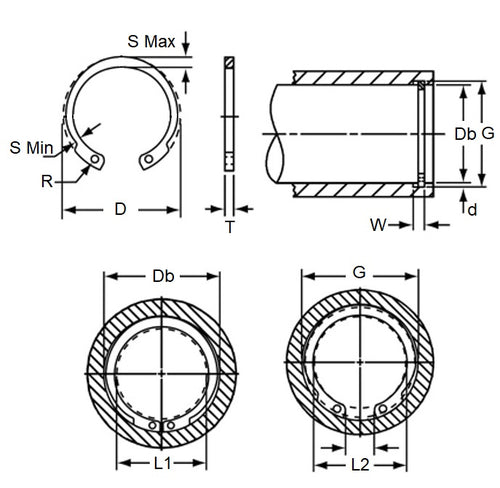

Product Data
- Housing Bore (B) : 26.00 mm
- Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.) - Groove Dia. (Dg)
27.20
mm
+ 0.21 / - 0.00
(Equiv. 1.071 in.) - Approx. Loose Circlip OD (Dr) 27.90 mm + 0.42 / - 0.21
- Radial Wall (S) Approx. 2.9 - 3.0
- Groove Width (W) 1.30 mm
- Tool PRS-I011
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- 90442A213
- Bossard® BN830-026
- Huyett® DHOI-026
- Ellison® INTV-026
- Seeger® JV-026
- NoCor® MDHOI-026
- BN830026
- INTV026
- M1308-026
- MDHOI026
- M1308026
- M1308-0260APP
- M13080260APP
- JV026
