SBTN-0927-DL

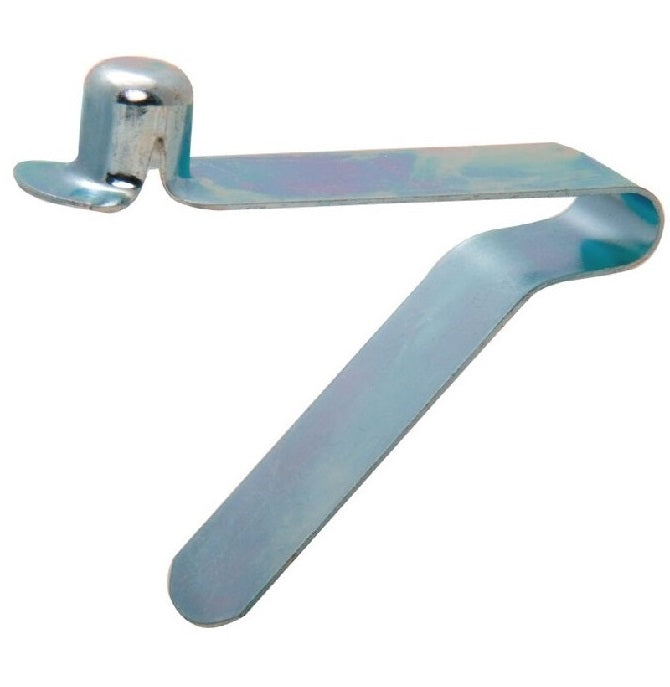

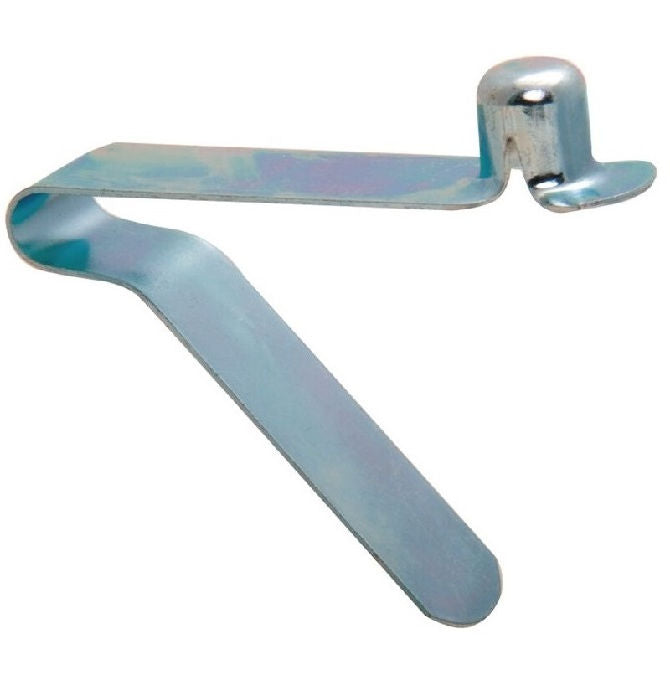

Single End Snap Buttons - 9.27x9.4x0.635 mm Dog Leg Snap Button

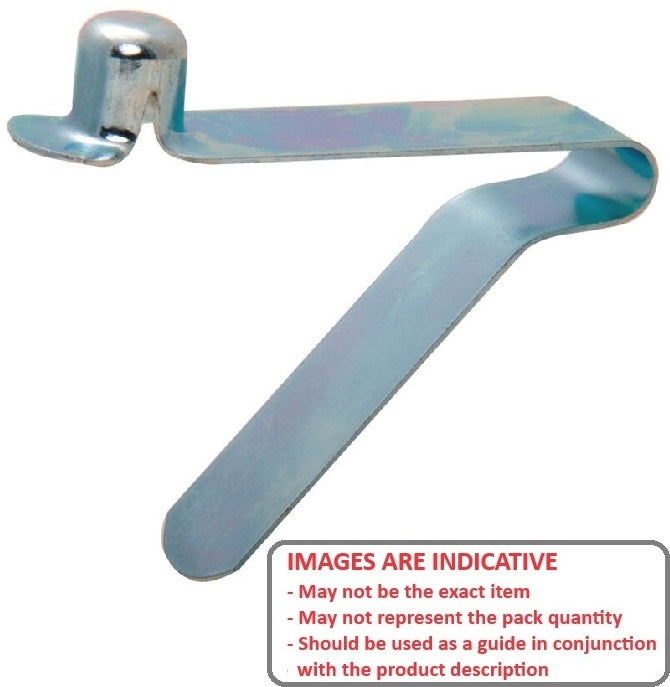

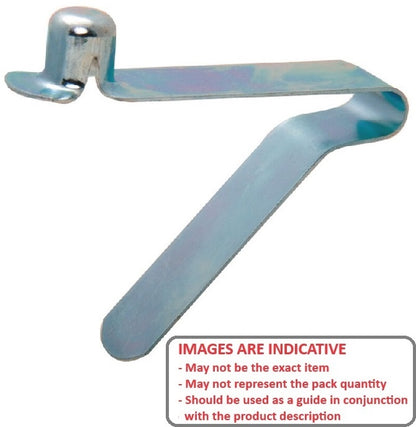

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single End Snap Buttons - 9.27x9.4x0.635 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Tubing
Price:
$2.77 AUD
$6.21 AUD $2.77 AUD
Each
Qty: 14 available now
Only 14 may be ordered online. If you need a large quantity, please contact us.

Base Category: Snap Buttons - Single End

Top Level Category: Snap Buttons - Single End - Dog Leg

Product Details

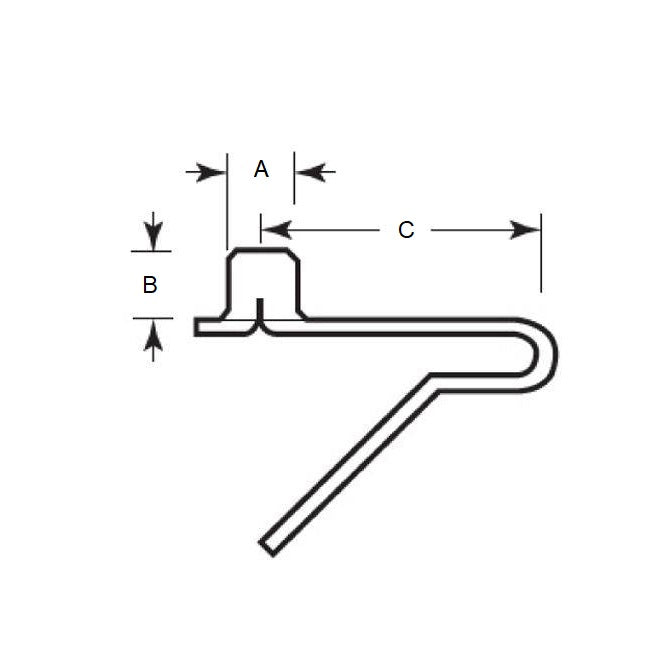

Button Diameter (A): 9.27mm
(9.27mm is 0.365 in.)

Carbon Spring Steel
  • Button Height (B): 9.40mm
    (9.40mm is 0.37 in.)
  • Material Thickness: 0.635mm
    (0.635mm is 0.025 in.)
  • Clip Width: 12.95mm
  • Centre to Middle of End (C): 45.72mm
  • Use with Round Tubing: 15.2 to 28.4
  • Use with Square Tubing: 15.2 to 28.4

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • VA2160
  • VA-2160

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
