Collection: Snap Buttons - Single End

Snap Buttons (With Images)

Single End

6 Products in this selection

This is a combined category of Single End Snap Buttons.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Tubing

A more concise listing may be found on the Smallparts store at Snap Buttons - Single End. Smallparts promote the most popular MBA products.

Button Diameter (A)	Button Height (B)	Material Thickness	Clip Width	Centre to Middle of End (C)	Use with Round Tubing
Button Diameter (A) 6.35 mm _{(0.25 in.)}	Button Height (B) 7.11 mm _{(0.28 in.)}	Material Thickness 0.457 mm _{(0.018 in.)}	Clip Width 9.27 mm	Centre to Middle of End (C) 29.72 mm	Use with Round Tubing 11.4 to 22.0

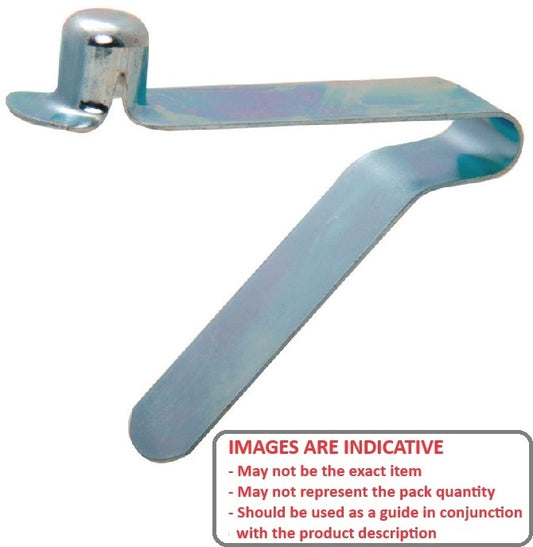

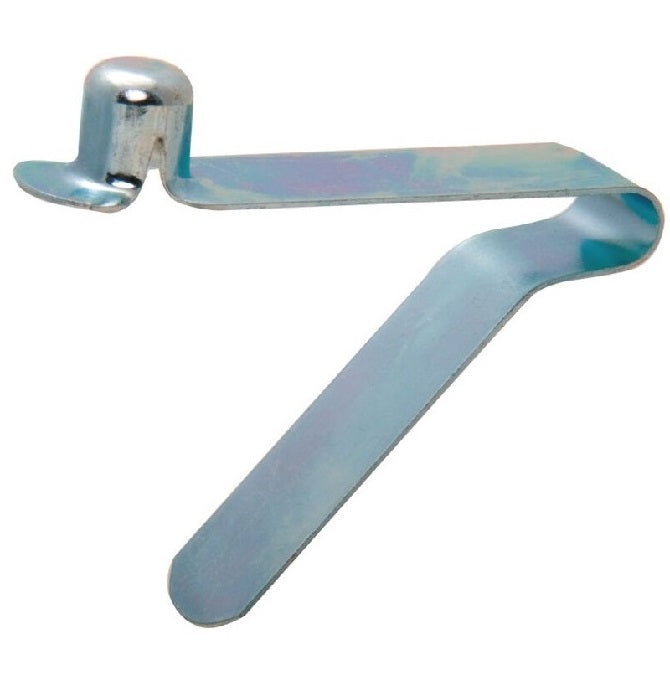

Use with Square Tubing: 11.4 to 22.0 Category: Snap Buttons - Single End - Dog Leg
Part Number: SBTN-0635-DL (2 Pcs) Single End Snap Buttons - 6.35x7.11x0.457 mm Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Button Diameter (A)	Button Height (B)	Material Thickness	Clip Width	Indicative Image
Button Diameter (A) 6.35 mm _{(0.25 in.)}	Button Height (B) 7.11 mm _{(0.28 in.)}	Material Thickness 0.457 mm _{(0.018 in.)}	Clip Width 9.27 mm
Centre to Middle of End (C): 29.72 mm Use with Round Tubing: 11.4 to 22.0 Use with Square Tubing: 11.4 to 22.0 Category: Snap Buttons - Single End - Dog Leg
Part Number: SBTN-0635-DL (2 Pcs) Single End Snap Buttons - 6.35x7.11x0.457 mm Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Button Diameter (A) 6.35 mm _{(0.25 in.)}	Button Height (B) 7.11 mm _{(0.28 in.)}	Material Thickness 0.457 mm _{(0.018 in.)}	Clip Width 9.27 mm	Centre to Middle of End (C) 29.72 mm	Use with Round Tubing 36.8

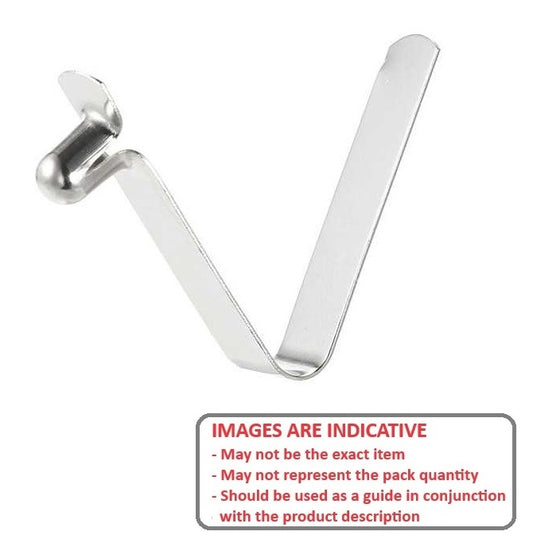

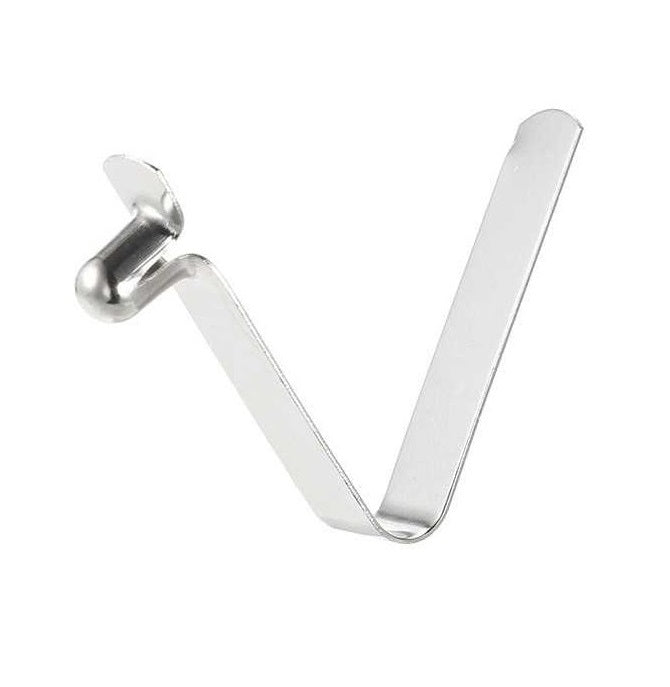

Material: Spring Steel Use with Square Tubing: 11.4 to 22.0 Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0635-SP Single End Snap Buttons - 6.35x7.11x0.457 mm 60 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each
Button Diameter (A) 6.35 mm _{(0.25 in.)}	Button Height (B) 7.11 mm _{(0.28 in.)}	Material Thickness 0.457 mm _{(0.018 in.)}	Clip Width 9.27 mm
Material: Spring Steel Centre to Middle of End (C): 29.72 mm Use with Round Tubing: 36.8 Use with Square Tubing: 11.4 to 22.0 Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0635-SP Single End Snap Buttons - 6.35x7.11x0.457 mm 60 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each View the product page first if you are unsure.
SBTN-0635-SP --- Single End Snap Buttons - 6.35x7.11x0.457 mm SBTN-0635-SP --- Single End Snap Buttons - 6.35x7.11x0.457 mm Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 60 Available Now
Button Diameter (A) 7.67 mm _{(0.302 in.)}	Button Height (B) 9.40 mm _{(0.37 in.)}	Material Thickness 0.508 mm _{(0.02 in.)}	Clip Width 11.18 mm	Centre to Middle of End (C) 41.91 mm	Use with Round Tubing 48.5
Material: Spring Steel Use with Square Tubing: 15.0 to 31.8 Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0767-SP Single End Snap Buttons - 7.67x9.4x0.508 mm 19 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Button Diameter (A) 7.67 mm _{(0.302 in.)}	Button Height (B) 9.40 mm _{(0.37 in.)}	Material Thickness 0.508 mm _{(0.02 in.)}	Clip Width 11.18 mm
Material: Spring Steel Centre to Middle of End (C): 41.91 mm Use with Round Tubing: 48.5 Use with Square Tubing: 15.0 to 31.8 Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0767-SP Single End Snap Buttons - 7.67x9.4x0.508 mm 19 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
SBTN-0767-SP --- Single End Snap Buttons - 7.67x9.4x0.508 mm SBTN-0767-SP --- Single End Snap Buttons - 7.67x9.4x0.508 mm Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 19 Available Now
Button Diameter (A) 9.27 mm _{(0.365 in.)}	Button Height (B) 9.40 mm _{(0.37 in.)}	Material Thickness 0.635 mm _{(0.025 in.)}	Clip Width 12.95 mm	Centre to Middle of End (C) 45.72 mm	Use with Round Tubing 15.2 to 28.4
Material: Spring Steel Use with Square Tubing: 15.2 to 28.4 Category: Snap Buttons - Single End - Dog Leg
Part Number: SBTN-0927-DL Single End Snap Buttons - 9.27x9.4x0.635 mm 14 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each
Button Diameter (A) 9.27 mm _{(0.365 in.)}	Button Height (B) 9.40 mm _{(0.37 in.)}	Material Thickness 0.635 mm _{(0.025 in.)}	Clip Width 12.95 mm
Material: Spring Steel Centre to Middle of End (C): 45.72 mm Use with Round Tubing: 15.2 to 28.4 Use with Square Tubing: 15.2 to 28.4 Category: Snap Buttons - Single End - Dog Leg
Part Number: SBTN-0927-DL Single End Snap Buttons - 9.27x9.4x0.635 mm 14 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each View the product page first if you are unsure.
SBTN-0927-DL --- Single End Snap Buttons - 9.27x9.4x0.635 mm SBTN-0927-DL --- Single End Snap Buttons - 9.27x9.4x0.635 mm Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 14 Available Now
Button Diameter (A) 9.27 mm _{(0.365 in.)}	Button Height (B) 9.40 mm _{(0.37 in.)}	Material Thickness 0.635 mm _{(0.025 in.)}	Clip Width 12.95 mm	Centre to Middle of End (C) 45.97 mm	Use with Round Tubing 54.1
Material: Spring Steel Use with Square Tubing: 17.3 to 34.8 Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0927-SP Single End Snap Buttons - 9.27x9.4x0.635 mm 60 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Each
Button Diameter (A) 9.27 mm _{(0.365 in.)}	Button Height (B) 9.40 mm _{(0.37 in.)}	Material Thickness 0.635 mm _{(0.025 in.)}	Clip Width 12.95 mm
Material: Spring Steel Centre to Middle of End (C): 45.97 mm Use with Round Tubing: 54.1 Use with Square Tubing: 17.3 to 34.8 Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0927-SP Single End Snap Buttons - 9.27x9.4x0.635 mm 60 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Each View the product page first if you are unsure.
SBTN-0927-SP --- Single End Snap Buttons - 9.27x9.4x0.635 mm SBTN-0927-SP --- Single End Snap Buttons - 9.27x9.4x0.635 mm Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per 60 Available Now
Button Diameter (A) 9.53 mm _{(0.375 in.)}	Button Height (B) 14.99 mm _{(0.59 in.)}	Material Thickness 0.762 mm _{(0.03 in.)}	Clip Width 9.53 mm
Material: Stainless Steel Use with Square Tubing: 24.9 to 57.2 Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0953-SP-S3 (50 Pcs) Single End Snap Buttons - 9.53x14.99x0.762 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 04, 2025 Regular price $617.77 AUD Regular price Sale price $617.77 AUD Unit price per Per 50
Button Diameter (A) 9.53 mm _{(0.375 in.)}	Button Height (B) 14.99 mm _{(0.59 in.)}	Material Thickness 0.762 mm _{(0.03 in.)}	Clip Width 9.53 mm
Material: Stainless Steel Use with Square Tubing: 24.9 to 57.2 Category: Snap Buttons - Single End - Spring Leg
Part Number: SBTN-0953-SP-S3 (50 Pcs) Single End Snap Buttons - 9.53x14.99x0.762 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Aug 04, 2025 Regular price $617.77 AUD Regular price Sale price $617.77 AUD Unit price per Per 50 View the product page first if you are unsure.
SBTN-0953-SP-S3 (50 Pcs) --- Single End Snap Buttons - 9.53x14.99x0.762 mm SBTN-0953-SP-S3 (50 Pcs) --- Single End Snap Buttons - 9.53x14.99x0.762 mm Regular price $617.77 AUD Regular price Sale price $617.77 AUD Unit price per Out of stock! Backorder Now
