SBTN-0927-DL - Datasheet
MBA
Category Information

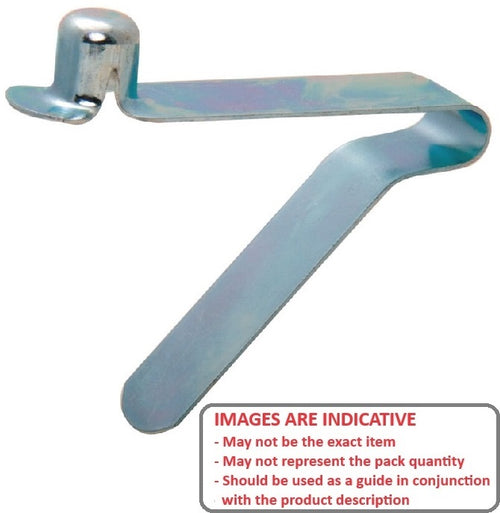

Snap Buttons - Single End - Dog LegDog Leg Single End Snap Buttons. Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.
- Eliminates the need for rivets and screws.
- Simply snap into place in square or round tubing.
- Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

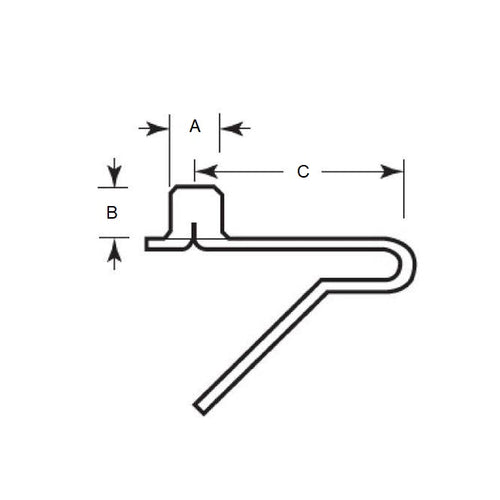

- Button Diameter (A)
:
9.27
mm
(Equiv. 0.365 in.) - Button Height (B)
9.40
mm
(Equiv. 0.37 in.) - Material Thickness
0.635
mm
(Equiv. 0.025 in.) - Clip Width 12.95 mm
- Centre to Middle of End (C) 45.72 mm
- Use with Round Tubing 15.2 to 28.4
- Use with Square Tubing 15.2 to 28.4
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- VA2160
- VA-2160
