DS-318-127-MHD

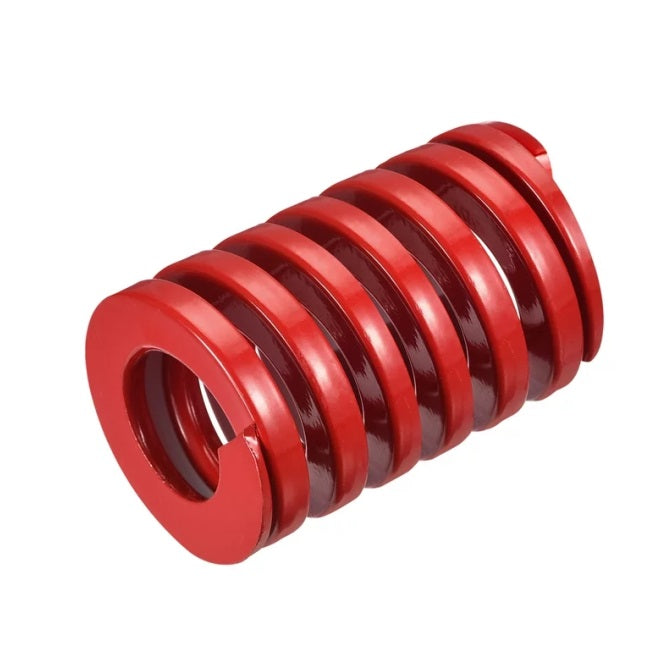

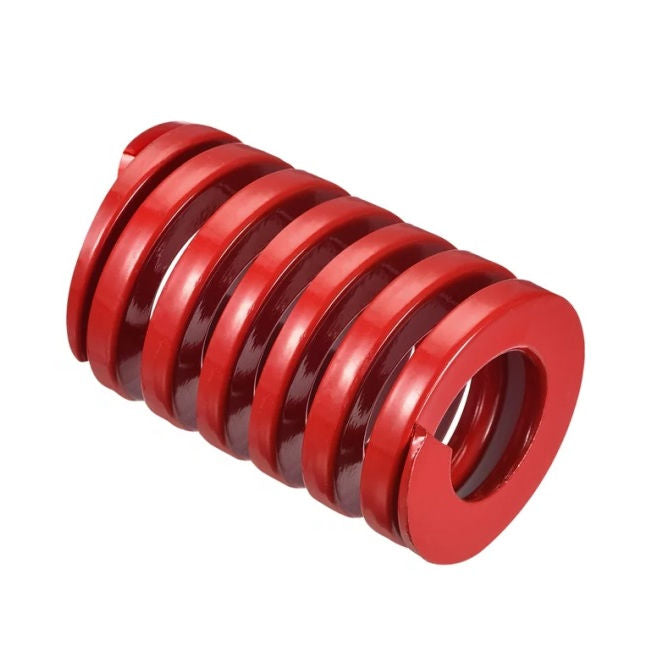

Die Springs - 31.75x15.875x127 mm - Carbon Spring Steel

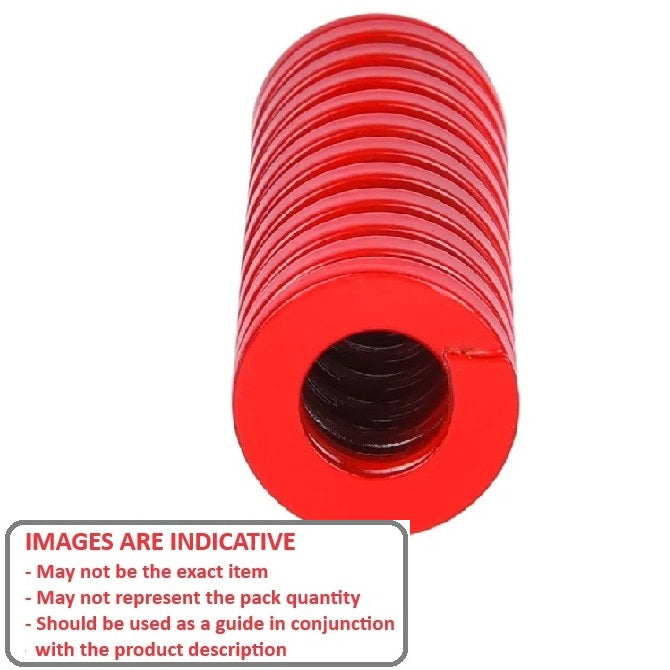

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Spings Catalogue PDF
Price:
$67.68 AUD
$81.22 AUD $67.68 AUD
Each
Backorder
Order 50 or more for $60.91 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Jul 09, 2025

Base Category: Springs - Die

Top Level Category: Springs - Die - Imperial - Medium-Heavy Duty

Product Details:

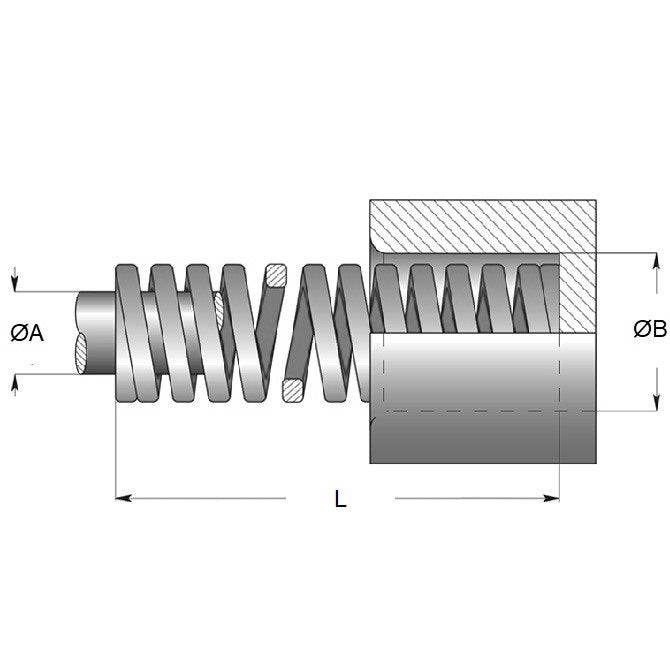

Hole Diameter (B): 31.75mm
(31.75mm is 1.25 in.)

Carbon Spring Steel
  • Rod Diameter (A): 15.875mm
    (15.875mm is 0.625 in.)
  • Length (L): 127.000mm
    (127.000mm is 5 in.)
  • Optimum Deflection: 20Percent
  • Optimum Deflection: 25.4mm
  • Load at Optimal: 1333.5N
  • Maximum Deflection: 30Percent
  • Maximum Deflection: 38.1mm
  • Load at Maximum: 2000.3N
  • Spring Rate: 52.5N/mm
  • Colour Code: Red

Brand: MBA
Country of Origin: US

Alternative Parts Include: 9584K79, JS575, JS-575, ALTPART

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details

Click to open these sections

SHIPPING

Shipping Policy

Insurance, Brands & Related Information

Pick up is available from our Coopers Plains warehouse after your order is ready. Please refer to your ready notification email, and bring it with you to collect your parcel.

You may freely download the following catalogues to review and compare products. To help you select the most readily available items, rows are colour coded and marked according to the key at the bottom of each page.

Part numbers from these catalogues can be checked in the online store. If they don't appear in the store, please email us for more information about the part.

Ball Lock Pins

Balls

Bearing Material Selection and Benefits

Bearings - Ceramic

Bearings - Corrosion Resistant

Bearings - Economy

Bearings - High Speed

Bearings - Plastic

Bearings - Radial - Master List

Bearings - Standard Range

Bearings - Super Precision

Bearings - Thrust

Bushes - Metallic & Plastic

Bushes - Sintered Bronze

Bushes - Solid Bronze

Circlips

Clevis Pins

Dowel Pins

Hammer Drive Pins

Key Steel

Knobs

Leveling Mounts

O-Rings

Pins

Poly Vee Belts and Pulleys

Push On & Push In Rings

Rod and Tube

Roll Pins

Screws

Shaft Collars

Shim Sheet

Shoulder Screws

Snap Rings

Socket Set Screws

Spring Steel Strip

Springs

Taper Pins

Thumbs Screws and Nuts

Timing Belts

Timing Pulley Stock

Timing Pulleys

Vibration Mounts - Bobbins and Buffers

Washers - Disc Spring

Washers - Precision Shim

Washers - Wave

Washers and Spacers

We provide equivalents to many brands including Berg - Designatronics - Nordex - NSK - Oilite - Ondrives - Reid Industrial - SDP-SI - SKF. The following PDF cross references contain hundreds of thousands of part conversions.

ADR and SKF

Anderton Circlips

Barden Bearings

Designatronics SDP-SI

Essentra

Flocast Bronze Bushes

K&S Metals

Miniature Precision Bearings

Miscellaneous Brands

Misumi

NSK and NTN Bearings

Nordex

Ondrives

Reid Supply

SDP-SI

Seeger Circlips

Sintered Bronze

Small Parts Inc

Timing Belts & Pulleys

Information, Catalogues, and News

View all
  • Bearing Retainers (cages) Information

    Bearing Retainers (cages) Information

    The purpose of a bearing’s cage is to hold and separate the rolling elements (balls or rollers) of the bearing. The most common types of cage used for miniature ball bearings...

    Bearing Retainers (cages) Information

    The purpose of a bearing’s cage is to hold and separate the rolling elements (balls or rollers) of the bearing. The most common types of cage used for miniature ball bearings...

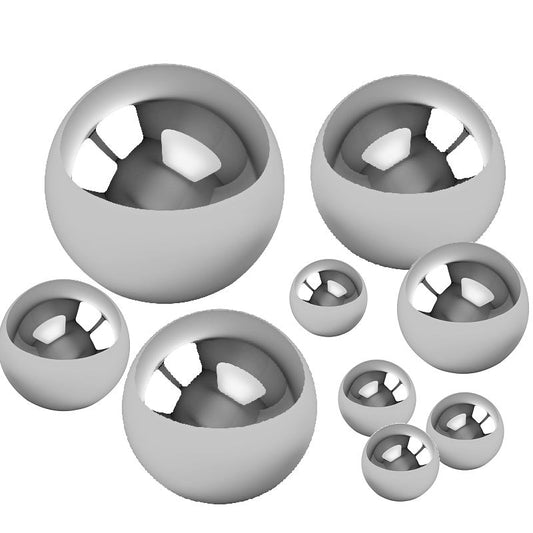

  • Ball Grades Information

    Ball Grades Information

    Ball Grades Download the Ball Grades PDF to see the complete article ISO 3290 Standards govern the dimensional characteristics of metallic balls. The ABMA (Formerly AFBMA) now uses ISO 3290. MBA...

    Ball Grades Information

    Ball Grades Download the Ball Grades PDF to see the complete article ISO 3290 Standards govern the dimensional characteristics of metallic balls. The ABMA (Formerly AFBMA) now uses ISO 3290. MBA...

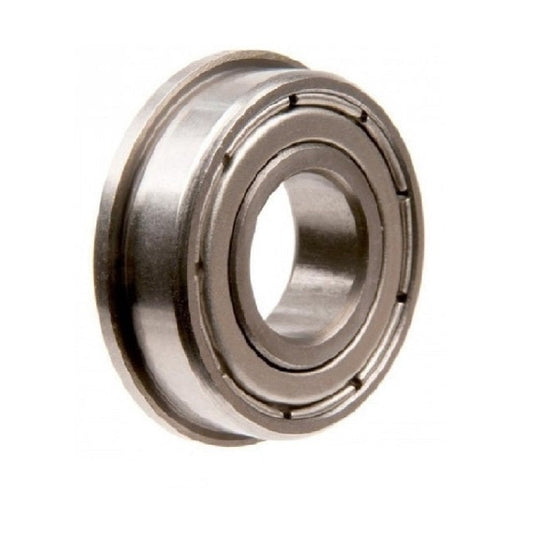

  • Bearing Flanges & Snap Rings Information
