Collection: Springs - Die - Imperial - Medium-Heavy Duty

Springs -> Die -> Imperial -> Medium-Heavy Duty

There are 70 products in the sub-categories of Springs - Die - Imperial - Medium-Heavy Duty. Scroll down or follow the link to Springs - Die - Imperial - Medium-Heavy Duty in the products table to see all these items combined into a handy table with filters.

Category Details

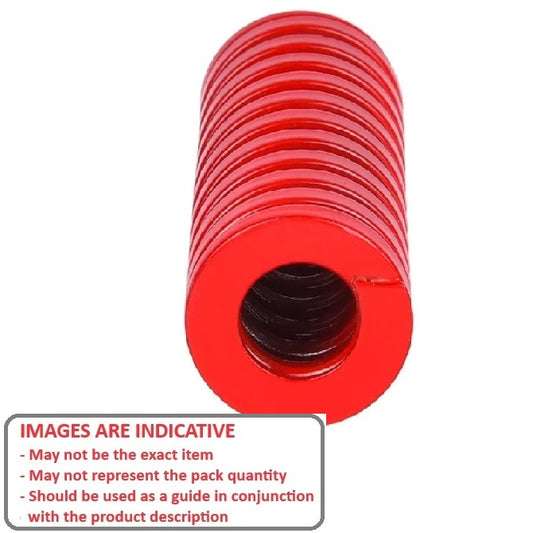

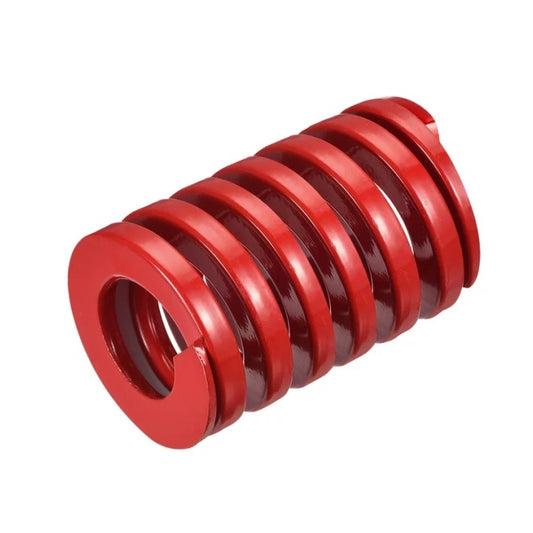

A selection of Medium-Heavy Duty Imperial Die Springs. Colour coded red. Vapor degassed high tensile strength chromium alloy steel.

Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
Designed for long life cycle with constant high end deflections and shot peened to increase fatigue life.
Maximum deflection is 37 percent of the length
Efficient operating range is 20 to 30 percent of the length
Spring Ends: Squared and ground.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spings Catalogue PDF

A more concise listing may be found in the Springs - Die - Imperial - Medium-Heavy Duty category on the Small Parts & Bearings online store.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 75.0 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 111.7 N Spring Rate: 14.7 N/mm Colour Code: Red
Part Number: DS-095-025-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 5.1 mm Load at Optimal: 75.0 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 111.7 N Spring Rate: 14.7 N/mm Colour Code: Red
Part Number: DS-095-025-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-025-MHD (Each) --- Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel Sale DS-095-025-MHD (Each) --- Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel Regular price $8.23 AUD Regular price ~~$9.87 AUD~~ Sale price $8.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 75.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 111.7 N Spring Rate: 14.7 N/mm Colour Code: Red
Part Number: DS-095-025-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 5.1 mm Load at Optimal: 75.0 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 111.7 N Spring Rate: 14.7 N/mm Colour Code: Red
Part Number: DS-095-025-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-025-MHDS (Each) --- Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring Sale DS-095-025-MHDS (Each) --- Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 81.9 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 121.6 N Spring Rate: 12.8 N/mm Colour Code: Red
Part Number: DS-095-032-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 81.9 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 121.6 N Spring Rate: 12.8 N/mm Colour Code: Red
Part Number: DS-095-032-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-032-MHD (Each) --- Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel Sale DS-095-032-MHD (Each) --- Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x31.75 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 81.9 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 121.6 N Spring Rate: 12.8 N/mm Colour Code: Red
Part Number: DS-095-032-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x31.75 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 81.9 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 121.6 N Spring Rate: 12.8 N/mm Colour Code: Red
Part Number: DS-095-032-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-032-MHDS (Each) --- Die Springs - 9.53x4.763x31.75 mm Imperial - Chrome Silicon Spring Sale DS-095-032-MHDS (Each) --- Die Springs - 9.53x4.763x31.75 mm Imperial - Chrome Silicon Spring Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 88.9 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 133.4 N Spring Rate: 11.7 N/mm Colour Code: Red
Part Number: DS-095-038-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 88.9 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 133.4 N Spring Rate: 11.7 N/mm Colour Code: Red
Part Number: DS-095-038-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-038-MHD (Each) --- Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel Sale DS-095-038-MHD (Each) --- Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 88.9 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 133.4 N Spring Rate: 11.7 N/mm Colour Code: Red
Part Number: DS-095-038-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 88.9 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 133.4 N Spring Rate: 11.7 N/mm Colour Code: Red
Part Number: DS-095-038-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-038-MHDS (Each) --- Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring Sale DS-095-038-MHDS (Each) --- Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 50.800 mm	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 89.8 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 133.8 N Spring Rate: 8.8 N/mm Colour Code: Red
Part Number: DS-095-051-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 50.800 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 89.8 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 133.8 N Spring Rate: 8.8 N/mm Colour Code: Red
Part Number: DS-095-051-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-051-MHD (Each) --- Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel Sale DS-095-051-MHD (Each) --- Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 50.800 mm	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 89.8 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 133.8 N Spring Rate: 8.8 N/mm Colour Code: Red
Part Number: DS-095-051-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $17.14 AUD Regular price ~~$20.56 AUD~~ Sale price $17.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 50.800 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 89.8 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 133.8 N Spring Rate: 8.8 N/mm Colour Code: Red
Part Number: DS-095-051-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $17.14 AUD Regular price ~~$20.56 AUD~~ Sale price $17.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-051-MHDS (Each) --- Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring Sale DS-095-051-MHDS (Each) --- Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring Regular price $17.14 AUD Regular price ~~$20.56 AUD~~ Sale price $17.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 63.500 mm	Optimum Deflection 20 Percent	Optimum Deflection 12.7 mm	Load at Optimal 82.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 124.2 N Spring Rate: 6.5 N/mm Colour Code: Red
Part Number: DS-095-064-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 9.53 mm	Rod Diameter (A) 4.763 mm	Length (L) 63.500 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 82.6 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 124.2 N Spring Rate: 6.5 N/mm Colour Code: Red
Part Number: DS-095-064-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-095-064-MHDS (Each) --- Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Sale DS-095-064-MHDS (Each) --- Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 138.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 206.7 N Spring Rate: 27.2 N/mm Colour Code: Red
Part Number: DS-127-025-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 5.1 mm Load at Optimal: 138.7 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 206.7 N Spring Rate: 27.2 N/mm Colour Code: Red
Part Number: DS-127-025-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-025-MHDS (Each) --- Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Sale DS-127-025-MHDS (Each) --- Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 137.0 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 203.3 N Spring Rate: 21.4 N/mm Colour Code: Red
Part Number: DS-127-032-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 137.0 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 203.3 N Spring Rate: 21.4 N/mm Colour Code: Red
Part Number: DS-127-032-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-032-MHD (Each) --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Sale DS-127-032-MHD (Each) --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 137.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 203.3 N Spring Rate: 21.4 N/mm Colour Code: Red
Part Number: DS-127-032-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 137.0 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 203.3 N Spring Rate: 21.4 N/mm Colour Code: Red
Part Number: DS-127-032-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-032-MHDS (Each) --- Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Sale DS-127-032-MHDS (Each) --- Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 130.7 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 196.1 N Spring Rate: 17.2 N/mm Colour Code: Red
Part Number: DS-127-038-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 130.7 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 196.1 N Spring Rate: 17.2 N/mm Colour Code: Red
Part Number: DS-127-038-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-038-MHD (Each) --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Sale DS-127-038-MHD (Each) --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 130.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 196.1 N Spring Rate: 17.2 N/mm Colour Code: Red
Part Number: DS-127-038-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 130.7 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 196.1 N Spring Rate: 17.2 N/mm Colour Code: Red
Part Number: DS-127-038-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-038-MHDS (Each) --- Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring Sale DS-127-038-MHDS (Each) --- Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 44.450 mm	Optimum Deflection 20 Percent	Optimum Deflection 8.9 mm	Load at Optimal 132.6 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 198.2 N Spring Rate: 14.9 N/mm Colour Code: Red
Part Number: DS-127-044-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 44.450 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.9 mm Load at Optimal: 132.6 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 198.2 N Spring Rate: 14.9 N/mm Colour Code: Red
Part Number: DS-127-044-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-044-MHD (Each) --- Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel Sale DS-127-044-MHD (Each) --- Die Springs - 12.7x7.144x44.45 mm Imperial - Carbon Spring Steel Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x44.45 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 44.450 mm	Optimum Deflection 20 Percent	Optimum Deflection 8.9 mm	Load at Optimal 132.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 198.2 N Spring Rate: 14.9 N/mm Colour Code: Red
Part Number: DS-127-044-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x44.45 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 44.450 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 8.9 mm Load at Optimal: 132.6 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 198.2 N Spring Rate: 14.9 N/mm Colour Code: Red
Part Number: DS-127-044-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-044-MHDS (Each) --- Die Springs - 12.7x7.144x44.45 mm Imperial - Chrome Silicon Spring Sale DS-127-044-MHDS (Each) --- Die Springs - 12.7x7.144x44.45 mm Imperial - Chrome Silicon Spring Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 50.800 mm	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 133.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 199.1 N Spring Rate: 13.1 N/mm Colour Code: Red
Part Number: DS-127-051-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 50.800 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 133.6 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 199.1 N Spring Rate: 13.1 N/mm Colour Code: Red
Part Number: DS-127-051-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-051-MHDS (Each) --- Die Springs - 12.7x7.144x50.8 mm Imperial - Chrome Silicon Spring Sale DS-127-051-MHDS (Each) --- Die Springs - 12.7x7.144x50.8 mm Imperial - Chrome Silicon Spring Regular price $17.59 AUD Regular price ~~$21.11 AUD~~ Sale price $17.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 12.7x7.144x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 63.500 mm	Optimum Deflection 20 Percent	Optimum Deflection 12.7 mm	Load at Optimal 133.4 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 200.6 N Spring Rate: 10.5 N/mm Colour Code: Red
Part Number: DS-127-064-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 12.7x7.144x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 12.70 mm	Rod Diameter (A) 7.144 mm	Length (L) 63.500 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 133.4 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 200.6 N Spring Rate: 10.5 N/mm Colour Code: Red
Part Number: DS-127-064-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-127-064-MHDS (Each) --- Die Springs - 12.7x7.144x63.5 mm Imperial - Chrome Silicon Spring Sale DS-127-064-MHDS (Each) --- Die Springs - 12.7x7.144x63.5 mm Imperial - Chrome Silicon Spring Regular price $18.50 AUD Regular price ~~$22.20 AUD~~ Sale price $18.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 267.8 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 399.0 N Spring Rate: 52.5 N/mm Colour Code: Red
Part Number: DS-159-025-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 5.1 mm Load at Optimal: 267.8 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 399.0 N Spring Rate: 52.5 N/mm Colour Code: Red
Part Number: DS-159-025-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-025-MHD (Each) --- Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel Sale DS-159-025-MHD (Each) --- Die Springs - 15.88x8.731x25.4 mm Imperial - Carbon Spring Steel Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 268.3 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 399.8 N Spring Rate: 52.6 N/mm Colour Code: Red
Part Number: DS-159-025-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 25.400 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 5.1 mm Load at Optimal: 268.3 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 399.8 N Spring Rate: 52.6 N/mm Colour Code: Red
Part Number: DS-159-025-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-025-MHDS (Each) --- Die Springs - 15.88x8.731x25.4 mm Imperial - Chrome Silicon Spring Sale DS-159-025-MHDS (Each) --- Die Springs - 15.88x8.731x25.4 mm Imperial - Chrome Silicon Spring Regular price $16.32 AUD Regular price ~~$19.58 AUD~~ Sale price $16.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 241.3 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 358.2 N Spring Rate: 37.7 N/mm Colour Code: Red
Part Number: DS-159-032-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 31.750 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 241.3 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 358.2 N Spring Rate: 37.7 N/mm Colour Code: Red
Part Number: DS-159-032-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-032-MHD (Each) --- Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel Sale DS-159-032-MHD (Each) --- Die Springs - 15.88x8.731x31.75 mm Imperial - Carbon Spring Steel Regular price $12.23 AUD Regular price ~~$14.67 AUD~~ Sale price $12.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 253.1 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 379.6 N Spring Rate: 33.3 N/mm Colour Code: Red
Part Number: DS-159-038-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 253.1 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 379.6 N Spring Rate: 33.3 N/mm Colour Code: Red
Part Number: DS-159-038-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-038-MHD (Each) --- Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel Sale DS-159-038-MHD (Each) --- Die Springs - 15.88x8.731x38.1 mm Imperial - Carbon Spring Steel Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 253.1 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 379.6 N Spring Rate: 33.3 N/mm Colour Code: Red
Part Number: DS-159-038-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 38.100 mm	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 253.1 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 379.6 N Spring Rate: 33.3 N/mm Colour Code: Red
Part Number: DS-159-038-MHDS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-038-MHDS (Each) --- Die Springs - 15.88x8.731x38.1 mm Imperial - Chrome Silicon Spring Sale DS-159-038-MHDS (Each) --- Die Springs - 15.88x8.731x38.1 mm Imperial - Chrome Silicon Spring Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 44.450 mm	Optimum Deflection 20 Percent	Optimum Deflection 8.9 mm	Load at Optimal 261.7 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 391.0 N Spring Rate: 29.4 N/mm Colour Code: Red
Part Number: DS-159-044-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $14.32 AUD Regular price ~~$17.18 AUD~~ Sale price $14.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel
Hole Diameter (B) 15.88 mm	Rod Diameter (A) 8.731 mm	Length (L) 44.450 mm	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 8.9 mm Load at Optimal: 261.7 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 391.0 N Spring Rate: 29.4 N/mm Colour Code: Red
Part Number: DS-159-044-MHD (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $14.32 AUD Regular price ~~$17.18 AUD~~ Sale price $14.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
DS-159-044-MHD (Each) --- Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel Sale DS-159-044-MHD (Each) --- Die Springs - 15.88x8.731x44.45 mm Imperial - Carbon Spring Steel Regular price $14.32 AUD Regular price ~~$17.18 AUD~~ Sale price $14.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Springs - Die - Imperial - Medium-Heavy Duty

Category Details

Filter

Filter

Subscribe to our emails
