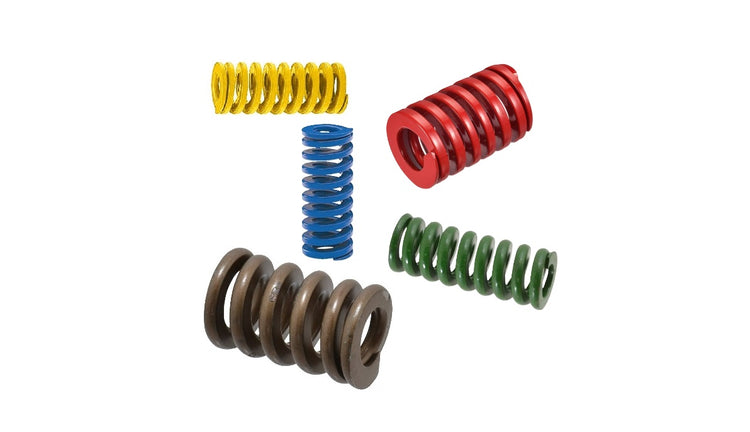

Collection: Springs - Die

Springs (With Images)

Die

388 Products in this selection

This is a combined category of Die Springs.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Springs - Die

Additional resources:
Spings Catalogue PDF

A more concise listing may be found on the Smallparts store at Springs - Die. Smallparts promote the most popular MBA products.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal	Indicative Image
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 139.8 N
Material: Spring Steel Maximum Deflection: 20 Percent Maximum Deflection: 5.1 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-EHD Die Springs - 9.53x4.763x25.4 mm - Spring Steel 2 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 15 Percent
Material: Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 139.8 N Maximum Deflection: 20 Percent Maximum Deflection: 5.1 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-EHD Die Springs - 9.53x4.763x25.4 mm - Spring Steel 2 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-EHD --- Die Springs - 9.53x4.763x25.4 mm - Spring Steel Sale DS-095-025-EHD --- Die Springs - 9.53x4.763x25.4 mm - Spring Steel Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per 2 Available Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 77.1 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-HD Die Springs - 9.53x4.763x25.4 mm - Spring Steel 2 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 15 Percent
Material: Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 77.1 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-HD Die Springs - 9.53x4.763x25.4 mm - Spring Steel 2 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-HD --- Die Springs - 9.53x4.763x25.4 mm - Spring Steel DS-095-025-HD --- Die Springs - 9.53x4.763x25.4 mm - Spring Steel Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per 2 Available Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 77.1 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-HDS Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 3.8 mm Load at Optimal: 77.1 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-HDS Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-HDS --- Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon DS-095-025-HDS --- Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 75.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-MHDS Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 5.1 mm Load at Optimal: 75.0 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-MHDS Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-MHDS --- Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon DS-095-025-MHDS --- Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 75.0 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-MHD Die Springs - 9.53x4.763x25.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 5.1 mm Load at Optimal: 75.0 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-MHD Die Springs - 9.53x4.763x25.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-MHD --- Die Springs - 9.53x4.763x25.4 mm - Spring Steel DS-095-025-MHD --- Die Springs - 9.53x4.763x25.4 mm - Spring Steel Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.4 mm	Load at Optimal 67.2 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-MDS Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 67.2 N Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-MDS Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-MDS --- Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon DS-095-025-MDS --- Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.4 mm	Load at Optimal 67.2 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-MD Die Springs - 9.53x4.763x25.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 67.2 N Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-025-MD Die Springs - 9.53x4.763x25.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-MD --- Die Springs - 9.53x4.763x25.4 mm - Spring Steel DS-095-025-MD --- Die Springs - 9.53x4.763x25.4 mm - Spring Steel Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 81.9 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-032-MHDS Die Springs - 9.53x4.763x31.75 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 81.9 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-032-MHDS Die Springs - 9.53x4.763x31.75 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Each View the product page first if you are unsure.
DS-095-032-MHDS --- Die Springs - 9.53x4.763x31.75 mm - Chrome Silicon DS-095-032-MHDS --- Die Springs - 9.53x4.763x31.75 mm - Chrome Silicon Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 81.9 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-032-MHD Die Springs - 9.53x4.763x31.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 81.9 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-032-MHD Die Springs - 9.53x4.763x31.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Each View the product page first if you are unsure.
DS-095-032-MHD --- Die Springs - 9.53x4.763x31.75 mm - Spring Steel DS-095-032-MHD --- Die Springs - 9.53x4.763x31.75 mm - Spring Steel Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 7.9 mm	Load at Optimal 69.5 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial
Part Number: DS-095-032-MD Die Springs - 9.53x4.763x31.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 7.9 mm Load at Optimal: 69.5 N Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial
Part Number: DS-095-032-MD Die Springs - 9.53x4.763x31.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each View the product page first if you are unsure.
DS-095-032-MD --- Die Springs - 9.53x4.763x31.75 mm - Spring Steel DS-095-032-MD --- Die Springs - 9.53x4.763x31.75 mm - Spring Steel Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 7.9 mm	Load at Optimal 69.5 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial
Part Number: DS-095-032-MDS Die Springs - 9.53x4.763x31.75 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 7.9 mm Load at Optimal: 69.5 N Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial
Part Number: DS-095-032-MDS Die Springs - 9.53x4.763x31.75 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Each View the product page first if you are unsure.
DS-095-032-MDS --- Die Springs - 9.53x4.763x31.75 mm - Chrome Silicon DS-095-032-MDS --- Die Springs - 9.53x4.763x31.75 mm - Chrome Silicon Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 5.7 mm	Load at Optimal 79.8 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-HD Die Springs - 9.53x4.763x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 15 Percent
Material: Spring Steel Optimum Deflection: 5.7 mm Load at Optimal: 79.8 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-HD Die Springs - 9.53x4.763x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-HD --- Die Springs - 9.53x4.763x38.1 mm - Spring Steel DS-095-038-HD --- Die Springs - 9.53x4.763x38.1 mm - Spring Steel Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 5.7 mm	Load at Optimal 79.8 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-HDS Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $17.41 AUD Regular price Sale price $17.41 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 5.7 mm Load at Optimal: 79.8 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-HDS Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $17.41 AUD Regular price Sale price $17.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-HDS --- Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon DS-095-038-HDS --- Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Regular price $17.41 AUD Regular price Sale price $17.41 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 88.9 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-MHDS Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 88.9 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-MHDS Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-MHDS --- Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon DS-095-038-MHDS --- Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 88.9 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-MHD Die Springs - 9.53x4.763x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 88.9 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-MHD Die Springs - 9.53x4.763x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-MHD --- Die Springs - 9.53x4.763x38.1 mm - Spring Steel DS-095-038-MHD --- Die Springs - 9.53x4.763x38.1 mm - Spring Steel Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 70.3 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-MD Die Springs - 9.53x4.763x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 70.3 N Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-MD Die Springs - 9.53x4.763x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-MD --- Die Springs - 9.53x4.763x38.1 mm - Spring Steel DS-095-038-MD --- Die Springs - 9.53x4.763x38.1 mm - Spring Steel Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 70.3 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-MDS Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 9.5 mm Load at Optimal: 70.3 N Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-038-MDS Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-MDS --- Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon DS-095-038-MDS --- Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 44.450 mm _{(1.75 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 11.1 mm	Load at Optimal 72.2 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 17.8 mm Category: Springs - Die - Imperial
Part Number: DS-095-044-MD Die Springs - 9.53x4.763x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 44.450 mm _{(1.75 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 11.1 mm Load at Optimal: 72.2 N Maximum Deflection: 40 Percent Maximum Deflection: 17.8 mm Category: Springs - Die - Imperial
Part Number: DS-095-044-MD Die Springs - 9.53x4.763x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Each View the product page first if you are unsure.
DS-095-044-MD --- Die Springs - 9.53x4.763x44.45 mm - Spring Steel DS-095-044-MD --- Die Springs - 9.53x4.763x44.45 mm - Spring Steel Regular price $12.05 AUD Regular price Sale price $12.05 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 7.6 mm	Load at Optimal 82.8 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-HD Die Springs - 9.53x4.763x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 15 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 82.8 N Maximum Deflection: 25 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-HD Die Springs - 9.53x4.763x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-HD --- Die Springs - 9.53x4.763x50.8 mm - Spring Steel DS-095-051-HD --- Die Springs - 9.53x4.763x50.8 mm - Spring Steel Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 89.8 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-MHD Die Springs - 9.53x4.763x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 89.8 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-MHD Die Springs - 9.53x4.763x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-MHD --- Die Springs - 9.53x4.763x50.8 mm - Spring Steel DS-095-051-MHD --- Die Springs - 9.53x4.763x50.8 mm - Spring Steel Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 89.8 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-MHDS Die Springs - 9.53x4.763x50.8 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 89.8 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-MHDS Die Springs - 9.53x4.763x50.8 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-MHDS --- Die Springs - 9.53x4.763x50.8 mm - Chrome Silicon DS-095-051-MHDS --- Die Springs - 9.53x4.763x50.8 mm - Chrome Silicon Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 12.7 mm	Load at Optimal 68.6 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-MD Die Springs - 9.53x4.763x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 12.7 mm Load at Optimal: 68.6 N Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-MD Die Springs - 9.53x4.763x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-MD --- Die Springs - 9.53x4.763x50.8 mm - Spring Steel DS-095-051-MD --- Die Springs - 9.53x4.763x50.8 mm - Spring Steel Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 12.7 mm	Load at Optimal 68.6 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Category: Springs - Die - Imperial

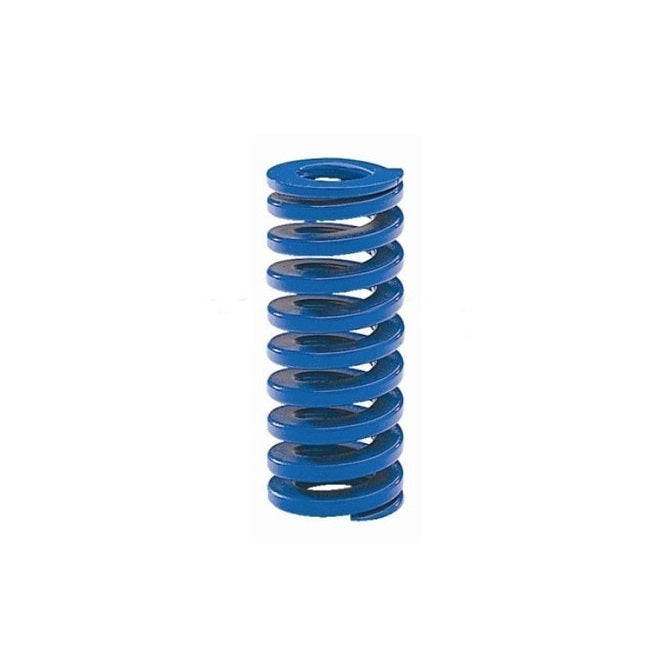

Part Number: DS-095-051-MDS Die Springs - 9.53x4.763x50.8 mm - Chrome Silicon 2 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 68.6 N Maximum Deflection: 40 Percent Maximum Deflection: 20.3 mm Category: Springs - Die - Imperial
Part Number: DS-095-051-MDS Die Springs - 9.53x4.763x50.8 mm - Chrome Silicon 2 Available Immediately \| Further orders can be expected around Wed, Jun 04, 2025 Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-MDS --- Die Springs - 9.53x4.763x50.8 mm - Chrome Silicon Sale DS-095-051-MDS --- Die Springs - 9.53x4.763x50.8 mm - Chrome Silicon Regular price $22.41 AUD Regular price ~~$26.89 AUD~~ Sale price $22.41 AUD Unit price per 2 Available Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 9.5 mm	Load at Optimal 83.6 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Category: Springs - Die - Imperial

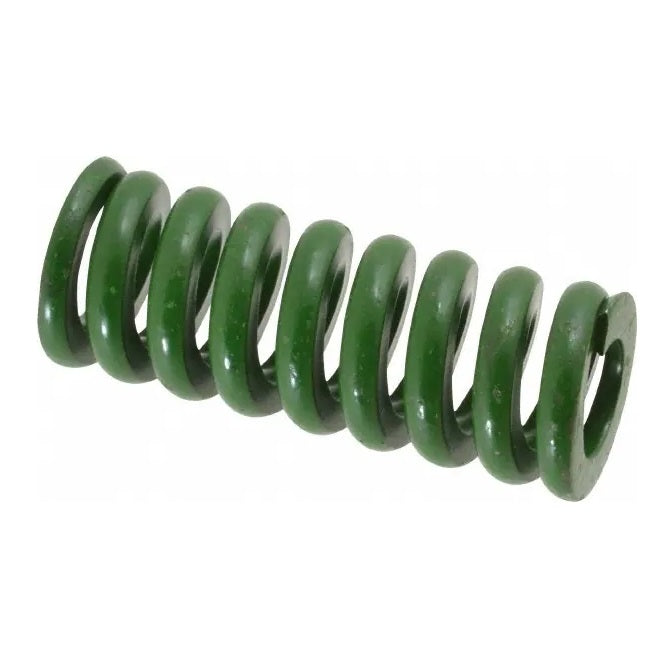

Part Number: DS-095-064-HD Die Springs - 9.53x4.763x63.5 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 15 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 83.6 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-HD Die Springs - 9.53x4.763x63.5 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Each View the product page first if you are unsure.
DS-095-064-HD --- Die Springs - 9.53x4.763x63.5 mm - Spring Steel DS-095-064-HD --- Die Springs - 9.53x4.763x63.5 mm - Spring Steel Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
