DS-250-038-EHD

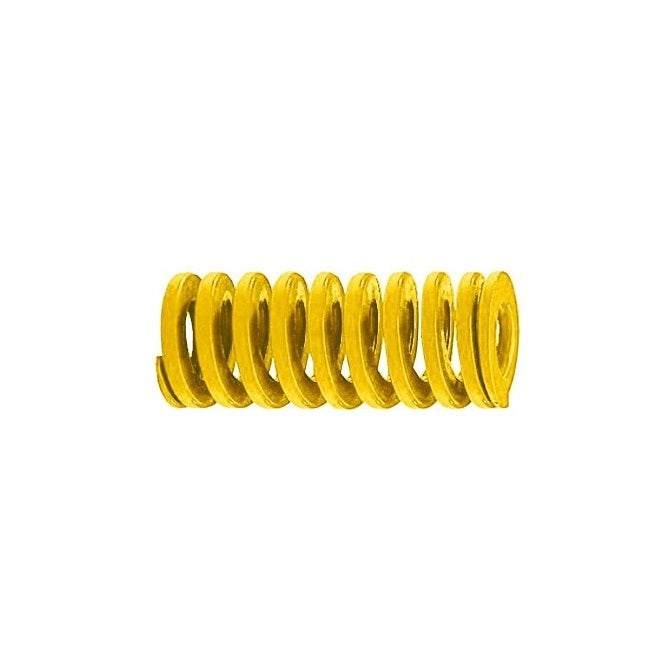

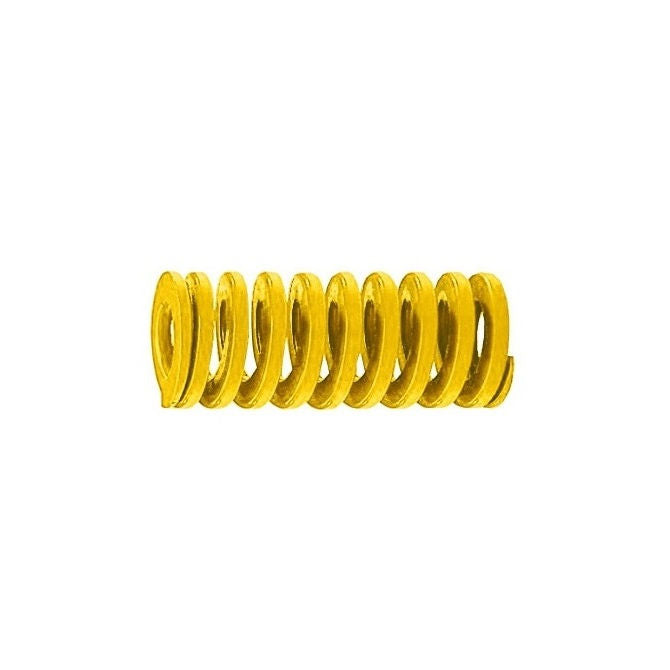

Die Springs - 25x12.5x38 mm - Spring Steel

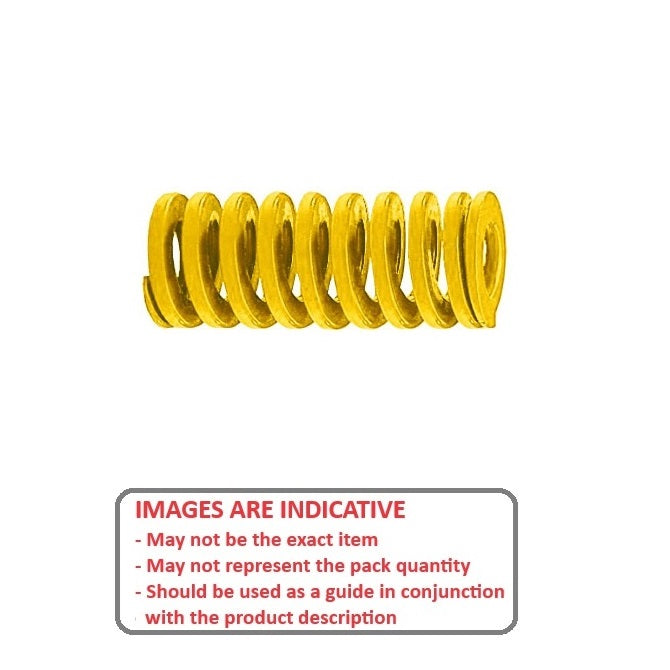

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Die Springs - 25x12.5x38 mm - Spring Steel
1 4

MBA

Additional resources:
Spings Catalogue PDF
Price:
$59.95 AUD
$71.95 AUD $59.95 AUD
Each
Out Of Stock
Order 50 or more for $53.96 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 24, 2025

Base Category: Springs - Die

Top Level Category: Springs - Die - Metric - Extra Heavy Duty

Product Details:

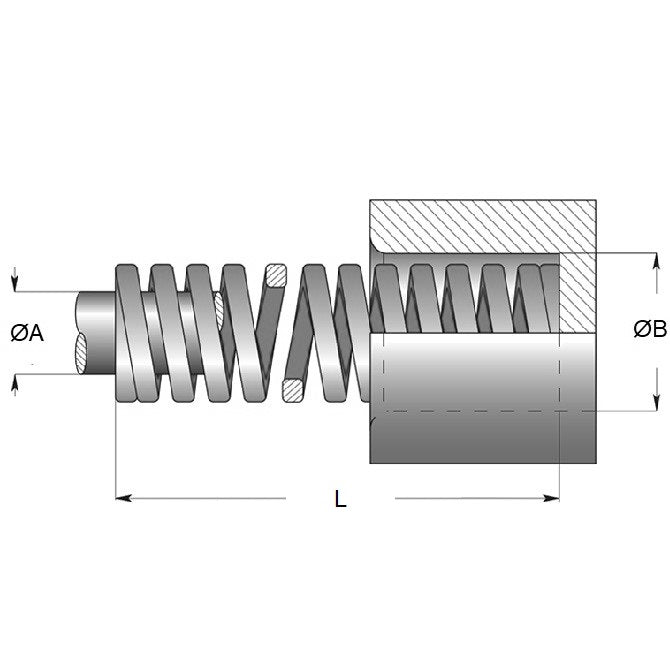

Hole Diameter (B): 25.00mm
(25.00mm is 0.984 in.)

Spring Steel
  • Rod Diameter (A): 12.50mm
    (12.50mm is 0.492 in.)
  • Length (L): 38.00mm
    (38.00mm is 1.496 in.)
  • Optimum Deflection: 25Percent
  • Optimum Deflection: 9.5mm
  • Load at Optimal: 3287.0N
  • Maximum Deflection: 37Percent
  • Maximum Deflection: 14.1mm
  • Load at Maximum: 4878.6N
  • Spring Rate: 346.0N/mm
  • Colour Code: Yellow

Brand: MBA
Country of Origin: DE

Alternative Parts Include: R206506, 1804N234, ALTPART

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
