Collection: Springs - Die - Metric - Extra Heavy Duty

Springs (With Images)

Metric

Extra Heavy Duty
Heavy Duty
Light Duty
Medium Duty

19 Products in this selection

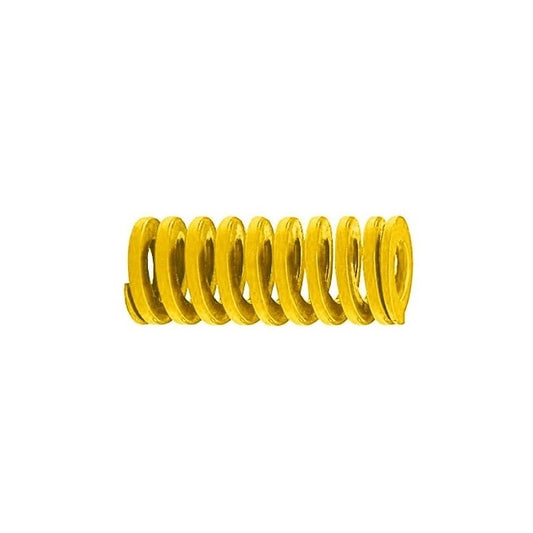

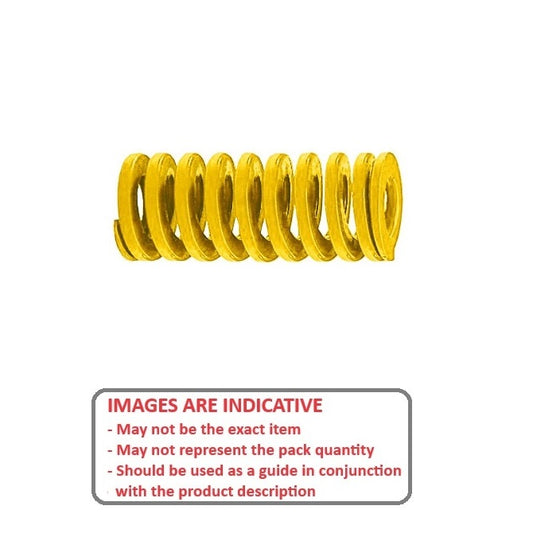

Colour coded yellow
High tensile strength chromium alloy steels.
Heat Resistance: Up to +230^oC (Loss of load occurs above +120^oC).
Spring Ends: Squared and ground.
For compressed length, Subtract Deflection from Free Length.

Additional resources:
Spings Catalogue PDF

A more concise listing may be found on the Smallparts store at Springs - Die - Metric - Extra Heavy Duty. Smallparts promote the most popular MBA products.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 231.8 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 342.2 N Spring Rate: 36.8 N/mm Colour Code: Yellow
Part Number: DS-100-025-EHD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 231.8 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 342.2 N Spring Rate: 36.8 N/mm Colour Code: Yellow
Part Number: DS-100-025-EHD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each View the product page first if you are unsure.
DS-100-025-EHD --- Die Springs - 10x5x25 mm - Spring Steel Sale DS-100-025-EHD --- Die Springs - 10x5x25 mm - Spring Steel Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 223.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 329.2 N Spring Rate: 27.9 N/mm Colour Code: Yellow
Part Number: DS-100-032-EHD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 223.2 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 329.2 N Spring Rate: 27.9 N/mm Colour Code: Yellow
Part Number: DS-100-032-EHD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each View the product page first if you are unsure.
DS-100-032-EHD --- Die Springs - 10x5x32 mm - Spring Steel Sale DS-100-032-EHD --- Die Springs - 10x5x32 mm - Spring Steel Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 225.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 334.2 N Spring Rate: 23.7 N/mm Colour Code: Yellow
Part Number: DS-100-038-EHD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 225.2 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 334.2 N Spring Rate: 23.7 N/mm Colour Code: Yellow
Part Number: DS-100-038-EHD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Each View the product page first if you are unsure.
DS-100-038-EHD --- Die Springs - 10x5x38 mm - Spring Steel DS-100-038-EHD --- Die Springs - 10x5x38 mm - Spring Steel Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per 4 Available Now
Hole Diameter (B) 12.50 mm _{(0.492 in.)}	Rod Diameter (A) 6.30 mm _{(0.248 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 368.6 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 544.1 N Spring Rate: 58.5 N/mm Colour Code: Yellow
Part Number: DS-125-025-EHD Die Springs - 12.5x6.3x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $22.95 AUD Regular price ~~$27.55 AUD~~ Sale price $22.95 AUD Unit price per Each
Hole Diameter (B) 12.50 mm _{(0.492 in.)}	Rod Diameter (A) 6.30 mm _{(0.248 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 368.6 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 544.1 N Spring Rate: 58.5 N/mm Colour Code: Yellow
Part Number: DS-125-025-EHD Die Springs - 12.5x6.3x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $22.95 AUD Regular price ~~$27.55 AUD~~ Sale price $22.95 AUD Unit price per Each View the product page first if you are unsure.
DS-125-025-EHD --- Die Springs - 12.5x6.3x25 mm - Spring Steel Sale DS-125-025-EHD --- Die Springs - 12.5x6.3x25 mm - Spring Steel Regular price $22.95 AUD Regular price ~~$27.55 AUD~~ Sale price $22.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm _{(0.492 in.)}	Rod Diameter (A) 6.30 mm _{(0.248 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 351.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 518.0 N Spring Rate: 43.9 N/mm Colour Code: Yellow
Part Number: DS-125-032-EHD Die Springs - 12.5x6.3x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each
Hole Diameter (B) 12.50 mm _{(0.492 in.)}	Rod Diameter (A) 6.30 mm _{(0.248 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 351.2 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 518.0 N Spring Rate: 43.9 N/mm Colour Code: Yellow
Part Number: DS-125-032-EHD Die Springs - 12.5x6.3x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each View the product page first if you are unsure.
DS-125-032-EHD --- Die Springs - 12.5x6.3x32 mm - Spring Steel Sale DS-125-032-EHD --- Die Springs - 12.5x6.3x32 mm - Spring Steel Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.50 mm _{(0.492 in.)}	Rod Diameter (A) 6.30 mm _{(0.248 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 342.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 507.6 N Spring Rate: 36.0 N/mm Colour Code: Yellow
Part Number: DS-125-038-EHD Die Springs - 12.5x6.3x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $22.68 AUD Regular price ~~$27.22 AUD~~ Sale price $22.68 AUD Unit price per Each
Hole Diameter (B) 12.50 mm _{(0.492 in.)}	Rod Diameter (A) 6.30 mm _{(0.248 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 342.0 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 507.6 N Spring Rate: 36.0 N/mm Colour Code: Yellow
Part Number: DS-125-038-EHD Die Springs - 12.5x6.3x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $22.68 AUD Regular price ~~$27.22 AUD~~ Sale price $22.68 AUD Unit price per Each View the product page first if you are unsure.
DS-125-038-EHD --- Die Springs - 12.5x6.3x38 mm - Spring Steel Sale DS-125-038-EHD --- Die Springs - 12.5x6.3x38 mm - Spring Steel Regular price $22.68 AUD Regular price ~~$27.22 AUD~~ Sale price $22.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 16.00 mm _{(0.63 in.)}	Rod Diameter (A) 8.00 mm _{(0.315 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 743.4 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 1097.4 N Spring Rate: 118.0 N/mm Colour Code: Yellow
Part Number: DS-160-025-EHD Die Springs - 16x8x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $25.32 AUD Regular price ~~$30.38 AUD~~ Sale price $25.32 AUD Unit price per Each
Hole Diameter (B) 16.00 mm _{(0.63 in.)}	Rod Diameter (A) 8.00 mm _{(0.315 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 743.4 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 1097.4 N Spring Rate: 118.0 N/mm Colour Code: Yellow
Part Number: DS-160-025-EHD Die Springs - 16x8x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $25.32 AUD Regular price ~~$30.38 AUD~~ Sale price $25.32 AUD Unit price per Each View the product page first if you are unsure.
DS-160-025-EHD --- Die Springs - 16x8x25 mm - Spring Steel Sale DS-160-025-EHD --- Die Springs - 16x8x25 mm - Spring Steel Regular price $25.32 AUD Regular price ~~$30.38 AUD~~ Sale price $25.32 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 16.00 mm _{(0.63 in.)}	Rod Diameter (A) 8.00 mm _{(0.315 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 685.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 1016.6 N Spring Rate: 72.1 N/mm Colour Code: Yellow
Part Number: DS-160-038-EHD Die Springs - 16x8x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each
Hole Diameter (B) 16.00 mm _{(0.63 in.)}	Rod Diameter (A) 8.00 mm _{(0.315 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 685.0 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 1016.6 N Spring Rate: 72.1 N/mm Colour Code: Yellow
Part Number: DS-160-038-EHD Die Springs - 16x8x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Each View the product page first if you are unsure.
DS-160-038-EHD --- Die Springs - 16x8x38 mm - Spring Steel Sale DS-160-038-EHD --- Die Springs - 16x8x38 mm - Spring Steel Regular price $27.59 AUD Regular price ~~$33.11 AUD~~ Sale price $27.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 16.00 mm _{(0.63 in.)}	Rod Diameter (A) 8.00 mm _{(0.315 in.)}	Length (L) 51.00 mm _{(2.008 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 669.4 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 988.5 N Spring Rate: 52.3 N/mm Colour Code: Yellow
Part Number: DS-160-051-EHD Die Springs - 16x8x51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $38.59 AUD Regular price ~~$46.31 AUD~~ Sale price $38.59 AUD Unit price per Each
Hole Diameter (B) 16.00 mm _{(0.63 in.)}	Rod Diameter (A) 8.00 mm _{(0.315 in.)}	Length (L) 51.00 mm _{(2.008 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 669.4 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 988.5 N Spring Rate: 52.3 N/mm Colour Code: Yellow
Part Number: DS-160-051-EHD Die Springs - 16x8x51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $38.59 AUD Regular price ~~$46.31 AUD~~ Sale price $38.59 AUD Unit price per Each View the product page first if you are unsure.
DS-160-051-EHD --- Die Springs - 16x8x51 mm - Spring Steel Sale DS-160-051-EHD --- Die Springs - 16x8x51 mm - Spring Steel Regular price $38.59 AUD Regular price ~~$46.31 AUD~~ Sale price $38.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 20.00 mm _{(0.787 in.)}	Rod Diameter (A) 10.00 mm _{(0.394 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 1845.9 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 2724.9 N Spring Rate: 293.0 N/mm Colour Code: Yellow
Part Number: DS-200-025-EHD Die Springs - 20x10x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $38.59 AUD Regular price ~~$46.31 AUD~~ Sale price $38.59 AUD Unit price per Each
Hole Diameter (B) 20.00 mm _{(0.787 in.)}	Rod Diameter (A) 10.00 mm _{(0.394 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 1845.9 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 2724.9 N Spring Rate: 293.0 N/mm Colour Code: Yellow
Part Number: DS-200-025-EHD Die Springs - 20x10x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $38.59 AUD Regular price ~~$46.31 AUD~~ Sale price $38.59 AUD Unit price per Each View the product page first if you are unsure.
DS-200-025-EHD --- Die Springs - 20x10x25 mm - Spring Steel Sale DS-200-025-EHD --- Die Springs - 20x10x25 mm - Spring Steel Regular price $38.59 AUD Regular price ~~$46.31 AUD~~ Sale price $38.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 20.00 mm _{(0.787 in.)}	Rod Diameter (A) 10.00 mm _{(0.394 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 1681.5 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 2495.7 N Spring Rate: 177.0 N/mm Colour Code: Yellow
Part Number: DS-200-038-EHD Die Springs - 20x10x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $37.95 AUD Regular price ~~$45.55 AUD~~ Sale price $37.95 AUD Unit price per Each
Hole Diameter (B) 20.00 mm _{(0.787 in.)}	Rod Diameter (A) 10.00 mm _{(0.394 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 1681.5 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 2495.7 N Spring Rate: 177.0 N/mm Colour Code: Yellow
Part Number: DS-200-038-EHD Die Springs - 20x10x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $37.95 AUD Regular price ~~$45.55 AUD~~ Sale price $37.95 AUD Unit price per Each View the product page first if you are unsure.
DS-200-038-EHD --- Die Springs - 20x10x38 mm - Spring Steel Sale DS-200-038-EHD --- Die Springs - 20x10x38 mm - Spring Steel Regular price $37.95 AUD Regular price ~~$45.55 AUD~~ Sale price $37.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 20.00 mm _{(0.787 in.)}	Rod Diameter (A) 10.00 mm _{(0.394 in.)}	Length (L) 51.00 mm _{(2.008 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 1638.4 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 2419.2 N Spring Rate: 128.0 N/mm Colour Code: Yellow
Part Number: DS-200-051-EHD Die Springs - 20x10x51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $46.23 AUD Regular price ~~$55.47 AUD~~ Sale price $46.23 AUD Unit price per Each
Hole Diameter (B) 20.00 mm _{(0.787 in.)}	Rod Diameter (A) 10.00 mm _{(0.394 in.)}	Length (L) 51.00 mm _{(2.008 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 1638.4 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 2419.2 N Spring Rate: 128.0 N/mm Colour Code: Yellow
Part Number: DS-200-051-EHD Die Springs - 20x10x51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $46.23 AUD Regular price ~~$55.47 AUD~~ Sale price $46.23 AUD Unit price per Each View the product page first if you are unsure.
DS-200-051-EHD --- Die Springs - 20x10x51 mm - Spring Steel Sale DS-200-051-EHD --- Die Springs - 20x10x51 mm - Spring Steel Regular price $46.23 AUD Regular price ~~$55.47 AUD~~ Sale price $46.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 20.00 mm _{(0.787 in.)}	Rod Diameter (A) 10.00 mm _{(0.394 in.)}	Length (L) 76.00 mm _{(2.992 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 1552.3 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 2295.8 N Spring Rate: 81.7 N/mm Colour Code: Yellow
Part Number: DS-200-076-EHD Die Springs - 20x10x76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $54.50 AUD Regular price ~~$65.40 AUD~~ Sale price $54.50 AUD Unit price per Each
Hole Diameter (B) 20.00 mm _{(0.787 in.)}	Rod Diameter (A) 10.00 mm _{(0.394 in.)}	Length (L) 76.00 mm _{(2.992 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 1552.3 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 2295.8 N Spring Rate: 81.7 N/mm Colour Code: Yellow
Part Number: DS-200-076-EHD Die Springs - 20x10x76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $54.50 AUD Regular price ~~$65.40 AUD~~ Sale price $54.50 AUD Unit price per Each View the product page first if you are unsure.
DS-200-076-EHD --- Die Springs - 20x10x76 mm - Spring Steel Sale DS-200-076-EHD --- Die Springs - 20x10x76 mm - Spring Steel Regular price $54.50 AUD Regular price ~~$65.40 AUD~~ Sale price $54.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.00 mm _{(0.984 in.)}	Rod Diameter (A) 12.50 mm _{(0.492 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 3287.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 4878.6 N Spring Rate: 346.0 N/mm Colour Code: Yellow
Part Number: DS-250-038-EHD Die Springs - 25x12.5x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $59.95 AUD Regular price ~~$71.95 AUD~~ Sale price $59.95 AUD Unit price per Each
Hole Diameter (B) 25.00 mm _{(0.984 in.)}	Rod Diameter (A) 12.50 mm _{(0.492 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 3287.0 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 4878.6 N Spring Rate: 346.0 N/mm Colour Code: Yellow
Part Number: DS-250-038-EHD Die Springs - 25x12.5x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $59.95 AUD Regular price ~~$71.95 AUD~~ Sale price $59.95 AUD Unit price per Each View the product page first if you are unsure.
DS-250-038-EHD --- Die Springs - 25x12.5x38 mm - Spring Steel Sale DS-250-038-EHD --- Die Springs - 25x12.5x38 mm - Spring Steel Regular price $59.95 AUD Regular price ~~$71.95 AUD~~ Sale price $59.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.00 mm _{(0.984 in.)}	Rod Diameter (A) 12.50 mm _{(0.492 in.)}	Length (L) 51.00 mm _{(2.008 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 2656.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 3921.8 N Spring Rate: 207.5 N/mm Colour Code: Yellow
Part Number: DS-250-051-EHD Die Springs - 25x12.5x51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $65.23 AUD Regular price ~~$78.27 AUD~~ Sale price $65.23 AUD Unit price per Each
Hole Diameter (B) 25.00 mm _{(0.984 in.)}	Rod Diameter (A) 12.50 mm _{(0.492 in.)}	Length (L) 51.00 mm _{(2.008 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 2656.0 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 3921.8 N Spring Rate: 207.5 N/mm Colour Code: Yellow
Part Number: DS-250-051-EHD Die Springs - 25x12.5x51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $65.23 AUD Regular price ~~$78.27 AUD~~ Sale price $65.23 AUD Unit price per Each View the product page first if you are unsure.
DS-250-051-EHD --- Die Springs - 25x12.5x51 mm - Spring Steel Sale DS-250-051-EHD --- Die Springs - 25x12.5x51 mm - Spring Steel Regular price $65.23 AUD Regular price ~~$78.27 AUD~~ Sale price $65.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.00 mm _{(0.984 in.)}	Rod Diameter (A) 12.50 mm _{(0.492 in.)}	Length (L) 76.00 mm _{(2.992 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 2485.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 3675.5 N Spring Rate: 130.8 N/mm Colour Code: Yellow
Part Number: DS-250-076-EHD Die Springs - 25x12.5x76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $99.14 AUD Regular price ~~$118.96 AUD~~ Sale price $99.14 AUD Unit price per Each
Hole Diameter (B) 25.00 mm _{(0.984 in.)}	Rod Diameter (A) 12.50 mm _{(0.492 in.)}	Length (L) 76.00 mm _{(2.992 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 2485.2 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 3675.5 N Spring Rate: 130.8 N/mm Colour Code: Yellow
Part Number: DS-250-076-EHD Die Springs - 25x12.5x76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $99.14 AUD Regular price ~~$118.96 AUD~~ Sale price $99.14 AUD Unit price per Each View the product page first if you are unsure.
DS-250-076-EHD --- Die Springs - 25x12.5x76 mm - Spring Steel Sale DS-250-076-EHD --- Die Springs - 25x12.5x76 mm - Spring Steel Regular price $99.14 AUD Regular price ~~$118.96 AUD~~ Sale price $99.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 32.00 mm _{(1.26 in.)}	Rod Diameter (A) 16.00 mm _{(0.63 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 5017.9 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 7447.6 N Spring Rate: 528.2 N/mm Colour Code: Yellow
Part Number: DS-320-038-EHD Die Springs - 32x16x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $64.86 AUD Regular price ~~$77.84 AUD~~ Sale price $64.86 AUD Unit price per Each
Hole Diameter (B) 32.00 mm _{(1.26 in.)}	Rod Diameter (A) 16.00 mm _{(0.63 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 5017.9 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 7447.6 N Spring Rate: 528.2 N/mm Colour Code: Yellow
Part Number: DS-320-038-EHD Die Springs - 32x16x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $64.86 AUD Regular price ~~$77.84 AUD~~ Sale price $64.86 AUD Unit price per Each View the product page first if you are unsure.
DS-320-038-EHD --- Die Springs - 32x16x38 mm - Spring Steel Sale DS-320-038-EHD --- Die Springs - 32x16x38 mm - Spring Steel Regular price $64.86 AUD Regular price ~~$77.84 AUD~~ Sale price $64.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 32.00 mm _{(1.26 in.)}	Rod Diameter (A) 16.00 mm _{(0.63 in.)}	Length (L) 76.00 mm _{(2.992 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 4151.5 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 6139.9 N Spring Rate: 218.5 N/mm Colour Code: Yellow
Part Number: DS-320-076-EHD Die Springs - 32x16x76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $130.32 AUD Regular price ~~$156.38 AUD~~ Sale price $130.32 AUD Unit price per Each
Hole Diameter (B) 32.00 mm _{(1.26 in.)}	Rod Diameter (A) 16.00 mm _{(0.63 in.)}	Length (L) 76.00 mm _{(2.992 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 4151.5 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 6139.9 N Spring Rate: 218.5 N/mm Colour Code: Yellow
Part Number: DS-320-076-EHD Die Springs - 32x16x76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $130.32 AUD Regular price ~~$156.38 AUD~~ Sale price $130.32 AUD Unit price per Each View the product page first if you are unsure.
DS-320-076-EHD --- Die Springs - 32x16x76 mm - Spring Steel Sale DS-320-076-EHD --- Die Springs - 32x16x76 mm - Spring Steel Regular price $130.32 AUD Regular price ~~$156.38 AUD~~ Sale price $130.32 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm _{(1.575 in.)}	Rod Diameter (A) 20.00 mm _{(0.787 in.)}	Length (L) 64.00 mm _{(2.52 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 16.0 mm	Load at Optimal 7792.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Load at Maximum: 11541.9 N Spring Rate: 487.0 N/mm Colour Code: Yellow
Part Number: DS-400-064-EHD Die Springs - 40x20x64 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $185.77 AUD Regular price ~~$222.93 AUD~~ Sale price $185.77 AUD Unit price per Each
Hole Diameter (B) 40.00 mm _{(1.575 in.)}	Rod Diameter (A) 20.00 mm _{(0.787 in.)}	Length (L) 64.00 mm _{(2.52 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 7792.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Load at Maximum: 11541.9 N Spring Rate: 487.0 N/mm Colour Code: Yellow
Part Number: DS-400-064-EHD Die Springs - 40x20x64 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $185.77 AUD Regular price ~~$222.93 AUD~~ Sale price $185.77 AUD Unit price per Each View the product page first if you are unsure.
DS-400-064-EHD --- Die Springs - 40x20x64 mm - Spring Steel Sale DS-400-064-EHD --- Die Springs - 40x20x64 mm - Spring Steel Regular price $185.77 AUD Regular price ~~$222.93 AUD~~ Sale price $185.77 AUD Unit price per Out of stock! Backorder Now Sale
