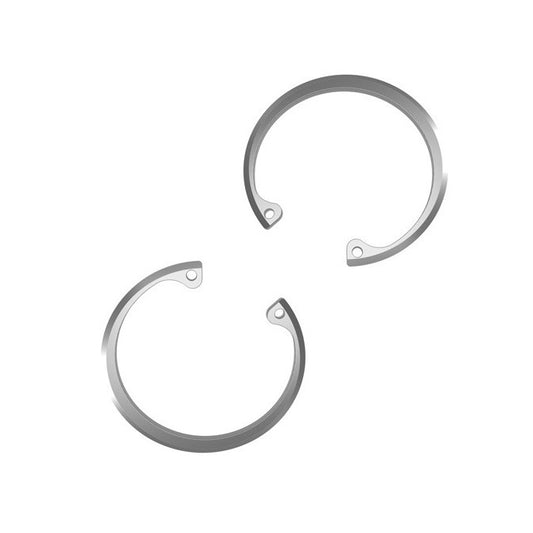

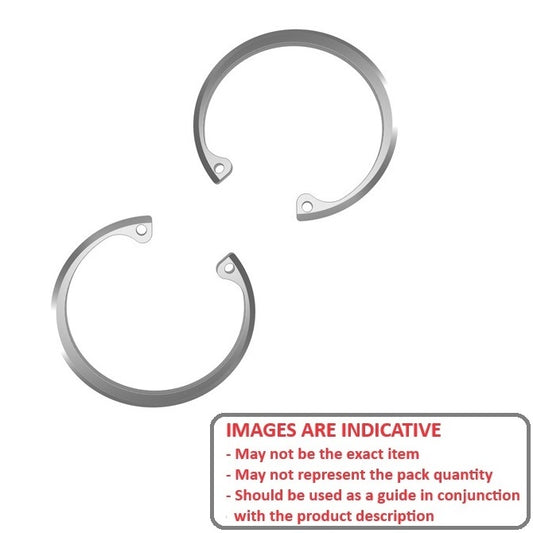

Collection: Retaining Rings - Internal - Circlips - Bevelled

Retaining Rings (With Images)

Internal

Circlips

89 Products in this selection

N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).
A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
Used in greasy or oily environments.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Bevelled. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Housing Bore (B) 84.99 mm _{(3.346 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 91.21 mm +/- 0.08 _{(3.591 in.)}	Approx. Loose Circlip OD (Dr) 93.45 mm + 2.80 / - 0.00	Radial Wall (S) min/max 3.56 - 7.01	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120
Part Number: CIB-08499-C (50 Pcs) Internal Retaining Rings - 84.99x2.69x91.21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 01, 2025 Regular price $1,055.23 AUD Regular price Sale price $1,055.23 AUD Unit price per Per 50
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 84.99 mm _{(3.346 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 91.21 mm +/- 0.08 _{(3.591 in.)}	Approx. Loose Circlip OD (Dr) 93.45 mm + 2.80 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 3.56 - 7.01 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-08499-C (50 Pcs) Internal Retaining Rings - 84.99x2.69x91.21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 01, 2025 Regular price $1,055.23 AUD Regular price Sale price $1,055.23 AUD Unit price per Per 50 View the product page first if you are unsure.
CIB-08499-C (50 Pcs) --- Internal Retaining Rings - 84.99x2.69x91.21 mm - Carbon Steel CIB-08499-C (50 Pcs) --- Internal Retaining Rings - 84.99x2.69x91.21 mm - Carbon Steel Regular price $1,055.23 AUD Regular price Sale price $1,055.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 88.11 mm _{(3.469 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 94.64 mm +/- 0.08 _{(3.726 in.)}	Approx. Loose Circlip OD (Dr) 96.57 mm + 2.80 / - 0.00	Radial Wall (S) min/max 3.66 - 7.26	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Spring Steel Tool: PRR-I120
Part Number: CIB-08811-C (13 Pcs) Internal Retaining Rings - 88.11x2.69x94.64 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $299.68 AUD Regular price Sale price $299.68 AUD Unit price per Per 13
Housing Bore (B) 88.11 mm _{(3.469 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 94.64 mm +/- 0.08 _{(3.726 in.)}	Approx. Loose Circlip OD (Dr) 96.57 mm + 2.80 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 3.66 - 7.26 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-08811-C (13 Pcs) Internal Retaining Rings - 88.11x2.69x94.64 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $299.68 AUD Regular price Sale price $299.68 AUD Unit price per Per 13 View the product page first if you are unsure.
CIB-08811-C (13 Pcs) --- Internal Retaining Rings - 88.11x2.69x94.64 mm - Spring Steel CIB-08811-C (13 Pcs) --- Internal Retaining Rings - 88.11x2.69x94.64 mm - Spring Steel Regular price $299.68 AUD Regular price Sale price $299.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 95.50 mm +/- 0.08 _{(3.76 in.)}	Approx. Loose Circlip OD (Dr) 97.41 mm + 2.80 / - 0.00	Radial Wall (S) min/max 3.61 - 7.34	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120
Part Number: CIB-08890-C Internal Retaining Rings - 88.9x2.69x95.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each
Housing Bore (B) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 95.50 mm +/- 0.08 _{(3.76 in.)}	Approx. Loose Circlip OD (Dr) 97.41 mm + 2.80 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 3.61 - 7.34 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-08890-C Internal Retaining Rings - 88.9x2.69x95.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each View the product page first if you are unsure.
CIB-08890-C --- Internal Retaining Rings - 88.9x2.69x95.5 mm - Carbon Steel CIB-08890-C --- Internal Retaining Rings - 88.9x2.69x95.5 mm - Carbon Steel Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 89.99 mm _{(3.543 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 96.67 mm +/- 0.08 _{(3.806 in.)}	Approx. Loose Circlip OD (Dr) 98.58 mm + 2.80 / - 0.00	Radial Wall (S) min/max 3.61 - 7.42	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120
Part Number: CIB-08999-C (2 Pcs) Internal Retaining Rings - 89.99x2.69x96.67 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.86 AUD Regular price Sale price $29.86 AUD Unit price per Per 2
Housing Bore (B) 89.99 mm _{(3.543 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 96.67 mm +/- 0.08 _{(3.806 in.)}	Approx. Loose Circlip OD (Dr) 98.58 mm + 2.80 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 3.61 - 7.42 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-08999-C (2 Pcs) Internal Retaining Rings - 89.99x2.69x96.67 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.86 AUD Regular price Sale price $29.86 AUD Unit price per Per 2 View the product page first if you are unsure.
CIB-08999-C (2 Pcs) --- Internal Retaining Rings - 89.99x2.69x96.67 mm - Carbon Steel CIB-08999-C (2 Pcs) --- Internal Retaining Rings - 89.99x2.69x96.67 mm - Carbon Steel Regular price $29.86 AUD Regular price Sale price $29.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 90.47 mm _{(3.562 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 97.28 mm +/- 0.08 _{(3.83 in.)}	Approx. Loose Circlip OD (Dr) 98.58 mm + 2.80 / - 0.00	Radial Wall (S) min/max 3.61 - 7.42	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Spring Steel Tool: PRR-I120
Part Number: CIB-09047-C Internal Retaining Rings - 90.47x2.69x97.28 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 90.47 mm _{(3.562 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 97.28 mm +/- 0.08 _{(3.83 in.)}	Approx. Loose Circlip OD (Dr) 98.58 mm + 2.80 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 3.61 - 7.42 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-09047-C Internal Retaining Rings - 90.47x2.69x97.28 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 92.08 mm _{(3.625 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 99.06 mm +/- 0.08 _{(3.9 in.)}	Approx. Loose Circlip OD (Dr) 100.81 mm + 2.80 / - 0.00	Radial Wall (S) min/max 3.81 - 7.59	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120
Part Number: CIB-09208-C Internal Retaining Rings - 92.08x2.69x99.06 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.23 AUD Regular price Sale price $24.23 AUD Unit price per Each
Housing Bore (B) 92.08 mm _{(3.625 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 99.06 mm +/- 0.08 _{(3.9 in.)}	Approx. Loose Circlip OD (Dr) 100.81 mm + 2.80 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 3.81 - 7.59 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-09208-C Internal Retaining Rings - 92.08x2.69x99.06 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.23 AUD Regular price Sale price $24.23 AUD Unit price per Each View the product page first if you are unsure.
CIB-09208-C --- Internal Retaining Rings - 92.08x2.69x99.06 mm - Carbon Steel CIB-09208-C --- Internal Retaining Rings - 92.08x2.69x99.06 mm - Carbon Steel Regular price $24.23 AUD Regular price Sale price $24.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 95.00 mm _{(3.74 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 102.36 mm +/- 0.08 _{(4.03 in.)}	Approx. Loose Circlip OD (Dr) 103.94 mm + 2.80 / - 0.00	Radial Wall (S) min/max 3.94 - 7.85	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Spring Steel Tool: PRR-I120
Part Number: CIB-09500-C Internal Retaining Rings - 95x2.69x102.36 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 95.00 mm _{(3.74 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 102.36 mm +/- 0.08 _{(4.03 in.)}	Approx. Loose Circlip OD (Dr) 103.94 mm + 2.80 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 3.94 - 7.85 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-09500-C Internal Retaining Rings - 95x2.69x102.36 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 102.62 mm +/- 0.08 _{(4.04 in.)}	Approx. Loose Circlip OD (Dr) 103.94 mm + 3.30 / - 0.00	Radial Wall (S) min/max 3.94 - 7.85	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120
Part Number: CIB-09525-C Internal Retaining Rings - 95.25x2.69x102.62 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Each
Housing Bore (B) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 102.62 mm +/- 0.08 _{(4.04 in.)}	Approx. Loose Circlip OD (Dr) 103.94 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 3.94 - 7.85 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-09525-C Internal Retaining Rings - 95.25x2.69x102.62 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Each View the product page first if you are unsure.
CIB-09525-C --- Internal Retaining Rings - 95.25x2.69x102.62 mm - Carbon Steel CIB-09525-C --- Internal Retaining Rings - 95.25x2.69x102.62 mm - Carbon Steel Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 98.43 mm _{(3.875 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 105.94 mm +/- 0.08 _{(4.171 in.)}	Approx. Loose Circlip OD (Dr) 107.34 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.06 - 8.10	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120
Part Number: CIB-09843-C (10 Pcs) Internal Retaining Rings - 98.43x2.69x105.94 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $353.86 AUD Regular price Sale price $353.86 AUD Unit price per Per 10
Housing Bore (B) 98.43 mm _{(3.875 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 105.94 mm +/- 0.08 _{(4.171 in.)}	Approx. Loose Circlip OD (Dr) 107.34 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.06 - 8.10 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-09843-C (10 Pcs) Internal Retaining Rings - 98.43x2.69x105.94 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $353.86 AUD Regular price Sale price $353.86 AUD Unit price per Per 10 View the product page first if you are unsure.
CIB-09843-C (10 Pcs) --- Internal Retaining Rings - 98.43x2.69x105.94 mm - Carbon Steel CIB-09843-C (10 Pcs) --- Internal Retaining Rings - 98.43x2.69x105.94 mm - Carbon Steel Regular price $353.86 AUD Regular price Sale price $353.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 100.01 mm _{(3.937 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 107.59 mm +/- 0.08 _{(4.236 in.)}	Approx. Loose Circlip OD (Dr) 109.04 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.09 - 8.23	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120
Part Number: CIB-10001-C Internal Retaining Rings - 100.01x2.69x107.59 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.59 AUD Regular price Sale price $22.59 AUD Unit price per Each
Housing Bore (B) 100.01 mm _{(3.937 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 107.59 mm +/- 0.08 _{(4.236 in.)}	Approx. Loose Circlip OD (Dr) 109.04 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.09 - 8.23 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-10001-C Internal Retaining Rings - 100.01x2.69x107.59 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.59 AUD Regular price Sale price $22.59 AUD Unit price per Each View the product page first if you are unsure.
CIB-10001-C --- Internal Retaining Rings - 100.01x2.69x107.59 mm - Carbon Steel CIB-10001-C --- Internal Retaining Rings - 100.01x2.69x107.59 mm - Carbon Steel Regular price $22.59 AUD Regular price Sale price $22.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 109.27 mm +/- 0.08 _{(4.302 in.)}	Approx. Loose Circlip OD (Dr) 110.72 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.22 - 8.38	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120
Part Number: CIB-10160-C Internal Retaining Rings - 101.6x2.69x109.27 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each
Housing Bore (B) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 109.27 mm +/- 0.08 _{(4.302 in.)}	Approx. Loose Circlip OD (Dr) 110.72 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.22 - 8.38 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120
Part Number: CIB-10160-C Internal Retaining Rings - 101.6x2.69x109.27 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each View the product page first if you are unsure.
CIB-10160-C --- Internal Retaining Rings - 101.6x2.69x109.27 mm - Carbon Steel CIB-10160-C --- Internal Retaining Rings - 101.6x2.69x109.27 mm - Carbon Steel Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 104.78 mm _{(4.125 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 112.60 mm +/- 0.08 _{(4.433 in.)}	Approx. Loose Circlip OD (Dr) 114.12 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.34 - 8.38	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-10478-C (10 Pcs) Internal Retaining Rings - 104.78x2.69x112.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $270.50 AUD Regular price Sale price $270.50 AUD Unit price per Per 10
Housing Bore (B) 104.78 mm _{(4.125 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 112.60 mm +/- 0.08 _{(4.433 in.)}	Approx. Loose Circlip OD (Dr) 114.12 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.34 - 8.38 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-10478-C (10 Pcs) Internal Retaining Rings - 104.78x2.69x112.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $270.50 AUD Regular price Sale price $270.50 AUD Unit price per Per 10 View the product page first if you are unsure.
CIB-10478-C (10 Pcs) --- Internal Retaining Rings - 104.78x2.69x112.6 mm - Carbon Steel CIB-10478-C (10 Pcs) --- Internal Retaining Rings - 104.78x2.69x112.6 mm - Carbon Steel Regular price $270.50 AUD Regular price Sale price $270.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 107.95 mm _{(4.25 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 115.87 mm +/- 0.08 _{(4.562 in.)}	Approx. Loose Circlip OD (Dr) 117.50 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.57 - 8.51	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-10795-C Internal Retaining Rings - 107.95x2.69x115.87 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Each
Housing Bore (B) 107.95 mm _{(4.25 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 115.87 mm +/- 0.08 _{(4.562 in.)}	Approx. Loose Circlip OD (Dr) 117.50 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.57 - 8.51 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-10795-C Internal Retaining Rings - 107.95x2.69x115.87 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Each View the product page first if you are unsure.
CIB-10795-C --- Internal Retaining Rings - 107.95x2.69x115.87 mm - Carbon Steel CIB-10795-C --- Internal Retaining Rings - 107.95x2.69x115.87 mm - Carbon Steel Regular price $27.05 AUD Regular price Sale price $27.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 110.01 mm _{(4.331 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 118.03 mm +/- 0.08 _{(4.647 in.)}	Approx. Loose Circlip OD (Dr) 119.15 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.57 - 8.71	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-11001-C (13 Pcs) Internal Retaining Rings - 110.01x2.69x118.03 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $410.50 AUD Regular price Sale price $410.50 AUD Unit price per Per 13
Housing Bore (B) 110.01 mm _{(4.331 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 118.03 mm +/- 0.08 _{(4.647 in.)}	Approx. Loose Circlip OD (Dr) 119.15 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.57 - 8.71 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-11001-C (13 Pcs) Internal Retaining Rings - 110.01x2.69x118.03 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $410.50 AUD Regular price Sale price $410.50 AUD Unit price per Per 13 View the product page first if you are unsure.
CIB-11001-C (13 Pcs) --- Internal Retaining Rings - 110.01x2.69x118.03 mm - Carbon Steel CIB-11001-C (13 Pcs) --- Internal Retaining Rings - 110.01x2.69x118.03 mm - Carbon Steel Regular price $410.50 AUD Regular price Sale price $410.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 122.53 mm +/- 0.08 _{(4.824 in.)}	Approx. Loose Circlip OD (Dr) 123.83 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.60 - 8.92	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-11430-C (13 Pcs) Internal Retaining Rings - 114.3x2.69x122.53 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $669.41 AUD Regular price Sale price $669.41 AUD Unit price per Per 13
Housing Bore (B) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 122.53 mm +/- 0.08 _{(4.824 in.)}	Approx. Loose Circlip OD (Dr) 123.83 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.60 - 8.92 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-11430-C (13 Pcs) Internal Retaining Rings - 114.3x2.69x122.53 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $669.41 AUD Regular price Sale price $669.41 AUD Unit price per Per 13 View the product page first if you are unsure.
CIB-11430-C (13 Pcs) --- Internal Retaining Rings - 114.3x2.69x122.53 mm - Carbon Steel CIB-11430-C (13 Pcs) --- Internal Retaining Rings - 114.3x2.69x122.53 mm - Carbon Steel Regular price $669.41 AUD Regular price Sale price $669.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 117.48 mm _{(4.625 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 125.86 mm +/- 0.08 _{(4.955 in.)}	Approx. Loose Circlip OD (Dr) 127.28 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.65 - 9.14	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Spring Steel Tool: PRR-I120-X
Part Number: CIB-11748-C (13 Pcs) Internal Retaining Rings - 117.48x2.69x125.86 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $499.50 AUD Regular price Sale price $499.50 AUD Unit price per Per 13
Housing Bore (B) 117.48 mm _{(4.625 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 125.86 mm +/- 0.08 _{(4.955 in.)}	Approx. Loose Circlip OD (Dr) 127.28 mm + 3.30 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 4.65 - 9.14 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-11748-C (13 Pcs) Internal Retaining Rings - 117.48x2.69x125.86 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $499.50 AUD Regular price Sale price $499.50 AUD Unit price per Per 13 View the product page first if you are unsure.
CIB-11748-C (13 Pcs) --- Internal Retaining Rings - 117.48x2.69x125.86 mm - Spring Steel CIB-11748-C (13 Pcs) --- Internal Retaining Rings - 117.48x2.69x125.86 mm - Spring Steel Regular price $499.50 AUD Regular price Sale price $499.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 119.99 mm _{(4.724 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 128.52 mm +/- 0.08 _{(5.06 in.)}	Approx. Loose Circlip OD (Dr) 130.76 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.65 - 9.40	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Spring Steel Tool: PRR-I120-X
Part Number: CIB-11999-C Internal Retaining Rings - 119.99x2.69x128.52 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 119.99 mm _{(4.724 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 128.52 mm +/- 0.08 _{(5.06 in.)}	Approx. Loose Circlip OD (Dr) 130.76 mm + 3.30 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 4.65 - 9.40 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-11999-C Internal Retaining Rings - 119.99x2.69x128.52 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 120.65 mm _{(4.75 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 129.18 mm +/- 0.08 _{(5.086 in.)}	Approx. Loose Circlip OD (Dr) 130.76 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.65 - 9.40	Groove Width (W) 2.26 mm + 0.05 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-12065-C Internal Retaining Rings - 120.65x2.69x129.18 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Each
Housing Bore (B) 120.65 mm _{(4.75 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 129.18 mm +/- 0.08 _{(5.086 in.)}	Approx. Loose Circlip OD (Dr) 130.76 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.65 - 9.40 Groove Width (W): 2.26 mm + 0.05 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-12065-C Internal Retaining Rings - 120.65x2.69x129.18 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Each View the product page first if you are unsure.
CIB-12065-C --- Internal Retaining Rings - 120.65x2.69x129.18 mm - Carbon Steel CIB-12065-C --- Internal Retaining Rings - 120.65x2.69x129.18 mm - Carbon Steel Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 127.00 mm _{(5 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 135.79 mm +/- 0.08 _{(5.346 in.)}	Approx. Loose Circlip OD (Dr) 137.67 mm + 3.30 / - 0.00	Radial Wall (S) min/max 4.72 - 9.91	Groove Width (W) 2.26 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-12700-C (250 Pcs) Internal Retaining Rings - 127x2.69x135.79 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $5,326.05 AUD Regular price Sale price $5,326.05 AUD Unit price per Per 250
Housing Bore (B) 127.00 mm _{(5 in.)}	Clip Thickness (T) 2.69 mm + 0.15 / - 0.00 _{(0.106 in.)}	Groove Dia. (Dg) 135.79 mm +/- 0.08 _{(5.346 in.)}	Approx. Loose Circlip OD (Dr) 137.67 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 4.72 - 9.91 Groove Width (W): 2.26 mm + 0.08 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-12700-C (250 Pcs) Internal Retaining Rings - 127x2.69x135.79 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $5,326.05 AUD Regular price Sale price $5,326.05 AUD Unit price per Per 250 View the product page first if you are unsure.
CIB-12700-C (250 Pcs) --- Internal Retaining Rings - 127x2.69x135.79 mm - Carbon Steel CIB-12700-C (250 Pcs) --- Internal Retaining Rings - 127x2.69x135.79 mm - Carbon Steel Regular price $5,326.05 AUD Regular price Sale price $5,326.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 133.35 mm _{(5.25 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 142.54 mm +/- 0.08 _{(5.612 in.)}	Approx. Loose Circlip OD (Dr) 144.91 mm + 3.30 / - 0.00	Radial Wall (S) min/max 5.03 - 10.36	Groove Width (W) 2.59 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-13335-C (5 Pcs) Internal Retaining Rings - 133.35x3.07x142.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $311.14 AUD Regular price Sale price $311.14 AUD Unit price per Per 5
Housing Bore (B) 133.35 mm _{(5.25 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 142.54 mm +/- 0.08 _{(5.612 in.)}	Approx. Loose Circlip OD (Dr) 144.91 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 5.03 - 10.36 Groove Width (W): 2.59 mm + 0.08 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-13335-C (5 Pcs) Internal Retaining Rings - 133.35x3.07x142.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $311.14 AUD Regular price Sale price $311.14 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-13335-C (5 Pcs) --- Internal Retaining Rings - 133.35x3.07x142.54 mm - Carbon Steel CIB-13335-C (5 Pcs) --- Internal Retaining Rings - 133.35x3.07x142.54 mm - Carbon Steel Regular price $311.14 AUD Regular price Sale price $311.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 136.53 mm _{(5.375 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 145.77 mm +/- 0.08 _{(5.739 in.)}	Approx. Loose Circlip OD (Dr) 148.46 mm + 3.30 / - 0.00	Radial Wall (S) min/max 5.03 - 10.36	Groove Width (W) 2.59 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-13653-C (2 Pcs) Internal Retaining Rings - 136.53x3.07x145.77 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $641.59 AUD Regular price Sale price $641.59 AUD Unit price per Per 2
Housing Bore (B) 136.53 mm _{(5.375 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 145.77 mm +/- 0.08 _{(5.739 in.)}	Approx. Loose Circlip OD (Dr) 148.46 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 5.03 - 10.36 Groove Width (W): 2.59 mm + 0.08 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-13653-C (2 Pcs) Internal Retaining Rings - 136.53x3.07x145.77 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $641.59 AUD Regular price Sale price $641.59 AUD Unit price per Per 2 View the product page first if you are unsure.
CIB-13653-C (2 Pcs) --- Internal Retaining Rings - 136.53x3.07x145.77 mm - Carbon Steel CIB-13653-C (2 Pcs) --- Internal Retaining Rings - 136.53x3.07x145.77 mm - Carbon Steel Regular price $641.59 AUD Regular price Sale price $641.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 139.70 mm _{(5.5 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 148.95 mm +/- 0.08 _{(5.864 in.)}	Approx. Loose Circlip OD (Dr) 152.43 mm + 3.30 / - 0.00	Radial Wall (S) min/max 5.03 - 10.36	Groove Width (W) 2.59 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-13970-C (3 Pcs) Internal Retaining Rings - 139.7x3.07x148.95 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $217.77 AUD Regular price Sale price $217.77 AUD Unit price per Per 3
Housing Bore (B) 139.70 mm _{(5.5 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 148.95 mm +/- 0.08 _{(5.864 in.)}	Approx. Loose Circlip OD (Dr) 152.43 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 5.03 - 10.36 Groove Width (W): 2.59 mm + 0.08 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-13970-C (3 Pcs) Internal Retaining Rings - 139.7x3.07x148.95 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $217.77 AUD Regular price Sale price $217.77 AUD Unit price per Per 3 View the product page first if you are unsure.
CIB-13970-C (3 Pcs) --- Internal Retaining Rings - 139.7x3.07x148.95 mm - Carbon Steel CIB-13970-C (3 Pcs) --- Internal Retaining Rings - 139.7x3.07x148.95 mm - Carbon Steel Regular price $217.77 AUD Regular price Sale price $217.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 146.05 mm _{(5.75 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 155.45 mm +/- 0.08 _{(6.12 in.)}	Approx. Loose Circlip OD (Dr) 159.28 mm + 3.30 / - 0.00	Radial Wall (S) min/max 5.03 - 10.36	Groove Width (W) 2.59 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-14605-C Internal Retaining Rings - 146.05x3.07x155.45 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $79.14 AUD Regular price Sale price $79.14 AUD Unit price per Each
Housing Bore (B) 146.05 mm _{(5.75 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 155.45 mm +/- 0.08 _{(6.12 in.)}	Approx. Loose Circlip OD (Dr) 159.28 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 5.03 - 10.36 Groove Width (W): 2.59 mm + 0.08 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-14605-C Internal Retaining Rings - 146.05x3.07x155.45 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $79.14 AUD Regular price Sale price $79.14 AUD Unit price per Each View the product page first if you are unsure.
CIB-14605-C --- Internal Retaining Rings - 146.05x3.07x155.45 mm - Carbon Steel CIB-14605-C --- Internal Retaining Rings - 146.05x3.07x155.45 mm - Carbon Steel Regular price $79.14 AUD Regular price Sale price $79.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 152.40 mm _{(6 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 161.90 mm +/- 0.08 _{(6.374 in.)}	Approx. Loose Circlip OD (Dr) 166.50 mm + 3.30 / - 0.00	Radial Wall (S) min/max 5.03 - 11.05	Groove Width (W) 2.59 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRR-I120-X
Part Number: CIB-15240-C (3 Pcs) Internal Retaining Rings - 152.4x3.07x161.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $256.86 AUD Regular price Sale price $256.86 AUD Unit price per Per 3
Housing Bore (B) 152.40 mm _{(6 in.)}	Clip Thickness (T) 3.07 mm + 0.18 / - 0.00 _{(0.121 in.)}	Groove Dia. (Dg) 161.90 mm +/- 0.08 _{(6.374 in.)}	Approx. Loose Circlip OD (Dr) 166.50 mm + 3.30 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 5.03 - 11.05 Groove Width (W): 2.59 mm + 0.08 / - 0.00 Tool: PRR-I120-X
Part Number: CIB-15240-C (3 Pcs) Internal Retaining Rings - 152.4x3.07x161.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $256.86 AUD Regular price Sale price $256.86 AUD Unit price per Per 3 View the product page first if you are unsure.
CIB-15240-C (3 Pcs) --- Internal Retaining Rings - 152.4x3.07x161.9 mm - Carbon Steel CIB-15240-C (3 Pcs) --- Internal Retaining Rings - 152.4x3.07x161.9 mm - Carbon Steel Regular price $256.86 AUD Regular price Sale price $256.86 AUD Unit price per Out of stock! Backorder Now
