CIB-10478-C (10 Pcs)

Internal Retaining Rings - 104.78x2.69x112.6 mm - Carbon Steel

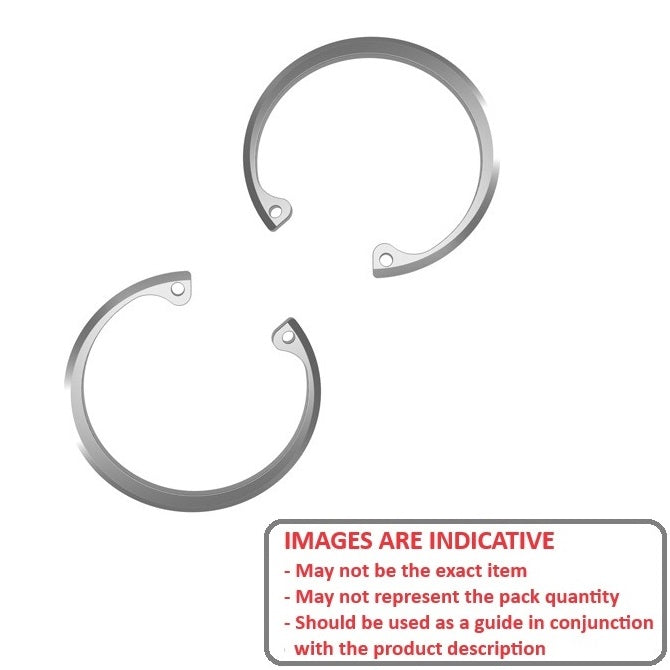

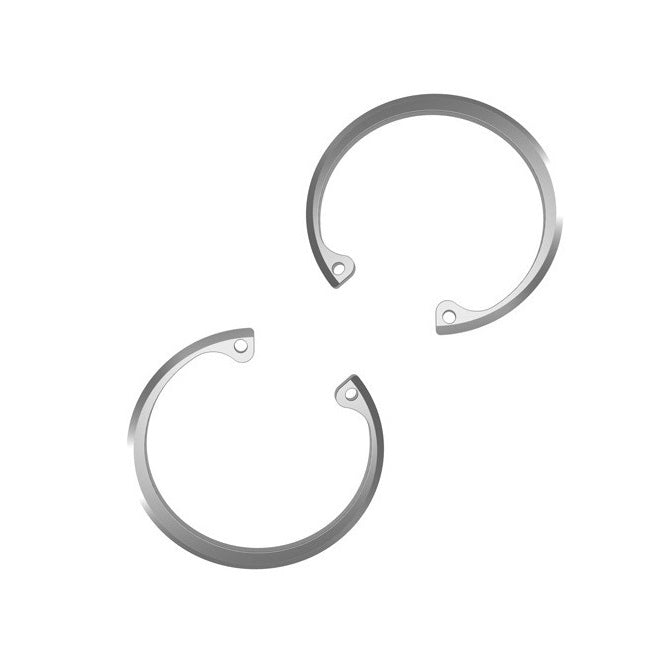

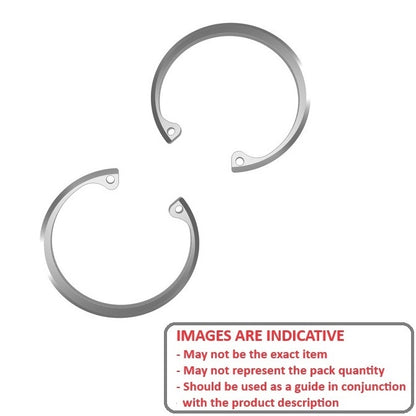

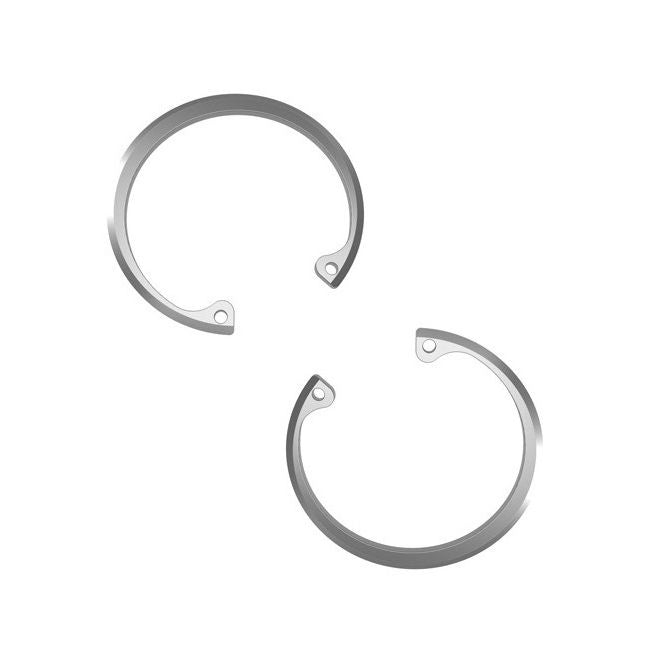

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$161.23 AUD
$269.44 AUD $161.23 AUD
per 10
Out Of Stock
Order 50 or more (500 pcs) for $145.11 AUD per 10
Pre-Order now! Backorders for more than the stock quantity are expected before Aug 13, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Bevelled

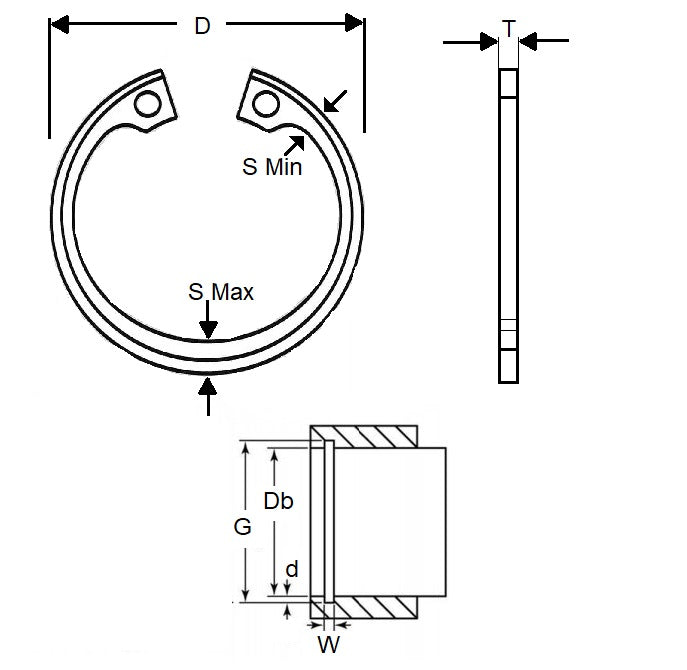

Product Details:

Housing Bore (B): 104.78mm
(104.78mm is 4.125 in.)

Carbon Steel
  • Clip Thickness (T): 2.69mm
    + 0.15 / - 0.00
    (2.69mm is 0.106 in.)
  • Groove Dia. (Dg): 112.60mm
    +/- 0.08
    (112.60mm is 4.433 in.)
  • Approx. Loose Circlip OD (Dr): 114.12mm
    + 3.30 / - 0.00
  • Radial Wall (S) min/max: 4.34 - 8.38
  • Groove Width (W): 2.26mm
    + 0.05 / - 0.00
  • Tool: PRR-I120-X

Brand: MBA
Country of Origin: US

Alternative Parts Include: N13020412, N1302-0412, VHO412, VHO-412, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
