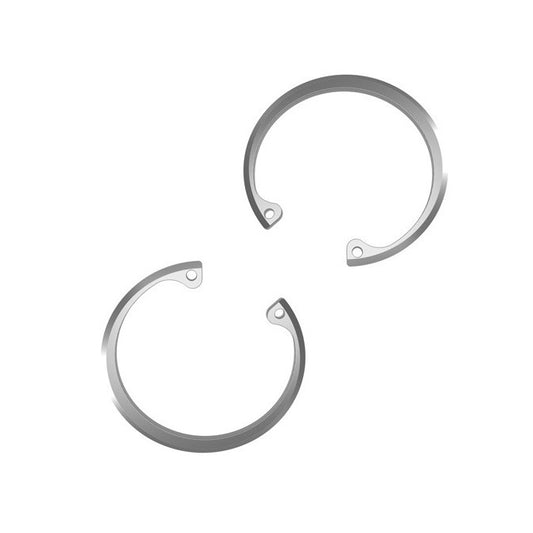

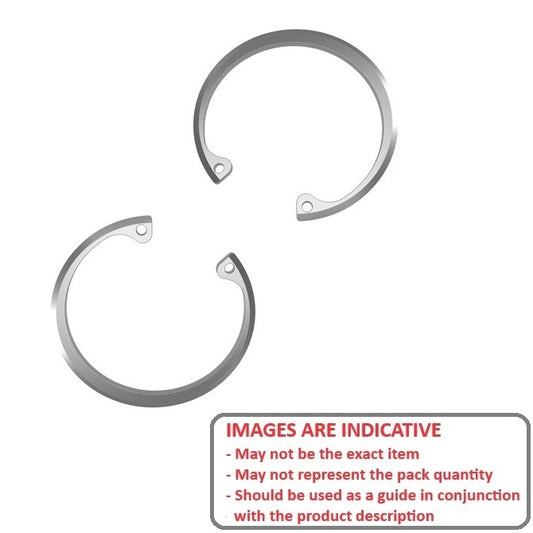

Collection: Retaining Rings - Internal - Circlips - Bevelled

Retaining Rings (With Images)

Internal

Circlips

89 Products in this selection

N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).
A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
Used in greasy or oily environments.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Bevelled. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.02 mm + 0.08 / - 0.00 _{(0.04 in.)}	Groove Dia. (Dg) 27.33 mm +/- 0.05 _{(1.076 in.)}	Approx. Loose Circlip OD (Dr) 27.97 mm + 0.63 / - 0.00	Radial Wall (S) min/max 1.32 - 2.64	Groove Width (W) 0.91 mm + 0.03 / - 0.00
Material: Spring Steel Tool: PRS-I047
Part Number: CIB-02540-C Internal Retaining Rings - 25.4x1.02x27.33 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.02 mm + 0.08 / - 0.00 _{(0.04 in.)}	Groove Dia. (Dg) 27.33 mm +/- 0.05 _{(1.076 in.)}	Approx. Loose Circlip OD (Dr) 27.97 mm + 0.63 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 1.32 - 2.64 Groove Width (W): 0.91 mm + 0.03 / - 0.00 Tool: PRS-I047
Part Number: CIB-02540-C Internal Retaining Rings - 25.4x1.02x27.33 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 1.02 mm + 0.08 / - 0.00 _{(0.04 in.)}	Groove Dia. (Dg) 27.97 mm +/- 0.05 _{(1.101 in.)}	Approx. Loose Circlip OD (Dr) 28.60 mm + 0.63 / - 0.00	Radial Wall (S) min/max 1.37 - 2.69	Groove Width (W) 0.91 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I047
Part Number: CIB-02598-C (5 Pcs) Internal Retaining Rings - 25.98x1.02x27.97 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Per 5
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 1.02 mm + 0.08 / - 0.00 _{(0.04 in.)}	Groove Dia. (Dg) 27.97 mm +/- 0.05 _{(1.101 in.)}	Approx. Loose Circlip OD (Dr) 28.60 mm + 0.63 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.37 - 2.69 Groove Width (W): 0.91 mm + 0.03 / - 0.00 Tool: PRS-I047
Part Number: CIB-02598-C (5 Pcs) Internal Retaining Rings - 25.98x1.02x27.97 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-02598-C (5 Pcs) --- Internal Retaining Rings - 25.98x1.02x27.97 mm - Carbon Steel CIB-02598-C (5 Pcs) --- Internal Retaining Rings - 25.98x1.02x27.97 mm - Carbon Steel Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 26.99 mm _{(1.063 in.)}	Clip Thickness (T) 1.22 mm + 0.08 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 28.91 mm +/- 0.05 _{(1.138 in.)}	Approx. Loose Circlip OD (Dr) 29.46 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.40 - 2.79	Groove Width (W) 1.12 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-02699-C (5 Pcs) Internal Retaining Rings - 26.99x1.22x28.91 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Per 5
Housing Bore (B) 26.99 mm _{(1.063 in.)}	Clip Thickness (T) 1.22 mm + 0.08 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 28.91 mm +/- 0.05 _{(1.138 in.)}	Approx. Loose Circlip OD (Dr) 29.46 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.40 - 2.79 Groove Width (W): 1.12 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-02699-C (5 Pcs) Internal Retaining Rings - 26.99x1.22x28.91 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-02699-C (5 Pcs) --- Internal Retaining Rings - 26.99x1.22x28.91 mm - Carbon Steel CIB-02699-C (5 Pcs) --- Internal Retaining Rings - 26.99x1.22x28.91 mm - Carbon Steel Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 30.61 mm +/- 0.05 _{(1.205 in.)}	Approx. Loose Circlip OD (Dr) 31.22 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.45 - 2.95	Groove Width (W) 1.09 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-02858-C (5 Pcs) Internal Retaining Rings - 28.58x1.22x30.61 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Per 5
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 30.61 mm +/- 0.05 _{(1.205 in.)}	Approx. Loose Circlip OD (Dr) 31.22 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.45 - 2.95 Groove Width (W): 1.09 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-02858-C (5 Pcs) Internal Retaining Rings - 28.58x1.22x30.61 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-02858-C (5 Pcs) --- Internal Retaining Rings - 28.58x1.22x30.61 mm - Carbon Steel CIB-02858-C (5 Pcs) --- Internal Retaining Rings - 28.58x1.22x30.61 mm - Carbon Steel Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 30.16 mm _{(1.187 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 32.31 mm +/- 0.05 _{(1.272 in.)}	Approx. Loose Circlip OD (Dr) 32.99 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.47 - 3.05	Groove Width (W) 1.09 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-03016-C (250 Pcs) Internal Retaining Rings - 30.16x1.22x32.31 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $825.23 AUD Regular price Sale price $825.23 AUD Unit price per Per 250
Housing Bore (B) 30.16 mm _{(1.187 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 32.31 mm +/- 0.05 _{(1.272 in.)}	Approx. Loose Circlip OD (Dr) 32.99 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.47 - 3.05 Groove Width (W): 1.09 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-03016-C (250 Pcs) Internal Retaining Rings - 30.16x1.22x32.31 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $825.23 AUD Regular price Sale price $825.23 AUD Unit price per Per 250 View the product page first if you are unsure.
CIB-03016-C (250 Pcs) --- Internal Retaining Rings - 30.16x1.22x32.31 mm - Carbon Steel CIB-03016-C (250 Pcs) --- Internal Retaining Rings - 30.16x1.22x32.31 mm - Carbon Steel Regular price $825.23 AUD Regular price Sale price $825.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 34.09 mm +/- 0.05 _{(1.342 in.)}	Approx. Loose Circlip OD (Dr) 34.75 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.57 - 3.15	Groove Width (W) 1.07 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-03175-C (6 Pcs) Internal Retaining Rings - 31.75x1.22x34.09 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Per 6
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 34.09 mm +/- 0.05 _{(1.342 in.)}	Approx. Loose Circlip OD (Dr) 34.75 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.57 - 3.15 Groove Width (W): 1.07 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-03175-C (6 Pcs) Internal Retaining Rings - 31.75x1.22x34.09 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Per 6 View the product page first if you are unsure.
CIB-03175-C (6 Pcs) --- Internal Retaining Rings - 31.75x1.22x34.09 mm - Carbon Steel CIB-03175-C (6 Pcs) --- Internal Retaining Rings - 31.75x1.22x34.09 mm - Carbon Steel Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 35.76 mm +/- 0.05 _{(1.408 in.)}	Approx. Loose Circlip OD (Dr) 36.47 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.57 - 3.30	Groove Width (W) 1.07 mm + 0.03 / - 0.00
Material: Spring Steel Tool: PRS-I070
Part Number: CIB-03338-C (50 Pcs) Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $3,005.59 AUD Regular price Sale price $3,005.59 AUD Unit price per Per 50
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 35.76 mm +/- 0.05 _{(1.408 in.)}	Approx. Loose Circlip OD (Dr) 36.47 mm + 1.14 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 1.57 - 3.30 Groove Width (W): 1.07 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-03338-C (50 Pcs) Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $3,005.59 AUD Regular price Sale price $3,005.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CIB-03338-C (50 Pcs) --- Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel CIB-03338-C (50 Pcs) --- Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel Regular price $3,005.59 AUD Regular price Sale price $3,005.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 37.54 mm +/- 0.05 _{(1.478 in.)}	Approx. Loose Circlip OD (Dr) 38.25 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.60 - 3.30	Groove Width (W) 1.04 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-03493-C (4 Pcs) Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Per 4
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 37.54 mm +/- 0.05 _{(1.478 in.)}	Approx. Loose Circlip OD (Dr) 38.25 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.60 - 3.30 Groove Width (W): 1.04 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-03493-C (4 Pcs) Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Per 4 View the product page first if you are unsure.
CIB-03493-C (4 Pcs) --- Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel CIB-03493-C (4 Pcs) --- Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 39.17 mm +/- 0.05 _{(1.542 in.)}	Approx. Loose Circlip OD (Dr) 40.03 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.65 - 3.38	Groove Width (W) 1.02 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-03653-C (38 Pcs) Internal Retaining Rings - 36.53x1.22x39.17 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 39.17 mm +/- 0.05 _{(1.542 in.)}	Approx. Loose Circlip OD (Dr) 40.03 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.65 - 3.38 Groove Width (W): 1.02 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-03653-C (38 Pcs) Internal Retaining Rings - 36.53x1.22x39.17 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 36.98 mm _{(1.456 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 39.67 mm +/- 0.05 _{(1.562 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.65 - 3.38	Groove Width (W) 1.02 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-03698-C (125 Pcs) Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $455.68 AUD Regular price Sale price $455.68 AUD Unit price per Per 125
Housing Bore (B) 36.98 mm _{(1.456 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 39.67 mm +/- 0.05 _{(1.562 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.65 - 3.38 Groove Width (W): 1.02 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-03698-C (125 Pcs) Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $455.68 AUD Regular price Sale price $455.68 AUD Unit price per Per 125 View the product page first if you are unsure.
CIB-03698-C (125 Pcs) --- Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel CIB-03698-C (125 Pcs) --- Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel Regular price $455.68 AUD Regular price Sale price $455.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.19 mm + 0.10 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 40.74 mm +/- 0.08 _{(1.604 in.)}	Approx. Loose Circlip OD (Dr) 41.81 mm + 1.14 / - 0.00	Radial Wall (S) min/max 1.68 - 3.38	Groove Width (W) 1.02 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-03810-C (32 Pcs) Internal Retaining Rings - 38.1x1.19x40.74 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $124.23 AUD Regular price Sale price $124.23 AUD Unit price per Per 32
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.19 mm + 0.10 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 40.74 mm +/- 0.08 _{(1.604 in.)}	Approx. Loose Circlip OD (Dr) 41.81 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.68 - 3.38 Groove Width (W): 1.02 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-03810-C (32 Pcs) Internal Retaining Rings - 38.1x1.19x40.74 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $124.23 AUD Regular price Sale price $124.23 AUD Unit price per Per 32 View the product page first if you are unsure.
CIB-03810-C (32 Pcs) --- Internal Retaining Rings - 38.1x1.19x40.74 mm - Carbon Steel CIB-03810-C (32 Pcs) --- Internal Retaining Rings - 38.1x1.19x40.74 mm - Carbon Steel Regular price $124.23 AUD Regular price Sale price $124.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 42.52 mm +/- 0.08 _{(1.674 in.)}	Approx. Loose Circlip OD (Dr) 43.41 mm + 1.52 / - 0.00	Radial Wall (S) min/max 1.98 - 3.99	Groove Width (W) 1.32 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-03967-C (3 Pcs) Internal Retaining Rings - 39.67x1.5x42.52 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Per 3
Housing Bore (B) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 42.52 mm +/- 0.08 _{(1.674 in.)}	Approx. Loose Circlip OD (Dr) 43.41 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 1.98 - 3.99 Groove Width (W): 1.32 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-03967-C (3 Pcs) Internal Retaining Rings - 39.67x1.5x42.52 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Per 3 View the product page first if you are unsure.
CIB-03967-C (3 Pcs) --- Internal Retaining Rings - 39.67x1.5x42.52 mm - Carbon Steel CIB-03967-C (3 Pcs) --- Internal Retaining Rings - 39.67x1.5x42.52 mm - Carbon Steel Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 40.01 mm _{(1.575 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 42.85 mm +/- 0.08 _{(1.687 in.)}	Approx. Loose Circlip OD (Dr) 43.41 mm + 1.52 / - 0.00	Radial Wall (S) min/max 1.98 - 3.99	Groove Width (W) 1.32 mm + 0.03 / - 0.00
Material: Spring Steel Tool: PRS-I070
Part Number: CIB-04001-C Internal Retaining Rings - 40.01x1.5x42.85 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 40.01 mm _{(1.575 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 42.85 mm +/- 0.08 _{(1.687 in.)}	Approx. Loose Circlip OD (Dr) 43.41 mm + 1.52 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 1.98 - 3.99 Groove Width (W): 1.32 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-04001-C Internal Retaining Rings - 40.01x1.5x42.85 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 44.27 mm +/- 0.08 _{(1.743 in.)}	Approx. Loose Circlip OD (Dr) 45.19 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.08 - 4.17	Groove Width (W) 1.30 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-04128-C (5 Pcs) Internal Retaining Rings - 41.28x1.5x44.27 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Per 5
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 44.27 mm +/- 0.08 _{(1.743 in.)}	Approx. Loose Circlip OD (Dr) 45.19 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.08 - 4.17 Groove Width (W): 1.30 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-04128-C (5 Pcs) Internal Retaining Rings - 41.28x1.5x44.27 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-04128-C (5 Pcs) --- Internal Retaining Rings - 41.28x1.5x44.27 mm - Carbon Steel CIB-04128-C (5 Pcs) --- Internal Retaining Rings - 41.28x1.5x44.27 mm - Carbon Steel Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.99 mm _{(1.653 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 45.03 mm +/- 0.08 _{(1.773 in.)}	Approx. Loose Circlip OD (Dr) 45.97 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.11 - 4.24	Groove Width (W) 1.30 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-04199-C (5 Pcs) Internal Retaining Rings - 41.99x1.5x45.03 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Per 5
Housing Bore (B) 41.99 mm _{(1.653 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 45.03 mm +/- 0.08 _{(1.773 in.)}	Approx. Loose Circlip OD (Dr) 45.97 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.11 - 4.24 Groove Width (W): 1.30 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-04199-C (5 Pcs) Internal Retaining Rings - 41.99x1.5x45.03 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-04199-C (5 Pcs) --- Internal Retaining Rings - 41.99x1.5x45.03 mm - Carbon Steel CIB-04199-C (5 Pcs) --- Internal Retaining Rings - 41.99x1.5x45.03 mm - Carbon Steel Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 42.86 mm _{(1.687 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 45.97 mm +/- 0.08 _{(1.81 in.)}	Approx. Loose Circlip OD (Dr) 46.96 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.16 - 4.32	Groove Width (W) 1.27 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-04286-C (4 Pcs) Internal Retaining Rings - 42.86x1.5x45.97 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Per 4
Housing Bore (B) 42.86 mm _{(1.687 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 45.97 mm +/- 0.08 _{(1.81 in.)}	Approx. Loose Circlip OD (Dr) 46.96 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.16 - 4.32 Groove Width (W): 1.27 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-04286-C (4 Pcs) Internal Retaining Rings - 42.86x1.5x45.97 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Per 4 View the product page first if you are unsure.
CIB-04286-C (4 Pcs) --- Internal Retaining Rings - 42.86x1.5x45.97 mm - Carbon Steel CIB-04286-C (4 Pcs) --- Internal Retaining Rings - 42.86x1.5x45.97 mm - Carbon Steel Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 47.70 mm +/- 0.08 _{(1.878 in.)}	Approx. Loose Circlip OD (Dr) 48.69 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.11 - 4.34	Groove Width (W) 1.27 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I070
Part Number: CIB-04445-C (5 Pcs) Internal Retaining Rings - 44.45x1.5x47.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per Per 5
Housing Bore (B) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 47.70 mm +/- 0.08 _{(1.878 in.)}	Approx. Loose Circlip OD (Dr) 48.69 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.11 - 4.34 Groove Width (W): 1.27 mm + 0.03 / - 0.00 Tool: PRS-I070
Part Number: CIB-04445-C (5 Pcs) Internal Retaining Rings - 44.45x1.5x47.7 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-04445-C (5 Pcs) --- Internal Retaining Rings - 44.45x1.5x47.7 mm - Carbon Steel CIB-04445-C (5 Pcs) --- Internal Retaining Rings - 44.45x1.5x47.7 mm - Carbon Steel Regular price $24.59 AUD Regular price Sale price $24.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 46.04 mm _{(1.813 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 49.38 mm +/- 0.08 _{(1.944 in.)}	Approx. Loose Circlip OD (Dr) 50.47 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.13 - 4.32	Groove Width (W) 1.27 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I090
Part Number: CIB-04604-C (5 Pcs) Internal Retaining Rings - 46.04x1.5x49.38 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Per 5
Housing Bore (B) 46.04 mm _{(1.813 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 49.38 mm +/- 0.08 _{(1.944 in.)}	Approx. Loose Circlip OD (Dr) 50.47 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.13 - 4.32 Groove Width (W): 1.27 mm + 0.03 / - 0.00 Tool: PRS-I090
Part Number: CIB-04604-C (5 Pcs) Internal Retaining Rings - 46.04x1.5x49.38 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Per 5 View the product page first if you are unsure.
CIB-04604-C (5 Pcs) --- Internal Retaining Rings - 46.04x1.5x49.38 mm - Carbon Steel CIB-04604-C (5 Pcs) --- Internal Retaining Rings - 46.04x1.5x49.38 mm - Carbon Steel Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 46.99 mm _{(1.85 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 50.39 mm +/- 0.08 _{(1.984 in.)}	Approx. Loose Circlip OD (Dr) 51.54 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.16 - 4.32	Groove Width (W) 1.27 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I090
Part Number: CIB-04699-C (3 Pcs) Internal Retaining Rings - 46.99x1.5x50.39 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Per 3
Housing Bore (B) 46.99 mm _{(1.85 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 50.39 mm +/- 0.08 _{(1.984 in.)}	Approx. Loose Circlip OD (Dr) 51.54 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.16 - 4.32 Groove Width (W): 1.27 mm + 0.03 / - 0.00 Tool: PRS-I090
Part Number: CIB-04699-C (3 Pcs) Internal Retaining Rings - 46.99x1.5x50.39 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Per 3 View the product page first if you are unsure.
CIB-04699-C (3 Pcs) --- Internal Retaining Rings - 46.99x1.5x50.39 mm - Carbon Steel CIB-04699-C (3 Pcs) --- Internal Retaining Rings - 46.99x1.5x50.39 mm - Carbon Steel Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 51.08 mm +/- 0.08 _{(2.011 in.)}	Approx. Loose Circlip OD (Dr) 51.54 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.16 - 4.32	Groove Width (W) 1.27 mm + 0.03 / - 0.00
Material: Spring Steel Tool: PRS-I090
Part Number: CIB-04763-C Internal Retaining Rings - 47.63x1.5x51.08 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 51.08 mm +/- 0.08 _{(2.011 in.)}	Approx. Loose Circlip OD (Dr) 51.54 mm + 1.52 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 2.16 - 4.32 Groove Width (W): 1.27 mm + 0.03 / - 0.00 Tool: PRS-I090
Part Number: CIB-04763-C Internal Retaining Rings - 47.63x1.5x51.08 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 49.23 mm _{(1.938 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 52.88 mm +/- 0.08 _{(2.082 in.)}	Approx. Loose Circlip OD (Dr) 53.75 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.16 - 4.32	Groove Width (W) 1.24 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I090
Part Number: CIB-04923-C (4 Pcs) Internal Retaining Rings - 49.23x1.5x52.88 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.32 AUD Regular price Sale price $23.32 AUD Unit price per Per 4
Housing Bore (B) 49.23 mm _{(1.938 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 52.88 mm +/- 0.08 _{(2.082 in.)}	Approx. Loose Circlip OD (Dr) 53.75 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.16 - 4.32 Groove Width (W): 1.24 mm + 0.03 / - 0.00 Tool: PRS-I090
Part Number: CIB-04923-C (4 Pcs) Internal Retaining Rings - 49.23x1.5x52.88 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.32 AUD Regular price Sale price $23.32 AUD Unit price per Per 4 View the product page first if you are unsure.
CIB-04923-C (4 Pcs) --- Internal Retaining Rings - 49.23x1.5x52.88 mm - Carbon Steel CIB-04923-C (4 Pcs) --- Internal Retaining Rings - 49.23x1.5x52.88 mm - Carbon Steel Regular price $23.32 AUD Regular price Sale price $23.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 54.46 mm +/- 0.08 _{(2.144 in.)}	Approx. Loose Circlip OD (Dr) 55.50 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.16 - 4.32	Groove Width (W) 1.22 mm + 0.03 / - 0.00
Material: Carbon Steel Tool: PRS-I090
Part Number: CIB-05080-C (4 Pcs) Internal Retaining Rings - 50.8x1.5x54.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Per 4
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.50 mm + 0.13 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 54.46 mm +/- 0.08 _{(2.144 in.)}	Approx. Loose Circlip OD (Dr) 55.50 mm + 1.52 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.16 - 4.32 Groove Width (W): 1.22 mm + 0.03 / - 0.00 Tool: PRS-I090
Part Number: CIB-05080-C (4 Pcs) Internal Retaining Rings - 50.8x1.5x54.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Per 4 View the product page first if you are unsure.
CIB-05080-C (4 Pcs) --- Internal Retaining Rings - 50.8x1.5x54.46 mm - Carbon Steel CIB-05080-C (4 Pcs) --- Internal Retaining Rings - 50.8x1.5x54.46 mm - Carbon Steel Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 51.99 mm _{(2.047 in.)}	Clip Thickness (T) 1.91 mm + 0.13 / - 0.00 _{(0.075 in.)}	Groove Dia. (Dg) 55.75 mm +/- 0.08 _{(2.195 in.)}	Approx. Loose Circlip OD (Dr) 57.15 mm + 1.52 / - 0.00	Radial Wall (S) min/max 2.31 - 4.72	Groove Width (W) 1.65 mm + 0.03 / - 0.00
Material: Spring Steel Tool: PRS-I090
Part Number: CIB-05199-C Internal Retaining Rings - 51.99x1.91x55.75 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 51.99 mm _{(2.047 in.)}	Clip Thickness (T) 1.91 mm + 0.13 / - 0.00 _{(0.075 in.)}	Groove Dia. (Dg) 55.75 mm +/- 0.08 _{(2.195 in.)}	Approx. Loose Circlip OD (Dr) 57.15 mm + 1.52 / - 0.00
Material: Spring Steel Radial Wall (S) min/max: 2.31 - 4.72 Groove Width (W): 1.65 mm + 0.03 / - 0.00 Tool: PRS-I090
Part Number: CIB-05199-C Internal Retaining Rings - 51.99x1.91x55.75 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.91 mm + 0.15 / - 0.00 _{(0.075 in.)}	Groove Dia. (Dg) 56.13 mm +/- 0.08 _{(2.21 in.)}	Approx. Loose Circlip OD (Dr) 57.15 mm + 1.78 / - 0.00	Radial Wall (S) min/max 2.31 - 4.72	Groove Width (W) 1.65 mm + 0.04 / - 0.00
Material: Carbon Steel Tool: PRS-I090
Part Number: CIB-05239-C (3 Pcs) Internal Retaining Rings - 52.39x1.91x56.13 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Per 3
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.91 mm + 0.15 / - 0.00 _{(0.075 in.)}	Groove Dia. (Dg) 56.13 mm +/- 0.08 _{(2.21 in.)}	Approx. Loose Circlip OD (Dr) 57.15 mm + 1.78 / - 0.00
Material: Carbon Steel Radial Wall (S) min/max: 2.31 - 4.72 Groove Width (W): 1.65 mm + 0.04 / - 0.00 Tool: PRS-I090
Part Number: CIB-05239-C (3 Pcs) Internal Retaining Rings - 52.39x1.91x56.13 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Per 3 View the product page first if you are unsure.
CIB-05239-C (3 Pcs) --- Internal Retaining Rings - 52.39x1.91x56.13 mm - Carbon Steel CIB-05239-C (3 Pcs) --- Internal Retaining Rings - 52.39x1.91x56.13 mm - Carbon Steel Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Out of stock! Backorder Now
