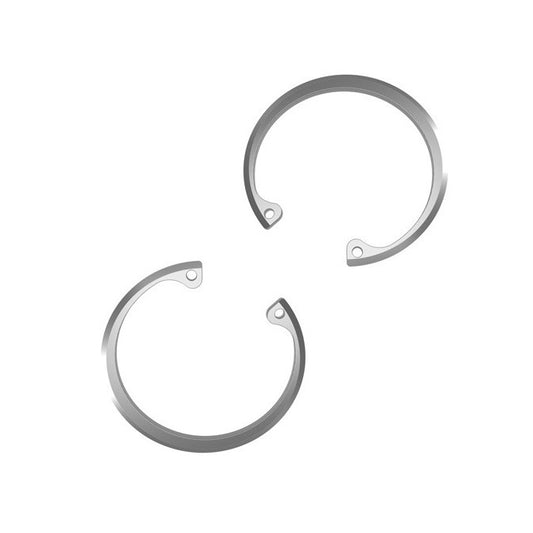

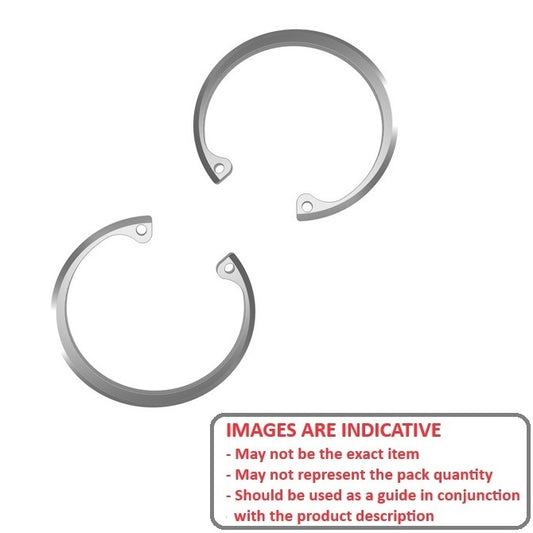

Retaining Rings - Internal - Circlips - Bevelled

Retaining Rings -> Internal -> Circlips -> Bevelled
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) min/max Groove Width (W) Indicative
Housing Bore (B)
158.75
mm

(Equiv. 6.25 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
168.71
mm
+/- 0.08
(Equiv. 6.642 in.)
Approx. Loose Circlip OD (Dr)
173.10
mm
+ 4.10 / - 0.00
Radial Wall (S) min/max
5.36 - 10.74
Groove Width (W)
3.28
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 158.75x3.84x168.71 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I150
Part Number: CIB-15875-C
Internal Retaining Rings - 158.75x3.84x168.71 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025
$43.14 AUD
$99.10 AUD $43.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
158.75
mm

(Equiv. 6.25 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
168.71
mm
+/- 0.08
(Equiv. 6.642 in.)
Approx. Loose Circlip OD (Dr)
173.10
mm
+ 4.10 / - 0.00
Internal Retaining Rings - 158.75x3.84x168.71 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 5.36 - 10.74    Groove Width (W): 3.28 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-15875-C
Internal Retaining Rings - 158.75x3.84x168.71 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025
$43.14 AUD
$99.10 AUD $43.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
165.10
mm

(Equiv. 6.5 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
175.46
mm
+/- 0.08
(Equiv. 6.908 in.)
Approx. Loose Circlip OD (Dr)
180.09
mm
+ 4.10 / - 0.00
Radial Wall (S) min/max
5.56 - 11.13
Groove Width (W)
3.28
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 165.1x3.84x175.46 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-16510-C (2 Pcs)
Internal Retaining Rings - 165.1x3.84x175.46 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$832.77 AUD
$1,957.08 AUD $832.77 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
165.10
mm

(Equiv. 6.5 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
175.46
mm
+/- 0.08
(Equiv. 6.908 in.)
Approx. Loose Circlip OD (Dr)
180.09
mm
+ 4.10 / - 0.00
Internal Retaining Rings - 165.1x3.84x175.46 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 5.56 - 11.13    Groove Width (W): 3.28 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-16510-C (2 Pcs)
Internal Retaining Rings - 165.1x3.84x175.46 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$832.77 AUD
$1,957.08 AUD $832.77 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
168.28
mm

(Equiv. 6.625 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
178.87
mm
+/- 0.08
(Equiv. 7.042 in.)
Approx. Loose Circlip OD (Dr)
183.59
mm
+ 4.10 / - 0.00
Radial Wall (S) min/max
5.61 - 11.35
Groove Width (W)
3.28
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 168.28x3.84x178.87 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-16828-C
Internal Retaining Rings - 168.28x3.84x178.87 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
168.28
mm

(Equiv. 6.625 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
178.87
mm
+/- 0.08
(Equiv. 7.042 in.)
Approx. Loose Circlip OD (Dr)
183.59
mm
+ 4.10 / - 0.00
Internal Retaining Rings - 168.28x3.84x178.87 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 5.61 - 11.35    Groove Width (W): 3.28 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-16828-C
Internal Retaining Rings - 168.28x3.84x178.87 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
171.45
mm

(Equiv. 6.75 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
182.22
mm
+/- 0.08
(Equiv. 7.174 in.)
Approx. Loose Circlip OD (Dr)
187.07
mm
+ 4.10 / - 0.00
Radial Wall (S) min/max
5.69 - 11.58
Groove Width (W)
3.25
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 171.45x3.84x182.22 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-17145-C (2 Pcs)
Internal Retaining Rings - 171.45x3.84x182.22 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$870.50 AUD
$2,045.75 AUD $870.50 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
171.45
mm

(Equiv. 6.75 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
182.22
mm
+/- 0.08
(Equiv. 7.174 in.)
Approx. Loose Circlip OD (Dr)
187.07
mm
+ 4.10 / - 0.00
Internal Retaining Rings - 171.45x3.84x182.22 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 5.69 - 11.58    Groove Width (W): 3.25 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-17145-C (2 Pcs)
Internal Retaining Rings - 171.45x3.84x182.22 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$870.50 AUD
$2,045.75 AUD $870.50 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
177.80
mm

(Equiv. 7 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
189.00
mm
+/- 0.08
(Equiv. 7.441 in.)
Approx. Loose Circlip OD (Dr)
194.06
mm
+ 4.10 / - 0.00
Radial Wall (S) min/max
5.89 - 12.04
Groove Width (W)
3.25
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 177.8x3.84x189 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-17780-C (2 Pcs)
Internal Retaining Rings - 177.8x3.84x189 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$912.32 AUD
$2,144.15 AUD $912.32 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
177.80
mm

(Equiv. 7 in.)
Clip Thickness (T)
3.84
mm
+ 0.20 / - 0.00
(Equiv. 0.151 in.)
Groove Dia. (Dg)
189.00
mm
+/- 0.08
(Equiv. 7.441 in.)
Approx. Loose Circlip OD (Dr)
194.06
mm
+ 4.10 / - 0.00
Internal Retaining Rings - 177.8x3.84x189 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 5.89 - 12.04    Groove Width (W): 3.25 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-17780-C (2 Pcs)
Internal Retaining Rings - 177.8x3.84x189 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$912.32 AUD
$2,144.15 AUD $912.32 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
184.15
mm

(Equiv. 7.25 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
195.78
mm
+/- 0.08
(Equiv. 7.708 in.)
Approx. Loose Circlip OD (Dr)
200.79
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
6.05 - 12.42
Groove Width (W)
4.04
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 184.15x4.62x195.78 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I150
Part Number: CIB-18415-C (5 Pcs)
Internal Retaining Rings - 184.15x4.62x195.78 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$3,662.05 AUD
$8,614.12 AUD $3,662.05 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
184.15
mm

(Equiv. 7.25 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
195.78
mm
+/- 0.08
(Equiv. 7.708 in.)
Approx. Loose Circlip OD (Dr)
200.79
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 184.15x4.62x195.78 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 6.05 - 12.42    Groove Width (W): 4.04 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-18415-C (5 Pcs)
Internal Retaining Rings - 184.15x4.62x195.78 mm Circlips - Carbon Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$3,662.05 AUD
$8,614.12 AUD $3,662.05 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
202.54
mm
+/- 0.08
(Equiv. 7.974 in.)
Approx. Loose Circlip OD (Dr)
207.77
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
6.27 - 12.88
Groove Width (W)
4.04
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 190.5x4.62x202.54 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-19050-C
Internal Retaining Rings - 190.5x4.62x202.54 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$909.95 AUD
$2,138.64 AUD $909.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
190.50
mm

(Equiv. 7.5 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
202.54
mm
+/- 0.08
(Equiv. 7.974 in.)
Approx. Loose Circlip OD (Dr)
207.77
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 190.5x4.62x202.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 6.27 - 12.88    Groove Width (W): 4.04 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-19050-C
Internal Retaining Rings - 190.5x4.62x202.54 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$909.95 AUD
$2,138.64 AUD $909.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
196.85
mm

(Equiv. 7.75 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
209.30
mm
+/- 0.08
(Equiv. 8.24 in.)
Approx. Loose Circlip OD (Dr)
214.76
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
6.48 - 13.28
Groove Width (W)
4.04
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 196.85x4.62x209.3 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-19685-C
Internal Retaining Rings - 196.85x4.62x209.3 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
196.85
mm

(Equiv. 7.75 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
209.30
mm
+/- 0.08
(Equiv. 8.24 in.)
Approx. Loose Circlip OD (Dr)
214.76
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 196.85x4.62x209.3 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 6.48 - 13.28    Groove Width (W): 4.04 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-19685-C
Internal Retaining Rings - 196.85x4.62x209.3 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
203.20
mm

(Equiv. 8 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
216.08
mm
+/- 0.08
(Equiv. 8.507 in.)
Approx. Loose Circlip OD (Dr)
221.74
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
6.65 - 13.72
Groove Width (W)
3.94
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 203.2x4.62x216.08 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-20320-C
Internal Retaining Rings - 203.2x4.62x216.08 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$717.77 AUD
$1,686.44 AUD $717.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
203.20
mm

(Equiv. 8 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
216.08
mm
+/- 0.08
(Equiv. 8.507 in.)
Approx. Loose Circlip OD (Dr)
221.74
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 203.2x4.62x216.08 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 6.65 - 13.72    Groove Width (W): 3.94 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-20320-C
Internal Retaining Rings - 203.2x4.62x216.08 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$717.77 AUD
$1,686.44 AUD $717.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
209.55
mm

(Equiv. 8.25 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
222.83
mm
+/- 0.08
(Equiv. 8.773 in.)
Approx. Loose Circlip OD (Dr)
228.73
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
6.86 - 14.17
Groove Width (W)
3.94
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 209.55x4.62x222.83 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-20955-C
Internal Retaining Rings - 209.55x4.62x222.83 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
209.55
mm

(Equiv. 8.25 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
222.83
mm
+/- 0.08
(Equiv. 8.773 in.)
Approx. Loose Circlip OD (Dr)
228.73
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 209.55x4.62x222.83 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 6.86 - 14.17    Groove Width (W): 3.94 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-20955-C
Internal Retaining Rings - 209.55x4.62x222.83 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
215.90
mm

(Equiv. 8.5 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
229.62
mm
+/- 0.08
(Equiv. 9.04 in.)
Approx. Loose Circlip OD (Dr)
233.55
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
7.04 - 14.55
Groove Width (W)
3.84
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 215.9x4.62x229.62 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-21590-C
Internal Retaining Rings - 215.9x4.62x229.62 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$552.68 AUD
$1,297.97 AUD $552.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
215.90
mm

(Equiv. 8.5 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
229.62
mm
+/- 0.08
(Equiv. 9.04 in.)
Approx. Loose Circlip OD (Dr)
233.55
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 215.9x4.62x229.62 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 7.04 - 14.55    Groove Width (W): 3.84 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-21590-C
Internal Retaining Rings - 215.9x4.62x229.62 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$552.68 AUD
$1,297.97 AUD $552.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
222.25
mm

(Equiv. 8.75 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
236.40
mm
+/- 0.08
(Equiv. 9.307 in.)
Approx. Loose Circlip OD (Dr)
240.49
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
7.26 - 15.01
Groove Width (W)
3.84
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 222.25x4.62x236.4 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-22225-C
Internal Retaining Rings - 222.25x4.62x236.4 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
222.25
mm

(Equiv. 8.75 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
236.40
mm
+/- 0.08
(Equiv. 9.307 in.)
Approx. Loose Circlip OD (Dr)
240.49
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 222.25x4.62x236.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 7.26 - 15.01    Groove Width (W): 3.84 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-22225-C
Internal Retaining Rings - 222.25x4.62x236.4 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
228.60
mm

(Equiv. 9 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
243.15
mm
+/- 0.08
(Equiv. 9.573 in.)
Approx. Loose Circlip OD (Dr)
247.40
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
7.47 - 15.47
Groove Width (W)
3.84
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 228.6x4.62x243.15 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-22860-C
Internal Retaining Rings - 228.6x4.62x243.15 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$935.23 AUD
$2,198.14 AUD $935.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
228.60
mm

(Equiv. 9 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
243.15
mm
+/- 0.08
(Equiv. 9.573 in.)
Approx. Loose Circlip OD (Dr)
247.40
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 228.6x4.62x243.15 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 7.47 - 15.47    Groove Width (W): 3.84 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-22860-C
Internal Retaining Rings - 228.6x4.62x243.15 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$935.23 AUD
$2,198.14 AUD $935.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
234.95
mm

(Equiv. 9.25 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
249.89
mm
+/- 0.08
(Equiv. 9.838 in.)
Approx. Loose Circlip OD (Dr)
254.30
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
7.59 - 15.88
Groove Width (W)
3.84
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 234.95x4.62x249.89 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-23495-C
Internal Retaining Rings - 234.95x4.62x249.89 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
234.95
mm

(Equiv. 9.25 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
249.89
mm
+/- 0.08
(Equiv. 9.838 in.)
Approx. Loose Circlip OD (Dr)
254.30
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 234.95x4.62x249.89 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 7.59 - 15.88    Groove Width (W): 3.84 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-23495-C
Internal Retaining Rings - 234.95x4.62x249.89 mm Circlips - Carbon Spring Steel Circlip
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
241.30
mm

(Equiv. 9.5 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
256.69
mm
+/- 0.08
(Equiv. 10.106 in.)
Approx. Loose Circlip OD (Dr)
261.24
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
7.72 - 16.31
Groove Width (W)
3.73
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 241.3x4.62x256.69 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-24130-C
Internal Retaining Rings - 241.3x4.62x256.69 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$1,105.86 AUD
$2,599.63 AUD $1,105.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
241.30
mm

(Equiv. 9.5 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
256.69
mm
+/- 0.08
(Equiv. 10.106 in.)
Approx. Loose Circlip OD (Dr)
261.24
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 241.3x4.62x256.69 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 7.72 - 16.31    Groove Width (W): 3.73 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-24130-C
Internal Retaining Rings - 241.3x4.62x256.69 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$1,105.86 AUD
$2,599.63 AUD $1,105.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
247.65
mm

(Equiv. 9.75 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
263.45
mm
+/- 0.08
(Equiv. 10.372 in.)
Approx. Loose Circlip OD (Dr)
268.17
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
7.85 - 16.71
Groove Width (W)
3.73
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 247.65x4.62x263.45 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-24765-C
Internal Retaining Rings - 247.65x4.62x263.45 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$1,202.05 AUD
$2,825.90 AUD $1,202.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
247.65
mm

(Equiv. 9.75 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
263.45
mm
+/- 0.08
(Equiv. 10.372 in.)
Approx. Loose Circlip OD (Dr)
268.17
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 247.65x4.62x263.45 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 7.85 - 16.71    Groove Width (W): 3.73 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-24765-C
Internal Retaining Rings - 247.65x4.62x263.45 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$1,202.05 AUD
$2,825.90 AUD $1,202.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
254.00
mm

(Equiv. 10 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
270.23
mm
+/- 0.08
(Equiv. 10.639 in.)
Approx. Loose Circlip OD (Dr)
275.08
mm
+ 4.60 / - 0.00
Radial Wall (S) min/max
8.00 - 17.15
Groove Width (W)
3.73
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 254x4.62x270.23 mm - Spring Steel
Material: Carbon Spring Steel    Tool: PRR-I150
Part Number: CIB-25400-C
Internal Retaining Rings - 254x4.62x270.23 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$606.05 AUD
$1,423.51 AUD $606.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
254.00
mm

(Equiv. 10 in.)
Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.)
Groove Dia. (Dg)
270.23
mm
+/- 0.08
(Equiv. 10.639 in.)
Approx. Loose Circlip OD (Dr)
275.08
mm
+ 4.60 / - 0.00
Internal Retaining Rings - 254x4.62x270.23 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) min/max: 8.00 - 17.15    Groove Width (W): 3.73 mm + 0.08 / - 0.00   Tool: PRR-I150
Part Number: CIB-25400-C
Internal Retaining Rings - 254x4.62x270.23 mm Circlips - Carbon Spring Steel Circlip
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025
$606.05 AUD
$1,423.51 AUD $606.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
