Collection: Retaining Rings - External

Retaining Rings (With Images)

External

1599 Products in this selection

This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Retaining Rings - External

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 0.80 mm _{(0.031 in.)}	Groove Dia. (Dg) 9.2 mm + 0 / - 0.30 _{(0.362 in.)}	Approx. Loose Circlip ID (A) 9.1 mm	Radial Wall (S) min/max 9.2 mm +/- 0.05	Groove Width (W) 1.0 mm Min.
Material: Spring Steel Clearance on Shaft (C1): 10.7 mm Clearance in Groove (C1): Round Section mm Category: Retaining Rings - External - Round Wire
Part Number: WRE-0100-RD (10 Pcs) External Retaining Rings - 10x0.8x9.2 mm - Spring Steel 501 units (5010 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 10
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 0.80 mm _{(0.031 in.)}	Groove Dia. (Dg) 9.2 mm + 0 / - 0.30 _{(0.362 in.)}	Approx. Loose Circlip ID (A) 9.1 mm
Material: Spring Steel Radial Wall (S) min/max: 9.2 mm +/- 0.05 Groove Width (W): 1.0 mm Min. Clearance on Shaft (C1): 10.7 mm Clearance in Groove (C1): Round Section mm Category: Retaining Rings - External - Round Wire
Part Number: WRE-0100-RD (10 Pcs) External Retaining Rings - 10x0.8x9.2 mm - Spring Steel 501 units (5010 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 10 View the product page first if you are unsure.
WRE-0100-RD (10 Pcs) --- External Retaining Rings - 10x0.8x9.2 mm - Spring Steel WRE-0100-RD (10 Pcs) --- External Retaining Rings - 10x0.8x9.2 mm - Spring Steel Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 501 Available Now
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01000-S15 (5 Pcs) External Retaining Rings - 10x1x9.6 mm - Stainless Steel Grade PH15-7 Mo 92 units (460 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Per 5
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01000-S15 (5 Pcs) External Retaining Rings - 10x1x9.6 mm - Stainless Steel Grade PH15-7 Mo 92 units (460 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-01000-S15 (5 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Stainless Steel Grade PH15-7 Mo CCE-01000-S15 (5 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Stainless Steel Grade PH15-7 Mo Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per 92 Available Now
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01000-C (50 Pcs) External Retaining Rings - 10x1x9.6 mm - Carbon Steel 78 units (3900 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 50
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01000-C (50 Pcs) External Retaining Rings - 10x1x9.6 mm - Carbon Steel 78 units (3900 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-01000-C (50 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Carbon Steel CCE-01000-C (50 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Carbon Steel Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 78 Available Now
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01000-CZ (10 Pcs) External Retaining Rings - 10x1x9.6 mm - Carbon Steel Zinc Plated 28 units (280 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Per 10
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 9.60 mm + 0.00 / - 0.06 _{(0.378 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01000-CZ (10 Pcs) External Retaining Rings - 10x1x9.6 mm - Carbon Steel Zinc Plated 28 units (280 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-01000-CZ (10 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Carbon Steel Zinc Plated CCE-01000-CZ (10 Pcs) --- External Retaining Rings - 10x1x9.6 mm - Carbon Steel Zinc Plated Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per 28 Available Now
Shaft Diameter (Ds) 10.00 mm +/- 0.08 _{(0.394 in.)}	Clip Thickness (T) 1.20 mm _{(0.047 in.)}		Approx. Loose Circlip ID (A) 9.65 mm
Material: Carbon Steel Clearance on Shaft (C1): 19.65 mm Clearance in Groove (C1): 245 mm Category: Retaining Rings - External - Circlips
Part Number: CNG-01000-C (250 Pcs) External Retaining Rings - 10x1.2 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $626.14 AUD Regular price Sale price $626.14 AUD Unit price per Per 250
Shaft Diameter (Ds) 10.00 mm +/- 0.08 _{(0.394 in.)}	Clip Thickness (T) 1.20 mm _{(0.047 in.)}		Approx. Loose Circlip ID (A) 9.65 mm
Material: Carbon Steel Clearance on Shaft (C1): 19.65 mm Clearance in Groove (C1): 245 mm Category: Retaining Rings - External - Circlips
Part Number: CNG-01000-C (250 Pcs) External Retaining Rings - 10x1.2 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $626.14 AUD Regular price Sale price $626.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CNG-01000-C (250 Pcs) --- External Retaining Rings - 10x1.2 - - - Carbon Steel CNG-01000-C (250 Pcs) --- External Retaining Rings - 10x1.2 - - - Carbon Steel Regular price $626.14 AUD Regular price Sale price $626.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.37 mm +/- 0.051 _{(0.369 in.)}	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01001-C (20 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm - Carbon Steel 3 units (60 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.37 mm +/- 0.051 _{(0.369 in.)}	Approx. Loose Circlip ID (A) 8.99 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01001-C (20 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm - Carbon Steel 3 units (60 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-01001-C (20 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm - Carbon Steel CCE-01001-C (20 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm - Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 3 Available Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.37 mm +/- 0.051 _{(0.369 in.)}	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01001-S15 (2 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm - Stainless Steel Grade PH15-7 Mo 48 units (96 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.37 mm +/- 0.051 _{(0.369 in.)}	Approx. Loose Circlip ID (A) 8.99 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01001-S15 (2 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm - Stainless Steel Grade PH15-7 Mo 48 units (96 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01001-S15 (2 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm - Stainless Steel Grade PH15-7 Mo CCE-01001-S15 (2 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 48 Available Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.40 mm +/- 0.051 _{(0.37 in.)}	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01001-CZY (100 Pcs) External Retaining Rings - 10.01x0.64x9.4 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.32 AUD Regular price Sale price $33.32 AUD Unit price per Per 100
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.40 mm +/- 0.051 _{(0.37 in.)}	Approx. Loose Circlip ID (A) 8.99 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01001-CZY (100 Pcs) External Retaining Rings - 10.01x0.64x9.4 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.32 AUD Regular price Sale price $33.32 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-01001-CZY (100 Pcs) --- External Retaining Rings - 10.01x0.64x9.4 mm - Carbon Steel Zinc Plated CCE-01001-CZY (100 Pcs) --- External Retaining Rings - 10.01x0.64x9.4 mm - Carbon Steel Zinc Plated Regular price $33.32 AUD Regular price Sale price $33.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 9.35 mm +/- 0.051 _{(0.368 in.)}	Approx. Loose Circlip ID (A) 9.20 mm		Groove Width (W) 1.00 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips
Part Number: CCE-01001H-S15 External Retaining Rings - 10.01x0.89x9.35 mm - Stainless Steel Grade PH15-7 Mo 15 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 9.35 mm +/- 0.051 _{(0.368 in.)}	Approx. Loose Circlip ID (A) 9.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.00 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01001H-S15 External Retaining Rings - 10.01x0.89x9.35 mm - Stainless Steel Grade PH15-7 Mo 15 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
CCE-01001H-S15 --- External Retaining Rings - 10.01x0.89x9.35 mm - Stainless Steel Grade PH15-7 Mo CCE-01001H-S15 --- External Retaining Rings - 10.01x0.89x9.35 mm - Stainless Steel Grade PH15-7 Mo Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per 15 Available Now
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 9.35 mm +/- 0.051 _{(0.368 in.)}	Approx. Loose Circlip ID (A) 9.20 mm		Groove Width (W) 1.00 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips
Part Number: CCE-01001H-C (10 Pcs) External Retaining Rings - 10.01x0.89x9.35 mm - Carbon Steel 39 units (390 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 10
Shaft Diameter (Ds) 10.01 mm _{(0.394 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 9.35 mm +/- 0.051 _{(0.368 in.)}	Approx. Loose Circlip ID (A) 9.20 mm
Material: Carbon Steel Groove Width (W): 1.00 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01001H-C (10 Pcs) External Retaining Rings - 10.01x0.89x9.35 mm - Carbon Steel 39 units (390 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-01001H-C (10 Pcs) --- External Retaining Rings - 10.01x0.89x9.35 mm - Carbon Steel CCE-01001H-C (10 Pcs) --- External Retaining Rings - 10.01x0.89x9.35 mm - Carbon Steel Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 39 Available Now
Shaft Diameter (Ds) 10.31 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.05 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.45 mm + 0.00 / - 0.51	Radial Wall (S) min/max 1.02 mm +/- 0.08	Groove Width (W) 0.71 mm
Material: Spring Steel Clearance in Groove (C1): 11.49 mm Category: Retaining Rings - External - Snap Rings
Part Number: WRE-0103-LS External Retaining Rings - 10.31x0.64x9.7 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 10.31 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.05 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.45 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 1.02 mm +/- 0.08 Groove Width (W): 0.71 mm Clearance in Groove (C1): 11.49 mm Category: Retaining Rings - External - Snap Rings
Part Number: WRE-0103-LS External Retaining Rings - 10.31x0.64x9.7 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 10.31 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.03 _{(0.025 in.)}	Groove Dia. (Dg) 9.75 mm _{(0.384 in.)}	Approx. Loose Circlip ID (A) 9.70 mm + 0.00 / - 0.58	Radial Wall (S) min/max 1.14 mm	Groove Width (W) 0.71 mm
Material: Spring Steel Clearance in Groove (C1): 11.98 mm Category: Retaining Rings - External - Snap Rings
Part Number: WRE-0103-LS-L External Retaining Rings - 10.31x0.64x9.75 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 10.31 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.03 _{(0.025 in.)}	Groove Dia. (Dg) 9.75 mm _{(0.384 in.)}	Approx. Loose Circlip ID (A) 9.70 mm + 0.00 / - 0.58
Material: Spring Steel Radial Wall (S) min/max: 1.14 mm Groove Width (W): 0.71 mm Clearance in Groove (C1): 11.98 mm Category: Retaining Rings - External - Snap Rings
Part Number: WRE-0103-LS-L External Retaining Rings - 10.31x0.64x9.75 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 10.31 mm _{(0.406 in.)}	Clip Thickness (T) 0.91 mm _{(0.036 in.)}	Groove Dia. (Dg) 9.40 mm _{(0.37 in.)}	Approx. Loose Circlip ID (A) 9.12 mm	Radial Wall (S) min/max 9.40 mm + 0.08 / - 0.00	Groove Width (W) 0.97 mm + 0.08 / - 0.00
Material: Spring Steel Clearance on Shaft (C1): 10.94 mm Clearance in Groove (C1): Round Section mm Category: Retaining Rings - External - Round Wire
Part Number: WRE-0103-RD External Retaining Rings - 10.31x0.91x9.4 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 10.31 mm _{(0.406 in.)}	Clip Thickness (T) 0.91 mm _{(0.036 in.)}	Groove Dia. (Dg) 9.40 mm _{(0.37 in.)}	Approx. Loose Circlip ID (A) 9.12 mm
Material: Spring Steel Radial Wall (S) min/max: 9.40 mm + 0.08 / - 0.00 Groove Width (W): 0.97 mm + 0.08 / - 0.00 Clearance on Shaft (C1): 10.94 mm Clearance in Groove (C1): Round Section mm Category: Retaining Rings - External - Round Wire
Part Number: WRE-0103-RD External Retaining Rings - 10.31x0.91x9.4 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips
Part Number: CCE-01032-C (20 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel 4 units (80 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01032-C (20 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel 4 units (80 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-01032-C (20 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel CCE-01032-C (20 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Regular price $5.59 AUD Regular price Sale price $5.59 AUD Unit price per 4 Available Now
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips
Part Number: CCE-01032-CZY (500 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $147.14 AUD Regular price Sale price $147.14 AUD Unit price per Per 500
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01032-CZY (500 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $147.14 AUD Regular price Sale price $147.14 AUD Unit price per Per 500 View the product page first if you are unsure.
CCE-01032-CZY (500 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Zinc Plated CCE-01032-CZY (500 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Carbon Steel Zinc Plated Regular price $147.14 AUD Regular price Sale price $147.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips
Part Number: CCE-01032-S15 (2 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo 75 units (150 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 2
Shaft Diameter (Ds) 10.32 mm _{(0.406 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 9.70 mm +/- 0.051 _{(0.382 in.)}	Approx. Loose Circlip ID (A) 9.30 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 0.74 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01032-S15 (2 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo 75 units (150 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01032-S15 (2 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo CCE-01032-S15 (2 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per 75 Available Now
Shaft Diameter (Ds) 10.87 mm _{(0.428 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 10.21 mm +/- 0.051 _{(0.402 in.)}	Approx. Loose Circlip ID (A) 10.10 mm		Groove Width (W) 1.00 mm
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - External - Circlips
Part Number: CCE-01087H-S15 External Retaining Rings - 10.87x0.89x10.21 mm - Stainless Steel Grade PH15-7 Mo 5 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Each
Shaft Diameter (Ds) 10.87 mm _{(0.428 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 10.21 mm +/- 0.051 _{(0.402 in.)}	Approx. Loose Circlip ID (A) 10.10 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.00 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01087H-S15 External Retaining Rings - 10.87x0.89x10.21 mm - Stainless Steel Grade PH15-7 Mo 5 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Each View the product page first if you are unsure.
CCE-01087H-S15 --- External Retaining Rings - 10.87x0.89x10.21 mm - Stainless Steel Grade PH15-7 Mo CCE-01087H-S15 --- External Retaining Rings - 10.87x0.89x10.21 mm - Stainless Steel Grade PH15-7 Mo Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per 5 Available Now
Shaft Diameter (Ds) 10.87 mm _{(0.428 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 10.21 mm +/- 0.051 _{(0.402 in.)}	Approx. Loose Circlip ID (A) 10.10 mm		Groove Width (W) 1.00 mm
Material: Carbon Steel Category: Retaining Rings - External - Circlips
Part Number: CCE-01087H-C (100 Pcs) External Retaining Rings - 10.87x0.89x10.21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $49.50 AUD Regular price Sale price $49.50 AUD Unit price per Per 100
Shaft Diameter (Ds) 10.87 mm _{(0.428 in.)}	Clip Thickness (T) 0.89 mm + 0.025 / - 0.052 _{(0.035 in.)}	Groove Dia. (Dg) 10.21 mm +/- 0.051 _{(0.402 in.)}	Approx. Loose Circlip ID (A) 10.10 mm
Material: Carbon Steel Groove Width (W): 1.00 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01087H-C (100 Pcs) External Retaining Rings - 10.87x0.89x10.21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $49.50 AUD Regular price Sale price $49.50 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-01087H-C (100 Pcs) --- External Retaining Rings - 10.87x0.89x10.21 mm - Carbon Steel CCE-01087H-C (100 Pcs) --- External Retaining Rings - 10.87x0.89x10.21 mm - Carbon Steel Regular price $49.50 AUD Regular price Sale price $49.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 10.39 mm + 0.00 / - 0.06 _{(0.409 in.)}	Approx. Loose Circlip ID (A) 10.20 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.10 mm Clearance in Groove (C1): 18.00 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01100-S15 (5 Pcs) External Retaining Rings - 11x1x10.39 mm - Stainless Steel Grade PH15-7 Mo 66 units (330 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 10.39 mm + 0.00 / - 0.06 _{(0.409 in.)}	Approx. Loose Circlip ID (A) 10.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.10 mm Clearance in Groove (C1): 18.00 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01100-S15 (5 Pcs) External Retaining Rings - 11x1x10.39 mm - Stainless Steel Grade PH15-7 Mo 66 units (330 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-01100-S15 (5 Pcs) --- External Retaining Rings - 11x1x10.39 mm - Stainless Steel Grade PH15-7 Mo CCE-01100-S15 (5 Pcs) --- External Retaining Rings - 11x1x10.39 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 66 Available Now
Shaft Diameter (Ds) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 10.50 mm + 0.00 / - 0.06 _{(0.413 in.)}	Approx. Loose Circlip ID (A) 10.20 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Clearance on Shaft (C1): 18.00 mm Clearance in Groove (C1): 17.10 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01100-C (50 Pcs) External Retaining Rings - 11x1x10.5 mm - Carbon Steel 5 units (250 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 50
Shaft Diameter (Ds) 11.00 mm _{(0.433 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 10.50 mm + 0.00 / - 0.06 _{(0.413 in.)}	Approx. Loose Circlip ID (A) 10.20 mm
Material: Carbon Steel Groove Width (W): 1.10 mm Clearance on Shaft (C1): 18.00 mm Clearance in Groove (C1): 17.10 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01100-C (50 Pcs) External Retaining Rings - 11x1x10.5 mm - Carbon Steel 5 units (250 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-01100-C (50 Pcs) --- External Retaining Rings - 11x1x10.5 mm - Carbon Steel CCE-01100-C (50 Pcs) --- External Retaining Rings - 11x1x10.5 mm - Carbon Steel Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per 5 Available Now
Shaft Diameter (Ds) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 10.46 mm +/- 0.051 _{(0.412 in.)}	Approx. Loose Circlip ID (A) 10.03 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01111-S15 (2 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm - Stainless Steel Grade PH15-7 Mo 87 units (174 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2
Shaft Diameter (Ds) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 10.46 mm +/- 0.051 _{(0.412 in.)}	Approx. Loose Circlip ID (A) 10.03 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01111-S15 (2 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm - Stainless Steel Grade PH15-7 Mo 87 units (174 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01111-S15 (2 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm - Stainless Steel Grade PH15-7 Mo CCE-01111-S15 (2 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm - Stainless Steel Grade PH15-7 Mo Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 87 Available Now
Shaft Diameter (Ds) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 10.46 mm +/- 0.051 _{(0.412 in.)}	Approx. Loose Circlip ID (A) 10.03 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01111-C (20 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel 50 units (1000 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Per 20
Shaft Diameter (Ds) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 10.46 mm +/- 0.051 _{(0.412 in.)}	Approx. Loose Circlip ID (A) 10.03 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01111-C (20 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel 50 units (1000 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-01111-C (20 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel CCE-01111-C (20 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 50 Available Now
Shaft Diameter (Ds) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 10.46 mm +/- 0.051 _{(0.412 in.)}	Approx. Loose Circlip ID (A) 10.03 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Category: Retaining Rings - External - Circlips

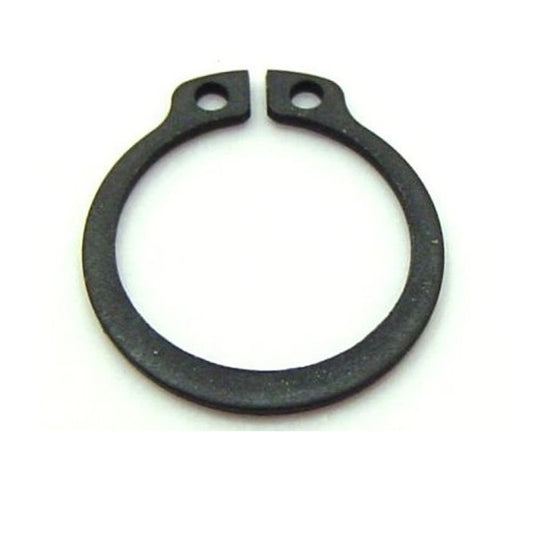

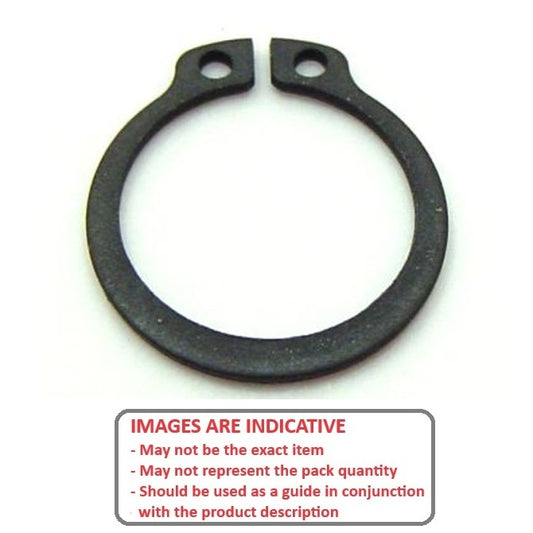

Part Number: CCE-01111-CZ (500 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $148.50 AUD Regular price Sale price $148.50 AUD Unit price per Per 500
Shaft Diameter (Ds) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 10.46 mm +/- 0.051 _{(0.412 in.)}	Approx. Loose Circlip ID (A) 10.03 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01111-CZ (500 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $148.50 AUD Regular price Sale price $148.50 AUD Unit price per Per 500 View the product page first if you are unsure.
CCE-01111-CZ (500 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Zinc Plated CCE-01111-CZ (500 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Zinc Plated Regular price $148.50 AUD Regular price Sale price $148.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 10.46 mm +/- 0.051 _{(0.412 in.)}	Approx. Loose Circlip ID (A) 10.03 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Zinc Plated Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01111-CZY (100 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $34.14 AUD Regular price Sale price $34.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 11.11 mm _{(0.437 in.)}	Clip Thickness (T) 0.64 mm +/- 0.051 _{(0.025 in.)}	Groove Dia. (Dg) 10.46 mm +/- 0.051 _{(0.412 in.)}	Approx. Loose Circlip ID (A) 10.03 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Category: Retaining Rings - External - Circlips
Part Number: CCE-01111-CZY (100 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $34.14 AUD Regular price Sale price $34.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-01111-CZY (100 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Zinc Plated CCE-01111-CZY (100 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm - Carbon Steel Zinc Plated Regular price $34.14 AUD Regular price Sale price $34.14 AUD Unit price per Out of stock! Backorder Now
