Collection: Retaining Rings - External
1599 Products in this selection

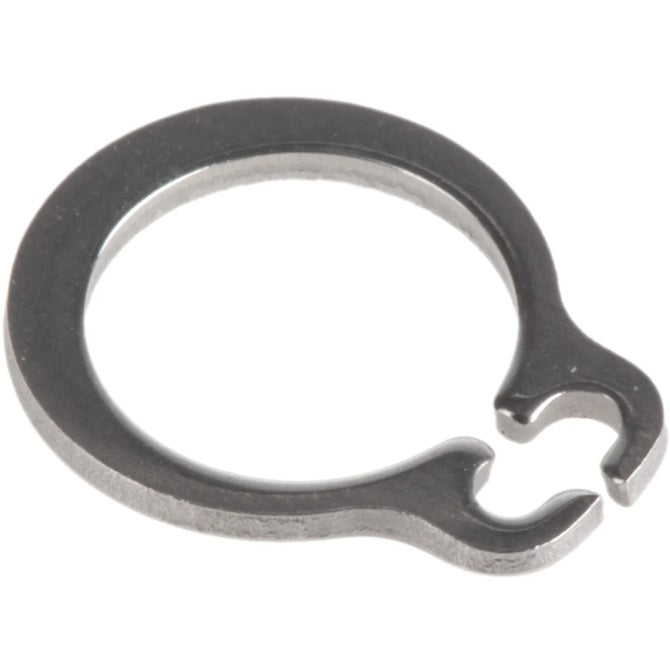

This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
1.58
mm (0.062 in.) |
Clip Thickness (T)
0.23
mm (0.009 in.) |
Groove Dia. (Dg)
1.32
mm (0.052 in.) |
Approx. Loose Circlip ID (A)
1.30
mm |
Radial Wall (S) min/max
1.32
mm + 0.08 / - 0.00 |
Groove Width (W)
0.25
mm + 0.08 / - 0.00 |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 1.76 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0016-RD External Retaining Rings - 1.58x0.23x1.32 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
1.58
mm (0.062 in.) |
Clip Thickness (T)
0.23
mm (0.009 in.) |
Groove Dia. (Dg)
1.32
mm (0.052 in.) |
Approx. Loose Circlip ID (A)
1.30
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.32 mm + 0.08 / - 0.00
Groove Width (W): 0.25 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 1.76 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0016-RD External Retaining Rings - 1.58x0.23x1.32 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
2.11
mm (0.083 in.) |
Clip Thickness (T)
0.23
mm (0.009 in.) |
Groove Dia. (Dg)
1.85
mm (0.073 in.) |
Approx. Loose Circlip ID (A)
1.83
mm |
Radial Wall (S) min/max
1.85
mm + 0.08 / - 0.00 |
Groove Width (W)
0.25
mm + 0.08 / - 0.00 |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 2.29 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0021-RD External Retaining Rings - 2.11x0.23x1.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
2.11
mm (0.083 in.) |
Clip Thickness (T)
0.23
mm (0.009 in.) |
Groove Dia. (Dg)
1.85
mm (0.073 in.) |
Approx. Loose Circlip ID (A)
1.83
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.85 mm + 0.08 / - 0.00
Groove Width (W): 0.25 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 2.29 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0021-RD External Retaining Rings - 2.11x0.23x1.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
2.39
mm (0.094 in.) |
Clip Thickness (T)
0.27
mm (0.011 in.) |
Groove Dia. (Dg)
2.08
mm (0.082 in.) |
Approx. Loose Circlip ID (A)
2.03
mm |
Radial Wall (S) min/max
2.08
mm + 0.08 / - 0.00 |
Groove Width (W)
0.28
mm + 0.08 / - 0.00 |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 2.57 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0024-RD External Retaining Rings - 2.39x0.27x2.08 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
2.39
mm (0.094 in.) |
Clip Thickness (T)
0.27
mm (0.011 in.) |
Groove Dia. (Dg)
2.08
mm (0.082 in.) |
Approx. Loose Circlip ID (A)
2.03
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 2.08 mm + 0.08 / - 0.00
Groove Width (W): 0.28 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 2.57 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0024-RD External Retaining Rings - 2.39x0.27x2.08 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
2.39
mm +/- 0.05
(0.094 in.) |
Clip Thickness (T)
0.64
mm (0.025 in.) |
Approx. Loose Circlip ID (A)
2.26
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 6.60 mm
Clearance in Groove (C1): 41 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00239-C (5 Pcs) External Retaining Rings - 2.39x0.64 - - - Carbon Steel
179 units (895 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$2.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
2.39
mm +/- 0.05 (0.094 in.) |
Clip Thickness (T)
0.64
mm (0.025 in.) |
Approx. Loose Circlip ID (A)
2.26
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 6.60 mm
Clearance in Groove (C1): 41 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00239-C (5 Pcs) External Retaining Rings - 2.39x0.64 - - - Carbon Steel
179 units (895 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$2.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
2.39
mm +/- 0.05
(0.094 in.) |
Clip Thickness (T)
0.64
mm (0.025 in.) |
Approx. Loose Circlip ID (A)
2.26
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 6.60 mm
Clearance in Groove (C1): 33 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00239-06-420-2 External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C
90 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$6.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
2.39
mm +/- 0.05 (0.094 in.) |
Clip Thickness (T)
0.64
mm (0.025 in.) |
Approx. Loose Circlip ID (A)
2.26
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 6.60 mm
Clearance in Groove (C1): 33 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00239-06-420-2 External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C
90 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$6.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
2.50
mm + 0 / - 0.025
(0.098 in.) |
Clip Thickness (T)
0.60
mm (0.024 in.) |
Approx. Loose Circlip ID (A)
2.35
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 6.50 mm
Clearance in Groove (C1): 60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00250-C (100 Pcs) External Retaining Rings - 2.5x0.6 - - - Carbon Steel
3 units (300 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
2.50
mm + 0 / - 0.025 (0.098 in.) |
Clip Thickness (T)
0.60
mm (0.024 in.) |
Approx. Loose Circlip ID (A)
2.35
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 6.50 mm
Clearance in Groove (C1): 60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00250-C (100 Pcs) External Retaining Rings - 2.5x0.6 - - - Carbon Steel
3 units (300 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
2.54
mm (0.1 in.) |
Clip Thickness (T)
0.27
mm (0.011 in.) |
Groove Dia. (Dg)
2.26
mm (0.089 in.) |
Approx. Loose Circlip ID (A)
2.21
mm |
Radial Wall (S) min/max
2.26
mm + 0.08 / - 0.00 |
Groove Width (W)
0.28
mm + 0.08 / - 0.00 |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 2.75 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0025-RD External Retaining Rings - 2.54x0.27x2.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
2.54
mm (0.1 in.) |
Clip Thickness (T)
0.27
mm (0.011 in.) |
Groove Dia. (Dg)
2.26
mm (0.089 in.) |
Approx. Loose Circlip ID (A)
2.21
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 2.26 mm + 0.08 / - 0.00
Groove Width (W): 0.28 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 2.75 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0025-RD External Retaining Rings - 2.54x0.27x2.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.00
mm (0.118 in.) |
Clip Thickness (T)
0.30
mm +/- 0.02 (0.012 in.) |
Groove Dia. (Dg)
2.70
mm + 0 / - 0.05 (0.106 in.) |
Approx. Loose Circlip ID (A)
2.60
mm |
Radial Wall (S) min/max
0.50
mm + 0 / - 0.10 |
Groove Width (W)
0.33
mm |
|
|
Material: Stainless Steel 301 S11/S22
Clearance in Groove (C1): 3.6 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0030-LS-S1 (500 Pcs) External Retaining Rings - 3x0.3x2.7 mm - Stainless Steel 301 S11/S22
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 06, 2025 Regular price
$724.50 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Shaft Diameter (Ds)
3.00
mm (0.118 in.) |
Clip Thickness (T)
0.30
mm +/- 0.02 (0.012 in.) |
Groove Dia. (Dg)
2.70
mm + 0 / - 0.05 (0.106 in.) |
Approx. Loose Circlip ID (A)
2.60
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) min/max: 0.50 mm + 0 / - 0.10
Groove Width (W): 0.33 mm
Clearance in Groove (C1): 3.6 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0030-LS-S1 (500 Pcs) External Retaining Rings - 3x0.3x2.7 mm - Stainless Steel 301 S11/S22
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 06, 2025 Regular price
$724.50 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Shaft Diameter (Ds)
3.00
mm (0.118 in.) |
Clip Thickness (T)
0.40
mm + 0.00 / - 0.04 (0.016 in.) |
Groove Dia. (Dg)
2.80
mm + 0.00 / - 0.05 (0.11 in.) |
Approx. Loose Circlip ID (A)
2.70
mm |
Groove Width (W)
0.50
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 7.00 mm
Clearance in Groove (C1): 6.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel
33 units (3300 pcs) Available Immediately | Further orders can be expected around Thu, Aug 07, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
3.00
mm (0.118 in.) |
Clip Thickness (T)
0.40
mm + 0.00 / - 0.04 (0.016 in.) |
Groove Dia. (Dg)
2.80
mm + 0.00 / - 0.05 (0.11 in.) |
Approx. Loose Circlip ID (A)
2.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.50 mm
Clearance on Shaft (C1): 7.00 mm
Clearance in Groove (C1): 6.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel
33 units (3300 pcs) Available Immediately | Further orders can be expected around Thu, Aug 07, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
3.00
mm +/- 0.06
(0.118 in.) |
Clip Thickness (T)
0.60
mm (0.024 in.) |
Approx. Loose Circlip ID (A)
2.84
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 7.40 mm
Clearance in Groove (C1): 73 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00300-C (100 Pcs) External Retaining Rings - 3x0.6 - - - Carbon Steel
1 pack (100 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
3.00
mm +/- 0.06 (0.118 in.) |
Clip Thickness (T)
0.60
mm (0.024 in.) |
Approx. Loose Circlip ID (A)
2.84
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 7.40 mm
Clearance in Groove (C1): 73 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00300-C (100 Pcs) External Retaining Rings - 3x0.6 - - - Carbon Steel
1 pack (100 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (0.117 in.) |
Approx. Loose Circlip ID (A)
2.80
mm |
Groove Width (W)
0.30
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel
1 pack (140 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Per 140
|
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (0.117 in.) |
Approx. Loose Circlip ID (A)
2.80
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.30 mm
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel
1 pack (140 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Per 140
|
||||||
|
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (0.117 in.) |
Approx. Loose Circlip ID (A)
2.80
mm |
Groove Width (W)
0.30
mm |
|
|
|
Material: Zinc Plated Beryllium Copper
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm - Zinc Plated Beryllium Copper
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (0.117 in.) |
Approx. Loose Circlip ID (A)
2.80
mm |
|
||
|
Material: Zinc Plated Beryllium Copper
Groove Width (W): 0.30 mm
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm - Zinc Plated Beryllium Copper
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (0.117 in.) |
Approx. Loose Circlip ID (A)
2.84
mm |
Groove Width (W)
0.30
mm |
|
|
|
Material: Beryllium Copper
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper
12 units (240 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.25
mm +/- 0.038 (0.01 in.) |
Groove Dia. (Dg)
2.97
mm +/- 0.025 (0.117 in.) |
Approx. Loose Circlip ID (A)
2.84
mm |
|
||
|
Material: Beryllium Copper
Groove Width (W): 0.30 mm
Clearance on Shaft (C1): 5.59 mm
Clearance in Groove (C1): 5.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper
12 units (240 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.32
mm (0.013 in.) |
Groove Dia. (Dg)
2.87
mm (0.113 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
Radial Wall (S) min/max
2.87
mm + 0.08 / - 0.00 |
Groove Width (W)
0.33
mm + 0.08 / - 0.00 |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 3.43 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD External Retaining Rings - 3.18x0.32x2.87 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.32
mm (0.013 in.) |
Groove Dia. (Dg)
2.87
mm (0.113 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 2.87 mm + 0.08 / - 0.00
Groove Width (W): 0.33 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 3.43 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD External Retaining Rings - 3.18x0.32x2.87 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.51
mm +/- 0.05 |
Groove Width (W)
0.61
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 3.92 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0032-SQ-O External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 0.51 mm +/- 0.05
Groove Width (W): 0.61 mm
Clearance in Groove (C1): 3.92 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0032-SQ-O External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.51
mm +/- 0.05 |
Groove Width (W)
0.61
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 3.92 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0032-SQ-C External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 0.51 mm +/- 0.05
Groove Width (W): 0.61 mm
Clearance in Groove (C1): 3.92 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0032-SQ-C External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (0.022 in.) |
Groove Dia. (Dg)
2.79
mm + 0.08 / - 0.00 (0.11 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
Radial Wall (S) min/max
2.79
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 3.91 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD-C External Retaining Rings - 3.18x0.56x2.79 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (0.022 in.) |
Groove Dia. (Dg)
2.79
mm + 0.08 / - 0.00 (0.11 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 2.79 mm
Groove Width (W): 0.61 mm
Clearance on Shaft (C1): 3.91 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD-C External Retaining Rings - 3.18x0.56x2.79 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (0.022 in.) |
Groove Dia. (Dg)
2.82
mm + 0.08 / - 0.00 (0.111 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
Radial Wall (S) min/max
2.82
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 3.91 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD-O External Retaining Rings - 3.18x0.56x2.82 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm (0.125 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (0.022 in.) |
Groove Dia. (Dg)
2.82
mm + 0.08 / - 0.00 (0.111 in.) |
Approx. Loose Circlip ID (A)
2.79
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 2.82 mm
Groove Width (W): 0.61 mm
Clearance on Shaft (C1): 3.91 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0032-RD-O External Retaining Rings - 3.18x0.56x2.82 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.18
mm +/- 0.05
(0.125 in.) |
Clip Thickness (T)
0.64
mm (0.025 in.) |
Approx. Loose Circlip ID (A)
3.05
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 8.38 mm
Clearance in Groove (C1): 41 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00318-06-420-2 External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C
1 Available Immediately | Further orders can be expected around Thu, Aug 07, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
3.18
mm +/- 0.05 (0.125 in.) |
Clip Thickness (T)
0.64
mm (0.025 in.) |
Approx. Loose Circlip ID (A)
3.05
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 8.38 mm
Clearance in Groove (C1): 41 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00318-06-420-2 External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C
1 Available Immediately | Further orders can be expected around Thu, Aug 07, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
3.18
mm +/- 0.05
(0.125 in.) |
Clip Thickness (T)
0.64
mm (0.025 in.) |
Approx. Loose Circlip ID (A)
3.05
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 8.38 mm
Clearance in Groove (C1): 81 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00318-C (5 Pcs) External Retaining Rings - 3.18x0.64 - - - Carbon Steel
119 units (595 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$2.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
3.18
mm +/- 0.05 (0.125 in.) |
Clip Thickness (T)
0.64
mm (0.025 in.) |
Approx. Loose Circlip ID (A)
3.05
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 8.38 mm
Clearance in Groove (C1): 81 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00318-C (5 Pcs) External Retaining Rings - 3.18x0.64 - - - Carbon Steel
119 units (595 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$2.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
3.96
mm (0.156 in.) |
Clip Thickness (T)
0.32
mm (0.013 in.) |
Groove Dia. (Dg)
3.63
mm (0.143 in.) |
Approx. Loose Circlip ID (A)
3.51
mm |
Radial Wall (S) min/max
3.63
mm + 0.08 / - 0.00 |
Groove Width (W)
0.33
mm + 0.08 / - 0.00 |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 4.15 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0039-RD External Retaining Rings - 3.96x0.32x3.63 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.96
mm (0.156 in.) |
Clip Thickness (T)
0.32
mm (0.013 in.) |
Groove Dia. (Dg)
3.63
mm (0.143 in.) |
Approx. Loose Circlip ID (A)
3.51
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 3.63 mm + 0.08 / - 0.00
Groove Width (W): 0.33 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 4.15 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0039-RD External Retaining Rings - 3.96x0.32x3.63 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.96
mm (0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
0.51
mm +/- 0.08 |
Groove Width (W)
0.61
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 4.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0039-SQ-O External Retaining Rings - 3.96x0.51x3.71 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.96
mm (0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 0.51 mm +/- 0.08
Groove Width (W): 0.61 mm
Clearance in Groove (C1): 4.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0039-SQ-O External Retaining Rings - 3.96x0.51x3.71 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.96
mm (0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
0.51
mm +/- 0.08 |
Groove Width (W)
0.61
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 4.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0039-SQ-C External Retaining Rings - 3.96x0.51x3.71 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.96
mm (0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 0.51 mm +/- 0.08
Groove Width (W): 0.61 mm
Clearance in Groove (C1): 4.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0039-SQ-C External Retaining Rings - 3.96x0.51x3.71 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.96
mm (0.156 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (0.022 in.) |
Groove Dia. (Dg)
3.61
mm + 0.08 / - 0.00 (0.142 in.) |
Approx. Loose Circlip ID (A)
3.56
mm |
Radial Wall (S) min/max
3.61
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 4.68 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0039-RD-C External Retaining Rings - 3.96x0.56x3.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
3.96
mm (0.156 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (0.022 in.) |
Groove Dia. (Dg)
3.61
mm + 0.08 / - 0.00 (0.142 in.) |
Approx. Loose Circlip ID (A)
3.56
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 3.61 mm
Groove Width (W): 0.61 mm
Clearance on Shaft (C1): 4.68 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0039-RD-C External Retaining Rings - 3.96x0.56x3.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
