Collection: Retaining Rings - External
1599 Products in this selection
This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

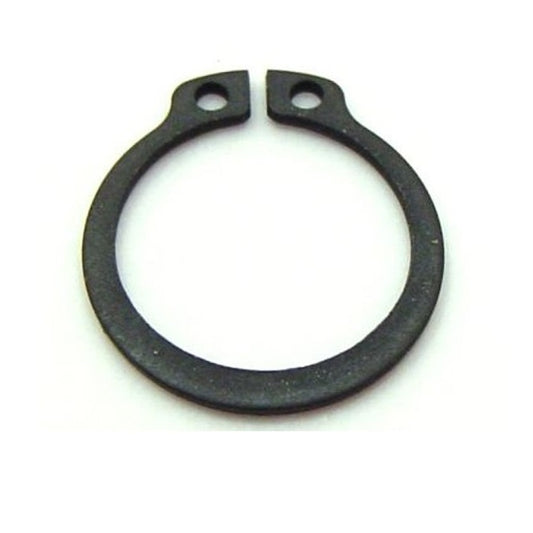

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
8.99
mm (0.354 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.40
mm +/- 0.051 (0.331 in.) |
Approx. Loose Circlip ID (A)
8.13
mm |
Groove Width (W)
0.70
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance on Shaft (C1): 14.99 mm
Clearance in Groove (C1): 14.73 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00899-CZY (100 Pcs) External Retaining Rings - 8.99x0.64x8.4 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$31.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
8.99
mm (0.354 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.40
mm +/- 0.051 (0.331 in.) |
Approx. Loose Circlip ID (A)
8.13
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.70 mm
Clearance on Shaft (C1): 14.99 mm
Clearance in Groove (C1): 14.73 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00899-CZY (100 Pcs) External Retaining Rings - 8.99x0.64x8.4 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$31.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.00
mm (0.354 in.) |
Clip Thickness (T)
0.50
mm +/- 0.02 (0.02 in.) |
Groove Dia. (Dg)
8.50
mm + 0 / - 0.05 (0.335 in.) |
Approx. Loose Circlip ID (A)
8.30
mm |
Radial Wall (S) min/max
0.90
mm + 0 / - 0.10 |
Groove Width (W)
0.55
mm |
|
|
Material: Stainless Steel 301 S11/S22
Clearance in Groove (C1): 10.1 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0090-LS-S1 (500 Pcs) External Retaining Rings - 9x0.5x8.5 mm - Stainless Steel 301 S11/S22
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 06, 2025 Regular price
$917.86 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Shaft Diameter (Ds)
9.00
mm (0.354 in.) |
Clip Thickness (T)
0.50
mm +/- 0.02 (0.02 in.) |
Groove Dia. (Dg)
8.50
mm + 0 / - 0.05 (0.335 in.) |
Approx. Loose Circlip ID (A)
8.30
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) min/max: 0.90 mm + 0 / - 0.10
Groove Width (W): 0.55 mm
Clearance in Groove (C1): 10.1 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0090-LS-S1 (500 Pcs) External Retaining Rings - 9x0.5x8.5 mm - Stainless Steel 301 S11/S22
Out of Stock | Backorder Now | Orders can be expected around Sun, Jul 06, 2025 Regular price
$917.86 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.00
mm (0.354 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.06 (0.039 in.) |
Groove Dia. (Dg)
8.60
mm + 0.00 / - 0.06 (0.339 in.) |
Approx. Loose Circlip ID (A)
8.40
mm |
Groove Width (W)
1.10
mm |
|
|
|

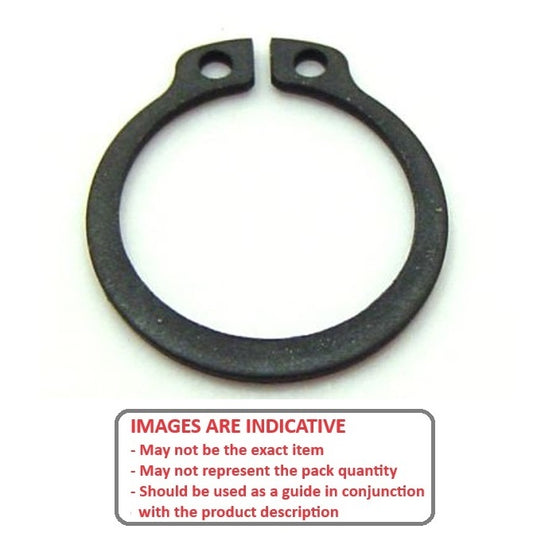

Material: Carbon Steel
Clearance on Shaft (C1): 16.00 mm
Clearance in Groove (C1): 15.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00900-C (50 Pcs) External Retaining Rings - 9x1x8.6 mm - Carbon Steel
2 units (100 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
9.00
mm (0.354 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.06 (0.039 in.) |
Groove Dia. (Dg)
8.60
mm + 0.00 / - 0.06 (0.339 in.) |
Approx. Loose Circlip ID (A)
8.40
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm
Clearance on Shaft (C1): 16.00 mm
Clearance in Groove (C1): 15.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00900-C (50 Pcs) External Retaining Rings - 9x1x8.6 mm - Carbon Steel
2 units (100 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.00
mm (0.354 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.06 (0.039 in.) |
Groove Dia. (Dg)
8.60
mm + 0.00 / - 0.06 (0.339 in.) |
Approx. Loose Circlip ID (A)
8.40
mm |
Groove Width (W)
1.10
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 16.00 mm
Clearance in Groove (C1): 15.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00900-S15 (5 Pcs) External Retaining Rings - 9x1x8.6 mm - Stainless Steel Grade PH15-7 Mo
10 units (50 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$15.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
9.00
mm (0.354 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.06 (0.039 in.) |
Groove Dia. (Dg)
8.60
mm + 0.00 / - 0.06 (0.339 in.) |
Approx. Loose Circlip ID (A)
8.40
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm
Clearance on Shaft (C1): 16.00 mm
Clearance in Groove (C1): 15.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00900-S15 (5 Pcs) External Retaining Rings - 9x1x8.6 mm - Stainless Steel Grade PH15-7 Mo
10 units (50 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$15.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.525
mm (0.375 in.) |
Clip Thickness (T)
0.38
mm +/- 0.05 (0.015 in.) |
Groove Dia. (Dg)
8.92
mm (0.351 in.) |
Approx. Loose Circlip ID (A)
8.83
mm + 0.00 / - 0.25 |
Radial Wall (S) min/max
0.635
mm +/- 0.10 |
Groove Width (W)
0.46
mm +/- 0.05 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 10.10 mm +/- - 0.03
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$56.86 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Shaft Diameter (Ds)
9.525
mm (0.375 in.) |
Clip Thickness (T)
0.38
mm +/- 0.05 (0.015 in.) |
Groove Dia. (Dg)
8.92
mm (0.351 in.) |
Approx. Loose Circlip ID (A)
8.83
mm + 0.00 / - 0.25 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 0.635 mm +/- 0.10
Groove Width (W): 0.46 mm +/- 0.05
Clearance in Groove (C1): 10.10 mm +/- - 0.03
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$56.86 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.90
mm +/- 0.051 (0.35 in.) |
Approx. Loose Circlip ID (A)
8.59
mm |
Groove Width (W)
0.74
mm |
|
|
|

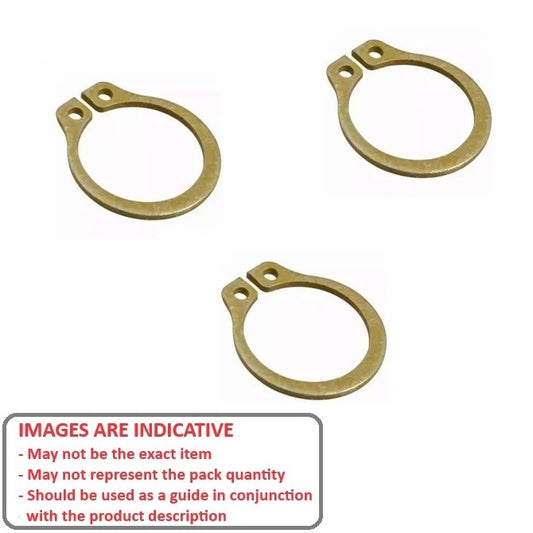

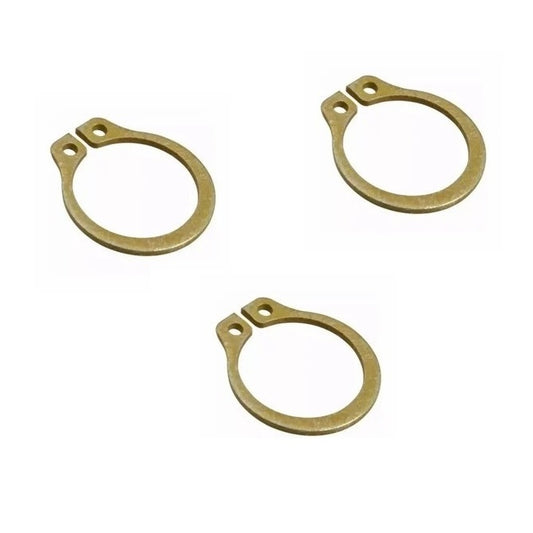

Material: Carbon Steel Zinc Plated
Clearance on Shaft (C1): 15.49 mm
Clearance in Groove (C1): 14.99 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00953-CZY (100 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$31.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.90
mm +/- 0.051 (0.35 in.) |
Approx. Loose Circlip ID (A)
8.59
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.74 mm
Clearance on Shaft (C1): 15.49 mm
Clearance in Groove (C1): 14.99 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00953-CZY (100 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$31.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.90
mm +/- 0.051 (0.35 in.) |
Approx. Loose Circlip ID (A)
8.59
mm |
Groove Width (W)
0.74
mm |
|
|
|

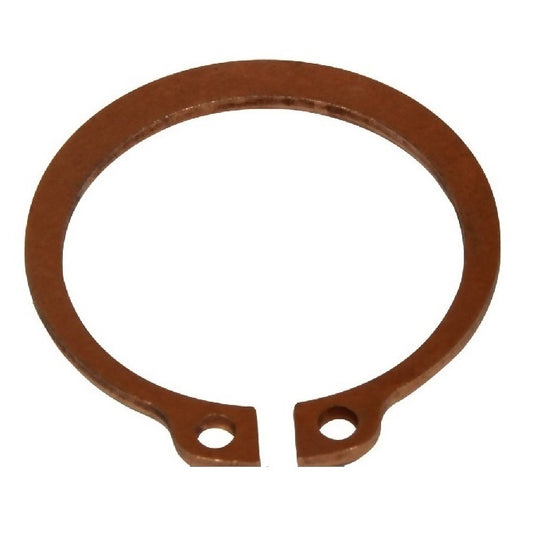

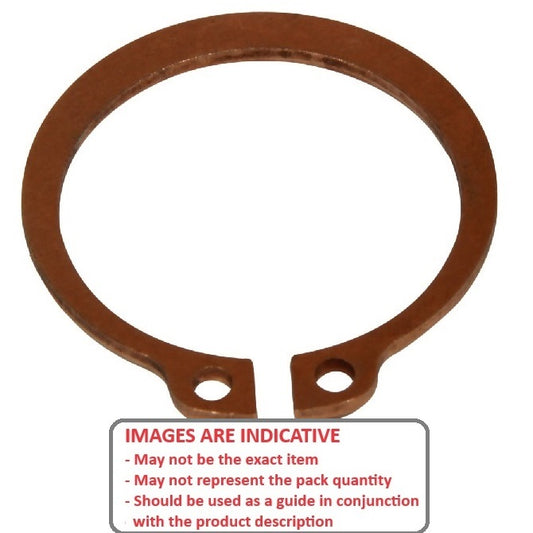

Material: Beryllium Copper
Clearance on Shaft (C1): 15.49 mm
Clearance in Groove (C1): 14.99 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00953-B (250 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$655.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.90
mm +/- 0.051 (0.35 in.) |
Approx. Loose Circlip ID (A)
8.59
mm |
|
||
|
Material: Beryllium Copper
Groove Width (W): 0.74 mm
Clearance on Shaft (C1): 15.49 mm
Clearance in Groove (C1): 14.99 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00953-B (250 Pcs) External Retaining Rings - 9.53x0.64x8.9 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$655.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
8.92
mm +/- 0.05 (0.351 in.) |
Approx. Loose Circlip ID (A)
8.66
mm + 0.00 / - 0.38 |
Radial Wall (S) min/max
1.02
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 10.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-LS External Retaining Rings - 9.53x0.64x8.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
8.92
mm +/- 0.05 (0.351 in.) |
Approx. Loose Circlip ID (A)
8.66
mm + 0.00 / - 0.38 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.02 mm +/- 0.08
Groove Width (W): 0.71 mm
Clearance in Groove (C1): 10.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-LS External Retaining Rings - 9.53x0.64x8.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.94
mm +/- 0.051 (0.352 in.) |
Approx. Loose Circlip ID (A)
8.59
mm |
Groove Width (W)
0.74
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 15.49 mm
Clearance in Groove (C1): 14.99 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00953-S15 (2 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm - Stainless Steel Grade PH15-7 Mo
18 units (36 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.94
mm +/- 0.051 (0.352 in.) |
Approx. Loose Circlip ID (A)
8.59
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.74 mm
Clearance on Shaft (C1): 15.49 mm
Clearance in Groove (C1): 14.99 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00953-S15 (2 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm - Stainless Steel Grade PH15-7 Mo
18 units (36 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.94
mm +/- 0.051 (0.352 in.) |
Approx. Loose Circlip ID (A)
8.59
mm |
Groove Width (W)
0.74
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 15.49 mm
Clearance in Groove (C1): 14.99 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00953-C (20 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm - Carbon Steel
22 units (440 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.051 (0.025 in.) |
Groove Dia. (Dg)
8.94
mm +/- 0.051 (0.352 in.) |
Approx. Loose Circlip ID (A)
8.59
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.74 mm
Clearance on Shaft (C1): 15.49 mm
Clearance in Groove (C1): 14.99 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00953-C (20 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm - Carbon Steel
22 units (440 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
8.97
mm (0.353 in.) |
Approx. Loose Circlip ID (A)
8.92
mm + 0.00 / - 0.54 |
Radial Wall (S) min/max
1.02
mm |
Groove Width (W)
0.71
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 10.96 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-LS-L External Retaining Rings - 9.53x0.64x8.97 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (0.025 in.) |
Groove Dia. (Dg)
8.97
mm (0.353 in.) |
Approx. Loose Circlip ID (A)
8.92
mm + 0.00 / - 0.54 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.02 mm
Groove Width (W): 0.71 mm
Clearance in Groove (C1): 10.96 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-LS-L External Retaining Rings - 9.53x0.64x8.97 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.74
mm +/- 0.10 (0.029 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm |
Radial Wall (S) min/max
9.07
mm |
Groove Width (W)
0.79
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 10.45 mm
Clearance in Groove (C1): Round Section mm

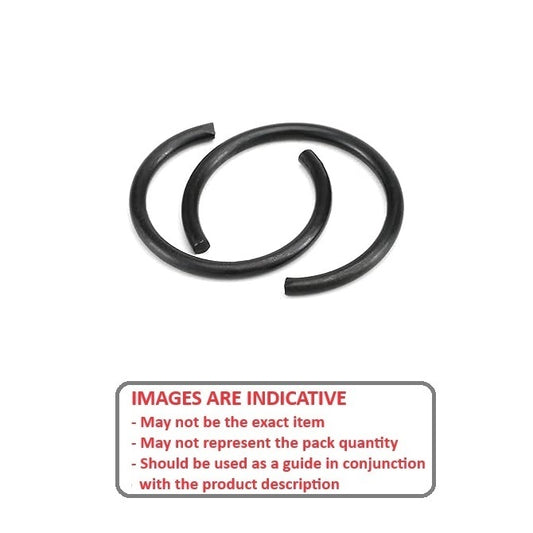

Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0095-RD-O External Retaining Rings - 9.53x0.74x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.74
mm +/- 0.10 (0.029 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.07 mm
Groove Width (W): 0.79 mm
Clearance on Shaft (C1): 10.45 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0095-RD-O External Retaining Rings - 9.53x0.74x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.89
mm +/- 0.05 |
Groove Width (W)
1.04
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 10.75 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-SQ-O External Retaining Rings - 9.53x0.89x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm + 0.00 / - 0.50 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 0.89 mm +/- 0.05
Groove Width (W): 1.04 mm
Clearance in Groove (C1): 10.75 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-SQ-O External Retaining Rings - 9.53x0.89x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
0.89
mm +/- 0.05 |
Groove Width (W)
1.04
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 10.75 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-SQ-C External Retaining Rings - 9.53x0.89x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm + 0.00 / - 0.50 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 0.89 mm +/- 0.05
Groove Width (W): 1.04 mm
Clearance in Groove (C1): 10.75 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-SQ-C External Retaining Rings - 9.53x0.89x9.07 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.91
mm (0.036 in.) |
Groove Dia. (Dg)
8.61
mm (0.339 in.) |
Approx. Loose Circlip ID (A)
8.36
mm |
Radial Wall (S) min/max
8.61
mm + 0.08 / - 0.00 |
Groove Width (W)
0.97
mm + 0.08 / - 0.00 |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 10.18 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0095-RD External Retaining Rings - 9.53x0.91x8.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
0.91
mm (0.036 in.) |
Groove Dia. (Dg)
8.61
mm (0.339 in.) |
Approx. Loose Circlip ID (A)
8.36
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 8.61 mm + 0.08 / - 0.00
Groove Width (W): 0.97 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 10.18 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0095-RD External Retaining Rings - 9.53x0.91x8.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm +/- 0.08
(0.375 in.) |
Clip Thickness (T)
1.07
mm (0.042 in.) |
Approx. Loose Circlip ID (A)
8.97
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 18.54 mm
Clearance in Groove (C1): 243 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00953-C (10 Pcs) External Retaining Rings - 9.53x1.07 - - - Carbon Steel
1 pack (10 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
9.53
mm +/- 0.08 (0.375 in.) |
Clip Thickness (T)
1.07
mm (0.042 in.) |
Approx. Loose Circlip ID (A)
8.97
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 18.54 mm
Clearance in Groove (C1): 243 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00953-C (10 Pcs) External Retaining Rings - 9.53x1.07 - - - Carbon Steel
1 pack (10 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm +/- 0.08
(0.375 in.) |
Clip Thickness (T)
1.07
mm (0.042 in.) |
Approx. Loose Circlip ID (A)
8.97
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 18.80 mm
Clearance in Groove (C1): 122 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00953-4 External Retaining Rings - 9.53x1.07 - - - Stainless Steel AISI 420C
48 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
9.53
mm +/- 0.08 (0.375 in.) |
Clip Thickness (T)
1.07
mm (0.042 in.) |
Approx. Loose Circlip ID (A)
8.97
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 18.80 mm
Clearance in Groove (C1): 122 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00953-4 External Retaining Rings - 9.53x1.07 - - - Stainless Steel AISI 420C
48 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.07
mm (0.042 in.) |
Approx. Loose Circlip ID (A)
8.970
mm |
|
|||
|
Material: Carbon Steel Zinc Plated Yellow
Clearance on Shaft (C1): 18.80 mm
Clearance in Groove (C1): 243 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00953-CZ (100 Pcs) External Retaining Rings - 9.53x1.07 - - - Carbon Steel Zinc Plated Yellow
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$89.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.07
mm (0.042 in.) |
Approx. Loose Circlip ID (A)
8.970
mm |
|
|||
|
Material: Carbon Steel Zinc Plated Yellow
Clearance on Shaft (C1): 18.80 mm
Clearance in Groove (C1): 243 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00953-CZ (100 Pcs) External Retaining Rings - 9.53x1.07 - - - Carbon Steel Zinc Plated Yellow
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$89.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.10 (0.043 in.) |
Groove Dia. (Dg)
8.87
mm + 0.08 / - 0.00 (0.349 in.) |
Approx. Loose Circlip ID (A)
8.76
mm |
Radial Wall (S) min/max
8.87
mm |
Groove Width (W)
1.14
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 10.94 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0095-RD-HO (3 Pcs) External Retaining Rings - 9.53x1.09x8.87 mm - Spring Steel
4 units (12 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$15.95 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.10 (0.043 in.) |
Groove Dia. (Dg)
8.87
mm + 0.08 / - 0.00 (0.349 in.) |
Approx. Loose Circlip ID (A)
8.76
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 8.87 mm
Groove Width (W): 1.14 mm
Clearance on Shaft (C1): 10.94 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0095-RD-HO (3 Pcs) External Retaining Rings - 9.53x1.09x8.87 mm - Spring Steel
4 units (12 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$15.95 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.10 (0.043 in.) |
Groove Dia. (Dg)
8.87
mm + 0.08 / - 0.00 (0.349 in.) |
Approx. Loose Circlip ID (A)
8.76
mm |
Radial Wall (S) min/max
8.87
mm |
Groove Width (W)
1.14
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 10.94 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0095-RD-HC External Retaining Rings - 9.53x1.09x8.87 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.10 (0.043 in.) |
Groove Dia. (Dg)
8.87
mm + 0.08 / - 0.00 (0.349 in.) |
Approx. Loose Circlip ID (A)
8.76
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 8.87 mm
Groove Width (W): 1.14 mm
Clearance on Shaft (C1): 10.94 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0095-RD-HC External Retaining Rings - 9.53x1.09x8.87 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.17
mm +/- 0.05 (0.046 in.) |
Groove Dia. (Dg)
8.92
mm + 0.08 / - 0.00 (0.351 in.) |
Approx. Loose Circlip ID (A)
8.81
mm + 0.00 / - 0.50 |
Radial Wall (S) min/max
1.17
mm +/- 0.05 |
Groove Width (W)
1.32
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 11.15 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-SQ-HC (100 Pcs) External Retaining Rings - 9.53x1.17x8.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (0.375 in.) |
Clip Thickness (T)
1.17
mm +/- 0.05 (0.046 in.) |
Groove Dia. (Dg)
8.92
mm + 0.08 / - 0.00 (0.351 in.) |
Approx. Loose Circlip ID (A)
8.81
mm + 0.00 / - 0.50 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.17 mm +/- 0.05
Groove Width (W): 1.32 mm
Clearance in Groove (C1): 11.15 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0095-SQ-HC (100 Pcs) External Retaining Rings - 9.53x1.17x8.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.98
mm (0.393 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
9.37
mm +/- 0.05 (0.369 in.) |
Approx. Loose Circlip ID (A)
9.12
mm + 0.00 / - 0.51 |
Radial Wall (S) min/max
1.02
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 11.16 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0100-LS-L External Retaining Rings - 9.98x0.64x9.37 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.98
mm (0.393 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (0.025 in.) |
Groove Dia. (Dg)
9.37
mm +/- 0.05 (0.369 in.) |
Approx. Loose Circlip ID (A)
9.12
mm + 0.00 / - 0.51 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.02 mm +/- 0.08
Groove Width (W): 0.71 mm
Clearance in Groove (C1): 11.16 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0100-LS-L External Retaining Rings - 9.98x0.64x9.37 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
10.0
mm (0.394 in.) |
Clip Thickness (T)
0.50
mm +/- 0.02 (0.02 in.) |
Groove Dia. (Dg)
9.50
mm + 0 / - 0.05 (0.374 in.) |
Approx. Loose Circlip ID (A)
9.25
mm |
Radial Wall (S) min/max
0.90
mm + 0 / - 0.10 |
Groove Width (W)
0.55
mm |
|
|
Material: Stainless Steel 301 S11/S22
Clearance in Groove (C1): 11.05 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0100-LS-S1 External Retaining Rings - 10x0.5x9.5 mm - Stainless Steel 301 S11/S22
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
10.0
mm (0.394 in.) |
Clip Thickness (T)
0.50
mm +/- 0.02 (0.02 in.) |
Groove Dia. (Dg)
9.50
mm + 0 / - 0.05 (0.374 in.) |
Approx. Loose Circlip ID (A)
9.25
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) min/max: 0.90 mm + 0 / - 0.10
Groove Width (W): 0.55 mm
Clearance in Groove (C1): 11.05 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0100-LS-S1 External Retaining Rings - 10x0.5x9.5 mm - Stainless Steel 301 S11/S22
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
10.00
mm (0.394 in.) |
Clip Thickness (T)
0.60
mm + 0.00 / - 0.11 (0.024 in.) |
Groove Dia. (Dg)
9.50
mm + 0.00 / - 0.05 (0.374 in.) |
Approx. Loose Circlip ID (A)
9.20
mm |
Radial Wall (S) min/max
1.80
mm |
Groove Width (W)
0.70
mm |
|
|
Material: Spring Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01000-C-V External Retaining Rings - 10x0.6x9.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
10.00
mm (0.394 in.) |
Clip Thickness (T)
0.60
mm + 0.00 / - 0.11 (0.024 in.) |
Groove Dia. (Dg)
9.50
mm + 0.00 / - 0.05 (0.374 in.) |
Approx. Loose Circlip ID (A)
9.20
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.80 mm
Groove Width (W): 0.70 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01000-C-V External Retaining Rings - 10x0.6x9.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
