Collection: Retaining Rings - External
1599 Products in this selection
This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

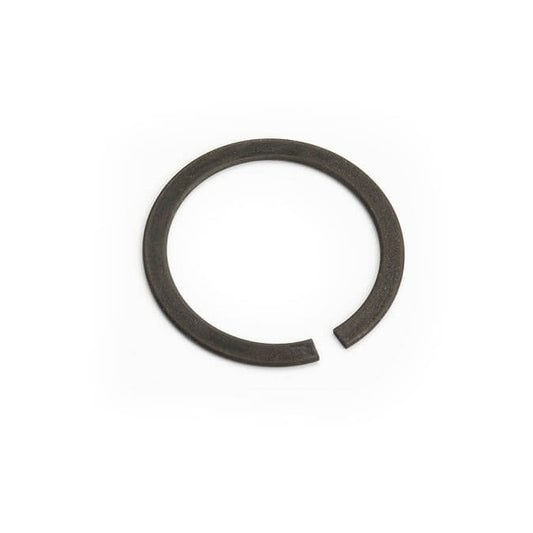

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
400.00
mm (15.748 in.) |
Clip Thickness (T)
4.50
mm + 0 / - 0.20 (0.177 in.) |
Groove Dia. (Dg)
390.00
mm + 0 / - 0.50 (15.354 in.) |
Approx. Loose Circlip ID (A)
386.00
mm |
Radial Wall (S) min/max
12.00
mm + 0 / - 0.10 |
Groove Width (W)
6.00
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 410 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-4000-LR External Retaining Rings - 400x4.5x390 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
400.00
mm (15.748 in.) |
Clip Thickness (T)
4.50
mm + 0 / - 0.20 (0.177 in.) |
Groove Dia. (Dg)
390.00
mm + 0 / - 0.50 (15.354 in.) |
Approx. Loose Circlip ID (A)
386.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.00 mm + 0 / - 0.10
Groove Width (W): 6.00 mm
Clearance in Groove (C1): 410 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-4000-LR External Retaining Rings - 400x4.5x390 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
420.00
mm (16.535 in.) |
Clip Thickness (T)
7.00
mm + 0.00 / - 1.00 (0.276 in.) |
Groove Dia. (Dg)
408.00
mm + 0.00 / - 0.15 (16.063 in.) |
Approx. Loose Circlip ID (A)
400.00
mm |
Groove Width (W)
7.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-42000-C (4 Pcs) External Retaining Rings - 420x7x408 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
420.00
mm (16.535 in.) |
Clip Thickness (T)
7.00
mm + 0.00 / - 1.00 (0.276 in.) |
Groove Dia. (Dg)
408.00
mm + 0.00 / - 0.15 (16.063 in.) |
Approx. Loose Circlip ID (A)
400.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 7.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-42000-C (4 Pcs) External Retaining Rings - 420x7x408 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
460.00
mm (18.11 in.) |
Clip Thickness (T)
4.50
mm + 0 / - 0.10 (0.177 in.) |
Groove Dia. (Dg)
455.00
mm + 0 / - 0.36 (17.913 in.) |
Approx. Loose Circlip ID (A)
449.50
mm |
Radial Wall (S) min/max
12.00
mm + 0 / - 0.10 |
Groove Width (W)
4.80
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 473.5 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-4600-LS External Retaining Rings - 460x4.5x455 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
460.00
mm (18.11 in.) |
Clip Thickness (T)
4.50
mm + 0 / - 0.10 (0.177 in.) |
Groove Dia. (Dg)
455.00
mm + 0 / - 0.36 (17.913 in.) |
Approx. Loose Circlip ID (A)
449.50
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.00 mm + 0 / - 0.10
Groove Width (W): 4.80 mm
Clearance in Groove (C1): 473.5 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-4600-LS External Retaining Rings - 460x4.5x455 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
510.00
mm (20.079 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
496.00
mm + 0.00 / - 0.15 (19.528 in.) |
Approx. Loose Circlip ID (A)
485.00
mm |
Groove Width (W)
8.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-51000-C External Retaining Rings - 510x8x496 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
510.00
mm (20.079 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
496.00
mm + 0.00 / - 0.15 (19.528 in.) |
Approx. Loose Circlip ID (A)
485.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 8.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-51000-C External Retaining Rings - 510x8x496 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
530.00
mm (20.866 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
516.00
mm + 0.00 / - 0.15 (20.315 in.) |
Approx. Loose Circlip ID (A)
505.00
mm |
Groove Width (W)
8.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-53000-C External Retaining Rings - 530x8x516 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
530.00
mm (20.866 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
516.00
mm + 0.00 / - 0.15 (20.315 in.) |
Approx. Loose Circlip ID (A)
505.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 8.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-53000-C External Retaining Rings - 530x8x516 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
550.00
mm (21.654 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
536.00
mm + 0.00 / - 0.15 (21.102 in.) |
Approx. Loose Circlip ID (A)
525.00
mm |
Groove Width (W)
8.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-55000-C External Retaining Rings - 550x8x536 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
550.00
mm (21.654 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
536.00
mm + 0.00 / - 0.15 (21.102 in.) |
Approx. Loose Circlip ID (A)
525.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 8.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-55000-C External Retaining Rings - 550x8x536 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
570.00
mm (22.441 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
556.00
mm + 0.00 / - 0.15 (21.89 in.) |
Approx. Loose Circlip ID (A)
545.00
mm |
Groove Width (W)
8.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-57000-C External Retaining Rings - 570x8x556 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
570.00
mm (22.441 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
556.00
mm + 0.00 / - 0.15 (21.89 in.) |
Approx. Loose Circlip ID (A)
545.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 8.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-57000-C External Retaining Rings - 570x8x556 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
590.00
mm (23.228 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
576.00
mm + 0.00 / - 0.15 (22.677 in.) |
Approx. Loose Circlip ID (A)
565.00
mm |
Groove Width (W)
8.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-59000-C External Retaining Rings - 590x8x576 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
590.00
mm (23.228 in.) |
Clip Thickness (T)
8.00
mm + 0.00 / - 1.00 (0.315 in.) |
Groove Dia. (Dg)
576.00
mm + 0.00 / - 0.15 (22.677 in.) |
Approx. Loose Circlip ID (A)
565.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 8.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-59000-C External Retaining Rings - 590x8x576 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
650.00
mm (25.591 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
634.00
mm + 0.00 / - 0.20 (24.961 in.) |
Approx. Loose Circlip ID (A)
620.00
mm |
Groove Width (W)
9.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-65000-C External Retaining Rings - 650x9x634 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
650.00
mm (25.591 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
634.00
mm + 0.00 / - 0.20 (24.961 in.) |
Approx. Loose Circlip ID (A)
620.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 9.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-65000-C External Retaining Rings - 650x9x634 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
700.00
mm (27.559 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
684.00
mm + 0.00 / - 0.20 (26.929 in.) |
Approx. Loose Circlip ID (A)
670.00
mm |
Groove Width (W)
9.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-70000-C External Retaining Rings - 700x9x684 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
700.00
mm (27.559 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
684.00
mm + 0.00 / - 0.20 (26.929 in.) |
Approx. Loose Circlip ID (A)
670.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 9.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-70000-C External Retaining Rings - 700x9x684 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
750.00
mm (29.528 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
732.00
mm + 0.00 / - 0.20 (28.819 in.) |
Approx. Loose Circlip ID (A)
715.00
mm |
Groove Width (W)
9.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-75000-C External Retaining Rings - 750x9x732 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
750.00
mm (29.528 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
732.00
mm + 0.00 / - 0.20 (28.819 in.) |
Approx. Loose Circlip ID (A)
715.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 9.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-75000-C External Retaining Rings - 750x9x732 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
800.00
mm (31.496 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
782.00
mm + 0.00 / - 0.20 (30.787 in.) |
Approx. Loose Circlip ID (A)
765.00
mm |
Groove Width (W)
9.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-80000-C External Retaining Rings - 800x9x782 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
800.00
mm (31.496 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
782.00
mm + 0.00 / - 0.20 (30.787 in.) |
Approx. Loose Circlip ID (A)
765.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 9.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-80000-C External Retaining Rings - 800x9x782 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
850.00
mm (33.465 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
830.00
mm + 0.00 / - 0.20 (32.677 in.) |
Approx. Loose Circlip ID (A)
810.00
mm |
Groove Width (W)
9.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-85000-C External Retaining Rings - 850x9x830 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
850.00
mm (33.465 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
830.00
mm + 0.00 / - 0.20 (32.677 in.) |
Approx. Loose Circlip ID (A)
810.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 9.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-85000-C External Retaining Rings - 850x9x830 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
900.00
mm (35.433 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
880.00
mm + 0.00 / - 0.20 (34.646 in.) |
Approx. Loose Circlip ID (A)
860.00
mm |
Groove Width (W)
9.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-90000-C External Retaining Rings - 900x9x880 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
900.00
mm (35.433 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
880.00
mm + 0.00 / - 0.20 (34.646 in.) |
Approx. Loose Circlip ID (A)
860.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 9.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-90000-C External Retaining Rings - 900x9x880 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
950.00
mm (37.402 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
928.00
mm + 0.00 / - 0.20 (36.535 in.) |
Approx. Loose Circlip ID (A)
900.00
mm |
Groove Width (W)
9.20
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-95000-C External Retaining Rings - 950x9x928 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
950.00
mm (37.402 in.) |
Clip Thickness (T)
9.00
mm + 0.00 / - 1.00 (0.354 in.) |
Groove Dia. (Dg)
928.00
mm + 0.00 / - 0.20 (36.535 in.) |
Approx. Loose Circlip ID (A)
900.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 9.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-95000-C External Retaining Rings - 950x9x928 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
