Collection: Retaining Rings - External
1599 Products in this selection
This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

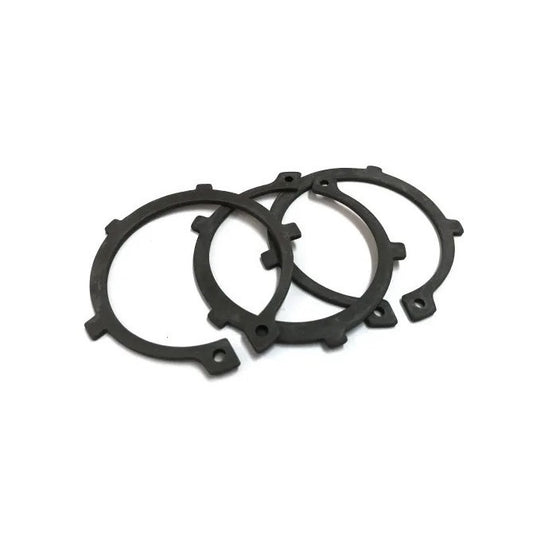

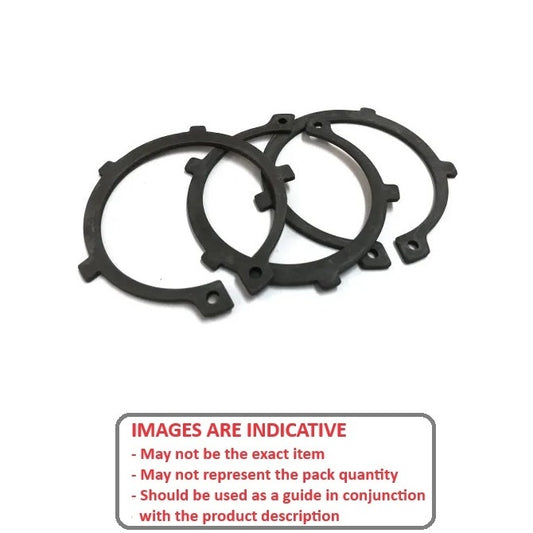

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.70
mm |
Groove Width (W)
1.60
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 27.50 mm
Clearance in Groove (C1): 26.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700H-C (20 Pcs) External Retaining Rings - 17x1.5x16.2 mm - Carbon Steel
3 units (60 pcs) Available Immediately | Further orders can be expected around Fri, Aug 08, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 20
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.60 mm
Clearance on Shaft (C1): 27.50 mm
Clearance in Groove (C1): 26.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700H-C (20 Pcs) External Retaining Rings - 17x1.5x16.2 mm - Carbon Steel
3 units (60 pcs) Available Immediately | Further orders can be expected around Fri, Aug 08, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.07
mm (0.672 in.) |
Clip Thickness (T)
0.89
mm +/- 0.076 (0.035 in.) |
Groove Dia. (Dg)
16.03
mm +/- 0.051 (0.631 in.) |
Approx. Loose Circlip ID (A)
15.77
mm |
Groove Width (W)
0.99
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 23.62 mm
Clearance in Groove (C1): 22.61 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01707-C (100 Pcs) External Retaining Rings - 17.07x0.89x16.03 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$53.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
17.07
mm (0.672 in.) |
Clip Thickness (T)
0.89
mm +/- 0.076 (0.035 in.) |
Groove Dia. (Dg)
16.03
mm +/- 0.051 (0.631 in.) |
Approx. Loose Circlip ID (A)
15.77
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.99 mm
Clearance on Shaft (C1): 23.62 mm
Clearance in Groove (C1): 22.61 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01707-C (100 Pcs) External Retaining Rings - 17.07x0.89x16.03 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$53.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.07
mm (0.672 in.) |
Clip Thickness (T)
0.89
mm +/- 0.076 (0.035 in.) |
Groove Dia. (Dg)
16.03
mm +/- 0.051 (0.631 in.) |
Approx. Loose Circlip ID (A)
15.80
mm |
Groove Width (W)
1.00
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01707-CZY (50 Pcs) External Retaining Rings - 17.07x0.89x16.03 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$31.68 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
17.07
mm (0.672 in.) |
Clip Thickness (T)
0.89
mm +/- 0.076 (0.035 in.) |
Groove Dia. (Dg)
16.03
mm +/- 0.051 (0.631 in.) |
Approx. Loose Circlip ID (A)
15.80
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.00 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01707-CZY (50 Pcs) External Retaining Rings - 17.07x0.89x16.03 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$31.68 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.07
mm (0.672 in.) |
Clip Thickness (T)
0.89
mm +/- 0.076 (0.035 in.) |
Groove Dia. (Dg)
16.03
mm +/- 0.051 (0.631 in.) |
Approx. Loose Circlip ID (A)
15.80
mm |
Radial Wall (S) min/max
B (Square Ends)
mm |
Groove Width (W)
1.00
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01707-S15 (5 Pcs) External Retaining Rings - 17.07x0.89x16.03 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
17.07
mm (0.672 in.) |
Clip Thickness (T)
0.89
mm +/- 0.076 (0.035 in.) |
Groove Dia. (Dg)
16.03
mm +/- 0.051 (0.631 in.) |
Approx. Loose Circlip ID (A)
15.80
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Radial Wall (S) min/max: B (Square Ends) mm
Groove Width (W): 1.00 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01707-S15 (5 Pcs) External Retaining Rings - 17.07x0.89x16.03 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.27
mm (0.68 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (0.025 in.) |
Groove Dia. (Dg)
16.67
mm (0.656 in.) |
Approx. Loose Circlip ID (A)
16.23
mm + 0.00 / - 0.33 |
Radial Wall (S) min/max
1.40
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.07 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.03 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-068 (5 Pcs) External Retaining Rings - 17.27x0.64x16.67 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$34.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
17.27
mm (0.68 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (0.025 in.) |
Groove Dia. (Dg)
16.67
mm (0.656 in.) |
Approx. Loose Circlip ID (A)
16.23
mm + 0.00 / - 0.33 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.40 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.07
Clearance in Groove (C1): 19.03 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-068 (5 Pcs) External Retaining Rings - 17.27x0.64x16.67 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$34.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.10
mm |
Groove Width (W)
1.20
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-CZY (50 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$36.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.10
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-CZY (50 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$36.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.10
mm |
Groove Width (W)
1.20
mm |
|
|
|
Material: Beryllium Copper
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-B (3 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.32 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.10
mm |
|
||
|
Material: Beryllium Copper
Groove Width (W): 1.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-B (3 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.32 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.13
mm |
Groove Width (W)
1.17
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Groove (C1): 25.65 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-S15 (2 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Stainless Steel Grade PH15-7 Mo
13 units (26 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.32 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.13
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 25.65 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-S15 (2 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Stainless Steel Grade PH15-7 Mo
13 units (26 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.32 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.13
mm |
Groove Width (W)
1.17
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 25.65 mm
Clearance in Groove (C1): 24.64 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-C (100 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$60.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.13
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm
Clearance on Shaft (C1): 25.65 mm
Clearance in Groove (C1): 24.64 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-C (100 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$60.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.13
mm |
Radial Wall (S) min/max
1.32
mm |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-S15-V (3 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.59 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
17.46
mm (0.687 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm +/- 0.051 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.13
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Radial Wall (S) min/max: 1.32 mm
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01746-S15-V (3 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.59 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm (0.646 in.) |
Approx. Loose Circlip ID (A)
16.26
mm + 0.00 / - 0.33 |
Radial Wall (S) min/max
1.65
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 19.56 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$12.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm (0.646 in.) |
Approx. Loose Circlip ID (A)
16.26
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) min/max: 1.65 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Clearance in Groove (C1): 19.56 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$12.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm (0.646 in.) |
Approx. Loose Circlip ID (A)
16.26
mm + 0.00 / - 0.33 |
Radial Wall (S) min/max
1.65
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.56 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-068 External Retaining Rings - 17.48x1.07x16.41 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$11.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
16.41
mm (0.646 in.) |
Approx. Loose Circlip ID (A)
16.26
mm + 0.00 / - 0.33 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.65 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Clearance in Groove (C1): 19.56 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-068 External Retaining Rings - 17.48x1.07x16.41 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$11.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
16.66
mm +/- 0.05 (0.656 in.) |
Approx. Loose Circlip ID (A)
16.36
mm + 0.00 / - 0.64 |
Radial Wall (S) min/max
1.58
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.52 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-LS External Retaining Rings - 17.48x1.07x16.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (0.042 in.) |
Groove Dia. (Dg)
16.66
mm +/- 0.05 (0.656 in.) |
Approx. Loose Circlip ID (A)
16.36
mm + 0.00 / - 0.64 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.58 mm +/- 0.08
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 19.52 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-LS External Retaining Rings - 17.48x1.07x16.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.04 (0.042 in.) |
Groove Dia. (Dg)
16.71
mm (0.658 in.) |
Approx. Loose Circlip ID (A)
16.66
mm + 0.00 / - 0.83 |
Radial Wall (S) min/max
1.52
mm |
Groove Width (W)
1.17
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-LS-L External Retaining Rings - 17.48x1.07x16.71 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.04 (0.042 in.) |
Groove Dia. (Dg)
16.71
mm (0.658 in.) |
Approx. Loose Circlip ID (A)
16.66
mm + 0.00 / - 0.83 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.52 mm
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 19.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-LS-L External Retaining Rings - 17.48x1.07x16.71 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
16.26
mm (0.64 in.) |
Approx. Loose Circlip ID (A)
15.77
mm |
Radial Wall (S) min/max
16.26
mm + 0.10 / - 0.00 |
Groove Width (W)
1.27
mm + 0.10 / - 0.00 |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 18.21 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD External Retaining Rings - 17.48x1.22x16.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
16.26
mm (0.64 in.) |
Approx. Loose Circlip ID (A)
15.77
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 16.26 mm + 0.10 / - 0.00
Groove Width (W): 1.27 mm + 0.10 / - 0.00
Clearance on Shaft (C1): 18.21 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD External Retaining Rings - 17.48x1.22x16.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
16.64
mm + 0.08 / - 0.00 (0.655 in.) |
Approx. Loose Circlip ID (A)
16.49
mm |
Radial Wall (S) min/max
16.64
mm |
Groove Width (W)
0.14
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 19.09 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD-C (100 Pcs) External Retaining Rings - 17.48x1.3x16.64 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$16.41 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
16.64
mm + 0.08 / - 0.00 (0.655 in.) |
Approx. Loose Circlip ID (A)
16.49
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 16.64 mm
Groove Width (W): 0.14 mm
Clearance on Shaft (C1): 19.09 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD-C (100 Pcs) External Retaining Rings - 17.48x1.3x16.64 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$16.41 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
16.64
mm + 0.08 / - 0.00 (0.655 in.) |
Approx. Loose Circlip ID (A)
16.49
mm |
Radial Wall (S) min/max
16.64
mm |
Groove Width (W)
1.35
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 19.09 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD-O External Retaining Rings - 17.48x1.3x16.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
16.64
mm + 0.08 / - 0.00 (0.655 in.) |
Approx. Loose Circlip ID (A)
16.49
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 16.64 mm
Groove Width (W): 1.35 mm
Clearance on Shaft (C1): 19.09 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD-O External Retaining Rings - 17.48x1.3x16.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
16.74
mm + 0.08 / - 0.00 (0.659 in.) |
Approx. Loose Circlip ID (A)
16.59
mm + 0.00 / - 0.65 |
Radial Wall (S) min/max
1.40
mm +/- 0.05 |
Groove Width (W)
1.58
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.39 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-SQ-O External Retaining Rings - 17.48x1.4x16.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
16.74
mm + 0.08 / - 0.00 (0.659 in.) |
Approx. Loose Circlip ID (A)
16.59
mm + 0.00 / - 0.65 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.40 mm +/- 0.05
Groove Width (W): 1.58 mm
Clearance in Groove (C1): 19.39 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-SQ-O External Retaining Rings - 17.48x1.4x16.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
16.74
mm + 0.08 / - 0.00 (0.659 in.) |
Approx. Loose Circlip ID (A)
16.59
mm + 0.00 / - 0.65 |
Radial Wall (S) min/max
1.40
mm +/- 0.05 |
Groove Width (W)
1.58
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.39 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-SQ-C External Retaining Rings - 17.48x1.4x16.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
16.74
mm + 0.08 / - 0.00 (0.659 in.) |
Approx. Loose Circlip ID (A)
16.59
mm + 0.00 / - 0.65 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.40 mm +/- 0.05
Groove Width (W): 1.58 mm
Clearance in Groove (C1): 19.39 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-SQ-C External Retaining Rings - 17.48x1.4x16.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
16.33
mm + 0.08 / - 0.00 (0.643 in.) |
Approx. Loose Circlip ID (A)
16.18
mm |
Radial Wall (S) min/max
16.33
mm |
Groove Width (W)
1.85
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 19.78 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD-HC External Retaining Rings - 17.48x1.8x16.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
16.33
mm + 0.08 / - 0.00 (0.643 in.) |
Approx. Loose Circlip ID (A)
16.18
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 16.33 mm
Groove Width (W): 1.85 mm
Clearance on Shaft (C1): 19.78 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD-HC External Retaining Rings - 17.48x1.8x16.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
16.33
mm + 0.08 / - 0.00 (0.643 in.) |
Approx. Loose Circlip ID (A)
16.18
mm |
Radial Wall (S) min/max
16.33
mm |
Groove Width (W)
1.85
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 19.78 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD-HO External Retaining Rings - 17.48x1.8x16.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
16.33
mm + 0.08 / - 0.00 (0.643 in.) |
Approx. Loose Circlip ID (A)
16.18
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 16.33 mm
Groove Width (W): 1.85 mm
Clearance on Shaft (C1): 19.78 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0175-RD-HO External Retaining Rings - 17.48x1.8x16.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
16.43
mm + 0.08 / - 0.00 (0.647 in.) |
Approx. Loose Circlip ID (A)
16.28
mm + 0.00 / - 0.65 |
Radial Wall (S) min/max
1.98
mm +/- 0.05 |
Groove Width (W)
2.16
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 20.24 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-SQ-HC (50 Pcs) External Retaining Rings - 17.48x1.98x16.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
16.43
mm + 0.08 / - 0.00 (0.647 in.) |
Approx. Loose Circlip ID (A)
16.28
mm + 0.00 / - 0.65 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.98 mm +/- 0.05
Groove Width (W): 2.16 mm
Clearance in Groove (C1): 20.24 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-SQ-HC (50 Pcs) External Retaining Rings - 17.48x1.98x16.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
16.43
mm + 0.08 / - 0.00 (0.647 in.) |
Approx. Loose Circlip ID (A)
16.28
mm + 0.00 / - 0.65 |
Radial Wall (S) min/max
1.98
mm +/- 0.05 |
Groove Width (W)
2.16
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 20.24 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-SQ-HO External Retaining Rings - 17.48x1.98x16.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
16.43
mm + 0.08 / - 0.00 (0.647 in.) |
Approx. Loose Circlip ID (A)
16.28
mm + 0.00 / - 0.65 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.98 mm +/- 0.05
Groove Width (W): 2.16 mm
Clearance in Groove (C1): 20.24 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0175-SQ-HO External Retaining Rings - 17.48x1.98x16.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
18.00
mm (0.709 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.11 (0.047 in.) |
Groove Dia. (Dg)
17.00
mm + 0.00 / - 0.06 (0.669 in.) |
Approx. Loose Circlip ID (A)
16.14 - 16.60
mm |
Groove Width (W)
1.30
mm |
|
|
|
Material: Spring Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-018 (250 Pcs) External Retaining Rings - 18x1.2x17 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$418.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Shaft Diameter (Ds)
18.00
mm (0.709 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.11 (0.047 in.) |
Groove Dia. (Dg)
17.00
mm + 0.00 / - 0.06 (0.669 in.) |
Approx. Loose Circlip ID (A)
16.14 - 16.60
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.30 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-018 (250 Pcs) External Retaining Rings - 18x1.2x17 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$418.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
