Collection: Retaining Rings - External
1599 Products in this selection
This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
15.16
mm + 0.08 / - 0.00 (0.597 in.) |
Approx. Loose Circlip ID (A)
15.01
mm + 0.00 / - 0.65 |
Radial Wall (S) min/max
1.40
mm +/- 0.05 |
Groove Width (W)
1.58
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 17.81 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0159-SQ-C External Retaining Rings - 15.88x1.4x15.16 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
15.16
mm + 0.08 / - 0.00 (0.597 in.) |
Approx. Loose Circlip ID (A)
15.01
mm + 0.00 / - 0.65 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.40 mm +/- 0.05
Groove Width (W): 1.58 mm
Clearance in Groove (C1): 17.81 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0159-SQ-C External Retaining Rings - 15.88x1.4x15.16 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
15.16
mm + 0.08 / - 0.00 (0.597 in.) |
Approx. Loose Circlip ID (A)
15.01
mm + 0.00 / - 0.65 |
Radial Wall (S) min/max
1.40
mm +/- 0.05 |
Groove Width (W)
1.58
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 17.81 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0159-SQ-O External Retaining Rings - 15.88x1.4x15.16 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.40
mm +/- 0.05 (0.055 in.) |
Groove Dia. (Dg)
15.16
mm + 0.08 / - 0.00 (0.597 in.) |
Approx. Loose Circlip ID (A)
15.01
mm + 0.00 / - 0.65 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.40 mm +/- 0.05
Groove Width (W): 1.58 mm
Clearance in Groove (C1): 17.81 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0159-SQ-O External Retaining Rings - 15.88x1.4x15.16 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm +/- 0.08
(0.625 in.) |
Clip Thickness (T)
1.57
mm (0.062 in.) |
Approx. Loose Circlip ID (A)
15.04
mm |
|
|||
|

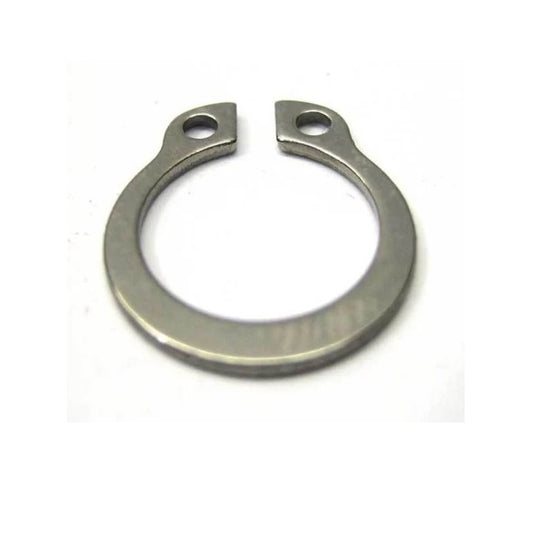

Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 26.92 mm
Clearance in Groove (C1): 244 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-01588-16-420-2 External Retaining Rings - 15.88x1.57 - - - Stainless Steel AISI 420C
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$19.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
15.88
mm +/- 0.08 (0.625 in.) |
Clip Thickness (T)
1.57
mm (0.062 in.) |
Approx. Loose Circlip ID (A)
15.04
mm |
|
|||
|
Material: Stainless Steel AISI 420C
Clearance on Shaft (C1): 26.92 mm
Clearance in Groove (C1): 244 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-01588-16-420-2 External Retaining Rings - 15.88x1.57 - - - Stainless Steel AISI 420C
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$19.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
15.88
mm +/- 0.10
(0.625 in.) |
Clip Thickness (T)
1.57
mm (0.062 in.) |
Approx. Loose Circlip ID (A)
15.04
mm |
|
|||
|

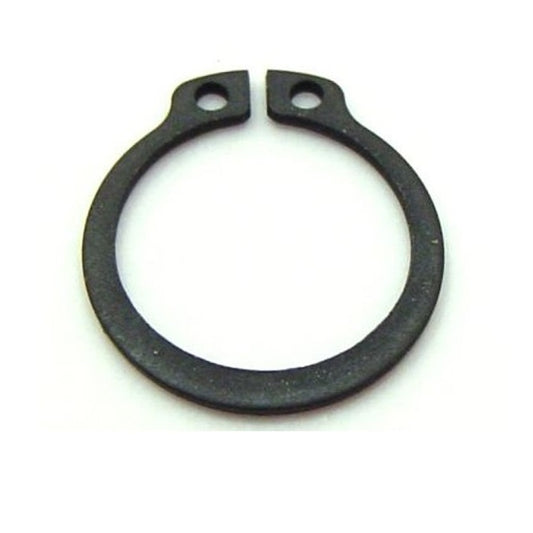

Material: Carbon Steel
Clearance on Shaft (C1): 26.92 mm
Clearance in Groove (C1): 345 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-01588-C (50 Pcs) External Retaining Rings - 15.88x1.57 - - - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$55.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
15.88
mm +/- 0.10 (0.625 in.) |
Clip Thickness (T)
1.57
mm (0.062 in.) |
Approx. Loose Circlip ID (A)
15.04
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 26.92 mm
Clearance in Groove (C1): 345 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-01588-C (50 Pcs) External Retaining Rings - 15.88x1.57 - - - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$55.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
14.76
mm + 0.08 / - 0.00 (0.581 in.) |
Approx. Loose Circlip ID (A)
14.61
mm |
Radial Wall (S) min/max
14.76
mm |
Groove Width (W)
1.85
mm |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 18.21 mm
Clearance in Groove (C1): Round Section mm

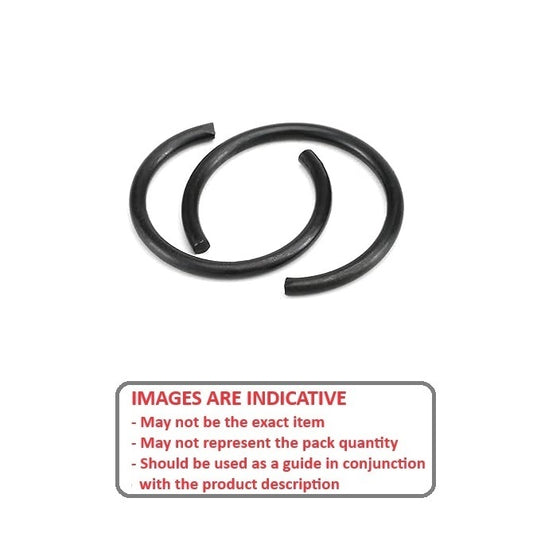

Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0159-RD-HO External Retaining Rings - 15.88x1.8x14.76 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
14.76
mm + 0.08 / - 0.00 (0.581 in.) |
Approx. Loose Circlip ID (A)
14.61
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 14.76 mm
Groove Width (W): 1.85 mm
Clearance on Shaft (C1): 18.21 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0159-RD-HO External Retaining Rings - 15.88x1.8x14.76 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
14.86
mm + 0.08 / - 0.00 (0.585 in.) |
Approx. Loose Circlip ID (A)
14.71
mm + 0.00 / - 0.65 |
Radial Wall (S) min/max
1.98
mm +/- 0.05 |
Groove Width (W)
2.16
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 18.67 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0159-SQ-HO (100 Pcs) External Retaining Rings - 15.88x1.98x14.86 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$35.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
14.86
mm + 0.08 / - 0.00 (0.585 in.) |
Approx. Loose Circlip ID (A)
14.71
mm + 0.00 / - 0.65 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.98 mm +/- 0.05
Groove Width (W): 2.16 mm
Clearance in Groove (C1): 18.67 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0159-SQ-HO (100 Pcs) External Retaining Rings - 15.88x1.98x14.86 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$35.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.12 (0.039 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.34 - 14.80
mm |
Groove Width (W)
1.10
mm |
|
|
|
Material: Spring Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-016 External Retaining Rings - 16x1x15.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.12 (0.039 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.34 - 14.80
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-016 External Retaining Rings - 16x1x15.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
Groove Width (W)
1.10
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 23.80 mm
Clearance in Groove (C1): 22.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600-C (20 Pcs) External Retaining Rings - 16x1x15.2 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm
Clearance on Shaft (C1): 23.80 mm
Clearance in Groove (C1): 22.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600-C (20 Pcs) External Retaining Rings - 16x1x15.2 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$6.14 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
Groove Width (W)
1.10
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 23.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600-S15 (5 Pcs) External Retaining Rings - 16x1x15.2 mm - Stainless Steel Grade PH15-7 Mo
3 units (15 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm
Clearance on Shaft (C1): 23.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600-S15 (5 Pcs) External Retaining Rings - 16x1x15.2 mm - Stainless Steel Grade PH15-7 Mo
3 units (15 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
Radial Wall (S) min/max
2.30
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600-C-V (10 Pcs) External Retaining Rings - 16x1x15.2 mm - Carbon Steel
40 units (400 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S) min/max: 2.30 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600-C-V (10 Pcs) External Retaining Rings - 16x1x15.2 mm - Carbon Steel
40 units (400 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
15.40
mm + 0 / - 0.11 (0.606 in.) |
Approx. Loose Circlip ID (A)
15.00
mm |
Radial Wall (S) min/max
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 18.5 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0160-LS (10 Pcs) External Retaining Rings - 16x1.2x15.4 mm - Spring Steel
130 units (1300 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$24.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
15.40
mm + 0 / - 0.11 (0.606 in.) |
Approx. Loose Circlip ID (A)
15.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.75 mm + 0 / - 0.10
Groove Width (W): 1.30 mm
Clearance in Groove (C1): 18.5 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0160-LS (10 Pcs) External Retaining Rings - 16x1.2x15.4 mm - Spring Steel
130 units (1300 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$24.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
15.10
mm + 0.00 / - 0.06 (0.594 in.) |
Approx. Loose Circlip ID (A)
14.60
mm |
Groove Width (W)
1.60
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600HB-C External Retaining Rings - 16x1.5x15.1 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
15.10
mm + 0.00 / - 0.06 (0.594 in.) |
Approx. Loose Circlip ID (A)
14.60
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600HB-C External Retaining Rings - 16x1.5x15.1 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
Groove Width (W)
1.60
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 26.50 mm
Clearance in Groove (C1): 25.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600H-C (20 Pcs) External Retaining Rings - 16x1.5x15.2 mm - Carbon Steel
6 units (120 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.60 mm
Clearance on Shaft (C1): 26.50 mm
Clearance in Groove (C1): 25.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600H-C (20 Pcs) External Retaining Rings - 16x1.5x15.2 mm - Carbon Steel
6 units (120 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
Groove Width (W)
1.60
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600HA-C External Retaining Rings - 16x1.5x15.2 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
15.20
mm + 0.00 / - 0.06 (0.598 in.) |
Approx. Loose Circlip ID (A)
14.70
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01600HA-C External Retaining Rings - 16x1.5x15.2 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.60
mm (0.063 in.) |
Groove Dia. (Dg)
14.4
mm + 0 / - 0.40 (0.567 in.) |
Approx. Loose Circlip ID (A)
14.2
mm |
Radial Wall (S) min/max
14.4
mm +/- 0.05 |
Groove Width (W)
1.8
mm Min. |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 17.4 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0160-RD (100 Pcs) External Retaining Rings - 16x1.6x14.4 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.60
mm (0.063 in.) |
Groove Dia. (Dg)
14.4
mm + 0 / - 0.40 (0.567 in.) |
Approx. Loose Circlip ID (A)
14.2
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 14.4 mm +/- 0.05
Groove Width (W): 1.8 mm Min.
Clearance on Shaft (C1): 17.4 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0160-RD (100 Pcs) External Retaining Rings - 16x1.6x14.4 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
16.99
mm (0.669 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
16.26
mm +/- 0.05 (0.64 in.) |
Approx. Loose Circlip ID (A)
16.00
mm + 0.00 / - 0.64 |
Radial Wall (S) min/max
1.58
mm +/- 0.08 |
Groove Width (W)
0.99
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.16 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0170-LS-L External Retaining Rings - 16.99x0.89x16.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.99
mm (0.669 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (0.035 in.) |
Groove Dia. (Dg)
16.26
mm +/- 0.05 (0.64 in.) |
Approx. Loose Circlip ID (A)
16.00
mm + 0.00 / - 0.64 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.58 mm +/- 0.08
Groove Width (W): 0.99 mm
Clearance in Groove (C1): 19.16 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0170-LS-L External Retaining Rings - 16.99x0.89x16.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.99
mm (0.669 in.) |
Clip Thickness (T)
1.27
mm + 0.025 / - 0.076 (0.05 in.) |
Groove Dia. (Dg)
15.98
mm +/- 0.051 (0.629 in.) |
Approx. Loose Circlip ID (A)
15.65
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01699H-S15 External Retaining Rings - 16.99x1.27x15.98 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
16.99
mm (0.669 in.) |
Clip Thickness (T)
1.27
mm + 0.025 / - 0.076 (0.05 in.) |
Groove Dia. (Dg)
15.98
mm +/- 0.051 (0.629 in.) |
Approx. Loose Circlip ID (A)
15.65
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01699H-S15 External Retaining Rings - 16.99x1.27x15.98 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
16.99
mm (0.669 in.) |
Clip Thickness (T)
1.27
mm + 0.025 / - 0.076 (0.05 in.) |
Groove Dia. (Dg)
15.98
mm +/- 0.051 (0.629 in.) |
Approx. Loose Circlip ID (A)
15.65
mm |
Groove Width (W)
14.22
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 23.88 mm
Clearance in Groove (C1): 22.86 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01699H-C (50 Pcs) External Retaining Rings - 16.99x1.27x15.98 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$38.05 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
16.99
mm (0.669 in.) |
Clip Thickness (T)
1.27
mm + 0.025 / - 0.076 (0.05 in.) |
Groove Dia. (Dg)
15.98
mm +/- 0.051 (0.629 in.) |
Approx. Loose Circlip ID (A)
15.65
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 14.22 mm
Clearance on Shaft (C1): 23.88 mm
Clearance in Groove (C1): 22.86 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01699H-C (50 Pcs) External Retaining Rings - 16.99x1.27x15.98 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$38.05 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.12 (0.039 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.37
mm |
Groove Width (W)
1.10
mm |
|
|
|
Material: Spring Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-017 External Retaining Rings - 17x1x16.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.12 (0.039 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.37
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-017 External Retaining Rings - 17x1x16.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.70
mm |
Groove Width (W)
1.10
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 25.00 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700-S15 (5 Pcs) External Retaining Rings - 17x1x16.2 mm - Stainless Steel Grade PH15-7 Mo
11 units (55 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$15.77 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.70
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm
Clearance on Shaft (C1): 25.00 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700-S15 (5 Pcs) External Retaining Rings - 17x1x16.2 mm - Stainless Steel Grade PH15-7 Mo
11 units (55 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$15.77 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.70
mm |
Groove Width (W)
1.10
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 25.00 mm
Clearance in Groove (C1): 23.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700-C (20 Pcs) External Retaining Rings - 17x1x16.2 mm - Carbon Steel
1 pack (20 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.41 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm
Clearance on Shaft (C1): 25.00 mm
Clearance in Groove (C1): 23.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700-C (20 Pcs) External Retaining Rings - 17x1x16.2 mm - Carbon Steel
1 pack (20 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.41 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.70
mm |
Radial Wall (S) min/max
2.40
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700-C-V (5 Pcs) External Retaining Rings - 17x1x16.2 mm - Carbon Steel
61 units (305 pcs) Available Immediately | Further orders can be expected around Fri, Aug 08, 2025 Regular price
$3.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (0.039 in.) |
Groove Dia. (Dg)
16.20
mm + 0.00 / - 0.06 (0.638 in.) |
Approx. Loose Circlip ID (A)
15.70
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S) min/max: 2.40 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700-C-V (5 Pcs) External Retaining Rings - 17x1x16.2 mm - Carbon Steel
61 units (305 pcs) Available Immediately | Further orders can be expected around Fri, Aug 08, 2025 Regular price
$3.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
16.40
mm + 0 / - 0.11 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.00
mm |
Radial Wall (S) min/max
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 19.5 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0170-LS External Retaining Rings - 17x1.2x16.4 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (0.047 in.) |
Groove Dia. (Dg)
16.40
mm + 0 / - 0.11 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 1.75 mm + 0 / - 0.10
Groove Width (W): 1.30 mm
Clearance in Groove (C1): 19.5 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0170-LS External Retaining Rings - 17x1.2x16.4 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
16.00
mm + 0.00 / - 0.06 (0.63 in.) |
Approx. Loose Circlip ID (A)
15.60
mm |
Groove Width (W)
1.60
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700HB-C External Retaining Rings - 17x1.5x16 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.00
mm (0.669 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.11 (0.059 in.) |
Groove Dia. (Dg)
16.00
mm + 0.00 / - 0.06 (0.63 in.) |
Approx. Loose Circlip ID (A)
15.60
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-01700HB-C External Retaining Rings - 17x1.5x16 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
