Collection: Retaining Rings - External - Snap Rings

Retaining Rings (With Images)

External

Spiral Rings

362 Products in this selection

This is a combined category of Snap Rings External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Snap Rings and Spiral Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Snap Rings. Smallparts promote the most popular MBA products.

Shaft or Bearing OD (d1)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft or Bearing OD (d1) 3.00 mm _{(0.118 in.)}	Clip Thickness (T) 0.30 mm +/- 0.02 _{(0.012 in.)}	Groove Dia. (Dg) 2.70 mm + 0 / - 0.05 _{(0.106 in.)}	Approx. Loose Circlip ID (A) 2.60 mm	Radial Wall (S) min/max 0.50 mm + 0 / - 0.10	Groove Width (W) 0.33 mm
Material: Stainless Steel 301 S11/S22 Approx. Loose Clip OD: 3.6 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0030-LS-S1 (500 Pcs) External Retaining Rings - 3x0.3x2.7 mm - Stainless Steel 301 S11/S22 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 06, 2025 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Per 500
Shaft or Bearing OD (d1)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft or Bearing OD (d1) 3.00 mm _{(0.118 in.)}	Clip Thickness (T) 0.30 mm +/- 0.02 _{(0.012 in.)}	Groove Dia. (Dg) 2.70 mm + 0 / - 0.05 _{(0.106 in.)}	Approx. Loose Circlip ID (A) 2.60 mm
Material: Stainless Steel 301 S11/S22 Radial Wall (S) min/max: 0.50 mm + 0 / - 0.10 Groove Width (W): 0.33 mm Approx. Loose Clip OD: 3.6 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0030-LS-S1 (500 Pcs) External Retaining Rings - 3x0.3x2.7 mm - Stainless Steel 301 S11/S22 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 06, 2025 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Per 500 View the product page first if you are unsure.
WRE-0030-LS-S1 (500 Pcs) --- External Retaining Rings - 3x0.3x2.7 mm - Stainless Steel 301 S11/S22 WRE-0030-LS-S1 (500 Pcs) --- External Retaining Rings - 3x0.3x2.7 mm - Stainless Steel 301 S11/S22 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Out of stock! Backorder Now
Shaft or Bearing OD (d1) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.51 mm +/- 0.05 _{(0.02 in.)}	Groove Dia. (Dg) 2.92 mm + 0.08 / - 0.00 _{(0.115 in.)}	Approx. Loose Circlip ID (A) 2.90 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.51 mm +/- 0.05	Groove Width (W) 0.61 mm
Material: Spring Steel Approx. Loose Clip OD: 3.92 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0032-SQ-O External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.51 mm +/- 0.05 _{(0.02 in.)}	Groove Dia. (Dg) 2.92 mm + 0.08 / - 0.00 _{(0.115 in.)}	Approx. Loose Circlip ID (A) 2.90 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.51 mm +/- 0.05 Groove Width (W): 0.61 mm Approx. Loose Clip OD: 3.92 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0032-SQ-O External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.51 mm +/- 0.05 _{(0.02 in.)}	Groove Dia. (Dg) 2.92 mm + 0.08 / - 0.00 _{(0.115 in.)}	Approx. Loose Circlip ID (A) 2.90 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.51 mm +/- 0.05	Groove Width (W) 0.61 mm
Material: Spring Steel Approx. Loose Clip OD: 3.92 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0032-SQ-C External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 3.18 mm _{(0.125 in.)}	Clip Thickness (T) 0.51 mm +/- 0.05 _{(0.02 in.)}	Groove Dia. (Dg) 2.92 mm + 0.08 / - 0.00 _{(0.115 in.)}	Approx. Loose Circlip ID (A) 2.90 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.51 mm +/- 0.05 Groove Width (W): 0.61 mm Approx. Loose Clip OD: 3.92 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0032-SQ-C External Retaining Rings - 3.18x0.51x2.92 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 3.96 mm _{(0.156 in.)}	Clip Thickness (T) 0.51 mm +/- 0.08 _{(0.02 in.)}	Groove Dia. (Dg) 3.71 mm + 0.10 / - 0.00 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.68 mm + 0.00 / - 2.00	Radial Wall (S) min/max 0.51 mm +/- 0.08	Groove Width (W) 0.61 mm
Material: Spring Steel Approx. Loose Clip OD: 4.7 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0039-SQ-O External Retaining Rings - 3.96x0.51x3.71 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 3.96 mm _{(0.156 in.)}	Clip Thickness (T) 0.51 mm +/- 0.08 _{(0.02 in.)}	Groove Dia. (Dg) 3.71 mm + 0.10 / - 0.00 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.68 mm + 0.00 / - 2.00
Material: Spring Steel Radial Wall (S) min/max: 0.51 mm +/- 0.08 Groove Width (W): 0.61 mm Approx. Loose Clip OD: 4.7 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0039-SQ-O External Retaining Rings - 3.96x0.51x3.71 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 3.96 mm _{(0.156 in.)}	Clip Thickness (T) 0.51 mm +/- 0.08 _{(0.02 in.)}	Groove Dia. (Dg) 3.71 mm + 0.10 / - 0.00 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.68 mm + 0.00 / - 2.00	Radial Wall (S) min/max 0.51 mm +/- 0.08	Groove Width (W) 0.61 mm
Material: Spring Steel Approx. Loose Clip OD: 4.7 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0039-SQ-C External Retaining Rings - 3.96x0.51x3.71 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 3.96 mm _{(0.156 in.)}	Clip Thickness (T) 0.51 mm +/- 0.08 _{(0.02 in.)}	Groove Dia. (Dg) 3.71 mm + 0.10 / - 0.00 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.68 mm + 0.00 / - 2.00
Material: Spring Steel Radial Wall (S) min/max: 0.51 mm +/- 0.08 Groove Width (W): 0.61 mm Approx. Loose Clip OD: 4.7 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0039-SQ-C External Retaining Rings - 3.96x0.51x3.71 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.00 mm _{(0.157 in.)}	Clip Thickness (T) 0.30 mm +/- 0.02 _{(0.012 in.)}	Groove Dia. (Dg) 3.70 mm + 0 / - 0.05 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm	Radial Wall (S) min/max 0.30 mm + 0 / - 0.10	Groove Width (W) 0.33 mm
Material: Stainless Steel 301 S11/S22 Approx. Loose Clip OD: 4.2 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0040-SQ-S1 (500 Pcs) External Retaining Rings - 4x0.3x3.7 mm - Stainless Steel 301 S11/S22 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 06, 2025 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Per 500
Shaft or Bearing OD (d1) 4.00 mm _{(0.157 in.)}	Clip Thickness (T) 0.30 mm +/- 0.02 _{(0.012 in.)}	Groove Dia. (Dg) 3.70 mm + 0 / - 0.05 _{(0.146 in.)}	Approx. Loose Circlip ID (A) 3.60 mm
Material: Stainless Steel 301 S11/S22 Radial Wall (S) min/max: 0.30 mm + 0 / - 0.10 Groove Width (W): 0.33 mm Approx. Loose Clip OD: 4.2 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0040-SQ-S1 (500 Pcs) External Retaining Rings - 4x0.3x3.7 mm - Stainless Steel 301 S11/S22 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 06, 2025 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Per 500 View the product page first if you are unsure.
WRE-0040-SQ-S1 (500 Pcs) --- External Retaining Rings - 4x0.3x3.7 mm - Stainless Steel 301 S11/S22 WRE-0040-SQ-S1 (500 Pcs) --- External Retaining Rings - 4x0.3x3.7 mm - Stainless Steel 301 S11/S22 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Out of stock! Backorder Now
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.38 mm +/- 0.02 _{(0.015 in.)}	Groove Dia. (Dg) 4.32 mm _{(0.17 in.)}	Approx. Loose Circlip ID (A) 4.47 mm + 0.00 / - 0.27	Radial Wall (S) min/max 0.64 mm	Groove Width (W) 0.43 mm
Material: Spring Steel Approx. Loose Clip OD: 5.75 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-LS External Retaining Rings - 4.78x0.38x4.32 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.38 mm +/- 0.02 _{(0.015 in.)}	Groove Dia. (Dg) 4.32 mm _{(0.17 in.)}	Approx. Loose Circlip ID (A) 4.47 mm + 0.00 / - 0.27
Material: Spring Steel Radial Wall (S) min/max: 0.64 mm Groove Width (W): 0.43 mm Approx. Loose Clip OD: 5.75 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-LS External Retaining Rings - 4.78x0.38x4.32 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.51 mm +/- 0.05 _{(0.02 in.)}	Groove Dia. (Dg) 4.52 mm + 0.08 / - 0.00 _{(0.178 in.)}	Approx. Loose Circlip ID (A) 4.45 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.51 mm +/- 0.05	Groove Width (W) 0.61 mm
Material: Spring Steel Approx. Loose Clip OD: 5.47 Category: Retaining Rings - External - Snap Rings - Carbon Steel

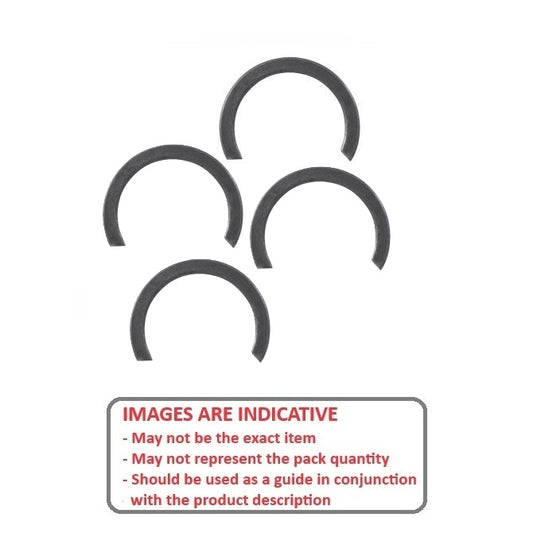

Part Number: WRE-0048-SQ-O External Retaining Rings - 4.78x0.51x4.52 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.51 mm +/- 0.05 _{(0.02 in.)}	Groove Dia. (Dg) 4.52 mm + 0.08 / - 0.00 _{(0.178 in.)}	Approx. Loose Circlip ID (A) 4.45 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.51 mm +/- 0.05 Groove Width (W): 0.61 mm Approx. Loose Clip OD: 5.47 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-SQ-O External Retaining Rings - 4.78x0.51x4.52 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.51 mm +/- 0.05 _{(0.02 in.)}	Groove Dia. (Dg) 4.52 mm + 0.08 / - 0.00 _{(0.178 in.)}	Approx. Loose Circlip ID (A) 4.45 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.51 mm +/- 0.05	Groove Width (W) 0.61 mm
Material: Spring Steel Approx. Loose Clip OD: 5.47 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-SQ-C External Retaining Rings - 4.78x0.51x4.52 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.51 mm +/- 0.05 _{(0.02 in.)}	Groove Dia. (Dg) 4.52 mm + 0.08 / - 0.00 _{(0.178 in.)}	Approx. Loose Circlip ID (A) 4.45 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.51 mm +/- 0.05 Groove Width (W): 0.61 mm Approx. Loose Clip OD: 5.47 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-SQ-C External Retaining Rings - 4.78x0.51x4.52 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 4.47 mm + 0.08 / - 0.00 _{(0.176 in.)}	Approx. Loose Circlip ID (A) 4.39 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.64 mm +/- 0.05	Groove Width (W) 0.74 mm
Material: Spring Steel Approx. Loose Clip OD: 5.67 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-SQ-HO External Retaining Rings - 4.78x0.64x4.47 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 4.47 mm + 0.08 / - 0.00 _{(0.176 in.)}	Approx. Loose Circlip ID (A) 4.39 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.64 mm +/- 0.05 Groove Width (W): 0.74 mm Approx. Loose Clip OD: 5.67 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-SQ-HO External Retaining Rings - 4.78x0.64x4.47 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 4.47 mm + 0.08 / - 0.00 _{(0.176 in.)}	Approx. Loose Circlip ID (A) 4.39 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.64 mm +/- 0.05	Groove Width (W) 0.74 mm
Material: Spring Steel Approx. Loose Clip OD: 5.67 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-SQ-HC External Retaining Rings - 4.78x0.64x4.47 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 4.78 mm _{(0.188 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 4.47 mm + 0.08 / - 0.00 _{(0.176 in.)}	Approx. Loose Circlip ID (A) 4.39 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.64 mm +/- 0.05 Groove Width (W): 0.74 mm Approx. Loose Clip OD: 5.67 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0048-SQ-HC External Retaining Rings - 4.78x0.64x4.47 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.40 mm +/- 0.02 _{(0.016 in.)}	Groove Dia. (Dg) 4.60 mm + 0 / - 0.05 _{(0.181 in.)}	Approx. Loose Circlip ID (A) 4.50 mm	Radial Wall (S) min/max 0.70 mm + 0 / - 0.10	Groove Width (W) 0.44 mm
Material: Stainless Steel 301 S11/S22 Approx. Loose Clip OD: 5.9 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0050-LS-S1 (5 Pcs) External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22 115 units (575 pcs) Available Immediately \| Further orders can be expected around Sun, Jul 06, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5
Shaft or Bearing OD (d1) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.40 mm +/- 0.02 _{(0.016 in.)}	Groove Dia. (Dg) 4.60 mm + 0 / - 0.05 _{(0.181 in.)}	Approx. Loose Circlip ID (A) 4.50 mm
Material: Stainless Steel 301 S11/S22 Radial Wall (S) min/max: 0.70 mm + 0 / - 0.10 Groove Width (W): 0.44 mm Approx. Loose Clip OD: 5.9 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0050-LS-S1 (5 Pcs) External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22 115 units (575 pcs) Available Immediately \| Further orders can be expected around Sun, Jul 06, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5 View the product page first if you are unsure.
WRE-0050-LS-S1 (5 Pcs) --- External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22 WRE-0050-LS-S1 (5 Pcs) --- External Retaining Rings - 5x0.4x4.6 mm - Stainless Steel 301 S11/S22 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 115 Available Now
Shaft or Bearing OD (d1) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.50 mm + 0 / - 0.10 _{(0.02 in.)}	Groove Dia. (Dg) 4.80 mm + 0 / - 0.09 _{(0.189 in.)}	Approx. Loose Circlip ID (A) 4.70 mm	Radial Wall (S) min/max 1.00 mm + 0 / - 0.10	Groove Width (W) 0.60 mm
Material: Spring Steel Approx. Loose Clip OD: 6.7 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0050-LS (2500 Pcs) External Retaining Rings - 5x0.5x4.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 02, 2026 Regular price $908.68 AUD Regular price Sale price $908.68 AUD Unit price per Per 2500
Shaft or Bearing OD (d1) 5.00 mm _{(0.197 in.)}	Clip Thickness (T) 0.50 mm + 0 / - 0.10 _{(0.02 in.)}	Groove Dia. (Dg) 4.80 mm + 0 / - 0.09 _{(0.189 in.)}	Approx. Loose Circlip ID (A) 4.70 mm
Material: Spring Steel Radial Wall (S) min/max: 1.00 mm + 0 / - 0.10 Groove Width (W): 0.60 mm Approx. Loose Clip OD: 6.7 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0050-LS (2500 Pcs) External Retaining Rings - 5x0.5x4.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 02, 2026 Regular price $908.68 AUD Regular price Sale price $908.68 AUD Unit price per Per 2500 View the product page first if you are unsure.
WRE-0050-LS (2500 Pcs) --- External Retaining Rings - 5x0.5x4.8 mm - Spring Steel WRE-0050-LS (2500 Pcs) --- External Retaining Rings - 5x0.5x4.8 mm - Spring Steel Regular price $908.68 AUD Regular price Sale price $908.68 AUD Unit price per Out of stock! Backorder Now
Shaft or Bearing OD (d1) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.38 mm +/- 0.02 _{(0.015 in.)}	Groove Dia. (Dg) 5.11 mm _{(0.201 in.)}	Approx. Loose Circlip ID (A) 5.21 mm + 0.00 / - 0.31	Radial Wall (S) min/max 0.64 mm	Groove Width (W) 0.43 mm
Material: Spring Steel Approx. Loose Clip OD: 6.49 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0056-LS External Retaining Rings - 5.56x0.38x5.11 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.38 mm +/- 0.02 _{(0.015 in.)}	Groove Dia. (Dg) 5.11 mm _{(0.201 in.)}	Approx. Loose Circlip ID (A) 5.21 mm + 0.00 / - 0.31
Material: Spring Steel Radial Wall (S) min/max: 0.64 mm Groove Width (W): 0.43 mm Approx. Loose Clip OD: 6.49 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0056-LS External Retaining Rings - 5.56x0.38x5.11 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.64 mm +/- 0.08 _{(0.025 in.)}	Groove Dia. (Dg) 5.26 mm + 0.10 / - 0.00 _{(0.207 in.)}	Approx. Loose Circlip ID (A) 5.16 mm + 0.00 / - 2.00	Radial Wall (S) min/max 0.64 mm +/- 0.08	Groove Width (W) 0.74 mm
Material: Spring Steel Approx. Loose Clip OD: 6.44 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0056-SQ-C External Retaining Rings - 5.56x0.64x5.26 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.64 mm +/- 0.08 _{(0.025 in.)}	Groove Dia. (Dg) 5.26 mm + 0.10 / - 0.00 _{(0.207 in.)}	Approx. Loose Circlip ID (A) 5.16 mm + 0.00 / - 2.00
Material: Spring Steel Radial Wall (S) min/max: 0.64 mm +/- 0.08 Groove Width (W): 0.74 mm Approx. Loose Clip OD: 6.44 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0056-SQ-C External Retaining Rings - 5.56x0.64x5.26 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.64 mm +/- 0.08 _{(0.025 in.)}	Groove Dia. (Dg) 5.26 mm + 0.10 / - 0.00 _{(0.207 in.)}	Approx. Loose Circlip ID (A) 5.16 mm + 0.00 / - 2.00	Radial Wall (S) min/max 0.64 mm +/- 0.08	Groove Width (W) 0.74 mm
Material: Spring Steel Approx. Loose Clip OD: 6.44 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0056-SQ-O External Retaining Rings - 5.56x0.64x5.26 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 5.56 mm _{(0.219 in.)}	Clip Thickness (T) 0.64 mm +/- 0.08 _{(0.025 in.)}	Groove Dia. (Dg) 5.26 mm + 0.10 / - 0.00 _{(0.207 in.)}	Approx. Loose Circlip ID (A) 5.16 mm + 0.00 / - 2.00
Material: Spring Steel Radial Wall (S) min/max: 0.64 mm +/- 0.08 Groove Width (W): 0.74 mm Approx. Loose Clip OD: 6.44 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0056-SQ-O External Retaining Rings - 5.56x0.64x5.26 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.40 mm +/- 0.02 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm + 0 / - 0.05 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.45 mm	Radial Wall (S) min/max 0.70 mm + 0 / - 0.10	Groove Width (W) 0.44 mm
Material: Stainless Steel 301 S11/S22 Approx. Loose Clip OD: 6.85 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0060-LS-S1 (500 Pcs) External Retaining Rings - 6x0.4x5.6 mm - Stainless Steel 301 S11/S22 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 06, 2025 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Per 500
Shaft or Bearing OD (d1) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.40 mm +/- 0.02 _{(0.016 in.)}	Groove Dia. (Dg) 5.60 mm + 0 / - 0.05 _{(0.22 in.)}	Approx. Loose Circlip ID (A) 5.45 mm
Material: Stainless Steel 301 S11/S22 Radial Wall (S) min/max: 0.70 mm + 0 / - 0.10 Groove Width (W): 0.44 mm Approx. Loose Clip OD: 6.85 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0060-LS-S1 (500 Pcs) External Retaining Rings - 6x0.4x5.6 mm - Stainless Steel 301 S11/S22 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 06, 2025 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Per 500 View the product page first if you are unsure.
WRE-0060-LS-S1 (500 Pcs) --- External Retaining Rings - 6x0.4x5.6 mm - Stainless Steel 301 S11/S22 WRE-0060-LS-S1 (500 Pcs) --- External Retaining Rings - 6x0.4x5.6 mm - Stainless Steel 301 S11/S22 Regular price $724.50 AUD Regular price Sale price $724.50 AUD Unit price per Out of stock! Backorder Now
Shaft or Bearing OD (d1) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0 / - 0.10 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0 / - 0.09 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm	Radial Wall (S) min/max 1.10 mm + 0 / - 0.10	Groove Width (W) 0.80 mm
Material: Spring Steel Approx. Loose Clip OD: 7.8 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0060-LS (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Spring Steel 14 units (140 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 10
Shaft or Bearing OD (d1) 6.00 mm _{(0.236 in.)}	Clip Thickness (T) 0.70 mm + 0 / - 0.10 _{(0.028 in.)}	Groove Dia. (Dg) 5.70 mm + 0 / - 0.09 _{(0.224 in.)}	Approx. Loose Circlip ID (A) 5.60 mm
Material: Spring Steel Radial Wall (S) min/max: 1.10 mm + 0 / - 0.10 Groove Width (W): 0.80 mm Approx. Loose Clip OD: 7.8 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0060-LS (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm - Spring Steel 14 units (140 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 10 View the product page first if you are unsure.
WRE-0060-LS (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Spring Steel WRE-0060-LS (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm - Spring Steel Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per 14 Available Now
Shaft or Bearing OD (d1) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.03 _{(0.025 in.)}	Groove Dia. (Dg) 5.89 mm _{(0.232 in.)}	Approx. Loose Circlip ID (A) 5.84 mm + 0.00 / - 0.35	Radial Wall (S) min/max 0.89 mm	Groove Width (W) 0.71 mm
Material: Spring Steel Approx. Loose Clip OD: 7.62 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0064-LS (800 Pcs) External Retaining Rings - 6.35x0.64x5.89 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.03 _{(0.025 in.)}	Groove Dia. (Dg) 5.89 mm _{(0.232 in.)}	Approx. Loose Circlip ID (A) 5.84 mm + 0.00 / - 0.35
Material: Spring Steel Radial Wall (S) min/max: 0.89 mm Groove Width (W): 0.71 mm Approx. Loose Clip OD: 7.62 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0064-LS (800 Pcs) External Retaining Rings - 6.35x0.64x5.89 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 6.05 mm + 0.08 / - 0.00 _{(0.238 in.)}	Approx. Loose Circlip ID (A) 5.99 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.64 mm +/- 0.05	Groove Width (W) 0.76 mm
Material: Spring Steel Approx. Loose Clip OD: 7.27 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0064-SQ-C (100 Pcs) External Retaining Rings - 6.35x0.64x6.05 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Per 100
Shaft or Bearing OD (d1) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 6.05 mm + 0.08 / - 0.00 _{(0.238 in.)}	Approx. Loose Circlip ID (A) 5.99 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.64 mm +/- 0.05 Groove Width (W): 0.76 mm Approx. Loose Clip OD: 7.27 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0064-SQ-C (100 Pcs) External Retaining Rings - 6.35x0.64x6.05 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Per 100 View the product page first if you are unsure.
WRE-0064-SQ-C (100 Pcs) --- External Retaining Rings - 6.35x0.64x6.05 mm - Spring Steel WRE-0064-SQ-C (100 Pcs) --- External Retaining Rings - 6.35x0.64x6.05 mm - Spring Steel Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Out of stock! Backorder Now
Shaft or Bearing OD (d1) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 6.05 mm + 0.08 / - 0.00 _{(0.238 in.)}	Approx. Loose Circlip ID (A) 5.99 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.64 mm +/- 0.05	Groove Width (W) 0.76 mm
Material: Spring Steel Approx. Loose Clip OD: 7.27 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0064-SQ-O (50 Pcs) External Retaining Rings - 6.35x0.64x6.05 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per Per 50
Shaft or Bearing OD (d1) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.64 mm +/- 0.05 _{(0.025 in.)}	Groove Dia. (Dg) 6.05 mm + 0.08 / - 0.00 _{(0.238 in.)}	Approx. Loose Circlip ID (A) 5.99 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.64 mm +/- 0.05 Groove Width (W): 0.76 mm Approx. Loose Clip OD: 7.27 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0064-SQ-O (50 Pcs) External Retaining Rings - 6.35x0.64x6.05 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per Per 50 View the product page first if you are unsure.
WRE-0064-SQ-O (50 Pcs) --- External Retaining Rings - 6.35x0.64x6.05 mm - Spring Steel WRE-0064-SQ-O (50 Pcs) --- External Retaining Rings - 6.35x0.64x6.05 mm - Spring Steel Regular price $38.05 AUD Regular price Sale price $38.05 AUD Unit price per Out of stock! Backorder Now
Shaft or Bearing OD (d1) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 5.94 mm + 0.08 / - 0.00 _{(0.234 in.)}	Approx. Loose Circlip ID (A) 5.89 mm + 0.00 / - 0.50	Radial Wall (S) min/max 0.79 mm +/- 0.05	Groove Width (W) 0.91 mm
Material: Spring Steel Approx. Loose Clip OD: 7.47 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0064-SQ-HO External Retaining Rings - 6.35x0.79x5.94 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 6.35 mm _{(0.25 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 5.94 mm + 0.08 / - 0.00 _{(0.234 in.)}	Approx. Loose Circlip ID (A) 5.89 mm + 0.00 / - 0.50
Material: Spring Steel Radial Wall (S) min/max: 0.79 mm +/- 0.05 Groove Width (W): 0.91 mm Approx. Loose Clip OD: 7.47 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0064-SQ-HO External Retaining Rings - 6.35x0.79x5.94 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.40 mm +/- 0.02 _{(0.016 in.)}	Groove Dia. (Dg) 6.60 mm + 0 / - 0.05 _{(0.26 in.)}	Approx. Loose Circlip ID (A) 6.45 mm	Radial Wall (S) min/max 0.70 mm + 0 / - 0.10	Groove Width (W) 0.44 mm
Material: Stainless Steel 301 S11/S22 Approx. Loose Clip OD: 7.85 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0070-LS-S1 (500 Pcs) External Retaining Rings - 7x0.4x6.6 mm - Stainless Steel 301 S11/S22 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 06, 2025 Regular price $917.86 AUD Regular price Sale price $917.86 AUD Unit price per Per 500
Shaft or Bearing OD (d1) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.40 mm +/- 0.02 _{(0.016 in.)}	Groove Dia. (Dg) 6.60 mm + 0 / - 0.05 _{(0.26 in.)}	Approx. Loose Circlip ID (A) 6.45 mm
Material: Stainless Steel 301 S11/S22 Radial Wall (S) min/max: 0.70 mm + 0 / - 0.10 Groove Width (W): 0.44 mm Approx. Loose Clip OD: 7.85 Category: Retaining Rings - External - Snap Rings - Stainless Steel
Part Number: WRE-0070-LS-S1 (500 Pcs) External Retaining Rings - 7x0.4x6.6 mm - Stainless Steel 301 S11/S22 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jul 06, 2025 Regular price $917.86 AUD Regular price Sale price $917.86 AUD Unit price per Per 500 View the product page first if you are unsure.
WRE-0070-LS-S1 (500 Pcs) --- External Retaining Rings - 7x0.4x6.6 mm - Stainless Steel 301 S11/S22 WRE-0070-LS-S1 (500 Pcs) --- External Retaining Rings - 7x0.4x6.6 mm - Stainless Steel 301 S11/S22 Regular price $917.86 AUD Regular price Sale price $917.86 AUD Unit price per Out of stock! Backorder Now
Shaft or Bearing OD (d1) 7.14 mm _{(0.281 in.)}	Clip Thickness (T) 0.64 mm +/- 0.03 _{(0.025 in.)}	Groove Dia. (Dg) 6.68 mm _{(0.263 in.)}	Approx. Loose Circlip ID (A) 6.63 mm + 0.00 / - 0.40	Radial Wall (S) min/max 0.89 mm	Groove Width (W) 0.71 mm
Material: Spring Steel Approx. Loose Clip OD: 8.41 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0071-LS External Retaining Rings - 7.14x0.64x6.68 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) 7.14 mm _{(0.281 in.)}	Clip Thickness (T) 0.64 mm +/- 0.03 _{(0.025 in.)}	Groove Dia. (Dg) 6.68 mm _{(0.263 in.)}	Approx. Loose Circlip ID (A) 6.63 mm + 0.00 / - 0.40
Material: Spring Steel Radial Wall (S) min/max: 0.89 mm Groove Width (W): 0.71 mm Approx. Loose Clip OD: 8.41 Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0071-LS External Retaining Rings - 7.14x0.64x6.68 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
