Collection: Retaining Rings - External - Spiral Rings

Retaining Rings (With Images)

External

172 Products in this selection

This is a combined category of Spiral Rings External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 9.525 mm _{(0.375 in.)}	Clip Thickness (T) 0.38 mm +/- 0.05 _{(0.015 in.)}	Groove Dia. (Dg) 8.92 mm _{(0.351 in.)}	Approx. Loose Circlip ID (A) 8.83 mm + 0.00 / - 0.25	Radial Wall (S) min/max 0.635 mm +/- 0.10	Groove Width (W) 0.46 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 10.10 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per Per 25
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 9.525 mm _{(0.375 in.)}	Clip Thickness (T) 0.38 mm +/- 0.05 _{(0.015 in.)}	Groove Dia. (Dg) 8.92 mm _{(0.351 in.)}	Approx. Loose Circlip ID (A) 8.83 mm + 0.00 / - 0.25
Material: Spring Steel Radial Wall (S) min/max: 0.635 mm +/- 0.10 Groove Width (W): 0.46 mm +/- 0.05 Approx. Loose Clip OD: 10.10 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per Per 25 View the product page first if you are unsure.
US-037 (25 Pcs) --- External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel US-037 (25 Pcs) --- External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 11.91 mm _{(0.469 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 11.25 mm _{(0.443 in.)}	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.78 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 13.36 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-046-S02 External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.41 AUD Regular price Sale price $10.41 AUD Unit price per Each
Shaft Diameter (Ds) 11.91 mm _{(0.469 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 11.25 mm _{(0.443 in.)}	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.78 mm +/- 0.05 Approx. Loose Clip OD: 13.36 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-046-S02 External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.41 AUD Regular price Sale price $10.41 AUD Unit price per Each View the product page first if you are unsure.
RSN-046-S02 --- External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-046-S02 --- External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $10.41 AUD Regular price Sale price $10.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 11.91 mm _{(0.469 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 11.25 mm _{(0.443 in.)}	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.78 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 13.36 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-046 External Retaining Rings - 11.91x0.64x11.25 mm - Spring Steel 6 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each
Shaft Diameter (Ds) 11.91 mm _{(0.469 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 11.25 mm _{(0.443 in.)}	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.78 mm +/- 0.05 Approx. Loose Clip OD: 13.36 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-046 External Retaining Rings - 11.91x0.64x11.25 mm - Spring Steel 6 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each View the product page first if you are unsure.
RSN-046 --- External Retaining Rings - 11.91x0.64x11.25 mm - Spring Steel RSN-046 --- External Retaining Rings - 11.91x0.64x11.25 mm - Spring Steel Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 6 Available Now
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.46 mm +/- 0.04 _{(0.018 in.)}	Groove Dia. (Dg) 11.99 mm _{(0.472 in.)}	Approx. Loose Circlip ID (A) 12.07 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.59 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.35 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-050-S02 (678 Pcs) External Retaining Rings - 12.7x0.46x11.99 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $1,198.14 AUD Regular price Sale price $1,198.14 AUD Unit price per Per 678
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.46 mm +/- 0.04 _{(0.018 in.)}	Groove Dia. (Dg) 11.99 mm _{(0.472 in.)}	Approx. Loose Circlip ID (A) 12.07 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.59 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-050-S02 (678 Pcs) External Retaining Rings - 12.7x0.46x11.99 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $1,198.14 AUD Regular price Sale price $1,198.14 AUD Unit price per Per 678 View the product page first if you are unsure.
US-050-S02 (678 Pcs) --- External Retaining Rings - 12.7x0.46x11.99 mm - Stainless Steel 302/304 Similar to A2, 18-8 US-050-S02 (678 Pcs) --- External Retaining Rings - 12.7x0.46x11.99 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $1,198.14 AUD Regular price Sale price $1,198.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 12.04 mm _{(0.474 in.)}	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-050 (5 Pcs) External Retaining Rings - 12.7x0.64x12.04 mm - Spring Steel 24 units (120 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 5
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 12.04 mm _{(0.474 in.)}	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-050 (5 Pcs) External Retaining Rings - 12.7x0.64x12.04 mm - Spring Steel 24 units (120 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-050 (5 Pcs) --- External Retaining Rings - 12.7x0.64x12.04 mm - Spring Steel RS-050 (5 Pcs) --- External Retaining Rings - 12.7x0.64x12.04 mm - Spring Steel Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per 24 Available Now
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 12.04 mm _{(0.474 in.)}	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-050-S02 (8 Pcs) External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 8
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 12.04 mm _{(0.474 in.)}	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-050-S02 (8 Pcs) External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 8 View the product page first if you are unsure.
RS-050-S02 (8 Pcs) --- External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-050-S02 (8 Pcs) --- External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 14.35 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-050 (2 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm - Spring Steel 25 units (50 pcs) Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Per 2
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-050 (2 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm - Spring Steel 25 units (50 pcs) Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Per 2 View the product page first if you are unsure.
RSN-050 (2 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm - Spring Steel RSN-050 (2 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm - Spring Steel Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per 25 Available Now
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.35 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure.
RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 12.04 mm _{(0.474 in.)}	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-050 (50 Pcs) External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $76.86 AUD Regular price Sale price $76.86 AUD Unit price per Per 50
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 12.04 mm _{(0.474 in.)}	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-050 (50 Pcs) External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $76.86 AUD Regular price Sale price $76.86 AUD Unit price per Per 50 View the product page first if you are unsure.
RST-050 (50 Pcs) --- External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel RST-050 (50 Pcs) --- External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel Regular price $76.86 AUD Regular price Sale price $76.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 13.49 mm _{(0.531 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 12.83 mm _{(0.505 in.)}	Approx. Loose Circlip ID (A) 12.68 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 14.96 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-053 (19 Pcs) External Retaining Rings - 13.49x0.64x12.83 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 19
Shaft Diameter (Ds) 13.49 mm _{(0.531 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 12.83 mm _{(0.505 in.)}	Approx. Loose Circlip ID (A) 12.68 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.96 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-053 (19 Pcs) External Retaining Rings - 13.49x0.64x12.83 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 19 View the product page first if you are unsure.
RS-053 (19 Pcs) --- External Retaining Rings - 13.49x0.64x12.83 mm - Spring Steel RS-053 (19 Pcs) --- External Retaining Rings - 13.49x0.64x12.83 mm - Spring Steel Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 14.27 mm _{(0.562 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm _{(0.53 in.)}	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 15.81 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each
Shaft Diameter (Ds) 14.27 mm _{(0.562 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm _{(0.53 in.)}	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 15.81 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 14.27 mm _{(0.562 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm _{(0.53 in.)}	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip OD: 15.81 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-056 (10 Pcs) External Retaining Rings - 14.27x0.89x13.46 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $37.68 AUD Regular price Sale price $37.68 AUD Unit price per Per 10
Shaft Diameter (Ds) 14.27 mm _{(0.562 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm _{(0.53 in.)}	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 15.81 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-056 (10 Pcs) External Retaining Rings - 14.27x0.89x13.46 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $37.68 AUD Regular price Sale price $37.68 AUD Unit price per Per 10 View the product page first if you are unsure.
RSN-056 (10 Pcs) --- External Retaining Rings - 14.27x0.89x13.46 mm - Spring Steel RSN-056 (10 Pcs) --- External Retaining Rings - 14.27x0.89x13.46 mm - Spring Steel Regular price $37.68 AUD Regular price Sale price $37.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 14.27 mm _{(0.562 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.59 mm _{(0.535 in.)}	Approx. Loose Circlip ID (A) 13.41 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Spring Steel Approx. Loose Clip OD: 15.69 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-056 (100 Pcs) External Retaining Rings - 14.27x0.89x13.59 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Per 100
Shaft Diameter (Ds) 14.27 mm _{(0.562 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 13.59 mm _{(0.535 in.)}	Approx. Loose Circlip ID (A) 13.41 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 15.69 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-056 (100 Pcs) External Retaining Rings - 14.27x0.89x13.59 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Per 100 View the product page first if you are unsure.
RST-056 (100 Pcs) --- External Retaining Rings - 14.27x0.89x13.59 mm - Spring Steel RST-056 (100 Pcs) --- External Retaining Rings - 14.27x0.89x13.59 mm - Spring Steel Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.20 mm _{(0.559 in.)}	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 16.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Each
Shaft Diameter (Ds) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.20 mm _{(0.559 in.)}	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 16.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.20 mm _{(0.559 in.)}	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Spring Steel Approx. Loose Clip OD: 16.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-059 External Retaining Rings - 15.09x0.89x14.2 mm - Spring Steel 40 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Shaft Diameter (Ds) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.20 mm _{(0.559 in.)}	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 16.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-059 External Retaining Rings - 15.09x0.89x14.2 mm - Spring Steel 40 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-059 --- External Retaining Rings - 15.09x0.89x14.2 mm - Spring Steel RSN-059 --- External Retaining Rings - 15.09x0.89x14.2 mm - Spring Steel Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 40 Available Now
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 15.10 mm _{(0.594 in.)}	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.06
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-062-S02 (5 Pcs) External Retaining Rings - 15.88x0.64x15.1 mm - Stainless Steel 302/304 Similar to A2, 18-8 19 units (95 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Per 5
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 15.10 mm _{(0.594 in.)}	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.06 Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-062-S02 (5 Pcs) External Retaining Rings - 15.88x0.64x15.1 mm - Stainless Steel 302/304 Similar to A2, 18-8 19 units (95 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-062-S02 (5 Pcs) --- External Retaining Rings - 15.88x0.64x15.1 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-062-S02 (5 Pcs) --- External Retaining Rings - 15.88x0.64x15.1 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per 19 Available Now
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 15.10 mm _{(0.594 in.)}	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.06
Material: Spring Steel Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-062 (2 Pcs) External Retaining Rings - 15.88x0.64x15.1 mm - Spring Steel 90 units (180 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Per 2
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 15.10 mm _{(0.594 in.)}	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.06 Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-062 (2 Pcs) External Retaining Rings - 15.88x0.64x15.1 mm - Spring Steel 90 units (180 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-062 (2 Pcs) --- External Retaining Rings - 15.88x0.64x15.1 mm - Spring Steel RS-062 (2 Pcs) --- External Retaining Rings - 15.88x0.64x15.1 mm - Spring Steel Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per 90 Available Now
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.94 mm _{(0.588 in.)}	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Spring Steel Approx. Loose Clip OD: 17.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-062 External Retaining Rings - 15.88x0.89x14.94 mm - Spring Steel 25 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Each
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.94 mm _{(0.588 in.)}	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-062 External Retaining Rings - 15.88x0.89x14.94 mm - Spring Steel 25 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-062 --- External Retaining Rings - 15.88x0.89x14.94 mm - Spring Steel RSN-062 --- External Retaining Rings - 15.88x0.89x14.94 mm - Spring Steel Regular price $4.68 AUD Regular price Sale price $4.68 AUD Unit price per 25 Available Now
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.94 mm _{(0.588 in.)}	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 17.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 14.94 mm _{(0.588 in.)}	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each View the product page first if you are unsure.
RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 15.14 mm _{(0.596 in.)}	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Spring Steel Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-062 (5 Pcs) External Retaining Rings - 15.88x0.89x15.14 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.89 mm +/- 0.05 _{(0.035 in.)}	Groove Dia. (Dg) 15.14 mm _{(0.596 in.)}	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-062 (5 Pcs) External Retaining Rings - 15.88x0.89x15.14 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 View the product page first if you are unsure.
RST-062 (5 Pcs) --- External Retaining Rings - 15.88x0.89x15.14 mm - Spring Steel RST-062 (5 Pcs) --- External Retaining Rings - 15.88x0.89x15.14 mm - Spring Steel Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 17.27 mm _{(0.68 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 16.67 mm _{(0.656 in.)}	Approx. Loose Circlip ID (A) 16.23 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip OD: 19.03 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-068 (5 Pcs) External Retaining Rings - 17.27x0.64x16.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Per 5
Shaft Diameter (Ds) 17.27 mm _{(0.68 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 16.67 mm _{(0.656 in.)}	Approx. Loose Circlip ID (A) 16.23 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.07 Approx. Loose Clip OD: 19.03 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-068 (5 Pcs) External Retaining Rings - 17.27x0.64x16.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-068 (5 Pcs) --- External Retaining Rings - 17.27x0.64x16.67 mm - Spring Steel RS-068 (5 Pcs) --- External Retaining Rings - 17.27x0.64x16.67 mm - Spring Steel Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 17.48 mm _{(0.688 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 16.41 mm _{(0.646 in.)}	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 19.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Each
Shaft Diameter (Ds) 17.48 mm _{(0.688 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 16.41 mm _{(0.646 in.)}	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 19.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty

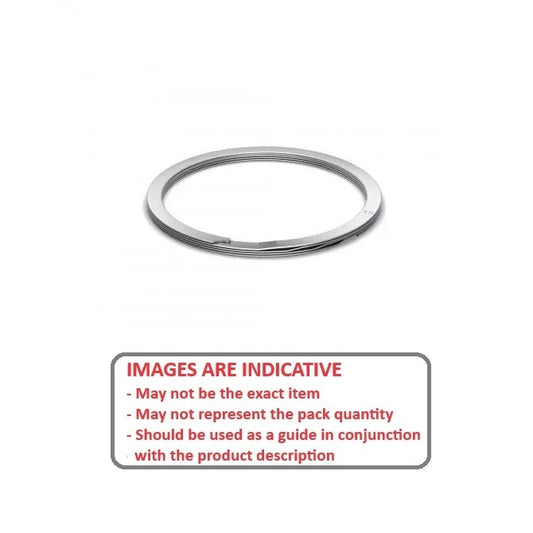

Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Each View the product page first if you are unsure.
RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $12.32 AUD Regular price Sale price $12.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 17.48 mm _{(0.688 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 16.41 mm _{(0.646 in.)}	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Spring Steel Approx. Loose Clip OD: 19.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty

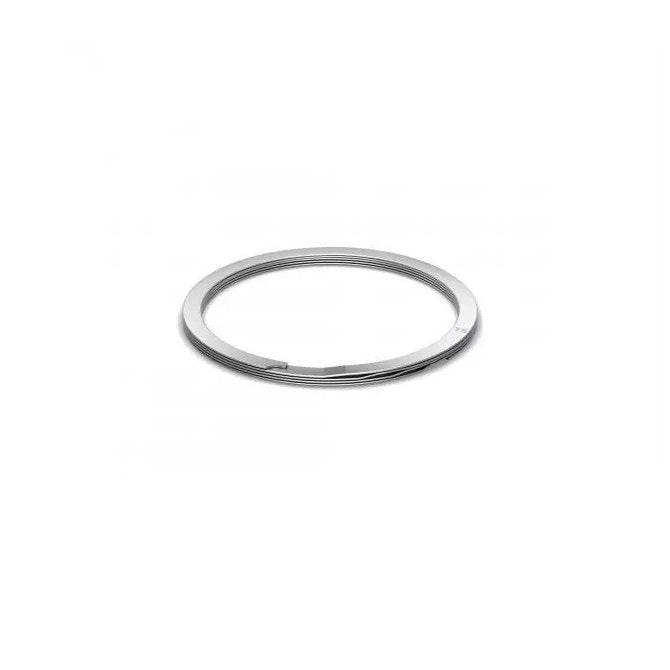

Part Number: RSN-068 External Retaining Rings - 17.48x1.07x16.41 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Each
Shaft Diameter (Ds) 17.48 mm _{(0.688 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 16.41 mm _{(0.646 in.)}	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 19.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-068 External Retaining Rings - 17.48x1.07x16.41 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Each View the product page first if you are unsure.
RSN-068 --- External Retaining Rings - 17.48x1.07x16.41 mm - Spring Steel RSN-068 --- External Retaining Rings - 17.48x1.07x16.41 mm - Spring Steel Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Out of stock! Backorder Now

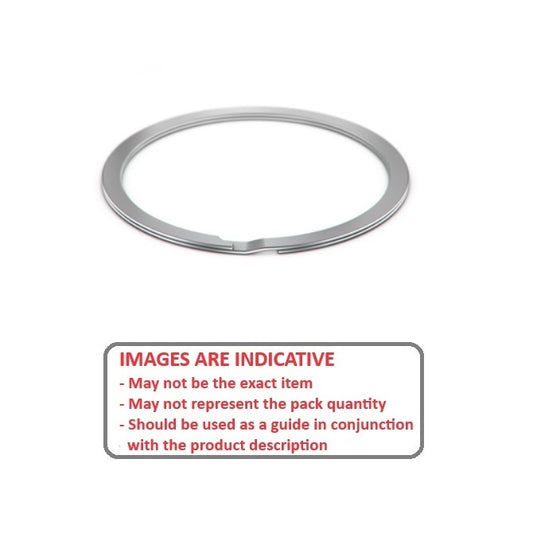

Shaft Diameter (Ds) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 18.27 mm _{(0.719 in.)}	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty

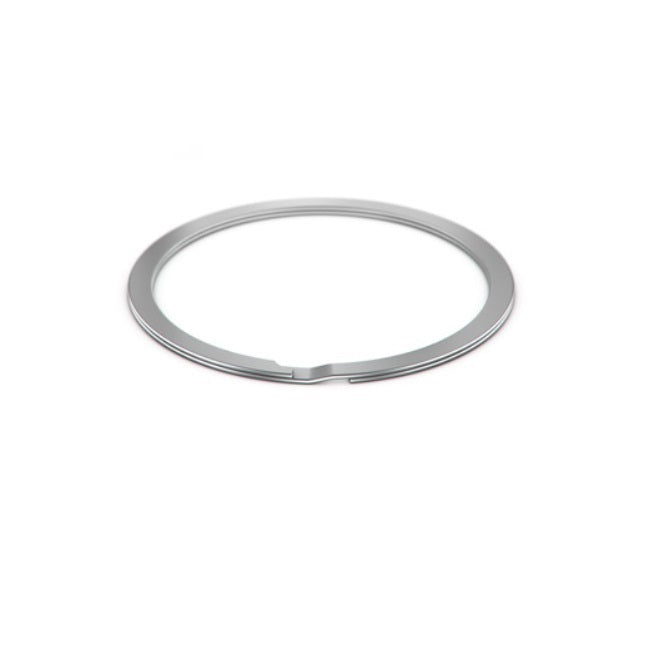

Part Number: RS-075 (10 Pcs) External Retaining Rings - 19.05x0.79x18.27 mm - Spring Steel 44 units (440 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 10
Shaft Diameter (Ds) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 18.27 mm _{(0.719 in.)}	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-075 (10 Pcs) External Retaining Rings - 19.05x0.79x18.27 mm - Spring Steel 44 units (440 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 10 View the product page first if you are unsure.
RS-075 (10 Pcs) --- External Retaining Rings - 19.05x0.79x18.27 mm - Spring Steel RS-075 (10 Pcs) --- External Retaining Rings - 19.05x0.79x18.27 mm - Spring Steel Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per 44 Available Now
