Collection: Retaining Rings - External - Spiral Rings

Retaining Rings (With Images)

External

172 Products in this selection

This is a combined category of Spiral Rings External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.91 mm _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.24 mm + 0.00 / - 0.51	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 55.26 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-200 External Retaining Rings - 50.8x1.58x47.91 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.91 mm _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.24 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 55.26 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-200 External Retaining Rings - 50.8x1.58x47.91 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.

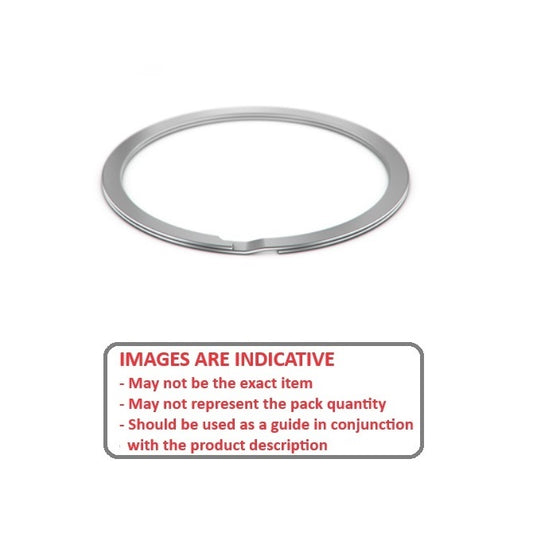

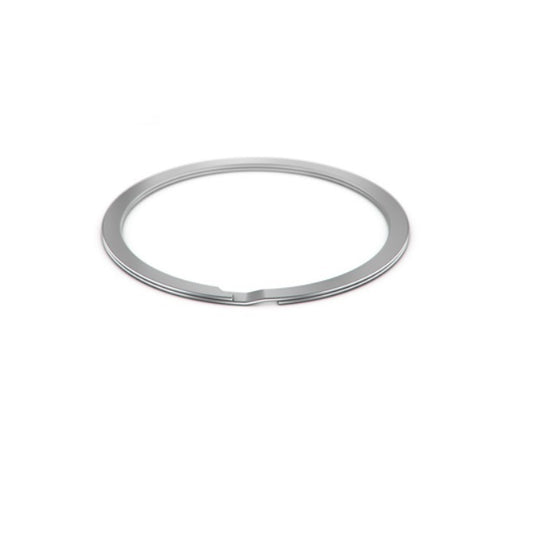

RSN-200 --- External Retaining Rings - 50.8x1.58x47.91 mm - Spring Steel RSN-200 --- External Retaining Rings - 50.8x1.58x47.91 mm - Spring Steel Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.91 mm _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.24 mm + 0.00 / - 0.51	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 55.26 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-200-S02 External Retaining Rings - 50.8x1.58x47.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Each
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 47.91 mm _{(1.886 in.)}	Approx. Loose Circlip ID (A) 47.24 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip OD: 55.26 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-200-S02 External Retaining Rings - 50.8x1.58x47.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Each View the product page first if you are unsure.
RSN-200-S02 --- External Retaining Rings - 50.8x1.58x47.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-200-S02 --- External Retaining Rings - 50.8x1.58x47.91 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 50.60 mm _{(1.992 in.)}	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 55.73 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-206-S02 External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each
Shaft Diameter (Ds) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 50.60 mm _{(1.992 in.)}	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 55.73 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-206-S02 External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each View the product page first if you are unsure.
RS-206-S02 --- External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-206-S02 --- External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 50.60 mm _{(1.992 in.)}	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 55.73 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-206 (2 Pcs) External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 2
Shaft Diameter (Ds) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 50.60 mm _{(1.992 in.)}	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 55.73 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-206 (2 Pcs) External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-206 (2 Pcs) --- External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel RS-206 (2 Pcs) --- External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.10 mm _{(2.051 in.)}	Approx. Loose Circlip ID (A) 50.74 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 57.24 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-212 External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel 19 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.10 mm _{(2.051 in.)}	Approx. Loose Circlip ID (A) 50.74 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 57.24 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-212 External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel 19 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
RS-212 --- External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel RS-212 --- External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 19 Available Now
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 50.88 mm _{(2.003 in.)}	Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 58.74 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-212 (2 Pcs) External Retaining Rings - 53.98x1.99x50.88 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Per 2
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 50.88 mm _{(2.003 in.)}	Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 58.74 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-212 (2 Pcs) External Retaining Rings - 53.98x1.99x50.88 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Per 2 View the product page first if you are unsure.
RSN-212 (2 Pcs) --- External Retaining Rings - 53.98x1.99x50.88 mm - Spring Steel RSN-212 (2 Pcs) --- External Retaining Rings - 53.98x1.99x50.88 mm - Spring Steel Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 50.88 mm _{(2.003 in.)}	Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 58.74 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-212-S02 External Retaining Rings - 53.98x1.99x50.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Each
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 50.88 mm _{(2.003 in.)}	Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 58.74 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-212-S02 External Retaining Rings - 53.98x1.99x50.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-212-S02 --- External Retaining Rings - 53.98x1.99x50.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-212-S02 --- External Retaining Rings - 53.98x1.99x50.88 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $38.14 AUD Regular price Sale price $38.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 54.76 mm _{(2.156 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.89 mm _{(2.082 in.)}	Approx. Loose Circlip ID (A) 51.47 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 58.49 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-215 (3 Pcs) External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 3
Shaft Diameter (Ds) 54.76 mm _{(2.156 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.89 mm _{(2.082 in.)}	Approx. Loose Circlip ID (A) 51.47 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 58.49 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-215 (3 Pcs) External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 3 View the product page first if you are unsure.
RS-215 (3 Pcs) --- External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel RS-215 (3 Pcs) --- External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 54.86 mm _{(2.16 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.11 mm _{(2.091 in.)}	Approx. Loose Circlip ID (A) 51.57 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 58.59 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-216 (3 Pcs) External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 3
Shaft Diameter (Ds) 54.86 mm _{(2.16 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.11 mm _{(2.091 in.)}	Approx. Loose Circlip ID (A) 51.57 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 58.59 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-216 (3 Pcs) External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 3 View the product page first if you are unsure.
RS-216 (3 Pcs) --- External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel RS-216 (3 Pcs) --- External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 55.58 mm _{(2.188 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.67 mm _{(2.113 in.)}	Approx. Loose Circlip ID (A) 52.25 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 59.27 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-218 (24 Pcs) External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Per 24
Shaft Diameter (Ds) 55.58 mm _{(2.188 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.67 mm _{(2.113 in.)}	Approx. Loose Circlip ID (A) 52.25 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 59.27 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-218 (24 Pcs) External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Per 24 View the product page first if you are unsure.
RS-218 (24 Pcs) --- External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel RS-218 (24 Pcs) --- External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 53.85 mm _{(2.12 in.)}	Approx. Loose Circlip ID (A) 53.15 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 61.69 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-225-S02 External Retaining Rings - 57.15x1.99x53.85 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $42.59 AUD Regular price Sale price $42.59 AUD Unit price per Each
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 53.85 mm _{(2.12 in.)}	Approx. Loose Circlip ID (A) 53.15 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 61.69 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-225-S02 External Retaining Rings - 57.15x1.99x53.85 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $42.59 AUD Regular price Sale price $42.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-225-S02 --- External Retaining Rings - 57.15x1.99x53.85 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-225-S02 --- External Retaining Rings - 57.15x1.99x53.85 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $42.59 AUD Regular price Sale price $42.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 53.85 mm _{(2.12 in.)}	Approx. Loose Circlip ID (A) 53.47 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 62.01 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-225 External Retaining Rings - 57.15x1.99x53.85 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Each
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 53.85 mm _{(2.12 in.)}	Approx. Loose Circlip ID (A) 53.47 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 62.01 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-225 External Retaining Rings - 57.15x1.99x53.85 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Each View the product page first if you are unsure.
RSN-225 --- External Retaining Rings - 57.15x1.99x53.85 mm - Spring Steel RSN-225 --- External Retaining Rings - 57.15x1.99x53.85 mm - Spring Steel Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 54.49 mm _{(2.145 in.)}	Approx. Loose Circlip ID (A) 53.72 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.58 mm +/- 0.10	Groove Width (W) 2.25 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 60.88 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-225 (3 Pcs) External Retaining Rings - 57.15x1.99x54.49 mm - Spring Steel 95 units (285 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.50 AUD Regular price ~~$4.75 AUD~~ Sale price $2.50 AUD Unit price per Per 3
Shaft Diameter (Ds) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 54.49 mm _{(2.145 in.)}	Approx. Loose Circlip ID (A) 53.72 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.58 mm +/- 0.10 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 60.88 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-225 (3 Pcs) External Retaining Rings - 57.15x1.99x54.49 mm - Spring Steel 95 units (285 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.50 AUD Regular price ~~$4.75 AUD~~ Sale price $2.50 AUD Unit price per Per 3
RST-225 (3 Pcs) --- External Retaining Rings - 57.15x1.99x54.49 mm - Spring Steel Sale RST-225 (3 Pcs) --- External Retaining Rings - 57.15x1.99x54.49 mm - Spring Steel Regular price $2.50 AUD Regular price ~~$4.75 AUD~~ Sale price $2.50 AUD Unit price per 95 Available Now Sale
Shaft Diameter (Ds) 58.72 mm _{(2.312 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 56.75 mm _{(2.234 in.)}	Approx. Loose Circlip ID (A) 55.20 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 62.22 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-231 (2 Pcs) External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 2
Shaft Diameter (Ds) 58.72 mm _{(2.312 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 56.75 mm _{(2.234 in.)}	Approx. Loose Circlip ID (A) 55.20 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 62.22 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-231 (2 Pcs) External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-231 (2 Pcs) --- External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel RS-231 (2 Pcs) --- External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 58.72 mm _{(2.312 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.01 mm _{(2.205 in.)}	Approx. Loose Circlip ID (A) 55.20 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.58 mm +/- 0.10	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 62.36 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-231 (37 Pcs) External Retaining Rings - 58.72x1.99x56.01 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per Per 37
Shaft Diameter (Ds) 58.72 mm _{(2.312 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.01 mm _{(2.205 in.)}	Approx. Loose Circlip ID (A) 55.20 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.58 mm +/- 0.10 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 62.36 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-231 (37 Pcs) External Retaining Rings - 58.72x1.99x56.01 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per Per 37 View the product page first if you are unsure.
RST-231 (37 Pcs) --- External Retaining Rings - 58.72x1.99x56.01 mm - Spring Steel RST-231 (37 Pcs) --- External Retaining Rings - 58.72x1.99x56.01 mm - Spring Steel Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 59.99 mm _{(2.362 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.02 mm _{(2.284 in.)}	Approx. Loose Circlip ID (A) 56.39 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 63.41 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-236 (2 Pcs) External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel 2 units (4 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Per 2
Shaft Diameter (Ds) 59.99 mm _{(2.362 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.02 mm _{(2.284 in.)}	Approx. Loose Circlip ID (A) 56.39 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 63.41 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-236 (2 Pcs) External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel 2 units (4 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-236 (2 Pcs) --- External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel RS-236 (2 Pcs) --- External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per 2 Available Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.35 mm _{(2.297 in.)}	Approx. Loose Circlip ID (A) 56.71 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 63.73 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-237 (5 Pcs) External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Per 5
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.35 mm _{(2.297 in.)}	Approx. Loose Circlip ID (A) 56.71 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 63.73 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-237 (5 Pcs) External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-237 (5 Pcs) --- External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel RS-237 (5 Pcs) --- External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip ID (A) 56.11 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 66.27 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-237-S02 External Retaining Rings - 60.33x1.99x56.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Each
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip ID (A) 56.11 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 66.27 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-237-S02 External Retaining Rings - 60.33x1.99x56.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Each View the product page first if you are unsure.
RSN-237-S02 --- External Retaining Rings - 60.33x1.99x56.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-237-S02 --- External Retaining Rings - 60.33x1.99x56.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip ID (A) 56.11 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 66.27 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-237 External Retaining Rings - 60.33x1.99x56.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Each
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip ID (A) 56.11 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 66.27 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-237 External Retaining Rings - 60.33x1.99x56.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Each View the product page first if you are unsure.
RSN-237 --- External Retaining Rings - 60.33x1.99x56.87 mm - Spring Steel RSN-237 --- External Retaining Rings - 60.33x1.99x56.87 mm - Spring Steel Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 57.53 mm _{(2.265 in.)}	Approx. Loose Circlip ID (A) 56.71 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.58 mm +/- 0.10	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 63.87 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-237 (3 Pcs) External Retaining Rings - 60.33x1.99x57.53 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 3
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 57.53 mm _{(2.265 in.)}	Approx. Loose Circlip ID (A) 56.71 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.58 mm +/- 0.10 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 63.87 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-237 (3 Pcs) External Retaining Rings - 60.33x1.99x57.53 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 3 View the product page first if you are unsure.
RST-237 (3 Pcs) --- External Retaining Rings - 60.33x1.99x57.53 mm - Spring Steel RST-237 (3 Pcs) --- External Retaining Rings - 60.33x1.99x57.53 mm - Spring Steel Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 61.42 mm _{(2.418 in.)}	Approx. Loose Circlip ID (A) 59.69 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.76 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 67.21 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-250 (5 Pcs) External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 61.42 mm _{(2.418 in.)}	Approx. Loose Circlip ID (A) 59.69 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.76 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 67.21 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-250 (5 Pcs) External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-250 (5 Pcs) --- External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel RS-250 (5 Pcs) --- External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 59.95 mm _{(2.36 in.)}	Approx. Loose Circlip ID (A) 59.06 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 69.22 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-250 External Retaining Rings - 63.5x1.99x59.95 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Each
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 59.95 mm _{(2.36 in.)}	Approx. Loose Circlip ID (A) 59.06 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 69.22 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-250 External Retaining Rings - 63.5x1.99x59.95 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Each View the product page first if you are unsure.
RSN-250 --- External Retaining Rings - 63.5x1.99x59.95 mm - Spring Steel RSN-250 --- External Retaining Rings - 63.5x1.99x59.95 mm - Spring Steel Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 59.95 mm _{(2.36 in.)}	Approx. Loose Circlip ID (A) 59.06 mm + 0.00 / - 0.64	Radial Wall (S) min/max 5.08 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 69.22 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-250-S02 External Retaining Rings - 63.5x1.99x59.95 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Each
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 59.95 mm _{(2.36 in.)}	Approx. Loose Circlip ID (A) 59.06 mm + 0.00 / - 0.64
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 5.08 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip OD: 69.22 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-250-S02 External Retaining Rings - 63.5x1.99x59.95 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Each View the product page first if you are unsure.
RSN-250-S02 --- External Retaining Rings - 63.5x1.99x59.95 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-250-S02 --- External Retaining Rings - 63.5x1.99x59.95 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $67.50 AUD Regular price Sale price $67.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 60.58 mm _{(2.385 in.)}	Approx. Loose Circlip ID (A) 59.69 mm + 0.00 / - 0.64	Radial Wall (S) min/max 4.78 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 69.25 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-250 External Retaining Rings - 63.5x1.99x60.58 mm - Spring Steel 8 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Each
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 60.58 mm _{(2.385 in.)}	Approx. Loose Circlip ID (A) 59.69 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 4.78 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip OD: 69.25 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-250 External Retaining Rings - 63.5x1.99x60.58 mm - Spring Steel 8 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per Each View the product page first if you are unsure.
RST-250 --- External Retaining Rings - 63.5x1.99x60.58 mm - Spring Steel RST-250 --- External Retaining Rings - 63.5x1.99x60.58 mm - Spring Steel Regular price $12.50 AUD Regular price Sale price $12.50 AUD Unit price per 8 Available Now
