Collection: Retaining Rings - External - Spiral Rings

Retaining Rings (With Images)

External

172 Products in this selection

This is a combined category of Spiral Rings External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 0.99 mm +/- 0.05 _{(0.039 in.)}	Groove Dia. (Dg) 85.65 mm _{(3.372 in.)}	Approx. Loose Circlip ID (A) 84.46 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.78 mm +/- 0.13	Groove Width (W) 1.16 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 94.02 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-350 (26 Pcs) External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $285.86 AUD Regular price Sale price $285.86 AUD Unit price per Per 26
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 0.99 mm +/- 0.05 _{(0.039 in.)}	Groove Dia. (Dg) 85.65 mm _{(3.372 in.)}	Approx. Loose Circlip ID (A) 84.46 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.78 mm +/- 0.13 Groove Width (W): 1.16 mm +/- 0.15 Approx. Loose Clip OD: 94.02 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-350 (26 Pcs) External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $285.86 AUD Regular price Sale price $285.86 AUD Unit price per Per 26 View the product page first if you are unsure.
US-350 (26 Pcs) --- External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel US-350 (26 Pcs) --- External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel Regular price $285.86 AUD Regular price Sale price $285.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 86.21 mm _{(3.394 in.)}	Approx. Loose Circlip ID (A) 83.57 mm + 0.00 / - 1.02	Radial Wall (S) min/max 4.78 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 93.13 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-350 External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 86.21 mm _{(3.394 in.)}	Approx. Loose Circlip ID (A) 83.57 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 4.78 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.15 Approx. Loose Clip OD: 93.13 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-350 External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
RS-350 --- External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel RS-350 --- External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 84.23 mm _{(3.316 in.)}	Approx. Loose Circlip ID (A) 82.68 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 96.4 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-350 External Retaining Rings - 88.9x2.82x84.23 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $67.86 AUD Regular price Sale price $67.86 AUD Unit price per Each
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 84.23 mm _{(3.316 in.)}	Approx. Loose Circlip ID (A) 82.68 mm + 0.00 / - 0.89
Material: Spring Steel Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.16 Approx. Loose Clip OD: 96.4 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-350 External Retaining Rings - 88.9x2.82x84.23 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $67.86 AUD Regular price Sale price $67.86 AUD Unit price per Each View the product page first if you are unsure.
RSN-350 --- External Retaining Rings - 88.9x2.82x84.23 mm - Spring Steel RSN-350 --- External Retaining Rings - 88.9x2.82x84.23 mm - Spring Steel Regular price $67.86 AUD Regular price Sale price $67.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 84.23 mm _{(3.316 in.)}	Approx. Loose Circlip ID (A) 82.68 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 96.4 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-350-S02 External Retaining Rings - 88.9x2.82x84.23 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $157.23 AUD Regular price Sale price $157.23 AUD Unit price per Each
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 84.23 mm _{(3.316 in.)}	Approx. Loose Circlip ID (A) 82.68 mm + 0.00 / - 0.89
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.16 Approx. Loose Clip OD: 96.4 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-350-S02 External Retaining Rings - 88.9x2.82x84.23 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $157.23 AUD Regular price Sale price $157.23 AUD Unit price per Each View the product page first if you are unsure.
RSN-350-S02 --- External Retaining Rings - 88.9x2.82x84.23 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-350-S02 --- External Retaining Rings - 88.9x2.82x84.23 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $157.23 AUD Regular price Sale price $157.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 89.92 mm _{(3.54 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 87.20 mm _{(3.433 in.)}	Approx. Loose Circlip ID (A) 84.52 mm + 0.00 / - 1.02	Radial Wall (S) min/max 5.03 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 94.58 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-354 (50 Pcs) External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Per 50
Shaft Diameter (Ds) 89.92 mm _{(3.54 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 87.20 mm _{(3.433 in.)}	Approx. Loose Circlip ID (A) 84.52 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 5.03 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.15 Approx. Loose Clip OD: 94.58 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-354 (50 Pcs) External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Per 50 View the product page first if you are unsure.
RS-354 (50 Pcs) --- External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel RS-354 (50 Pcs) --- External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 92.41 mm _{(3.638 in.)}	Approx. Loose Circlip ID (A) 89.54 mm + 0.00 / - 1.02	Radial Wall (S) min/max 5.03 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 99.6 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-375 External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each
Shaft Diameter (Ds) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 92.41 mm _{(3.638 in.)}	Approx. Loose Circlip ID (A) 89.54 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 5.03 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.16 Approx. Loose Clip OD: 99.6 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-375 External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each View the product page first if you are unsure.
RS-375 --- External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel RS-375 --- External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 90.22 mm _{(3.552 in.)}	Approx. Loose Circlip ID (A) 88.58 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 102.3 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-375-S02 External Retaining Rings - 95.25x2.82x90.22 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $173.68 AUD Regular price Sale price $173.68 AUD Unit price per Each
Shaft Diameter (Ds) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 90.22 mm _{(3.552 in.)}	Approx. Loose Circlip ID (A) 88.58 mm + 0.00 / - 0.89
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.15 Approx. Loose Clip OD: 102.3 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-375-S02 External Retaining Rings - 95.25x2.82x90.22 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $173.68 AUD Regular price Sale price $173.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-375-S02 --- External Retaining Rings - 95.25x2.82x90.22 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-375-S02 --- External Retaining Rings - 95.25x2.82x90.22 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $173.68 AUD Regular price Sale price $173.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 90.22 mm _{(3.552 in.)}	Approx. Loose Circlip ID (A) 88.58 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 102.3 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-375 External Retaining Rings - 95.25x2.82x90.22 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $74.95 AUD Regular price Sale price $74.95 AUD Unit price per Each
Shaft Diameter (Ds) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 90.22 mm _{(3.552 in.)}	Approx. Loose Circlip ID (A) 88.58 mm + 0.00 / - 0.89
Material: Spring Steel Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.15 Approx. Loose Clip OD: 102.3 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-375 External Retaining Rings - 95.25x2.82x90.22 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $74.95 AUD Regular price Sale price $74.95 AUD Unit price per Each View the product page first if you are unsure.
RSN-375 --- External Retaining Rings - 95.25x2.82x90.22 mm - Spring Steel RSN-375 --- External Retaining Rings - 95.25x2.82x90.22 mm - Spring Steel Regular price $74.95 AUD Regular price Sale price $74.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 99.89 mm _{(3.933 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 97.03 mm _{(3.82 in.)}	Approx. Loose Circlip ID (A) 93.90 mm + 0.00 / - 1.02	Radial Wall (S) min/max 5.29 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 104.48 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-393 (2 Pcs) External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel 4 units (8 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.24 AUD Regular price ~~$6.15 AUD~~ Sale price $3.24 AUD Unit price per Per 2
Shaft Diameter (Ds) 99.89 mm _{(3.933 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 97.03 mm _{(3.82 in.)}	Approx. Loose Circlip ID (A) 93.90 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 5.29 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.15 Approx. Loose Clip OD: 104.48 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-393 (2 Pcs) External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel 4 units (8 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.24 AUD Regular price ~~$6.15 AUD~~ Sale price $3.24 AUD Unit price per Per 2
RS-393 (2 Pcs) --- External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel Sale RS-393 (2 Pcs) --- External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel Regular price $3.24 AUD Regular price ~~$6.15 AUD~~ Sale price $3.24 AUD Unit price per 4 Available Now Sale
Shaft Diameter (Ds) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 96.32 mm _{(3.792 in.)}	Approx. Loose Circlip ID (A) 94.49 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 108.21 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-400 External Retaining Rings - 101.6x2.82x96.32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $112.05 AUD Regular price Sale price $112.05 AUD Unit price per Each
Shaft Diameter (Ds) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 96.32 mm _{(3.792 in.)}	Approx. Loose Circlip ID (A) 94.49 mm + 0.00 / - 0.89
Material: Spring Steel Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.16 Approx. Loose Clip OD: 108.21 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-400 External Retaining Rings - 101.6x2.82x96.32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $112.05 AUD Regular price Sale price $112.05 AUD Unit price per Each View the product page first if you are unsure.
RSN-400 --- External Retaining Rings - 101.6x2.82x96.32 mm - Spring Steel RSN-400 --- External Retaining Rings - 101.6x2.82x96.32 mm - Spring Steel Regular price $112.05 AUD Regular price Sale price $112.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 96.32 mm _{(3.792 in.)}	Approx. Loose Circlip ID (A) 94.49 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 108.21 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-400-S02 External Retaining Rings - 101.6x2.82x96.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $262.14 AUD Regular price Sale price $262.14 AUD Unit price per Each
Shaft Diameter (Ds) 101.60 mm _{(4 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 96.32 mm _{(3.792 in.)}	Approx. Loose Circlip ID (A) 94.49 mm + 0.00 / - 0.89
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.16 Approx. Loose Clip OD: 108.21 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-400-S02 External Retaining Rings - 101.6x2.82x96.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $262.14 AUD Regular price Sale price $262.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-400-S02 --- External Retaining Rings - 101.6x2.82x96.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-400-S02 --- External Retaining Rings - 101.6x2.82x96.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $262.14 AUD Regular price Sale price $262.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 110.85 mm _{(4.364 in.)}	Approx. Loose Circlip ID (A) 107.44 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.05 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 119.54 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-450 External Retaining Rings - 114.3x1.55x110.85 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Each
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 110.85 mm _{(4.364 in.)}	Approx. Loose Circlip ID (A) 107.44 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.05 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.16 Approx. Loose Clip OD: 119.54 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-450 External Retaining Rings - 114.3x1.55x110.85 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Each View the product page first if you are unsure.
RS-450 --- External Retaining Rings - 114.3x1.55x110.85 mm - Spring Steel RS-450 --- External Retaining Rings - 114.3x1.55x110.85 mm - Spring Steel Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 109.48 mm _{(4.31 in.)}	Approx. Loose Circlip ID (A) 106.30 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 120.02 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-450 External Retaining Rings - 114.3x2.82x109.48 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $144.59 AUD Regular price Sale price $144.59 AUD Unit price per Each
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 109.48 mm _{(4.31 in.)}	Approx. Loose Circlip ID (A) 106.30 mm + 0.00 / - 0.89
Material: Spring Steel Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.16 Approx. Loose Clip OD: 120.02 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-450 External Retaining Rings - 114.3x2.82x109.48 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $144.59 AUD Regular price Sale price $144.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-450 --- External Retaining Rings - 114.3x2.82x109.48 mm - Spring Steel RSN-450 --- External Retaining Rings - 114.3x2.82x109.48 mm - Spring Steel Regular price $144.59 AUD Regular price Sale price $144.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 109.48 mm _{(4.31 in.)}	Approx. Loose Circlip ID (A) 106.30 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 120.02 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-450-S02 External Retaining Rings - 114.3x2.82x109.48 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $345.05 AUD Regular price Sale price $345.05 AUD Unit price per Each
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 109.48 mm _{(4.31 in.)}	Approx. Loose Circlip ID (A) 106.30 mm + 0.00 / - 0.89
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.16 Approx. Loose Clip OD: 120.02 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-450-S02 External Retaining Rings - 114.3x2.82x109.48 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $345.05 AUD Regular price Sale price $345.05 AUD Unit price per Each View the product page first if you are unsure.
RSN-450-S02 --- External Retaining Rings - 114.3x2.82x109.48 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-450-S02 --- External Retaining Rings - 114.3x2.82x109.48 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $345.05 AUD Regular price Sale price $345.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 109.48 mm _{(4.31 in.)}	Approx. Loose Circlip ID (A) 107.44 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 120.14 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-450 External Retaining Rings - 114.3x2.82x109.48 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $52.59 AUD Regular price Sale price $52.59 AUD Unit price per Each
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 109.48 mm _{(4.31 in.)}	Approx. Loose Circlip ID (A) 107.44 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.16 Approx. Loose Clip OD: 120.14 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-450 External Retaining Rings - 114.3x2.82x109.48 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $52.59 AUD Regular price Sale price $52.59 AUD Unit price per Each View the product page first if you are unsure.
RST-450 --- External Retaining Rings - 114.3x2.82x109.48 mm - Spring Steel RST-450 --- External Retaining Rings - 114.3x2.82x109.48 mm - Spring Steel Regular price $52.59 AUD Regular price Sale price $52.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 115.87 mm _{(4.562 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 112.32 mm _{(4.422 in.)}	Approx. Loose Circlip ID (A) 108.92 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 121.62 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-456 (2 Pcs) External Retaining Rings - 115.87x1.83x112.32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Per 2
Shaft Diameter (Ds) 115.87 mm _{(4.562 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 112.32 mm _{(4.422 in.)}	Approx. Loose Circlip ID (A) 108.92 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.15 Approx. Loose Clip OD: 121.62 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-456 (2 Pcs) External Retaining Rings - 115.87x1.83x112.32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-456 (2 Pcs) --- External Retaining Rings - 115.87x1.83x112.32 mm - Spring Steel RS-456 (2 Pcs) --- External Retaining Rings - 115.87x1.83x112.32 mm - Spring Steel Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 117.48 mm _{(4.625 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 113.92 mm _{(4.485 in.)}	Approx. Loose Circlip ID (A) 110.43 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 123.13 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-462 (100 Pcs) External Retaining Rings - 117.48x1.83x113.92 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 117.48 mm _{(4.625 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 113.92 mm _{(4.485 in.)}	Approx. Loose Circlip ID (A) 110.43 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.15 Approx. Loose Clip OD: 123.13 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-462 (100 Pcs) External Retaining Rings - 117.48x1.83x113.92 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-462 (100 Pcs) --- External Retaining Rings - 117.48x1.83x113.92 mm - Spring Steel RS-462 (100 Pcs) --- External Retaining Rings - 117.48x1.83x113.92 mm - Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 120.65 mm _{(4.75 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 115.57 mm _{(4.55 in.)}	Approx. Loose Circlip ID (A) 113.41 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 126.11 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-475 External Retaining Rings - 120.65x2.82x115.57 mm - Spring Steel 130 Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $130.77 AUD Regular price Sale price $130.77 AUD Unit price per Each
Shaft Diameter (Ds) 120.65 mm _{(4.75 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 115.57 mm _{(4.55 in.)}	Approx. Loose Circlip ID (A) 113.41 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.15 Approx. Loose Clip OD: 126.11 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-475 External Retaining Rings - 120.65x2.82x115.57 mm - Spring Steel 130 Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $130.77 AUD Regular price Sale price $130.77 AUD Unit price per Each View the product page first if you are unsure.
RST-475 --- External Retaining Rings - 120.65x2.82x115.57 mm - Spring Steel RST-475 --- External Retaining Rings - 120.65x2.82x115.57 mm - Spring Steel Regular price $130.77 AUD Regular price Sale price $130.77 AUD Unit price per 130 Available Now
Shaft Diameter (Ds) 127.00 mm _{(5 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 123.34 mm _{(4.856 in.)}	Approx. Loose Circlip ID (A) 119.38 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 132.08 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-500 External Retaining Rings - 127x1.83x123.34 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each
Shaft Diameter (Ds) 127.00 mm _{(5 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 123.34 mm _{(4.856 in.)}	Approx. Loose Circlip ID (A) 119.38 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.15 Approx. Loose Clip OD: 132.08 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-500 External Retaining Rings - 127x1.83x123.34 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
RS-500 --- External Retaining Rings - 127x1.83x123.34 mm - Spring Steel RS-500 --- External Retaining Rings - 127x1.83x123.34 mm - Spring Steel Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 127.00 mm _{(5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 121.67 mm _{(4.79 in.)}	Approx. Loose Circlip ID (A) 118.11 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 131.83 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-500-S02 External Retaining Rings - 127x2.82x121.67 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $359.05 AUD Regular price Sale price $359.05 AUD Unit price per Each
Shaft Diameter (Ds) 127.00 mm _{(5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 121.67 mm _{(4.79 in.)}	Approx. Loose Circlip ID (A) 118.11 mm + 0.00 / - 0.89
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.15 Approx. Loose Clip OD: 131.83 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-500-S02 External Retaining Rings - 127x2.82x121.67 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $359.05 AUD Regular price Sale price $359.05 AUD Unit price per Each View the product page first if you are unsure.
RSN-500-S02 --- External Retaining Rings - 127x2.82x121.67 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-500-S02 --- External Retaining Rings - 127x2.82x121.67 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $359.05 AUD Regular price Sale price $359.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 127.00 mm _{(5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 121.67 mm _{(4.79 in.)}	Approx. Loose Circlip ID (A) 118.11 mm + 0.00 / - 0.89	Radial Wall (S) min/max 6.86 mm +/- 0.13	Groove Width (W) 3.12 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 131.83 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-500 External Retaining Rings - 127x2.82x121.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $165.14 AUD Regular price Sale price $165.14 AUD Unit price per Each
Shaft Diameter (Ds) 127.00 mm _{(5 in.)}	Clip Thickness (T) 2.82 mm +/- 0.08 _{(0.111 in.)}	Groove Dia. (Dg) 121.67 mm _{(4.79 in.)}	Approx. Loose Circlip ID (A) 118.11 mm + 0.00 / - 0.89
Material: Spring Steel Radial Wall (S) min/max: 6.86 mm +/- 0.13 Groove Width (W): 3.12 mm +/- 0.15 Approx. Loose Clip OD: 131.83 +/- 0.07 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-500 External Retaining Rings - 127x2.82x121.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $165.14 AUD Regular price Sale price $165.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-500 --- External Retaining Rings - 127x2.82x121.67 mm - Spring Steel RSN-500 --- External Retaining Rings - 127x2.82x121.67 mm - Spring Steel Regular price $165.14 AUD Regular price Sale price $165.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 130.00 mm _{(5.118 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 126.34 mm _{(4.974 in.)}	Approx. Loose Circlip ID (A) 122.20 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 134.9 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-511 (100 Pcs) External Retaining Rings - 130x1.83x126.34 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 130.00 mm _{(5.118 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 126.34 mm _{(4.974 in.)}	Approx. Loose Circlip ID (A) 122.20 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.15 Approx. Loose Clip OD: 134.9 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-511 (100 Pcs) External Retaining Rings - 130x1.83x126.34 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-511 (100 Pcs) --- External Retaining Rings - 130x1.83x126.34 mm - Spring Steel RS-511 (100 Pcs) --- External Retaining Rings - 130x1.83x126.34 mm - Spring Steel Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 133.35 mm _{(5.25 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 129.72 mm _{(5.107 in.)}	Approx. Loose Circlip ID (A) 125.35 mm + 0.00 / - 1.27	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.18

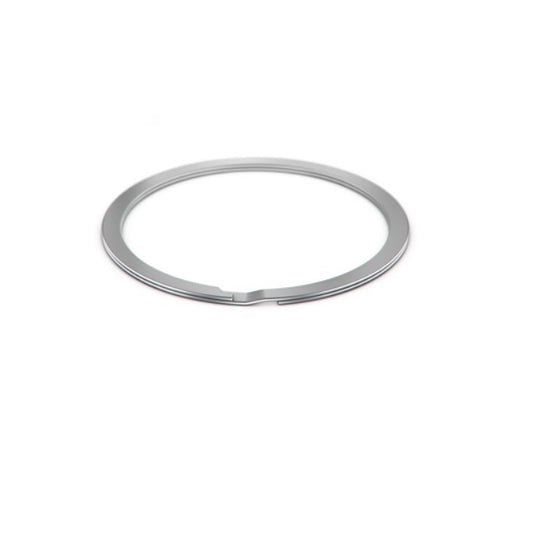

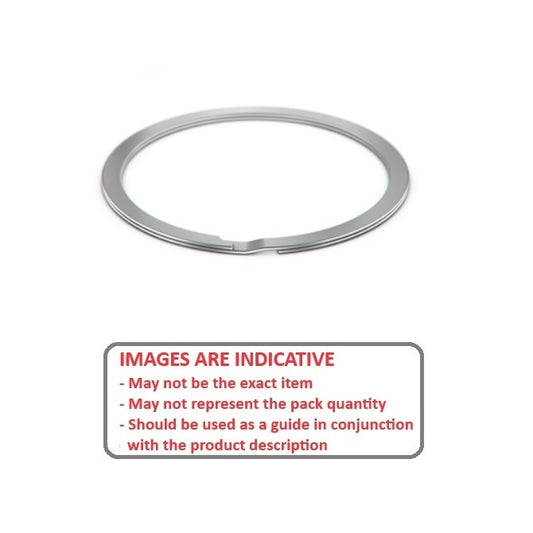

Material: Spring Steel Approx. Loose Clip OD: 138.05 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-525 External Retaining Rings - 133.35x1.83x129.72 mm - Spring Steel 12 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.14 AUD Regular price ~~$16.96 AUD~~ Sale price $14.14 AUD Unit price per Each
Shaft Diameter (Ds) 133.35 mm _{(5.25 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 129.72 mm _{(5.107 in.)}	Approx. Loose Circlip ID (A) 125.35 mm + 0.00 / - 1.27
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.18 Approx. Loose Clip OD: 138.05 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-525 External Retaining Rings - 133.35x1.83x129.72 mm - Spring Steel 12 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.14 AUD Regular price ~~$16.96 AUD~~ Sale price $14.14 AUD Unit price per Each View the product page first if you are unsure.
RS-525 --- External Retaining Rings - 133.35x1.83x129.72 mm - Spring Steel Sale RS-525 --- External Retaining Rings - 133.35x1.83x129.72 mm - Spring Steel Regular price $14.14 AUD Regular price ~~$16.96 AUD~~ Sale price $14.14 AUD Unit price per 12 Available Now Sale
Shaft Diameter (Ds) 139.70 mm _{(5.5 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 135.97 mm _{(5.353 in.)}	Approx. Loose Circlip ID (A) 131.32 mm + 0.00 / - 1.27	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.17
Material: Spring Steel Approx. Loose Clip OD: 144.02 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-550 (100 Pcs) External Retaining Rings - 139.7x1.83x135.97 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 139.70 mm _{(5.5 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 135.97 mm _{(5.353 in.)}	Approx. Loose Circlip ID (A) 131.32 mm + 0.00 / - 1.27
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.17 Approx. Loose Clip OD: 144.02 +/- 0.06 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-550 (100 Pcs) External Retaining Rings - 139.7x1.83x135.97 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-550 (100 Pcs) --- External Retaining Rings - 139.7x1.83x135.97 mm - Spring Steel RS-550 (100 Pcs) --- External Retaining Rings - 139.7x1.83x135.97 mm - Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
