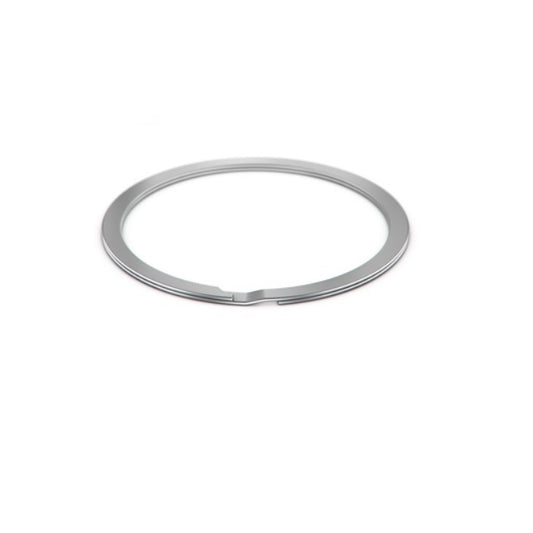

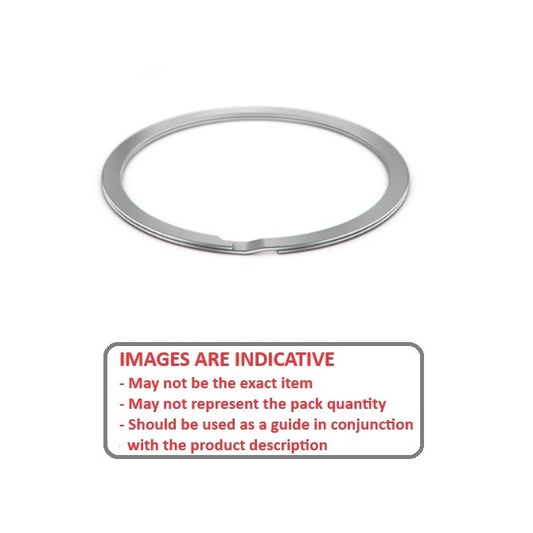

Collection: Retaining Rings - External - Spiral Rings

Retaining Rings (With Images)

External

172 Products in this selection

This is a combined category of Spiral Rings External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 25.91 mm _{(1.02 in.)}	Approx. Loose Circlip ID (A) 25.35 mm + 0.00 / - 0.38	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 29.17 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-106 (5 Pcs) External Retaining Rings - 26.97x0.94x25.91 mm - Spring Steel 92 units (460 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per Per 5
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 25.91 mm _{(1.02 in.)}	Approx. Loose Circlip ID (A) 25.35 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip OD: 29.17 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-106 (5 Pcs) External Retaining Rings - 26.97x0.94x25.91 mm - Spring Steel 92 units (460 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-106 (5 Pcs) --- External Retaining Rings - 26.97x0.94x25.91 mm - Spring Steel RS-106 (5 Pcs) --- External Retaining Rings - 26.97x0.94x25.91 mm - Spring Steel Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 92 Available Now
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 25.35 mm _{(0.998 in.)}	Approx. Loose Circlip ID (A) 25.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 30.32 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-106 External Retaining Rings - 26.97x1.27x25.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 25.35 mm _{(0.998 in.)}	Approx. Loose Circlip ID (A) 25.08 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 30.32 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-106 External Retaining Rings - 26.97x1.27x25.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each View the product page first if you are unsure.
RSN-106 --- External Retaining Rings - 26.97x1.27x25.35 mm - Spring Steel RSN-106 --- External Retaining Rings - 26.97x1.27x25.35 mm - Spring Steel Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 25.35 mm _{(0.998 in.)}	Approx. Loose Circlip ID (A) 25.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 30.32 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-106-S02 External Retaining Rings - 26.97x1.27x25.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Each
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 25.35 mm _{(0.998 in.)}	Approx. Loose Circlip ID (A) 25.08 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 30.32 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-106-S02 External Retaining Rings - 26.97x1.27x25.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Each View the product page first if you are unsure.
RSN-106-S02 --- External Retaining Rings - 26.97x1.27x25.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-106-S02 --- External Retaining Rings - 26.97x1.27x25.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 25.78 mm _{(1.015 in.)}	Approx. Loose Circlip ID (A) 25.35 mm + 0.00 / - 0.38	Radial Wall (S) min/max 2.24 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 29.83 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-106 (100 Pcs) External Retaining Rings - 26.97x1.27x25.78 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 100
Shaft Diameter (Ds) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 25.78 mm _{(1.015 in.)}	Approx. Loose Circlip ID (A) 25.35 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 2.24 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 29.83 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-106 (100 Pcs) External Retaining Rings - 26.97x1.27x25.78 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 100 View the product page first if you are unsure.
RST-106 (100 Pcs) --- External Retaining Rings - 26.97x1.27x25.78 mm - Spring Steel RST-106 (100 Pcs) --- External Retaining Rings - 26.97x1.27x25.78 mm - Spring Steel Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 27.51 mm _{(1.083 in.)}	Approx. Loose Circlip ID (A) 26.87 mm + 0.00 / - 0.38	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 30.69 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-112-S02 (8 Pcs) External Retaining Rings - 28.58x0.94x27.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 8
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 27.51 mm _{(1.083 in.)}	Approx. Loose Circlip ID (A) 26.87 mm + 0.00 / - 0.38
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip OD: 30.69 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-112-S02 (8 Pcs) External Retaining Rings - 28.58x0.94x27.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 8 View the product page first if you are unsure.
RS-112-S02 (8 Pcs) --- External Retaining Rings - 28.58x0.94x27.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-112-S02 (8 Pcs) --- External Retaining Rings - 28.58x0.94x27.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 27.51 mm _{(1.083 in.)}	Approx. Loose Circlip ID (A) 26.87 mm + 0.00 / - 0.38	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 30.69 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-112 (5 Pcs) External Retaining Rings - 28.58x0.94x27.51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.05 AUD Regular price Sale price $14.05 AUD Unit price per Per 5
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 27.51 mm _{(1.083 in.)}	Approx. Loose Circlip ID (A) 26.87 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip OD: 30.69 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-112 (5 Pcs) External Retaining Rings - 28.58x0.94x27.51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.05 AUD Regular price Sale price $14.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-112 (5 Pcs) --- External Retaining Rings - 28.58x0.94x27.51 mm - Spring Steel RS-112 (5 Pcs) --- External Retaining Rings - 28.58x0.94x27.51 mm - Spring Steel Regular price $14.05 AUD Regular price Sale price $14.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 26.90 mm _{(1.059 in.)}	Approx. Loose Circlip ID (A) 26.58 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 31.82 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-112-S02 External Retaining Rings - 28.58x1.27x26.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 26.90 mm _{(1.059 in.)}	Approx. Loose Circlip ID (A) 26.58 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 31.82 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-112-S02 External Retaining Rings - 28.58x1.27x26.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-112-S02 --- External Retaining Rings - 28.58x1.27x26.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-112-S02 --- External Retaining Rings - 28.58x1.27x26.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 26.90 mm _{(1.059 in.)}	Approx. Loose Circlip ID (A) 26.58 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 31.82 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-112 (4 Pcs) External Retaining Rings - 28.58x1.27x26.9 mm - Spring Steel 1 pack (4 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $12.50 AUD Regular price ~~$15.00 AUD~~ Sale price $12.50 AUD Unit price per Per 4
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 26.90 mm _{(1.059 in.)}	Approx. Loose Circlip ID (A) 26.58 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 31.82 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-112 (4 Pcs) External Retaining Rings - 28.58x1.27x26.9 mm - Spring Steel 1 pack (4 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $12.50 AUD Regular price ~~$15.00 AUD~~ Sale price $12.50 AUD Unit price per Per 4 View the product page first if you are unsure.
RSN-112 (4 Pcs) --- External Retaining Rings - 28.58x1.27x26.9 mm - Spring Steel Sale RSN-112 (4 Pcs) --- External Retaining Rings - 28.58x1.27x26.9 mm - Spring Steel Regular price $12.50 AUD Regular price ~~$15.00 AUD~~ Sale price $12.50 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 29.36 mm _{(1.156 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 28.30 mm _{(1.114 in.)}	Approx. Loose Circlip ID (A) 27.60 mm + 0.00 / - 0.38	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 31.42 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-115 (100 Pcs) External Retaining Rings - 29.36x0.94x28.3 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 29.36 mm _{(1.156 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 28.30 mm _{(1.114 in.)}	Approx. Loose Circlip ID (A) 27.60 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip OD: 31.42 +/- 0.03 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-115 (100 Pcs) External Retaining Rings - 29.36x0.94x28.3 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-115 (100 Pcs) --- External Retaining Rings - 29.36x0.94x28.3 mm - Spring Steel RS-115 (100 Pcs) --- External Retaining Rings - 29.36x0.94x28.3 mm - Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 28.96 mm _{(1.14 in.)}	Approx. Loose Circlip ID (A) 28.37 mm + 0.00 / - 0.38	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 32.69 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-118 (61 Pcs) External Retaining Rings - 30.18x1.09x28.96 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $191.05 AUD Regular price Sale price $191.05 AUD Unit price per Per 61
Shaft Diameter (Ds) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 28.96 mm _{(1.14 in.)}	Approx. Loose Circlip ID (A) 28.37 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip OD: 32.69 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-118 (61 Pcs) External Retaining Rings - 30.18x1.09x28.96 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $191.05 AUD Regular price Sale price $191.05 AUD Unit price per Per 61 View the product page first if you are unsure.
RS-118 (61 Pcs) --- External Retaining Rings - 30.18x1.09x28.96 mm - Spring Steel RS-118 (61 Pcs) --- External Retaining Rings - 30.18x1.09x28.96 mm - Spring Steel Regular price $191.05 AUD Regular price Sale price $191.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 28.40 mm _{(1.118 in.)}	Approx. Loose Circlip ID (A) 28.07 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 33.31 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-118 External Retaining Rings - 30.18x1.27x28.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Each
Shaft Diameter (Ds) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 28.40 mm _{(1.118 in.)}	Approx. Loose Circlip ID (A) 28.07 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 33.31 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-118 External Retaining Rings - 30.18x1.27x28.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Each View the product page first if you are unsure.
RSN-118 --- External Retaining Rings - 30.18x1.27x28.4 mm - Spring Steel RSN-118 --- External Retaining Rings - 30.18x1.27x28.4 mm - Spring Steel Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 28.40 mm _{(1.118 in.)}	Approx. Loose Circlip ID (A) 28.07 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 33.31 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-118-S02 External Retaining Rings - 30.18x1.27x28.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Each
Shaft Diameter (Ds) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 28.40 mm _{(1.118 in.)}	Approx. Loose Circlip ID (A) 28.07 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 33.31 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-118-S02 External Retaining Rings - 30.18x1.27x28.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Each View the product page first if you are unsure.
RSN-118-S02 --- External Retaining Rings - 30.18x1.27x28.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-118-S02 --- External Retaining Rings - 30.18x1.27x28.4 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $23.59 AUD Regular price Sale price $23.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 30.53 mm _{(1.202 in.)}	Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 34.17 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-125 (5 Pcs) External Retaining Rings - 31.75x1.09x30.53 mm - Spring Steel 56 units (280 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 30.53 mm _{(1.202 in.)}	Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip OD: 34.17 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-125 (5 Pcs) External Retaining Rings - 31.75x1.09x30.53 mm - Spring Steel 56 units (280 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-125 (5 Pcs) --- External Retaining Rings - 31.75x1.09x30.53 mm - Spring Steel RS-125 (5 Pcs) --- External Retaining Rings - 31.75x1.09x30.53 mm - Spring Steel Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 56 Available Now
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 30.53 mm _{(1.202 in.)}	Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 34.17 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-125-S02 External Retaining Rings - 31.75x1.09x30.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 20 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 30.53 mm _{(1.202 in.)}	Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip OD: 34.17 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-125-S02 External Retaining Rings - 31.75x1.09x30.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 20 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each View the product page first if you are unsure.
RS-125-S02 --- External Retaining Rings - 31.75x1.09x30.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-125-S02 --- External Retaining Rings - 31.75x1.09x30.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 20 Available Now
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.53 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 34.77 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-125-S02 External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.53 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 34.77 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-125-S02 External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-125-S02 --- External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-125-S02 --- External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.53 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 34.77 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-125 (5 Pcs) External Retaining Rings - 31.75x1.27x29.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Per 5
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.53 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 34.77 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-125 (5 Pcs) External Retaining Rings - 31.75x1.27x29.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Per 5 View the product page first if you are unsure.
RSN-125 (5 Pcs) --- External Retaining Rings - 31.75x1.27x29.87 mm - Spring Steel RSN-125 (5 Pcs) --- External Retaining Rings - 31.75x1.27x29.87 mm - Spring Steel Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 30.35 mm _{(1.195 in.)}	Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38	Radial Wall (S) min/max 2.36 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 34.57 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy
Part Number: RST-125-S02 External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 30.35 mm _{(1.195 in.)}	Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.36 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 34.57 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy
Part Number: RST-125-S02 External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each View the product page first if you are unsure.
RST-125-S02 --- External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 RST-125-S02 --- External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 33.32 mm _{(1.312 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.11 mm _{(1.264 in.)}	Approx. Loose Circlip ID (A) 31.32 mm + 0.00 / - 0.38	Radial Wall (S) min/max 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.11
Material: Spring Steel Approx. Loose Clip OD: 36.14 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-131 (34 Pcs) External Retaining Rings - 33.32x1.09x32.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Per 34
Shaft Diameter (Ds) 33.32 mm _{(1.312 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.11 mm _{(1.264 in.)}	Approx. Loose Circlip ID (A) 31.32 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.11 Approx. Loose Clip OD: 36.14 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-131 (34 Pcs) External Retaining Rings - 33.32x1.09x32.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Per 34 View the product page first if you are unsure.
RS-131 (34 Pcs) --- External Retaining Rings - 33.32x1.09x32.11 mm - Spring Steel RS-131 (34 Pcs) --- External Retaining Rings - 33.32x1.09x32.11 mm - Spring Steel Regular price $10.14 AUD Regular price Sale price $10.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 33.32 mm _{(1.312 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 31.29 mm _{(1.232 in.)}	Approx. Loose Circlip ID (A) 30.99 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 36.99 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-131-S02 External Retaining Rings - 33.32x1.27x31.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Each
Shaft Diameter (Ds) 33.32 mm _{(1.312 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 31.29 mm _{(1.232 in.)}	Approx. Loose Circlip ID (A) 30.99 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 36.99 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-131-S02 External Retaining Rings - 33.32x1.27x31.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-131-S02 --- External Retaining Rings - 33.32x1.27x31.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-131-S02 --- External Retaining Rings - 33.32x1.27x31.29 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 33.32 mm _{(1.312 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 31.29 mm _{(1.232 in.)}	Approx. Loose Circlip ID (A) 30.99 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 36.99 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-131 External Retaining Rings - 33.32x1.27x31.29 mm - Spring Steel 6 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per Each
Shaft Diameter (Ds) 33.32 mm _{(1.312 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 31.29 mm _{(1.232 in.)}	Approx. Loose Circlip ID (A) 30.99 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 36.99 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-131 External Retaining Rings - 33.32x1.27x31.29 mm - Spring Steel 6 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per Each View the product page first if you are unsure.
RSN-131 --- External Retaining Rings - 33.32x1.27x31.29 mm - Spring Steel Sale RSN-131 --- External Retaining Rings - 33.32x1.27x31.29 mm - Spring Steel Regular price $11.95 AUD Regular price ~~$14.35 AUD~~ Sale price $11.95 AUD Unit price per 6 Available Now Sale
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 33.61 mm _{(1.323 in.)}	Approx. Loose Circlip ID (A) 32.83 mm + 0.00 / - 0.38	Radial Wall (S) min/max 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.11
Material: Spring Steel Approx. Loose Clip OD: 37.65 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-137 External Retaining Rings - 34.93x1.09x33.61 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 33.61 mm _{(1.323 in.)}	Approx. Loose Circlip ID (A) 32.83 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.11 Approx. Loose Clip OD: 37.65 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-137 External Retaining Rings - 34.93x1.09x33.61 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each View the product page first if you are unsure.
RS-137 --- External Retaining Rings - 34.93x1.09x33.61 mm - Spring Steel RS-137 --- External Retaining Rings - 34.93x1.09x33.61 mm - Spring Steel Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.48 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 38.48 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-137-S02 External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.48 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 38.48 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-137-S02 External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each View the product page first if you are unsure.
RSN-137-S02 --- External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel 302/304 Similar to A2, 18-8 RSN-137-S02 --- External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.48 mm + 0.00 / - 0.33	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 38.48 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-137 (5 Pcs) External Retaining Rings - 34.93x1.27x32.79 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Per 5
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.48 mm + 0.00 / - 0.33
Material: Spring Steel Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip OD: 38.48 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-137 (5 Pcs) External Retaining Rings - 34.93x1.27x32.79 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Per 5 View the product page first if you are unsure.
RSN-137 (5 Pcs) --- External Retaining Rings - 34.93x1.27x32.79 mm - Spring Steel RSN-137 (5 Pcs) --- External Retaining Rings - 34.93x1.27x32.79 mm - Spring Steel Regular price $11.59 AUD Regular price Sale price $11.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 36.50 mm _{(1.437 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 35.18 mm _{(1.385 in.)}	Approx. Loose Circlip ID (A) 34.31 mm + 0.00 / - 0.38	Radial Wall (S) min/max 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip OD: 39.13 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-143 (5 Pcs) External Retaining Rings - 36.5x1.09x35.18 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 5
Shaft Diameter (Ds) 36.50 mm _{(1.437 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 35.18 mm _{(1.385 in.)}	Approx. Loose Circlip ID (A) 34.31 mm + 0.00 / - 0.38
Material: Spring Steel Radial Wall (S) min/max: 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip OD: 39.13 +/- 0.05 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-143 (5 Pcs) External Retaining Rings - 36.5x1.09x35.18 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-143 (5 Pcs) --- External Retaining Rings - 36.5x1.09x35.18 mm - Spring Steel RS-143 (5 Pcs) --- External Retaining Rings - 36.5x1.09x35.18 mm - Spring Steel Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Out of stock! Backorder Now
