698-Z-MC45-T9H-AF12

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

Product Details

Deleted Item. Available while stocks last.

ID (d): 8.000mm
_{+ 0.000 / - 0.0075
(8.000mm is 0.315 in.)}

Chrome Steel SAE 52100 - High Speed Polyamide Cage

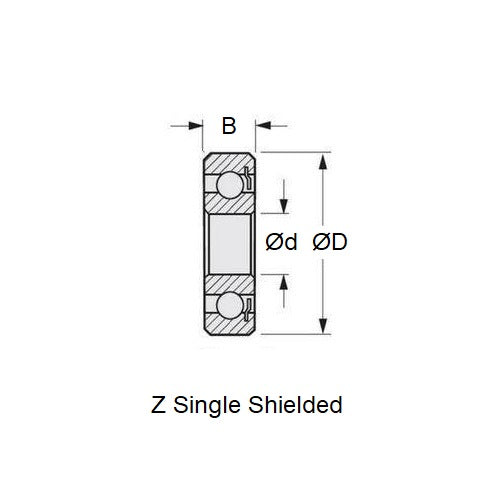

• ID (d): 8.000mm
  _{+ 0.000 / - 0.0075
  (8.000mm is 0.315 in.)}

• OD (D): 19.000mm
  _{+ 0.000 / - 0.010
  (19.000mm is 0.748 in.)}

• Width (B): 6.000mm
  _{+ 0.000 / - 0.125
  (6.000mm is 0.236 in.)}

• Precision Grade: Abec 1
• Closure Type: Z
• Bearing Type: Radial

Brand: MBA
Country of Origin: TW

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• WIB 619-8-Z-T9H-C3-WW-AF2
• 6198ZT9HC3WWAF2
• 698T9HZC823AF12
• 698BASIC

Used for

• RC Nitro Engine Parts
• Cyclone - FA1F1C - 49 - Bearing 8-19-6mm
• Cyclone - PR - 61 - Bearing 8-19-6mm
• Enya - 2C - Bearing 8-19-6mm
• Enya - 46 - 2 Stroke - Front Bearing
• Enya - 46 - 4 Stroke Old - Front Bearing
• GMS - 25 ABC - 50 - Bearing 8-19-6mm
• GMS - 32 ABC - 120 - Bearing 8-19-6mm
• GMS - 40 ABC - 25 - Bearing 8-19-6mm
• GMS - 47 ABC - 32 - Bearing 8-19-6mm
• Magnum Power - XL 30 RFS - 120 - Bearing 8-19-6mm
• Magnum Power - XL30 - 80 - Bearing 8-19-6mm
• Nelson - 15 All Models - Bearing 8-19-6mm
• Nelson - 40 - Bearing 8-19-6mm
• Nelson - 45 - 12 - Bearing 8-19-6mm
• Nelson - 7.5 - 45 - Front Bearing
• Nelson - Quickie - 91 - Bearing 8-19-6mm
• Nova Rossi - Nova - 15 - Bearing 8-19-6mm
• OS - 20 4-C - Front Bearing
• OS - FS 26 Surpass RC 4C - 90 - Bearing 8-19-6mm
• OS - FS 4C - 26 - Bearing 8-19-6mm
• OS - FS Surpass RC 4C - 91 - Bearing 8-19-6mm
• OS - FS26S - 4 Stroke - Front Bearing
• OS - FS40 - 52 - Bearing 8-19-6mm
• OS - FS40S - 4 Stroke - Front Bearing
• OS - RC 4C - 40 - Bearing 8-19-6mm
• OS - RF-B - 61 - Bearing 8-19-6mm
• OS - SXH-R - 32 - Bearing 8-19-6mm
• Picco - 40 All Models - Bearing 8-19-6mm
• Picco - 61 - 2 Stroke - Front Bearing
• Picco - F1 -P5 21 - Power Take Off Bearing
• Rossi - 3 and 2 - 3.5 - Bearing 8-19-6mm
• Rossi - 40 -45 Air - Front Bearing
• Rossi - 40 Nova - Front Bearing
• Rossi - 45 All Models - Bearing 8-19-6mm
• Rossi - 45 Marine - Front Bearing
• Rossi - 53 Glow Engine - 60 - Bearing 8-19-6mm
• Rossi - 60 FI RC - 61 - Front Bearing
• Rossi - Air - 53 - Bearing 8-19-6mm
• Rossi - F1 RC - 81 - Bearing 8-19-6mm
• Rossi - F3D Pylon - 81 - Bearing 8-19-6mm
• Rossi - Marine - 40 - Bearing 8-19-6mm
• Rossi - R40T - 21 - Bearing 8-19-6mm
• Saito - 40 -45 -50 Quickie - Front Bearing
• Saito - 40 4C - 45 4C - 50 - Front Bearing
• Saito - 4C - 100 - Bearing 8-19-6mm
• Saito - 4C - 160 - Bearing 8-19-6mm
• Saito - 4C - 40 - Bearing 8-19-6mm
• Saito - 4C Old - 100 - Bearing 8-19-6mm
• Saito - 90 - Bearing 8-19-6mm
• Saito - FA 270T - Bearing 8-19-6mm
• Saito - FA 300T - Bearing 8-19-6mm
• Saito - FA 30S - 91 - Front Bearing 8-19-6mm
• Saito - FA 56 - 30 - Front Bearing 8-19-6mm
• Saito - GK - 180 - Bearing 8-19-6mm
• Saito - Mark II - 182 - Bearing 8-19-6mm
• Saito - Mark II - 56 - Bearing 8-19-6mm
• Saito - Quickie - 120 - Bearing 8-19-6mm
• Saito - Quickie - 40 - Bearing 8-19-6mm
• Saito - Quickie - 45 - Bearing 8-19-6mm
• Saito - S - 45 - Bearing 8-19-6mm
• Saito - Twin - 45 - Bearing 8-19-6mm
• Stalker - Pro - 46 - Bearing 8-19-6mm
• Tower - 21 - Bearing 8-19-6mm
• YS - FZ - 60 - Bearing 8-19-6mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
