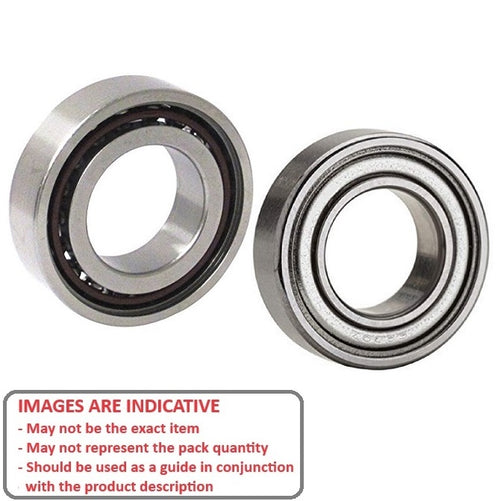

698-Z-MC45-T9H-AF12 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

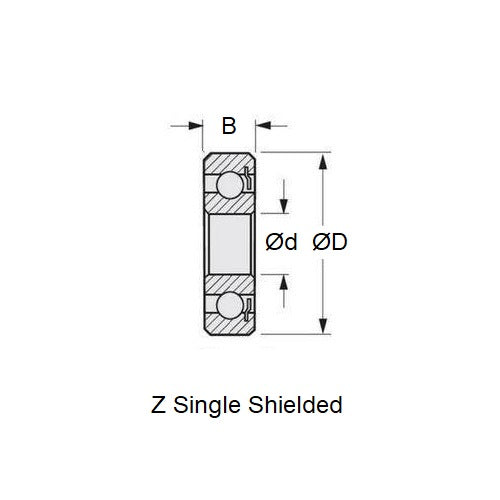

- ID (d)
:
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - OD (D)
19.000
mm
+ 0.000 / - 0.010
(Equiv. 0.748 in.) - Width (B)
6.000
mm
+ 0.000 / - 0.125
(Equiv. 0.236 in.) - Precision Grade Abec 1
- Closure Type Z
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part 698
- Limiting Speed 68800
- Cage Type Polyamide
- Static Load Rating KGf 94
- Dynamic Load Rating KGf 228
- Radii 0.30 mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls 7
- Clearance C823 (8 to 23)
- Precision Grade Abec 1
- Closure Type Z
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- Cyclone - FA1F1C - 49 - Bearing 8-19-6mm
- Cyclone - PR - 61 - Bearing 8-19-6mm
- Enya - 2C - Bearing 8-19-6mm
- Enya - 46 - 2 Stroke - Front Bearing
- Enya - 46 - 4 Stroke Old - Front Bearing
- GMS - 25 ABC - 50 - Bearing 8-19-6mm
- GMS - 32 ABC - 120 - Bearing 8-19-6mm
- GMS - 40 ABC - 25 - Bearing 8-19-6mm
- GMS - 47 ABC - 32 - Bearing 8-19-6mm
- Magnum Power - XL 30 RFS - 120 - Bearing 8-19-6mm
- Magnum Power - XL30 - 80 - Bearing 8-19-6mm
- Nelson - 15 All Models - Bearing 8-19-6mm
- Nelson - 40 - Bearing 8-19-6mm
- Nelson - 45 - 12 - Bearing 8-19-6mm
- Nelson - 7.5 - 45 - Front Bearing
- Nelson - Quickie - 91 - Bearing 8-19-6mm
- Nova Rossi - Nova - 15 - Bearing 8-19-6mm
- OS - 20 4-C - Front Bearing
- OS - FS 26 Surpass RC 4C - 90 - Bearing 8-19-6mm
- OS - FS 4C - 26 - Bearing 8-19-6mm
- OS - FS Surpass RC 4C - 91 - Bearing 8-19-6mm
- OS - FS26S - 4 Stroke - Front Bearing
- OS - FS40 - 52 - Bearing 8-19-6mm
- OS - FS40S - 4 Stroke - Front Bearing
- OS - RC 4C - 40 - Bearing 8-19-6mm
- OS - RF-B - 61 - Bearing 8-19-6mm
- OS - SXH-R - 32 - Bearing 8-19-6mm
- Picco - 40 All Models - Bearing 8-19-6mm
- Picco - 61 - 2 Stroke - Front Bearing
- Picco - F1 -P5 21 - Power Take Off Bearing
- Rossi - 3 and 2 - 3.5 - Bearing 8-19-6mm
- Rossi - 40 -45 Air - Front Bearing
- Rossi - 40 Nova - Front Bearing
- Rossi - 45 All Models - Bearing 8-19-6mm
- Rossi - 45 Marine - Front Bearing
- Rossi - 53 Glow Engine - 60 - Bearing 8-19-6mm
- Rossi - 60 FI RC - 61 - Front Bearing
- Rossi - Air - 53 - Bearing 8-19-6mm
- Rossi - F1 RC - 81 - Bearing 8-19-6mm
- Rossi - F3D Pylon - 81 - Bearing 8-19-6mm
- Rossi - Marine - 40 - Bearing 8-19-6mm
- Rossi - R40T - 21 - Bearing 8-19-6mm
- Saito - 40 -45 -50 Quickie - Front Bearing
- Saito - 40 4C - 45 4C - 50 - Front Bearing
- Saito - 4C - 100 - Bearing 8-19-6mm
- Saito - 4C - 160 - Bearing 8-19-6mm
- Saito - 4C - 40 - Bearing 8-19-6mm
- Saito - 4C Old - 100 - Bearing 8-19-6mm
- Saito - 90 - Bearing 8-19-6mm
- Saito - FA 270T - Bearing 8-19-6mm
- Saito - FA 300T - Bearing 8-19-6mm
- Saito - FA 30S - 91 - Front Bearing 8-19-6mm
- Saito - FA 56 - 30 - Front Bearing 8-19-6mm
- Saito - GK - 180 - Bearing 8-19-6mm
- Saito - Mark II - 182 - Bearing 8-19-6mm
- Saito - Mark II - 56 - Bearing 8-19-6mm
- Saito - Quickie - 120 - Bearing 8-19-6mm
- Saito - Quickie - 40 - Bearing 8-19-6mm
- Saito - Quickie - 45 - Bearing 8-19-6mm
- Saito - S - 45 - Bearing 8-19-6mm
- Saito - Twin - 45 - Bearing 8-19-6mm
- Stalker - Pro - 46 - Bearing 8-19-6mm
- Tower - 21 - Bearing 8-19-6mm
- YS - FZ - 60 - Bearing 8-19-6mm
Cross References
- WIB 619-8-Z-T9H-C3-WW-AF2
- 6198ZT9HC3WWAF2
- 698T9HZC823AF12
- 698 Basic Size Ref
