607-Z-MC45-T9H-AF12-J

Name: 607-Z-MC45-T9H-AF12-J - Single Row Ball Bearings - 7x19x6 mm Unflanged - Chrome Steel SAE 52100 - High Speed Polyamide Cage Bearing
Brand: MBA
SKU: 607ZMC45T9HAF12J
Price: 7.23 AUD
Availability: InStock

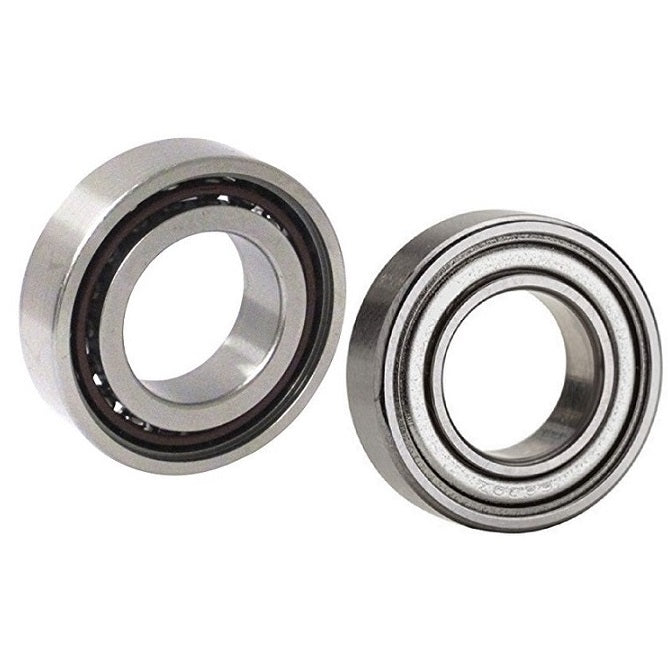

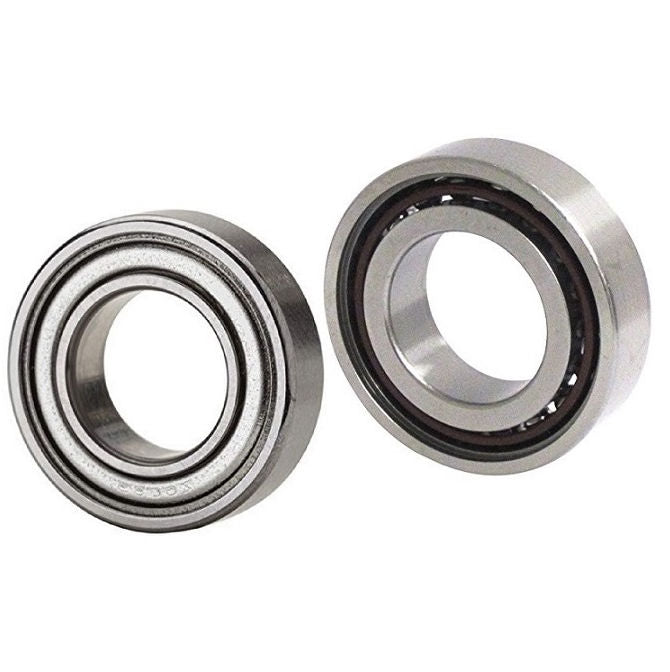

Single Row Ball Bearings - 7x19x6 mm Unflanged - Chrome Steel SAE 52100 - High Speed Polyamide Cage Bearing

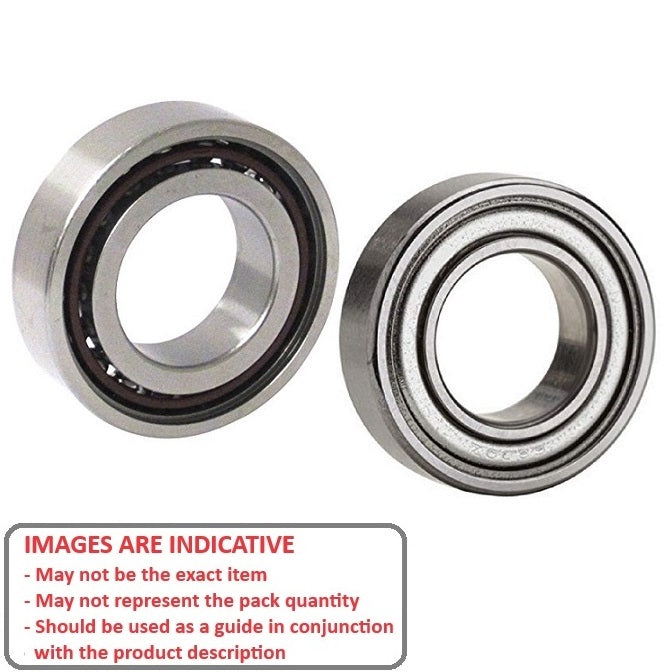

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$7.23 AUD

Each
Qty: 90 available now
Order 50 or more for $6.51 AUD Each

Product Details

ID (d): 7.000mm
_{+ 0.000 / - 0.0075}
_{(7.000mm is 0.276 in.)}

Chrome Steel SAE 52100 - High Speed Polyamide Cage

ID (d): 7.000mm
_{+ 0.000 / - 0.0075}
_{(7.000mm is 0.276 in.)}
OD (D): 19.000mm
_{+ 0.000 / - 0.010}
_{(19.000mm is 0.748 in.)}
Width (B): 6.000mm
_{+ 0.000 / - 0.125}
_{(6.000mm is 0.236 in.)}
Precision Grade: Abec 1

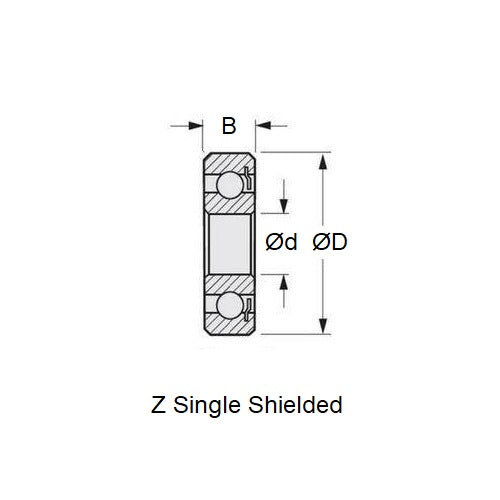

Closure Type: Z
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

Nova Rossi 17003
Reedy 28012
BOSCH 3600905012
WIB 607-T9H-C3WWAF2
ISO 607TWZC3P13
ISO 607TW-Z-C3-P13
GRW 607-ZC14-20GPRTN9HG340
WIB 607-Z-T9H-C3WWAF2
WIB 607-Z-T9H-P6-LT20
607T9HC3WWAF2
607ZC1420GPRTN9HG340
607ZT9HC3WWAF2
607T9HZC823AF12J
607ZT9HP6LT20
607BASIC

Used for

RC Nitro Engine Parts
ASP - 40 - Front Bearing 7-19-6mm
ASP - 40 All Models - Bearing 7-19-6mm
ASP - 46 - Front Bearing 7-19-6mm
ASP - 46 All Models - Bearing 7-19-6mm
ASP - 52 Old - Front Bearing 7-19-6mm
Axe Rossi - LSK - 21 - Bearing 7-19-6mm
Axe Rossi - R21 - 21 - Bearing 7-19-6mm
Axe Rossi - ROSSI - 21 - Bearing 7-19-6mm
Axial - Spec 1S Size 28 - Front Bearing 7-19-6mm
Axial - Spec 1S Size 32 - Front Bearing 7-19-6mm
Bluebird - 21 - Front Bearing 7-19-6mm
CEN - Matrix Ringer TR.28 - 25 - Bearing 7-19-6mm
CMB - 15 - Bearing 7-19-6mm
CMB - 21 - Front Bearing 7-19-6mm
CMB - 21 Evo Redhead 14mm Crank - Front Bearing 7-19-6mm
CMB - 21 LS Green Head - Front Bearing 7-19-6mm
CMB - EV02 - 67 - Bearing 7-19-6mm
CMB - EVO2 - 45 - Bearing 7-19-6mm
CMB - Lower Unit - 67 - Bearing 7-19-6mm
CMB - Red Head Marine - 21 - Bearing 7-19-6mm
CMB - Valvola 3.5CC - 35 - Bearing 7-19-6mm
Como - 21 All Models - Bearing 7-19-6mm
Como - 40 -51 - Front Bearing 7-19-6mm
Como - 40 All Models - Bearing 7-19-6mm
Dynamite - Platinum SG Off Road - 26 - Bearing 7-19-6mm
Dynamite - Platinum SG Off Road - 427 - Bearing 7-19-6mm
Dynamite - Platinum SG With PS Off Road - 0.21 - Bearing 7-19-6mm
Enya - 40 - Front Bearing 7-19-6mm
Enya - 4C - Old - 90 - Bearing 7-19-6mm
Force - 21 - Front Bearing 7-19-6mm
HP - 21 - Front Bearing 7-19-6mm
HP - 61 Old 1975 - Front Bearing 7-19-6mm
HP - Old/1975 - 40 - Bearing 7-19-6mm
HP - VT 4C - 61 - Bearing 7-19-6mm
HPI - Nitro Star K4.6 - 12 - Bearing 7-19-6mm
HPI - Pro RSC - 15 - Bearing 7-19-6mm
Irvine - 15 New Turbo - 2 Stroke - Front Bearing 7-19-6mm
JP Racing - B8 - 90 - Bearing 7-19-6mm
LRP Nitro - Z.21R - 12 - Bearing 7-19-6mm
Mac - 28 - Bearing 7-19-6mm
Mac - Inboard - 67 - Bearing 7-19-6mm
Mac - OB PTO - 84 - Bearing 7-19-6mm
Magnum - 40XL - 2 Stroke - Front Bearing 7-19-6mm
Magnum - 46 - 2 Stroke - Front Bearing 7-19-6mm
Magnum - 53 - 2 Stroke - Front Bearing 7-19-6mm
Magnum Power - XL - 36 - Bearing 7-19-6mm
Magnum Power - XL - 40 - Bearing 7-19-6mm
Magnum Power - XL - 52 - Bearing 7-19-6mm
MAZ - 52 All Models - Bearing 7-19-6mm
MDS - 40 All Models - Bearing 7-19-6mm
Moki - All - 61 - Bearing 7-19-6mm
MVVS - 21 - Front Bearing 7-19-6mm
MVVS - 40 GRRT - GFA - GFR - Front Bearing 7-19-6mm
MVVS - GFR - 77 - Bearing 7-19-6mm
MVVS - GFS - 40 - Bearing 7-19-6mm
MVVS - Glow Engine - 1.5 - Bearing 7-19-6mm
MVVS - GRRT - 40 - Bearing 7-19-6mm
Nosram - RS 21 Evo - 25 - Bearing 7-19-6mm
Nova Rossi - 2.0 CC Speed - Front Bearing 7-19-6mm
Nova Rossi - 7 SB - 3.5 Rex - Front Bearing 7-19-6mm
Nova Rossi - CX12 - Front Bearing 7-19-6mm
Nova Rossi - N528XR - 12 2.1CC - Bearing 7-19-6mm
Nova Rossi - N528XRP - 15 2.5CC - Bearing 7-19-6mm
Nova Rossi - N528XSP - 12 - Bearing 7-19-6mm
Nova Rossi - P5X - 15 2.5CC - Bearing 7-19-6mm
Nova Rossi - PR21 P5T/N Rex - Front Bearing 7-19-6mm
Nova Rossi - R528XR Rex - 21 3.5CC - Bearing 7-19-6mm
Nova Rossi - R528XRP Rex - 21 3.5CC - Bearing 7-19-6mm
Nova Rossi - R528XSP Rex - 21 3.5CC - Bearing 7-19-6mm
Nova Rossi - Rex 350 Short Stroke - Front Bearing 7-19-6mm
Nova Rossi - RS12 - Front Bearing 7-19mm
Nova Rossi - RX21P5X New - 21 3.5CC - Bearing 7-19-6mm
Nova Rossi - T528XR Top - 12 21CC - Bearing 7-19-6mm
Nova Rossi - T528XRP Top - 21 3.5CC - Bearing 7-19-6mm
Nova Rossi - T528XSP Top - 21 3.5CC - Bearing 7-19-6mm
OPS - 21 -40 -45 - Front Bearing 7-19-6mm
OPS - 3.5 -21 Pro - Front Bearing 7-19-6mm
OPS - 45 - Front Bearing 7-19-6mm
OPS - Old - 80 - Bearing 7-19-6mm
OS - 21 RX-B RX-M - Front Bearing 7-19-6mm
OS - 40 H - 2 Stroke - Front Bearing 7-19-6mm
OS - Max-H 40 - Front Bearing 7-19-6mm
OS - TM - 37 - Bearing 7-19-6mm
OS - TM - 91 - Bearing 7-19-6mm
OS - VG - 25 - Bearing 7-19-6mm
OS - VZ-B - 40 - Bearing 7-19-6mm
OS - VZ-R - 46 - Bearing 7-19-6mm
Picco - 15 - 2 Stroke - Front Bearing 7-19-6mm
Picco - 21 EXR - 2 Stroke - Front Bearing 7-19-6mm
Picco - 40 - 2 Stroke - Front Bearing 7-19-6mm
Picco - 40 Pylon - 2 Stroke - Front Bearing 7-19-6mm
Picco - 45 - 2 Stroke - Front Bearing 7-19-6mm
Picco - 45 EXR - 2 Stroke - Front Bearing 7-19-6mm
Picco - 45 Pylon - 2 Stroke - Front Bearing 7-19-6mm
Picco - F1 -P5 21 - Front Bearing 7-19-6mm
Picco - RS21 3.5cc Mega - Front Bearing 7-19-6mm
Racers - Axial - 15 - Bearing 7-19-6mm
Racers - Edge - 21 - Bearing 7-19-6mm
RB - 2.5cc 15 - Front Bearing 7-19-6mm
RB - 3.5cc 21 - Front Bearing 7-19-6mm
RB - RB C6 - 21 - Bearing 7-19-6mm
Reedy - VR - 21 - Front Bearing
Rex Nova Rossi - 7 SB - 3.5 - Front Bearing 7-19-6mm
Rex Nova Rossi - PR21 P5T/N - Front Bearing 7-19-6mm
Rossi - 21 - Front Bearing 7-19-6mm
Rossi - 21 Revo Marine - Front Bearing 7-19-6mm
SH - SH-21 Pro Competition Buggy - 90 - Bearing 7-19-6mm
STS - 21-30 - 51 - Bearing 7-19-6mm
Super Tigre - Bull Ring - 46 - Bearing 7-19-6mm
Super Tigre - G - 29 - Bearing 7-19-6mm
Super Tigre - G Sport W-Muffler - 60 - Bearing 7-19-6mm
Super Tigre - G21 - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - G29 - Front Bearing 7-19-6mm
Super Tigre - G49 Sport W-Muffler - Front Bearing 7-19-6mm
Super Tigre - G51 Ring - 34 - Bearing 7-19-6mm
Super Tigre - G60 - Front Bearing 7-19-6mm
Super Tigre - GS40 - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - GS40 Ring - 34 - Bearing 7-19-6mm
Super Tigre - GS45 - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - GS45 ABC - 40 - Bearing 7-19-6mm
Super Tigre - Marine - 45 - Bearing 7-19-6mm
Super Tigre - S - 40 - Bearing 7-19-6mm
Super Tigre - S - 71 - Bearing 7-19-6mm
Super Tigre - S40 ABC - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - S40 Ring - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - S45 Ring - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - S45K - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - SK - 18 - Bearing 7-19-6mm
Super Tigre - ST - 18 - Bearing 7-19-6mm
Super Tigre - ST - 45 - Bearing 7-19-6mm
Super Tigre - ST K - 56 - Bearing 7-19-6mm
Super Tigre - ST Old - 51 - Bearing 7-19-6mm
Super Tigre - ST51 - Front Bearing 7-19-6mm
Super Tigre - ST60 RC - Front Bearing 7-19-6mm
Super Tigre - ST-60K - CL RC W-Muffler - Front Bearing 7-19-6mm
Super Tigre - X - 21 - Bearing 7-19-6mm
Super Tigre - X21 - Front Bearing 7-19-6mm
Super Tigre - X40 - Front Bearing 7-19-6mm
Thunder Tiger - 21 O-B - 2 Stroke - Front Bearing 7-19-6mm
Thunder Tiger - Pro 21B - RC ABS-RC - Front Bearing 7-19-6mm
Webra - 32 Heli - Front Bearing 7-19-6mm
Webra - 40 - Front Bearing 7-19-6mm
