607-Z-MC45-T9H-AF12-J - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

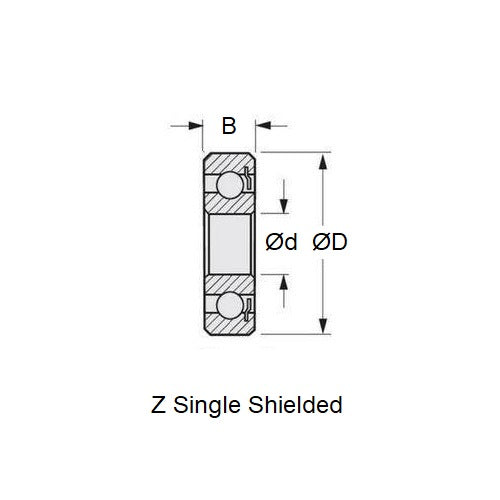

  • ID (d) : 7.000 mm + 0.000 / - 0.0075
    (Equiv. 0.276 in.)
  • OD (D) 19.000 mm + 0.000 / - 0.010
    (Equiv. 0.748 in.)
  • Width (B) 6.000 mm + 0.000 / - 0.125
    (Equiv. 0.236 in.)
  • Precision Grade Abec 1
  • Closure Type Z
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Oil
  • Lubrication Name AF12 Aeroshell Fluid 12
  • Basic Part 607
  • Limiting Speed 68800
  • Cage Type Polyamide
  • Static Load Rating KGf 91
  • Dynamic Load Rating KGf 238
  • Radii 0.30 mm
  • Inner Shoulder (UI) 9.00mm
  • Outer Shoulder (UO) 16.50 mm
  • Number of Balls 6
  • Clearance C823 (8 to 23)
  • Precision Grade Abec 1
  • Closure Type Z
  • Max Temperature 120 Deg. C
Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • ASP - 40 - Front Bearing 7-19-6mm
  • ASP - 40 All Models - Bearing 7-19-6mm
  • ASP - 46 - Front Bearing 7-19-6mm
  • ASP - 46 All Models - Bearing 7-19-6mm
  • ASP - 52 Old - Front Bearing 7-19-6mm
  • Axe Rossi - LSK - 21 - Bearing 7-19-6mm
  • Axe Rossi - R21 - 21 - Bearing 7-19-6mm
  • Axe Rossi - ROSSI - 21 - Bearing 7-19-6mm
  • Axial - Spec 1S Size 28 - Front Bearing 7-19-6mm
  • Axial - Spec 1S Size 32 - Front Bearing 7-19-6mm
  • Bluebird - 21 - Front Bearing 7-19-6mm
  • CEN - Matrix Ringer TR.28 - 25 - Bearing 7-19-6mm
  • CMB - 15 - Bearing 7-19-6mm
  • CMB - 21 - Front Bearing 7-19-6mm
  • CMB - 21 Evo Redhead 14mm Crank - Front Bearing 7-19-6mm
  • CMB - 21 LS Green Head - Front Bearing 7-19-6mm
  • CMB - EV02 - 67 - Bearing 7-19-6mm
  • CMB - EVO2 - 45 - Bearing 7-19-6mm
  • CMB - Lower Unit - 67 - Bearing 7-19-6mm
  • CMB - Red Head Marine - 21 - Bearing 7-19-6mm
  • CMB - Valvola 3.5CC - 35 - Bearing 7-19-6mm
  • Como - 21 All Models - Bearing 7-19-6mm
  • Como - 40 -51 - Front Bearing 7-19-6mm
  • Como - 40 All Models - Bearing 7-19-6mm
  • Dynamite - Platinum SG Off Road - 26 - Bearing 7-19-6mm
  • Dynamite - Platinum SG Off Road - 427 - Bearing 7-19-6mm
  • Dynamite - Platinum SG With PS Off Road - 0.21 - Bearing 7-19-6mm
  • Enya - 40 - Front Bearing 7-19-6mm
  • Enya - 4C - Old - 90 - Bearing 7-19-6mm
  • Force - 21 - Front Bearing 7-19-6mm
  • HP - 21 - Front Bearing 7-19-6mm
  • HP - 61 Old 1975 - Front Bearing 7-19-6mm
  • HP - Old/1975 - 40 - Bearing 7-19-6mm
  • HP - VT 4C - 61 - Bearing 7-19-6mm
  • HPI - Nitro Star K4.6 - 12 - Bearing 7-19-6mm
  • HPI - Pro RSC - 15 - Bearing 7-19-6mm
  • Irvine - 15 New Turbo - 2 Stroke - Front Bearing 7-19-6mm
  • JP Racing - B8 - 90 - Bearing 7-19-6mm
  • LRP Nitro - Z.21R - 12 - Bearing 7-19-6mm
  • Mac - 28 - Bearing 7-19-6mm
  • Mac - Inboard - 67 - Bearing 7-19-6mm
  • Mac - OB PTO - 84 - Bearing 7-19-6mm
  • Magnum - 40XL - 2 Stroke - Front Bearing 7-19-6mm
  • Magnum - 46 - 2 Stroke - Front Bearing 7-19-6mm
  • Magnum - 53 - 2 Stroke - Front Bearing 7-19-6mm
  • Magnum Power - XL - 36 - Bearing 7-19-6mm
  • Magnum Power - XL - 40 - Bearing 7-19-6mm
  • Magnum Power - XL - 52 - Bearing 7-19-6mm
  • MAZ - 52 All Models - Bearing 7-19-6mm
  • MDS - 40 All Models - Bearing 7-19-6mm
  • Moki - All - 61 - Bearing 7-19-6mm
  • MVVS - 21 - Front Bearing 7-19-6mm
  • MVVS - 40 GRRT - GFA - GFR - Front Bearing 7-19-6mm
  • MVVS - GFR - 77 - Bearing 7-19-6mm
  • MVVS - GFS - 40 - Bearing 7-19-6mm
  • MVVS - Glow Engine - 1.5 - Bearing 7-19-6mm
  • MVVS - GRRT - 40 - Bearing 7-19-6mm
  • Nosram - RS 21 Evo - 25 - Bearing 7-19-6mm
  • Nova Rossi - 2.0 CC Speed - Front Bearing 7-19-6mm
  • Nova Rossi - 7 SB - 3.5 Rex - Front Bearing 7-19-6mm
  • Nova Rossi - CX12 - Front Bearing 7-19-6mm
  • Nova Rossi - N528XR - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - N528XRP - 15 2.5CC - Bearing 7-19-6mm
  • Nova Rossi - N528XSP - 12 - Bearing 7-19-6mm
  • Nova Rossi - P5X - 15 2.5CC - Bearing 7-19-6mm
  • Nova Rossi - PR21 P5T/N Rex - Front Bearing 7-19-6mm
  • Nova Rossi - R528XR Rex - 21 3.5CC - Bearing 7-19-6mm
  • Nova Rossi - R528XRP Rex - 21 3.5CC - Bearing 7-19-6mm
  • Nova Rossi - R528XSP Rex - 21 3.5CC - Bearing 7-19-6mm
  • Nova Rossi - Rex 350 Short Stroke - Front Bearing 7-19-6mm
  • Nova Rossi - RS12 - Front Bearing 7-19mm
  • Nova Rossi - RX21P5X New - 21 3.5CC - Bearing 7-19-6mm
  • Nova Rossi - T528XR Top - 12 21CC - Bearing 7-19-6mm
  • Nova Rossi - T528XRP Top - 21 3.5CC - Bearing 7-19-6mm
  • Nova Rossi - T528XSP Top - 21 3.5CC - Bearing 7-19-6mm
  • OPS - 21 -40 -45 - Front Bearing 7-19-6mm
  • OPS - 3.5 -21 Pro - Front Bearing 7-19-6mm
  • OPS - 45 - Front Bearing 7-19-6mm
  • OPS - Old - 80 - Bearing 7-19-6mm
  • OS - 21 RX-B RX-M - Front Bearing 7-19-6mm
  • OS - 40 H - 2 Stroke - Front Bearing 7-19-6mm
  • OS - Max-H 40 - Front Bearing 7-19-6mm
  • OS - TM - 37 - Bearing 7-19-6mm
  • OS - TM - 91 - Bearing 7-19-6mm
  • OS - VG - 25 - Bearing 7-19-6mm
  • OS - VZ-B - 40 - Bearing 7-19-6mm
  • OS - VZ-R - 46 - Bearing 7-19-6mm
  • Picco - 15 - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 21 EXR - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 40 - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 40 Pylon - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 45 - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 45 EXR - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - 45 Pylon - 2 Stroke - Front Bearing 7-19-6mm
  • Picco - F1 -P5 21 - Front Bearing 7-19-6mm
  • Picco - RS21 3.5cc Mega - Front Bearing 7-19-6mm
  • Racers - Axial - 15 - Bearing 7-19-6mm
  • Racers - Edge - 21 - Bearing 7-19-6mm
  • RB - 2.5cc 15 - Front Bearing 7-19-6mm
  • RB - 3.5cc 21 - Front Bearing 7-19-6mm
  • RB - RB C6 - 21 - Bearing 7-19-6mm
  • Reedy - VR - 21 - Front Bearing
  • Rex Nova Rossi - 7 SB - 3.5 - Front Bearing 7-19-6mm
  • Rex Nova Rossi - PR21 P5T/N - Front Bearing 7-19-6mm
  • Rossi - 21 - Front Bearing 7-19-6mm
  • Rossi - 21 Revo Marine - Front Bearing 7-19-6mm
  • SH - SH-21 Pro Competition Buggy - 90 - Bearing 7-19-6mm
  • STS - 21-30 - 51 - Bearing 7-19-6mm
  • Super Tigre - Bull Ring - 46 - Bearing 7-19-6mm
  • Super Tigre - G - 29 - Bearing 7-19-6mm
  • Super Tigre - G Sport W-Muffler - 60 - Bearing 7-19-6mm
  • Super Tigre - G21 - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - G29 - Front Bearing 7-19-6mm
  • Super Tigre - G49 Sport W-Muffler - Front Bearing 7-19-6mm
  • Super Tigre - G51 Ring - 34 - Bearing 7-19-6mm
  • Super Tigre - G60 - Front Bearing 7-19-6mm
  • Super Tigre - GS40 - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - GS40 Ring - 34 - Bearing 7-19-6mm
  • Super Tigre - GS45 - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - GS45 ABC - 40 - Bearing 7-19-6mm
  • Super Tigre - Marine - 45 - Bearing 7-19-6mm
  • Super Tigre - S - 40 - Bearing 7-19-6mm
  • Super Tigre - S - 71 - Bearing 7-19-6mm
  • Super Tigre - S40 ABC - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - S40 Ring - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - S45 Ring - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - S45K - 2 Stroke - Front Bearing 7-19-6mm
  • Super Tigre - SK - 18 - Bearing 7-19-6mm
  • Super Tigre - ST - 18 - Bearing 7-19-6mm
  • Super Tigre - ST - 45 - Bearing 7-19-6mm
  • Super Tigre - ST K - 56 - Bearing 7-19-6mm
  • Super Tigre - ST Old - 51 - Bearing 7-19-6mm
  • Super Tigre - ST51 - Front Bearing 7-19-6mm
  • Super Tigre - ST60 RC - Front Bearing 7-19-6mm
  • Super Tigre - ST-60K - CL RC W-Muffler - Front Bearing 7-19-6mm
  • Super Tigre - X - 21 - Bearing 7-19-6mm
  • Super Tigre - X21 - Front Bearing 7-19-6mm
  • Super Tigre - X40 - Front Bearing 7-19-6mm
  • Thunder Tiger - 21 O-B - 2 Stroke - Front Bearing 7-19-6mm
  • Thunder Tiger - Pro 21B - RC ABS-RC - Front Bearing 7-19-6mm
  • Webra - 32 Heli - Front Bearing 7-19-6mm
  • Webra - 40 - Front Bearing 7-19-6mm

Cross References

  • Nova Rossi 17003
  • Reedy 28012
  • BOSCH 3600905012
  • WIB 607-T9H-C3WWAF2
  • ISO 607TWZC3P13
  • ISO 607TW-Z-C3-P13
  • GRW 607-ZC14-20GPRTN9HG340
  • WIB 607-Z-T9H-C3WWAF2
  • WIB 607-Z-T9H-P6-LT20
  • 607T9HC3WWAF2
  • 607ZC1420GPRTN9HG340
  • 607ZT9HC3WWAF2
  • 607T9HZC823AF12J
  • 607ZT9HP6LT20
  • 607 Basic Size Ref
View full details

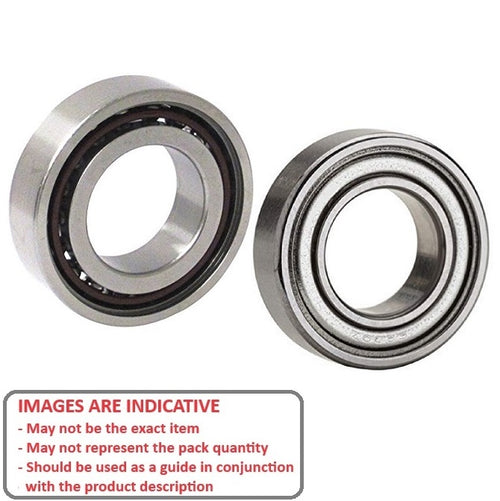

607-Z-MC45-T9H-AF12-JDiagram607-Z-MC45-T9H-AF12-JImage
