RPO-079-080A-SP15 (20 Pcs)

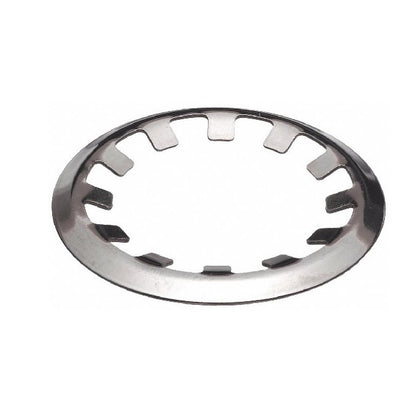

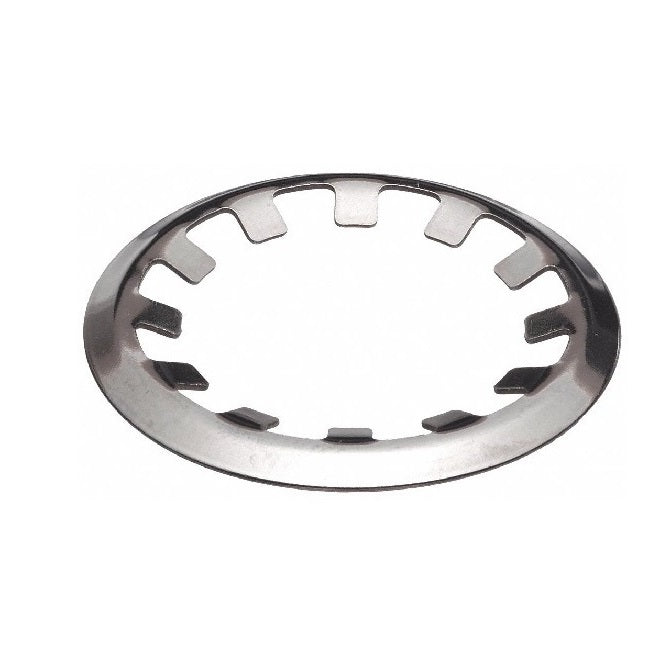

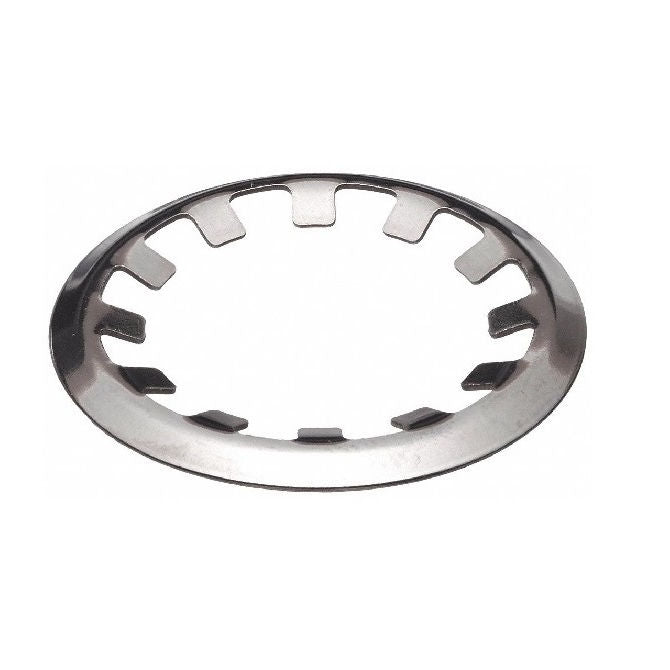

Push On Retaining Rings - 7.9x7.95x15.29 mm - Stainless Steel Grade PH15-7-17

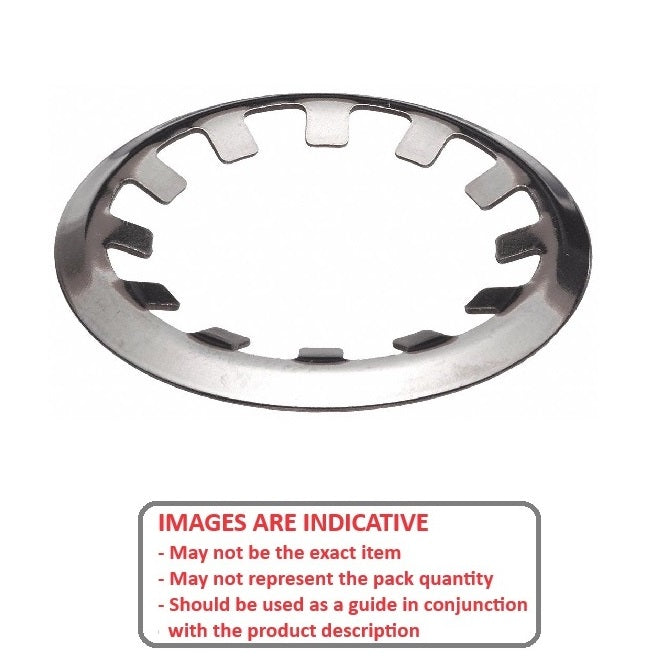

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Price:
$7.14 AUD
$7.14 AUD
per 20
Qty: 20 available now (400 pcs)
Order 50 or more (1000 pcs) for $6.43 AUD per 20
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 31, 2025

Couldn't load pickup availability

Base Category: Retaining Rings - Push On

Top Level Category: Retaining Rings - Push On - Stainless Steel

Product Details:

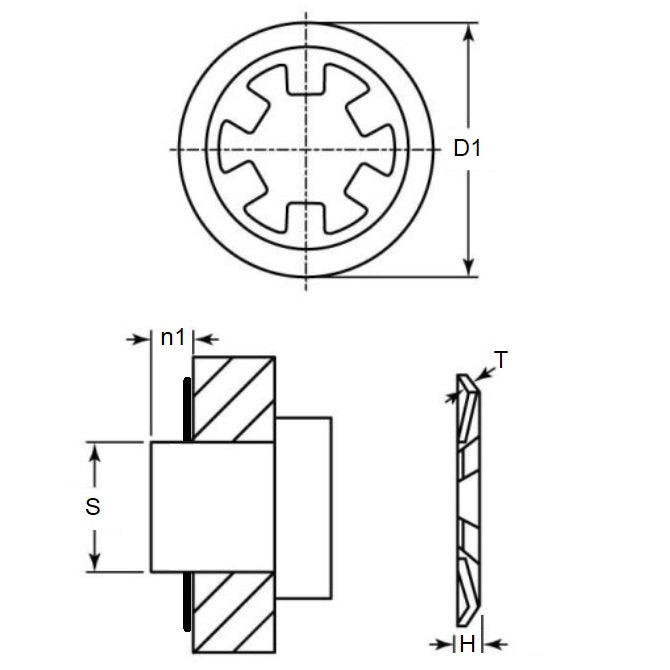

Min shaft size (s1): 7.90mm
(7.90mm is 0.311 in.)

Stainless Steel Grade PH15-7-17
  • Max Shaft Size (s2): 7.95mm
    (7.95mm is 0.313 in.)
  • Outside diameter (D1): 15.29mm
    (15.29mm is 0.602 in.)
  • Min shaft extension (n1): 1.88mm
  • Material Thickness (t): 0.25mm
  • Approx. Thrust Load: 80kg
  • Number of prongs: 6
  • Approx. Push On Force: 22kg

Brand: MBA
Country of Origin: GB

Alternative Parts Include: S5821, ExaktKey, NoCor, Springmaster, XOSpring

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
