SHLD050-004-SKT-S416 (2 Pcs)

Shoulder Screws - 5x4 mm - M4x0.7 - Stainless Steel AISI 416 Rc 36-42

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$11.86 AUD
$22.54 AUD $11.86 AUD
per 2
Qty: 1 available now (2 pcs)
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Screws - Shoulder

Top Level Category: Screws - Shoulder - Socket Head - 416 Stainless

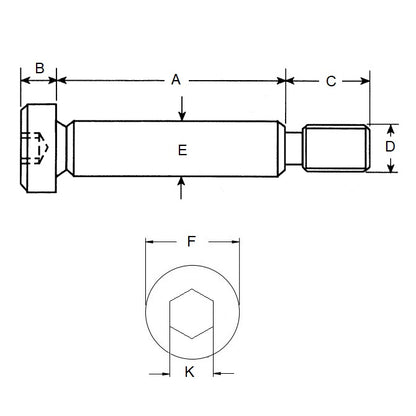

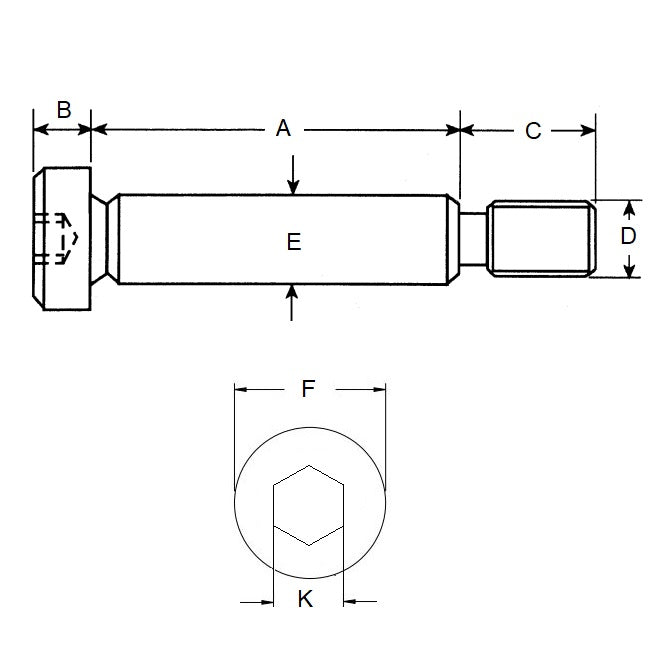

Product Details:

Shoulder Diameter (E): 5.000mm
- 0.013 / - 0.038
(5.000mm is 0.197 in.)

Stainless Steel AISI 416 Rc 36-42
  • Shoulder Length (A): 4.000mm
    + 0.060 / - 0.000
    (4.000mm is 0.157 in.)
  • Thread (D): M4x0.7
  • Max. Thread Length (C): 5.00mm
  • Head Height (B): 4.00mm
  • Head Diameter (F): 8.00mm
  • Allen Key Size: 2.50mm
  • 26-32 HRC (Tensile Strength: 850-1000 N/mm2)

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: SHSS4-4, SHSS44

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
