Screws - Shoulder - Socket Head - 416 Stainless

Screws -> Shoulder -> Socket Head -> 416 Stainless

There are 2 products in the sub-categories of Screws - Shoulder - Socket Head - 416 Stainless. Browse the Screws - Shoulder - Socket Head - 416 Stainless products table.

Category Details

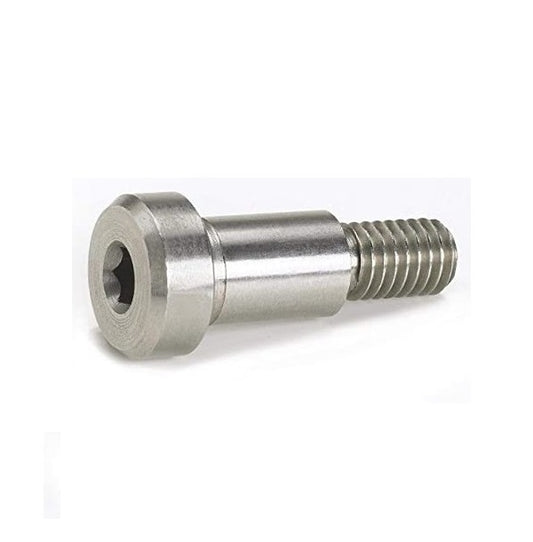

A selection of 416 Stainless Socket Head Shoulder Screws. 416 High Carbon Stainless Steel

  • Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Screws - Shoulder - Socket Head - 416 Stainless category on the Small Parts & Bearings online store.
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (C) Head Height (B) Head Diameter (F) Indicative
Shoulder Diameter (E)
4.000
mm
- 0.013 / - 0.038
(Equiv. 0.157 in.)
Shoulder Length (A)
4.000
mm
+ 0.060 / - 0.000
(Equiv. 0.157 in.)
Thread (D)
M3x0.5

Max. Thread Length (C)
4.00
mm
Head Height (B)
3.00
mm
Head Diameter (F)
6.00
mm
Shoulder Screws - 4x4 mm - M3x0.5 Socket Head - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Allen Key Size: 2.00 mm
Part Number: SHLD040-004-SKT-S416
Shoulder Screws - 4x4 mm - M3x0.5 Socket Head - Stainless Steel AISI 416 Rc 36-42 Screw
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.83 AUD
$18.67 AUD $9.83 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (C) Indicative
Shoulder Diameter (E)
4.000
mm
- 0.013 / - 0.038
(Equiv. 0.157 in.)
Shoulder Length (A)
4.000
mm
+ 0.060 / - 0.000
(Equiv. 0.157 in.)
Thread (D)
M3x0.5

Max. Thread Length (C)
4.00
mm
Shoulder Screws - 4x4 mm - M3x0.5 Socket Head - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Head Height (B): 3.00 mm    Head Diameter (F): 6.00 mm    Allen Key Size: 2.00 mm
Part Number: SHLD040-004-SKT-S416
Shoulder Screws - 4x4 mm - M3x0.5 Socket Head - Stainless Steel AISI 416 Rc 36-42 Screw
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.83 AUD
$18.67 AUD $9.83 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shoulder Diameter (E)
5.000
mm
- 0.013 / - 0.038
(Equiv. 0.197 in.)
Shoulder Length (A)
4.000
mm
+ 0.060 / - 0.000
(Equiv. 0.157 in.)
Thread (D)
M4x0.7

Max. Thread Length (C)
5.00
mm
Head Height (B)
4.00
mm
Head Diameter (F)
8.00
mm
Shoulder Screws - 5x4 mm - M4x0.7 Socket Head - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Allen Key Size: 2.50 mm
Part Number: SHLD050-004-SKT-S416 (2 Pcs)
Shoulder Screws - 5x4 mm - M4x0.7 Socket Head - Stainless Steel AISI 416 Rc 36-42 Screw
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$11.86 AUD
$22.54 AUD $11.86 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shoulder Diameter (E)
5.000
mm
- 0.013 / - 0.038
(Equiv. 0.197 in.)
Shoulder Length (A)
4.000
mm
+ 0.060 / - 0.000
(Equiv. 0.157 in.)
Thread (D)
M4x0.7

Max. Thread Length (C)
5.00
mm
Shoulder Screws - 5x4 mm - M4x0.7 Socket Head - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Head Height (B): 4.00 mm    Head Diameter (F): 8.00 mm    Allen Key Size: 2.50 mm
Part Number: SHLD050-004-SKT-S416 (2 Pcs)
Shoulder Screws - 5x4 mm - M4x0.7 Socket Head - Stainless Steel AISI 416 Rc 36-42 Screw
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$11.86 AUD
$22.54 AUD $11.86 AUD
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
