W0048-T-010-012-WC-S2 (5 Pcs)

Name: W0048-T-010-012-WC-S2 (5 Pack) - Spring Washers - 4.76x9.53x1.19 mm Curved - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Washer
Brand: MBA
SKU: W0048T010012WCS2
Price: 3.23 AUD
Availability: InStock

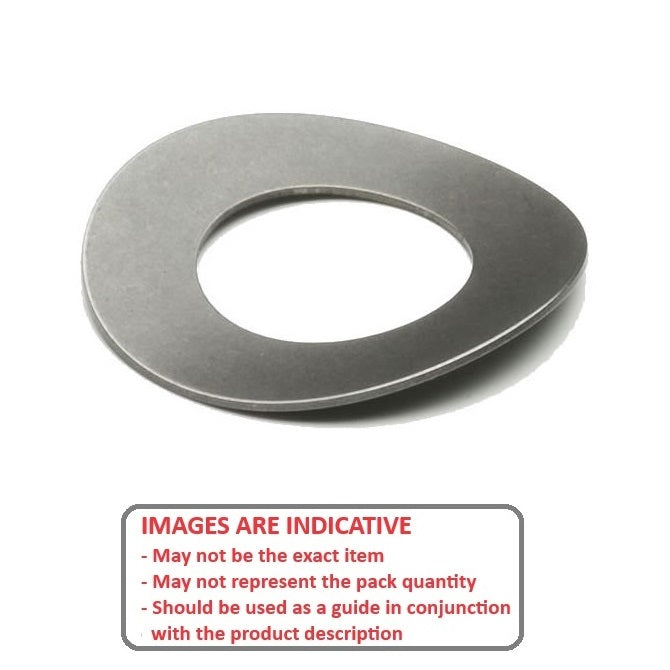

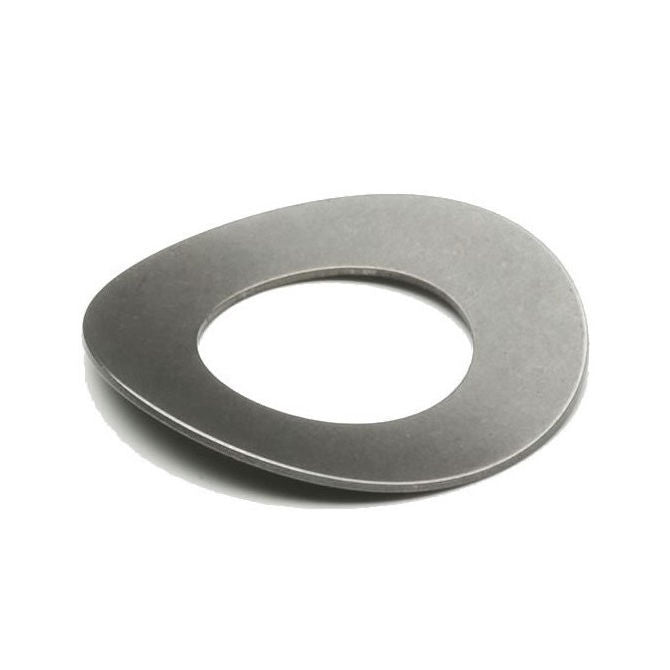

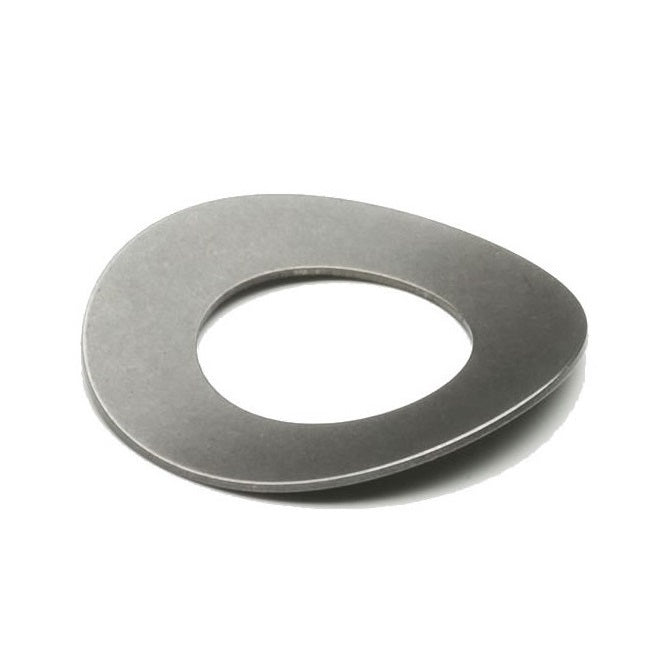

Spring Washers - 4.76x9.53x1.19 mm Curved - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Washer

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Washers - Spring - Curved - Stainless Steel

Additional resources:
Assortment Kits
Screws

Price:

$3.23 AUD

~~$3.87 AUD~~ $3.23 AUD

Excludes GST and overseas Taxes & Duties

per 5
Qty: 227 packs (1135 pcs) available now
Order 50 or more packs (250 pcs) for $2.91 AUD per 5

Product Details

Additional stock available from USA subject to Prior Sale = 22922

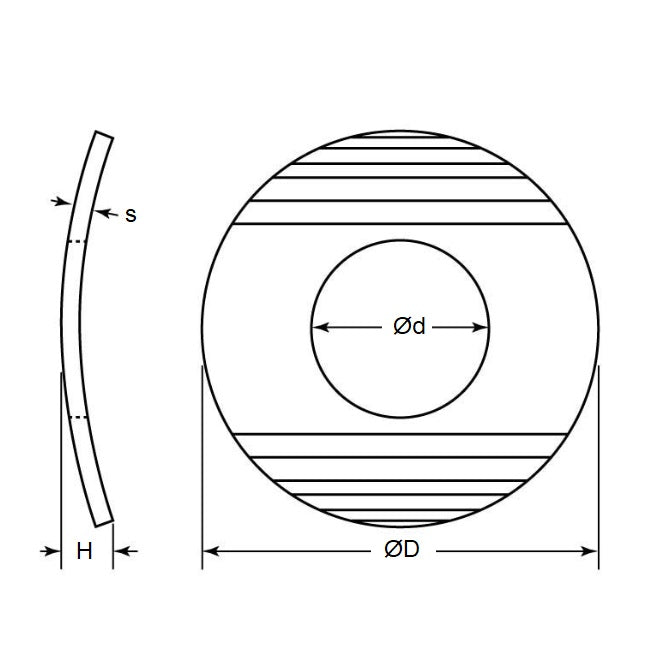

Nominal Inside Diameter (B): 4.76mm
_{+ 0.300 / - 0.000}
_{(4.76mm is 0.187 in.)}

Stainless Steel 301 (Similar to A2, 302, 304, 18-8)

Nominal Inside Diameter (B): 4.76mm
_{+ 0.300 / - 0.000}
_{(4.76mm is 0.187 in.)}
Nominal Outside Diameter (A): 9.53mm
_{+ 0.000 / - 0.45}
_{(9.53mm is 0.375 in.)}
Nom. Height (C): 1.19mm
_{(1.19mm is 0.047 in.)}
Thickness (D): 0.23mm
Info: Made In USA
Type: Curved DIN 137 Type A
Nominal Screw Size: 10-24, 10-32, 3/16
Actual ID (Ref): 5.1mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

NoCor CW-190-009-SS
Small Parts WCX-190
U190-0090-S
U1900090S
CW190009SS
WCX190
A7X9-1W03709
A7X91W03709

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
