W0048-T-010-012-WC-S2 - Datasheet
MBA
Category Information

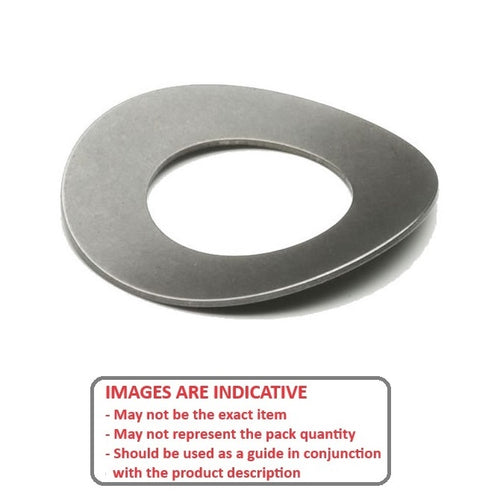

Washers - Spring - Curved - Stainless SteelStainless Steel Curved Spring Washers. Stainless steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- ID and OD are long axis dimensions

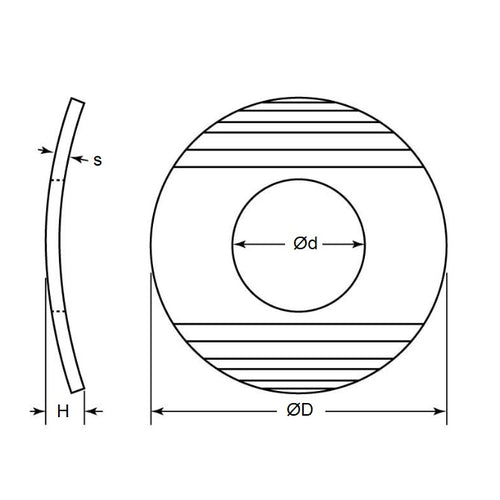

Product Data
- Nominal Inside Diameter (B)
:
4.76
mm
+ 0.300 / - 0.000
(Equiv. 0.187 in.) - Nominal Outside Diameter (A)
9.53
mm
+ 0.000 / - 0.45
(Equiv. 0.375 in.) - Nom. Height (C)
1.19
mm
(Equiv. 0.047 in.) - Thickness (D) 0.23 mm
- Info Made In USA
- Type Curved DIN 137 Type A
- Nominal Screw Size 10-24, 10-32, 3/16
- Actual ID (Ref) 5.1 mm
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor CW-190-009-SS
- Small Parts WCX-190
- U190-0090-S
- U1900090S
- CW190009SS
- WCX190
- A7X9-1W03709
- A7X91W03709
