CS-3708-0762-40-M-G

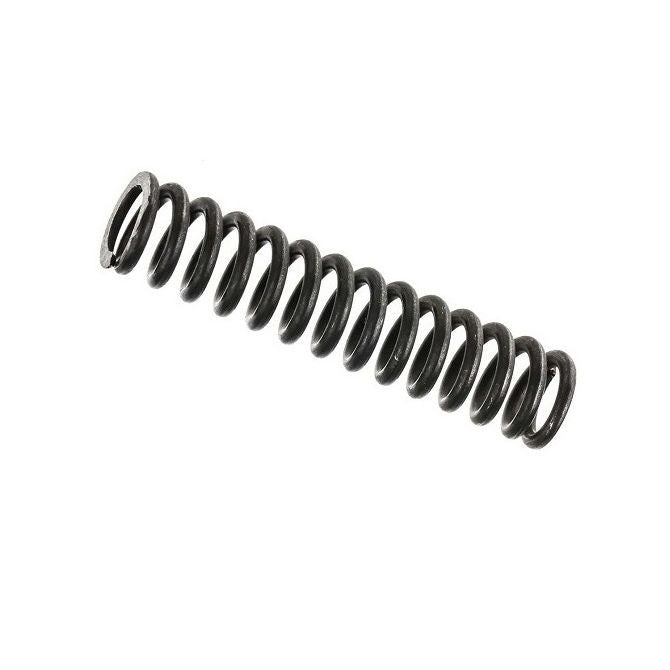

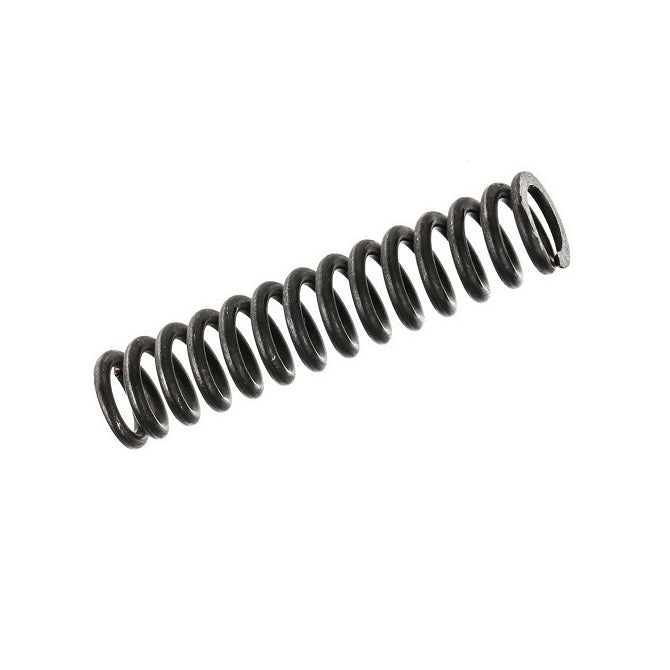

Compression Springs - 37.08x76.2x4.01 mm Music Wire - Carbon Spring Steel

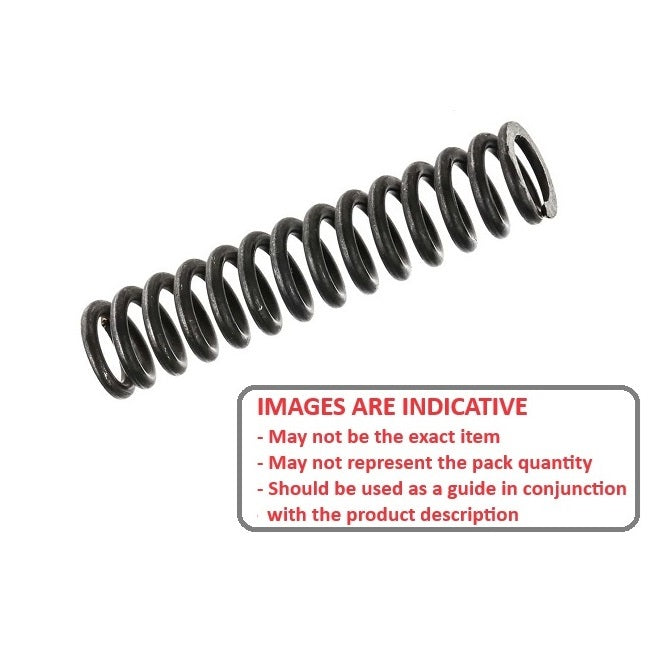

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Compression Springs - 37.08x76.2x4.01 mm - Spring Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Spings Catalogue PDF
Assortment Kits
Price:
$18.32 AUD
$21.98 AUD $18.32 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $16.49 AUD
Backorder now! Backorders for more than the stock quantity are expected before Dec 22, 2025

Base Category: Springs - Compression

Top Level Category: Springs - Compression - Music Wire

Product Details

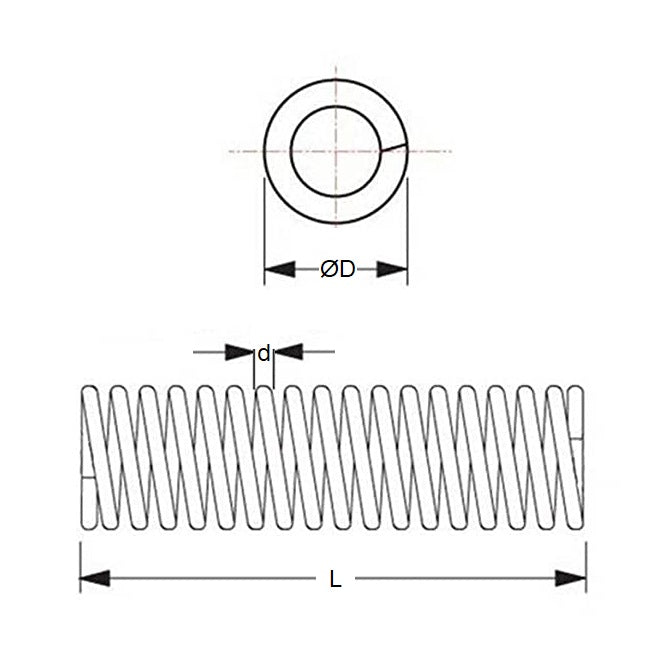

Spring OD (D0): 37.08mm
+/- 1.02
(37.08mm is 1.46 in.)

Carbon Spring Steel
  • Spring OD (D0): 37.08mm
    +/- 1.02
    (37.08mm is 1.46 in.)
  • Free Length (L0): 76.2mm
    +/- 2.54
    (76.2mm is 3 in.)
  • Wire Diameter (d): 4.01mm
    +/- 0.0254
    (4.01mm is 0.158 in.)
  • Rate (P/f): 11.2N/mm
  • Solid Height (Sh): 36.400mm
  • Approx. ID: 29.1mm
  • End Type: Ground Flush

Brand: MBA
Country of Origin: AU

Product Compliance and Data

Similar to

  • ASI C1460-158-3000
  • C14601583000

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
